MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-115

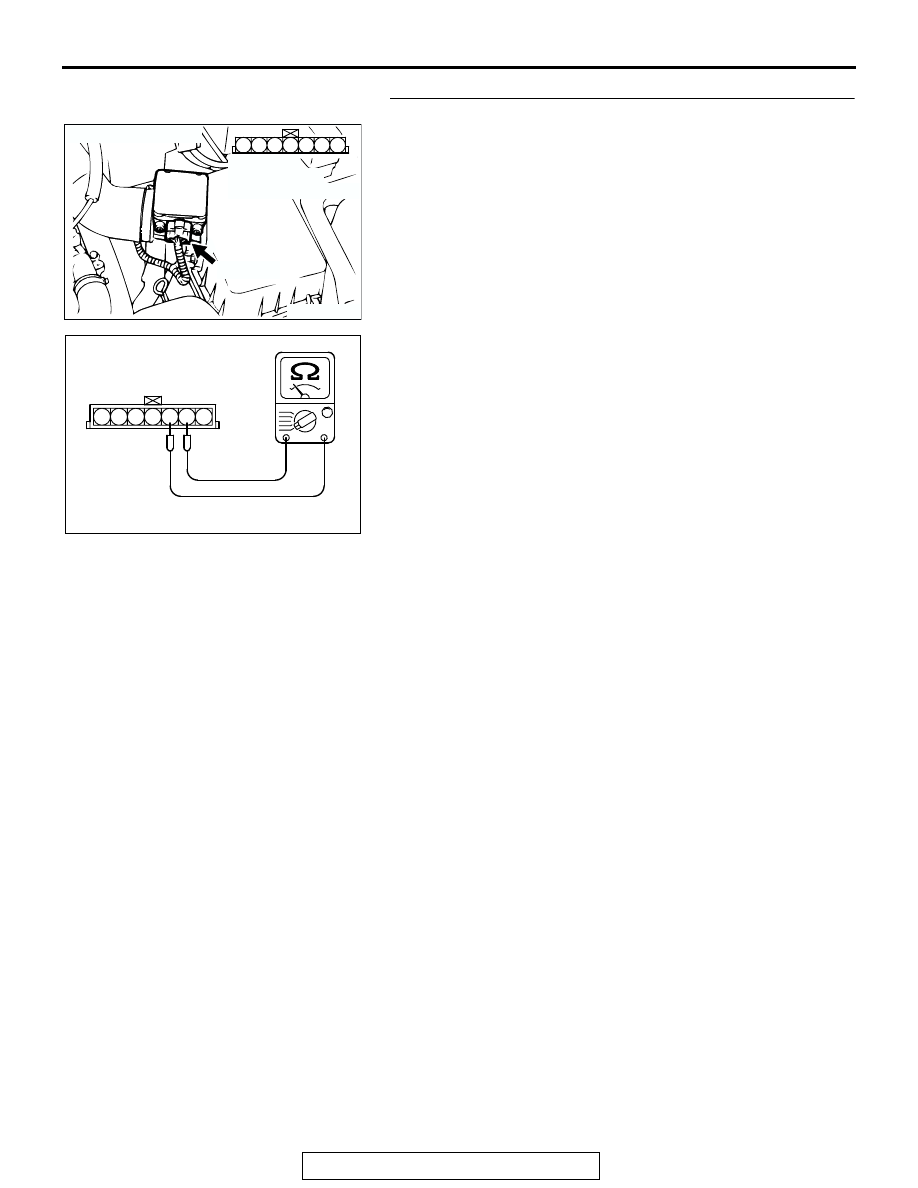

STEP 3. Check the intake air temperature sensor.
(1) Disconnect the intake air temperature sensor connector

B-14.

(2) Measure the resistance between intake air temperature

sensor side connector terminal No. 5 and No. 6.

• There should be continuity. (0.30 − 20 kΩ)

Q: Is the measured resistance between 0.30 and 20 k

Ω?

YES : Go to Step 4.
NO :  Replace the volume airflow sensor. Then go to Step 6.

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000319AB

1 2 3 4 5 6 7

INTAKE AIR TEMPERATURE
SENSOR SIDE CONNECTOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-116

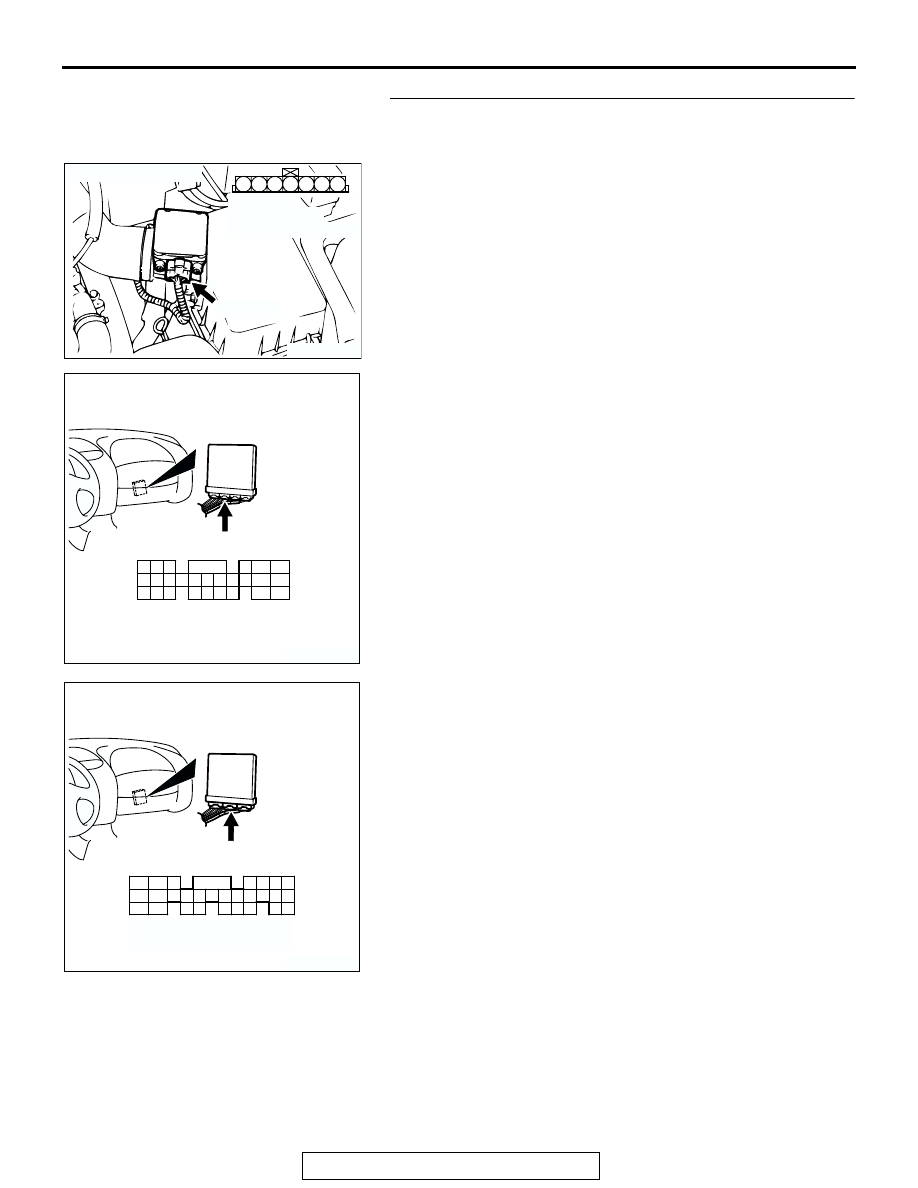

STEP 4. Check for short circuit to ground between intake
air temperature sensor connector B-14 and ECM
connector C-58 <M/T> or PCM connector C-55 <A/T>.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it. Then go to Step 6.

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-117

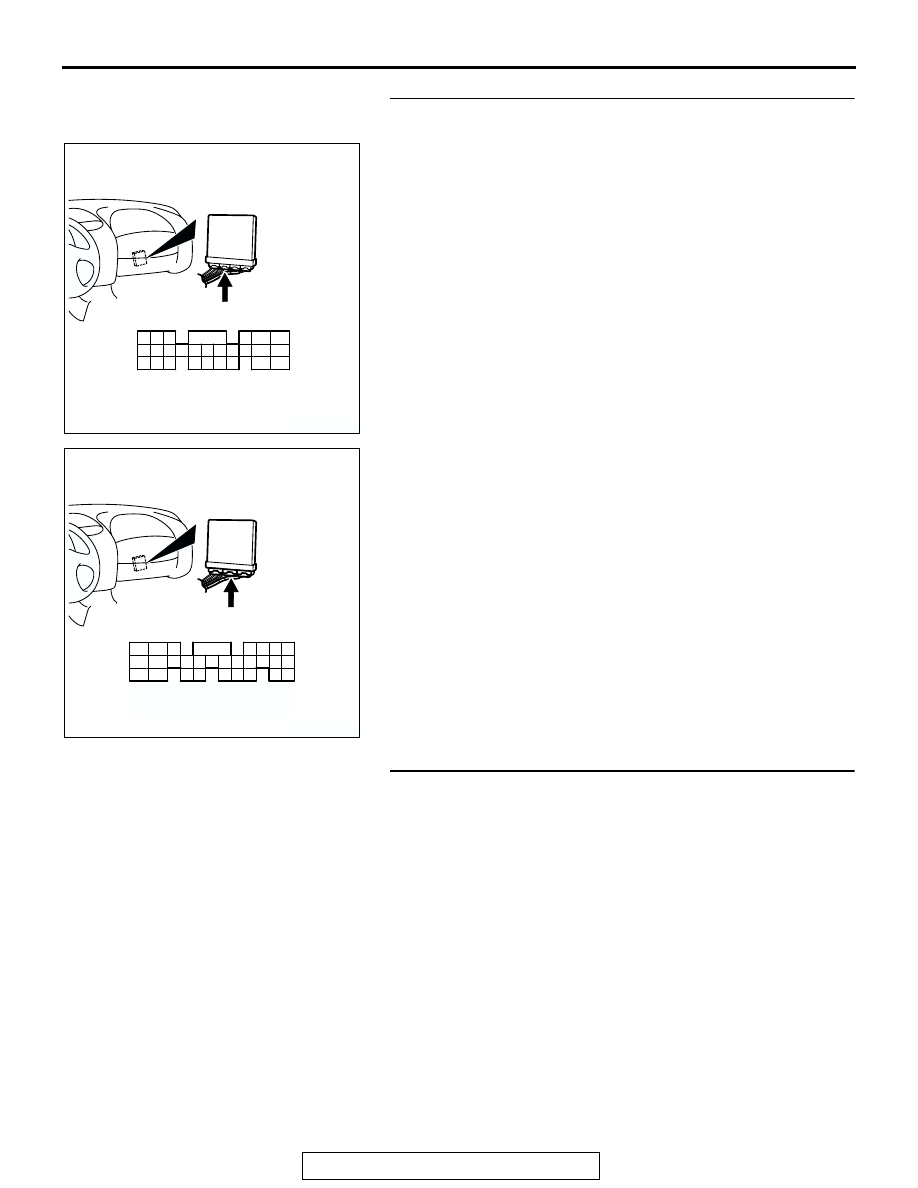

STEP 5. Check connector C-58 at ECM <M/T> or connector
C-55 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Replace the ECM or PCM. Then go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

STEP 6. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-7

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0112 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK300462

42

43

48

49

50

51

52

53

54

55

56

57

46 45 44

58

59

60

61

62

63

64

65

66

47

41

CONNECTOR: C-55 <A/T>

C-55 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300748

65

43
50

42
49

41
48
60

61

64

46

47

58

59

67

68

45

56
66

52 51

44

53

62

54

63

57

55

CONNECTOR: C-58 <M/T>

AB

C-58 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-118

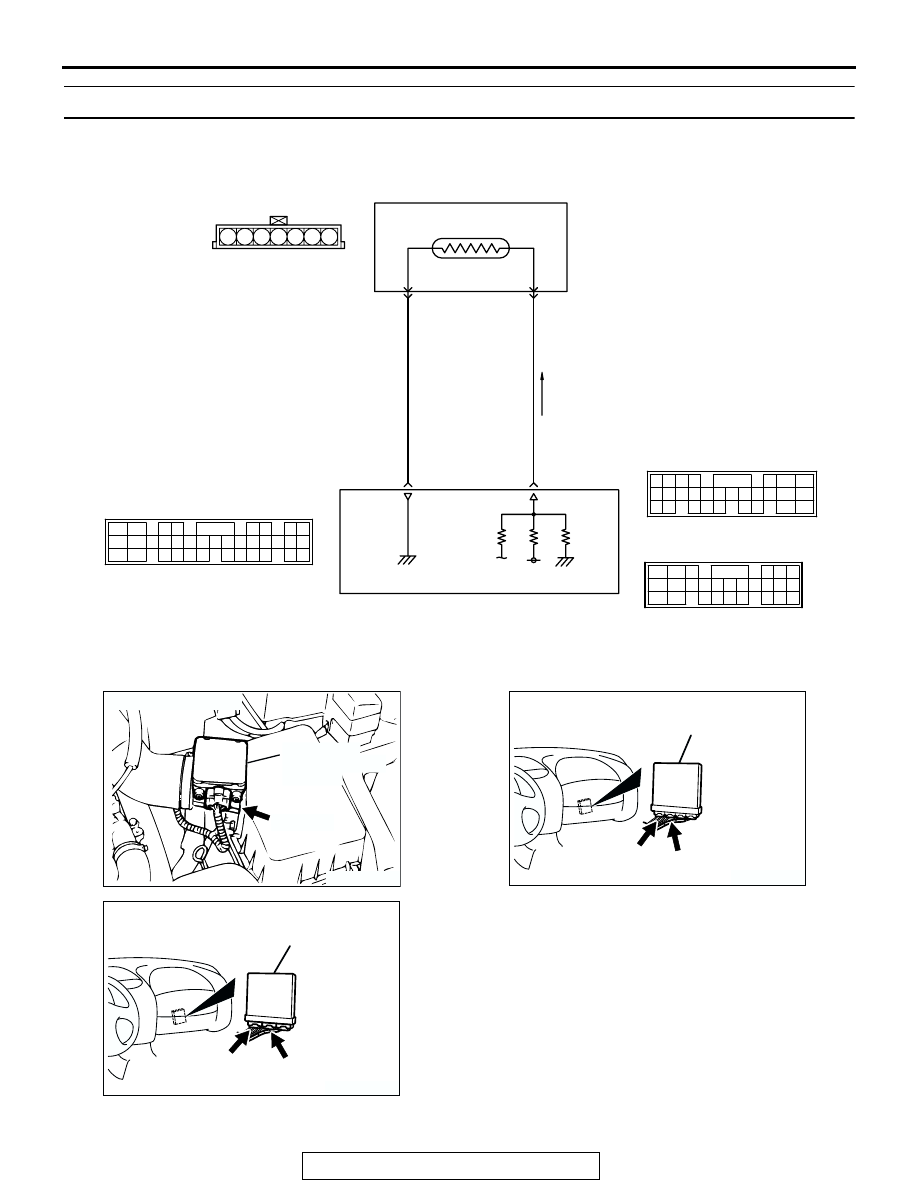

DTC P0113: Intake air temperature Circuit High Input

.

AK300838

2 3

7

4 5 6

1

BR

O

W

N

RED-BLUE

34 <M/T>*1
16 <A/T>*3

62 <M/T>*2
64 <A/T>*4

B-14

INTAKE AIR TEMPERATURE SENSOR
(INCORPORATED IN VOLUME
AIRFLOW SENSOR)

ENGINE CONTROL MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL MODULE (PCM) <A/T>

5

6

5 V

65

43
50

42
49

41
48
60 61

64

46 47
58 59
67 68

45

56
66

52

51

44

53

62

54

63

57

55

C-58 <M/T>
(MU803782)

C-55 <A/T>
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

Intake Air Temperature Sensor Circuit

C-51 <M/T>, C-52 <A/T>
         (MU803784)

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

NOTE
*1: ECM connector C-51 <M/T>
*2: ECM connector C-58 <M/T>
*3: PCM connector C-52 <A/T>
*4: PCM connector C-55 <A/T>

AK300053

CONNECTOR: B-14

AD

B-14 (B)

INTAKE AIR
TEMPERATURE
SENSOR

AK300091

CONNECTORS: C-51, C-58 <M/T>

ECM

AB

C-51 (GR)

C-58 (GR)

AK300244

CONNECTORS: C-52, C-55 <A/T>

AB

PCM

C-52 (GR)

C-55 (GR)
