MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-103

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 76°C

(169

°F).

• Repeat 5 or more times: drive

*1

, stop

*2

.

Drive

*1

: vehicle speed higher than 50 km/h (31

mph) lasting a total of more than 60 seconds.

Stop

*2

: vehicle speed lower than 1.5 km/h (1.0

mph) lasting more than 30 seconds.

Judgement Criteria

• Changes in the intake air temperature is lower

than 1

°C (1.8°F).

.

OBD-ll DRIVE CYCLE PATTERN
Refer to , Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13B-7

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Intake air temperature sensor failed.

• Open or shorted intake air temperature sensor

circuit, or loose connector.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

END

YES

NO

NO

NO

START

MONITORING

CONDITION

YES

MALFUNCTION

GOOD

F1: COUNTER OF A DRIVING STATE.
F2: COUNTER OF A STOP STATE.

INTAKE AIR TEMP.

CHANGES

GO/STOP OPERATION

FOR SPECIFIED TIMES

YES

AK301423

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-104

• MB991827: USB Cable

• MB991911: Main Harness B

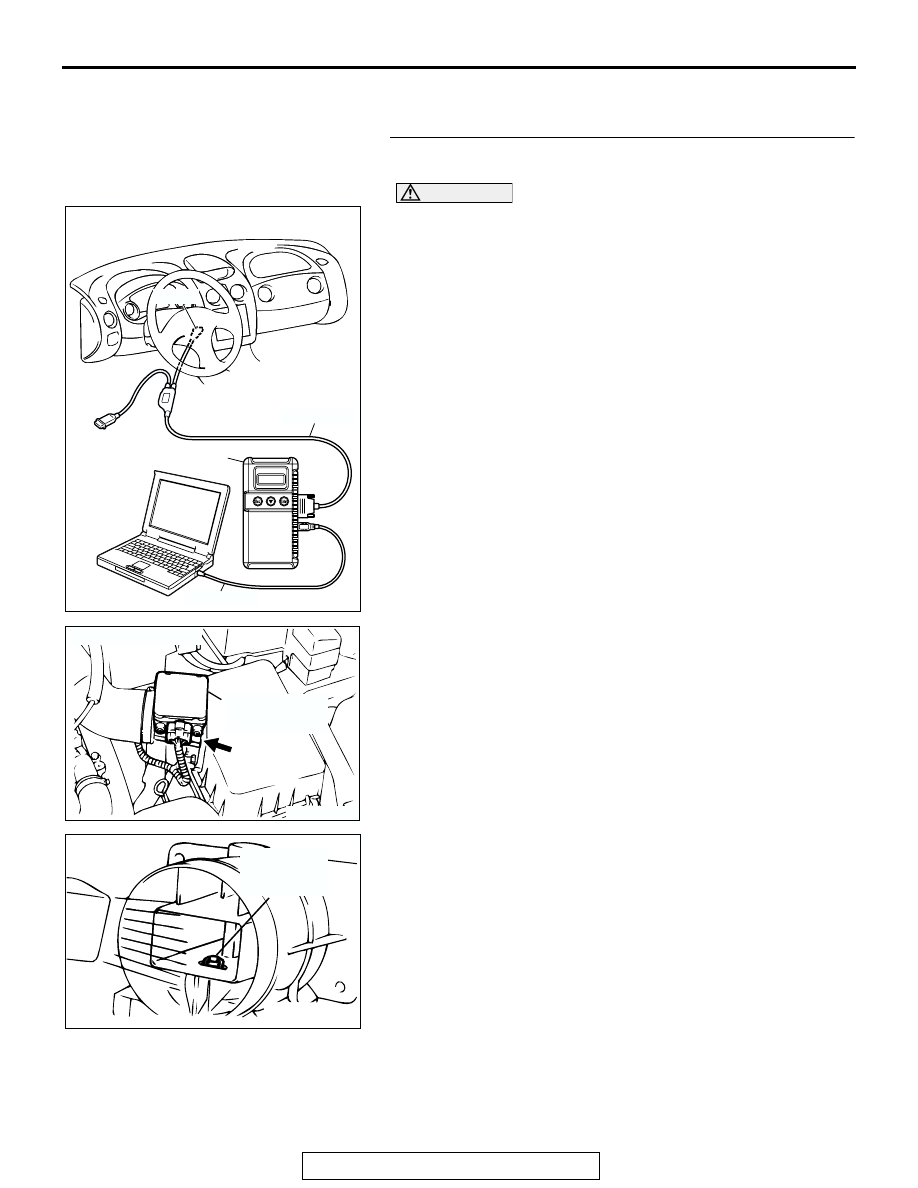

STEP 1. Using scan tool MB991958, check data list item 13:
Intake Air Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Remove the air intake hose from the volume airflow sensor.
(3) Turn the ignition switch to the "ON" position.
(4) Set scan tool MB991958 to the data reading mode for item

13, Intake Air Temperature Sensor.

(5) Heating the sensor using a hair drier.

• The indicated temperature increases.

NOTE: Do not allow it to increase over 80

°

C (176

°

F).

(6) Turn the ignition switch to the "LOCK" (OFF) position.
(7) Attach the air intake hose.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

ACX02480

CONNECTOR : B-14

AG

INTAKE AIR
TEMPERATURE
SENSOR

AKX01621 AB

INTAKE AIR
TEMPERATURE
SENSOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-105

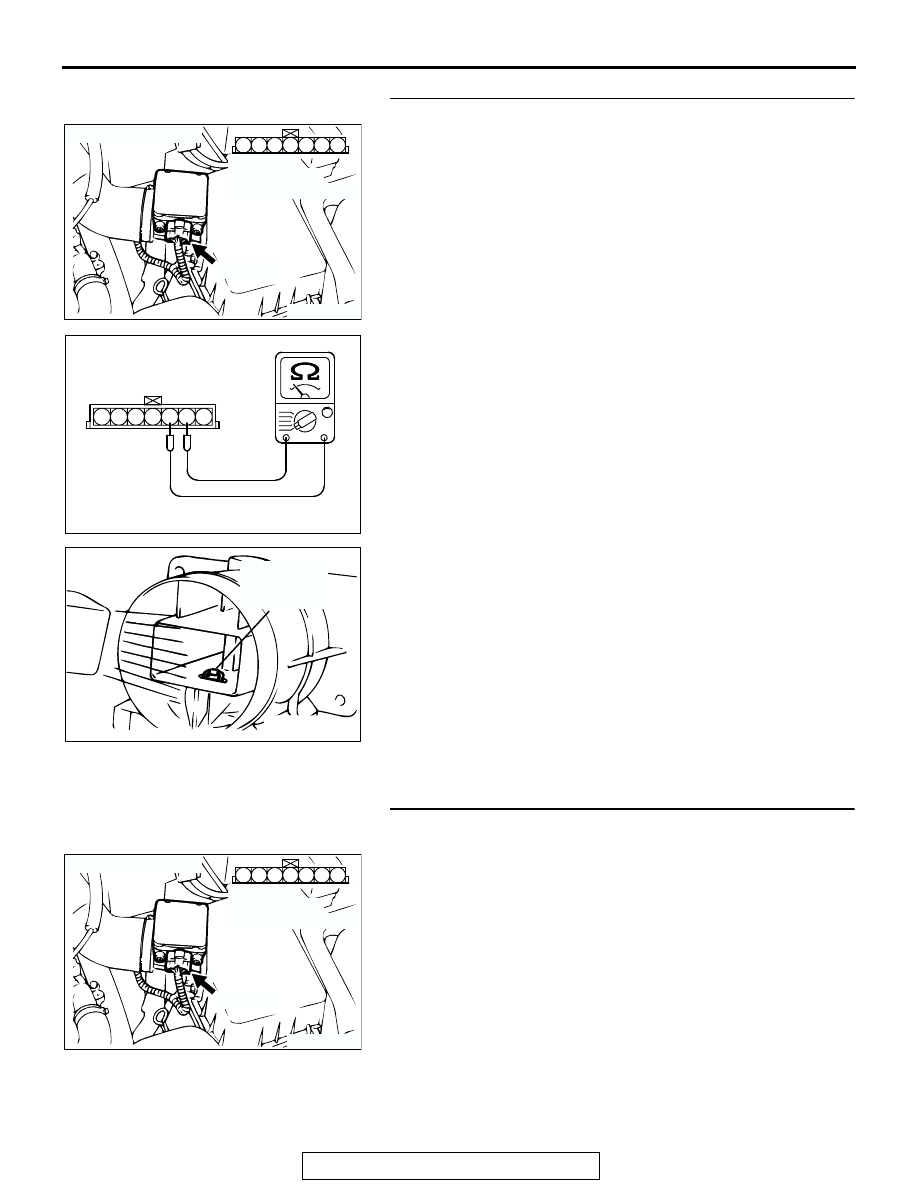

STEP 2. Check the intake air temperature sensor.
(1) Disconnect the intake air temperature sensor connector

B-14.

(2) Measure the resistance between intake air temperature

sensor side connector terminal No. 5 and No. 6.

(3) Measure resistance while heating the sensor using a hair

drier.

Standard value:

13

− 17 kΩ [at −20°C (−4°F)]

5.3

− 6.7 kΩ [at 0°C (32°F)]

2.3

− 3.0 kΩ [at 20°C (68°F)]

1.0

− 1.5 kΩ [at 40°C (104°F)]

0.56

− 0.76 kΩ [at 60°C (140°F)]

0.30

− 0.42 kΩ [at 80°C (176°F)]

Q: Is the resistance at the standard value?

YES : Go to Step 3.
NO :  Replace the volume airflow sensor. Then go to Step 9.

STEP 3. Check connector B-14 at the intake air
temperature sensor for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK000319AB

1 2 3 4 5 6 7

INTAKE AIR TEMPERATURE
SENSOR SIDE CONNECTOR

AKX01621 AB

INTAKE AIR
TEMPERATURE
SENSOR

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-106

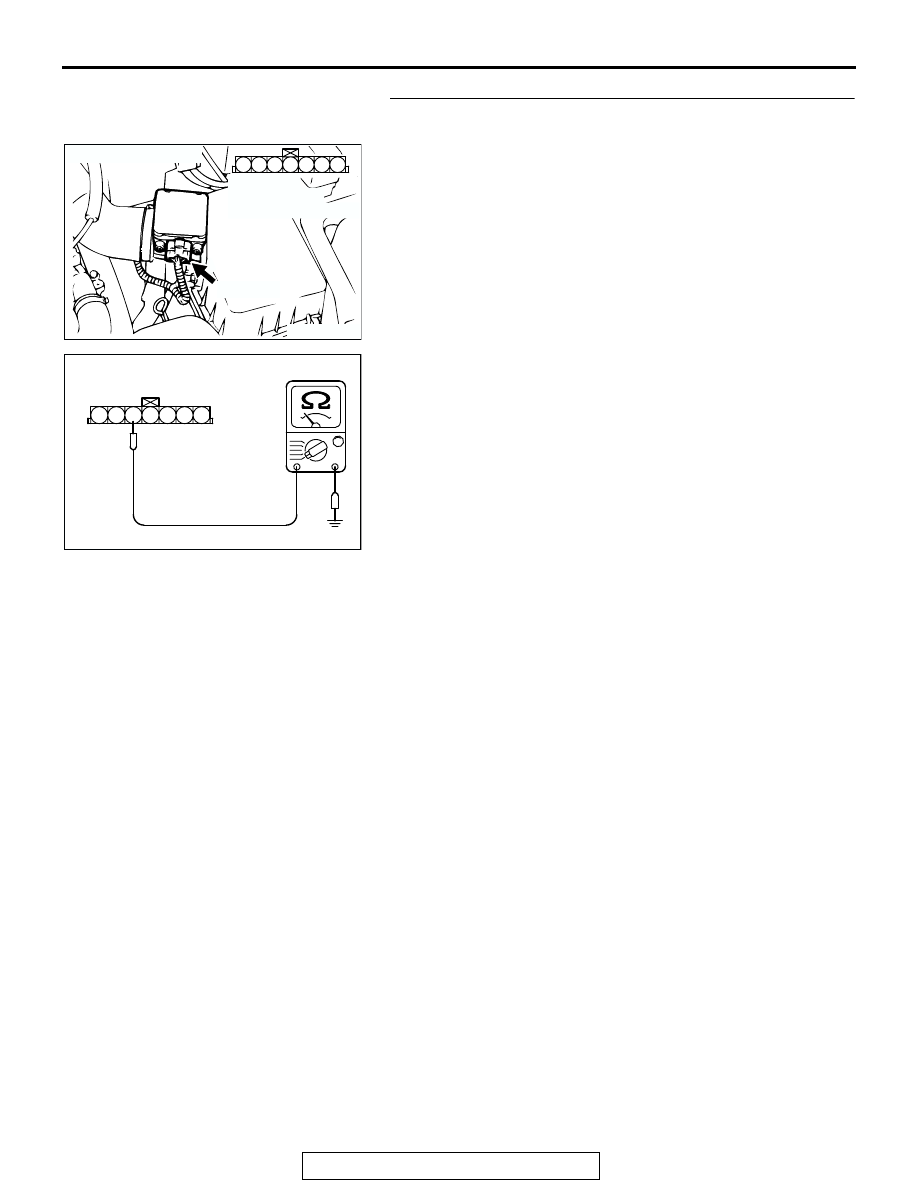

STEP 4. Check the continuity at intake air temperature
sensor harness side connector B-14.
(1) Disconnect the connector B-14 and measure at the harness

side.

(2) Check for the continuity between terminal No. 5 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 7.
NO :  Go to Step 5.

AK300078

3

4

5

1

2

6

7

CONNECTOR: B-14

AB

B-14 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01409AI

7 6 5 4 3 2 1

B-14 HARNESS
CONNECTOR:
COMPONENT SIDE
