MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-71

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

STEP 1. Using scan tool MB991958, check data list item 95:
Manifold Absolute Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

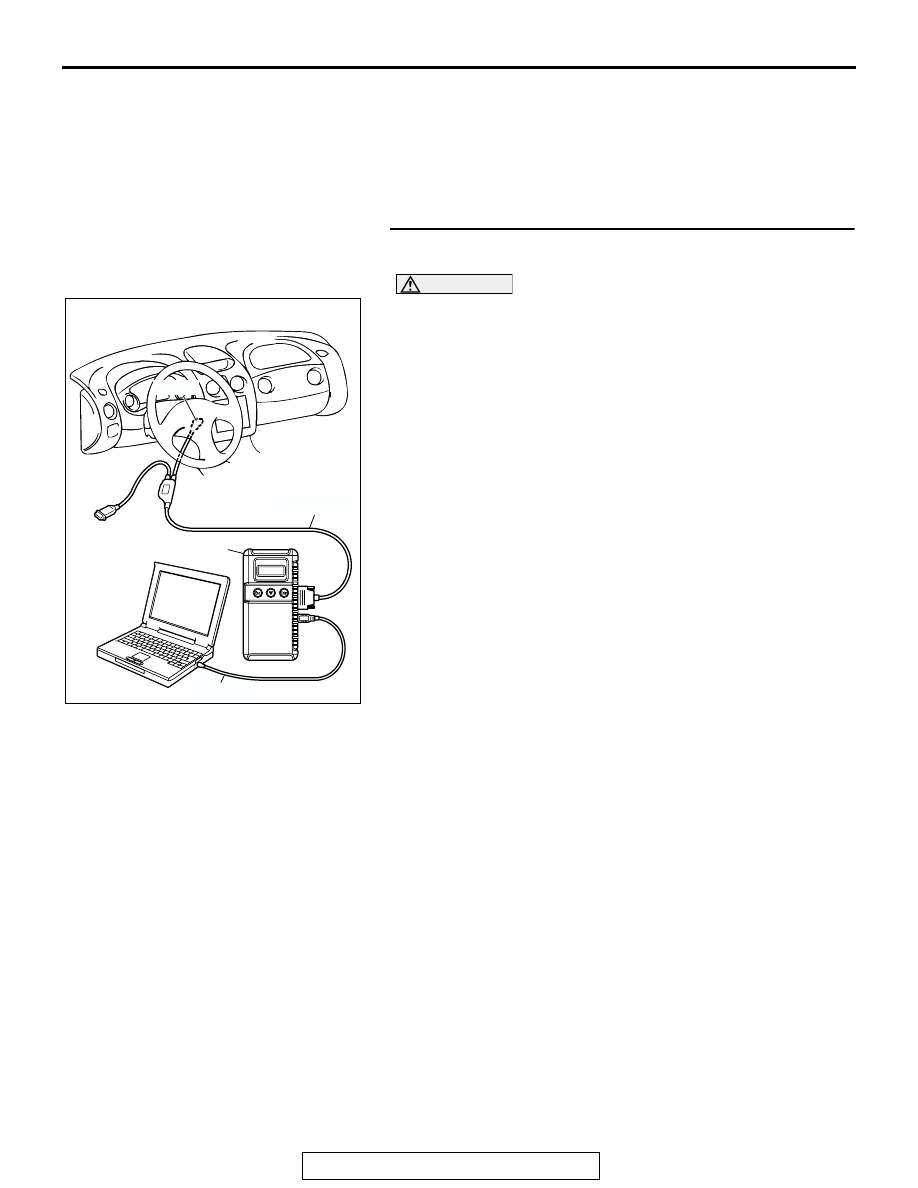

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

95, Manifold absolute Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1 in.Hg).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

in.Hg).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

in.Hg).

(4) Start the engine.

• When the engine is idling, 18 − 38 kPa (5.3 − 11.2

in.Hg).

• When the engine is suddenly revved, manifold absolute

pressure increases.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-72

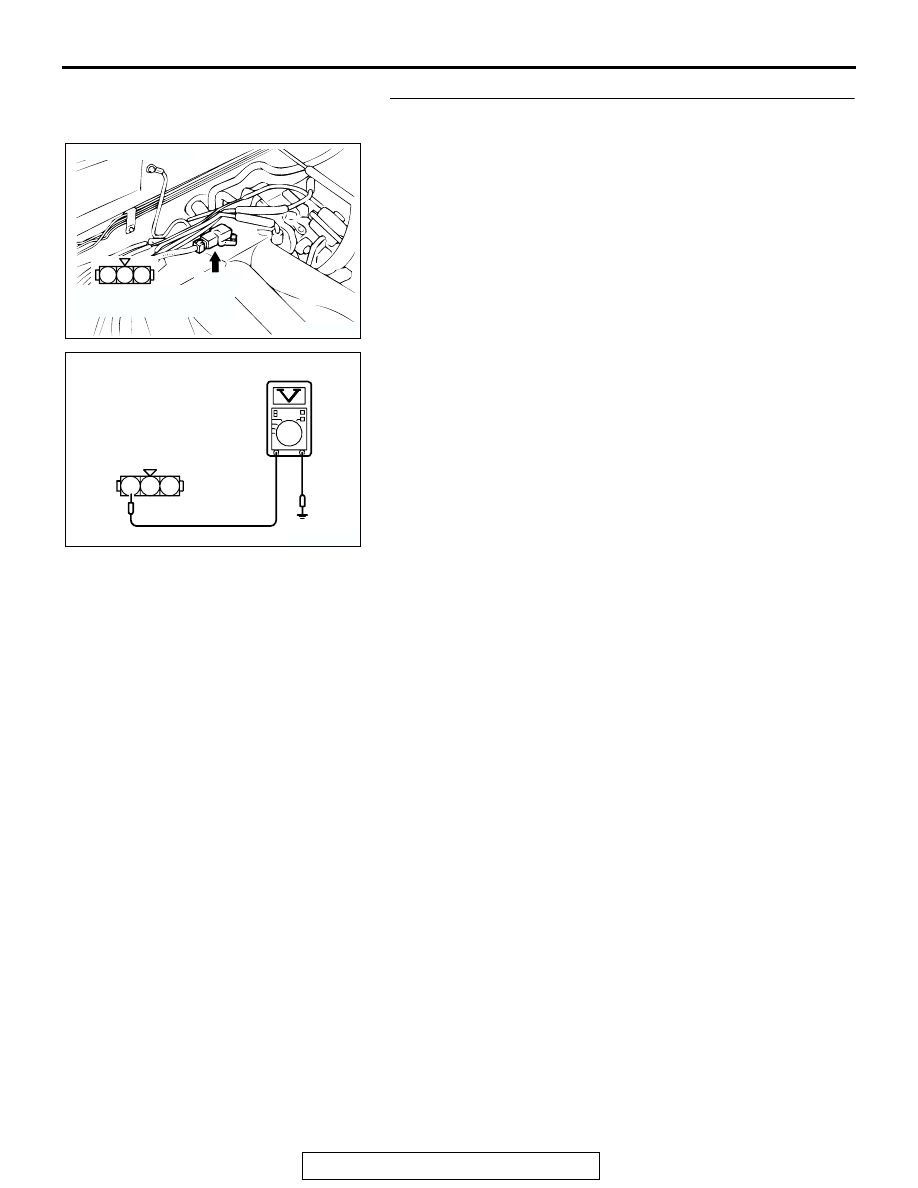

STEP 2. Measure the sensor output voltage at manifold
absolute pressure sensor connector B-04 by backprobing.
(1) Do not disconnect the connector B-04.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground by

backprobing.

• When altitude is 0 m (0 foot), voltage should be 3.7 and

4.3 volts.

• When altitude is 600 m (1,969 feet), voltage should be

3.4 and 4.0 volts.

• When altitude is 1,200 m (3,937 feet), voltage should be

3.2 and 3.8 volts.

• When altitude is 1,800 m (5,906 feet), voltage should be

2.9 and 3.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 3.
NO :  Go to Step 7.

AK103763

2 1

3

CONNECTOR: B-04

AC

B-04(B)

HARNESS CONNECTOR:
COMPONENT SIDE

3

2

1

AK203034

B-04 HARNESS
CONNECTOR:
HARNESS SIDE

AE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-73

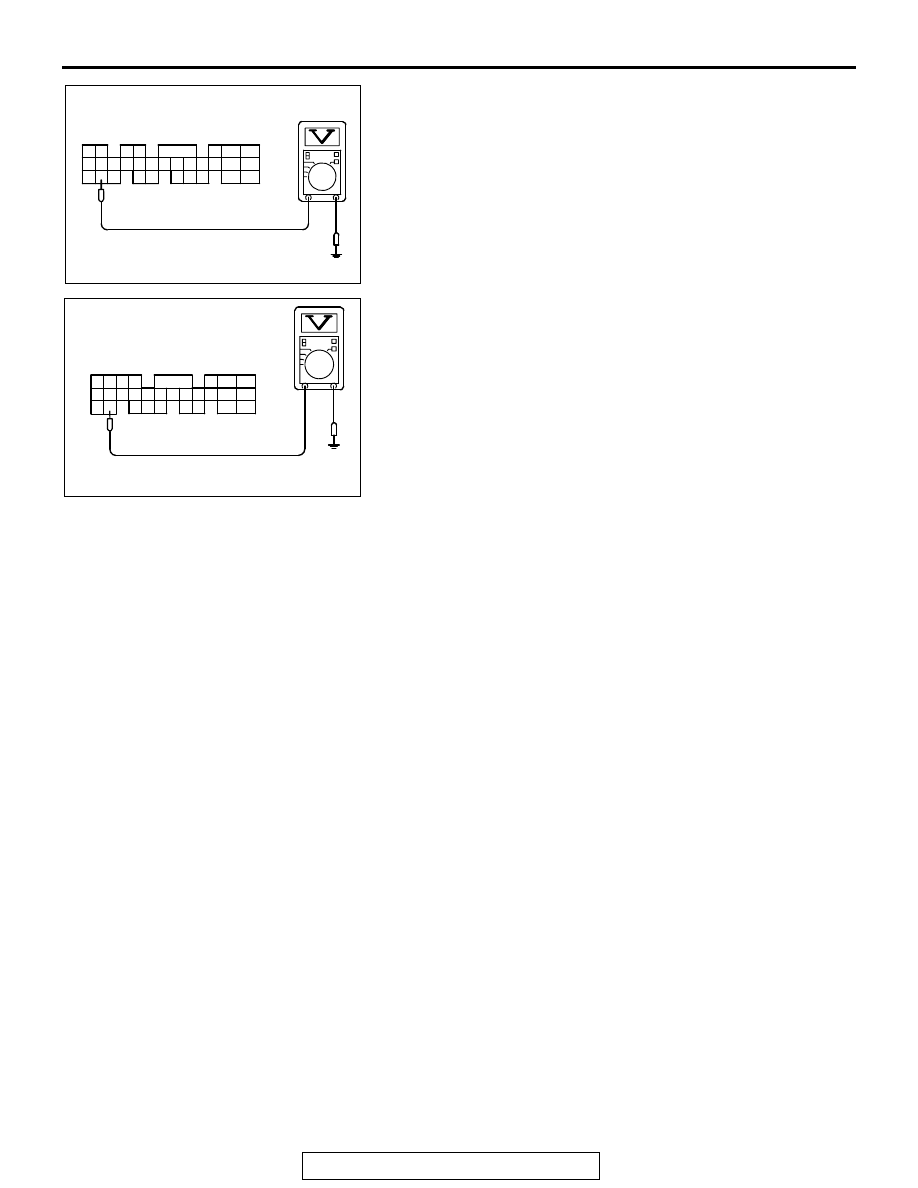

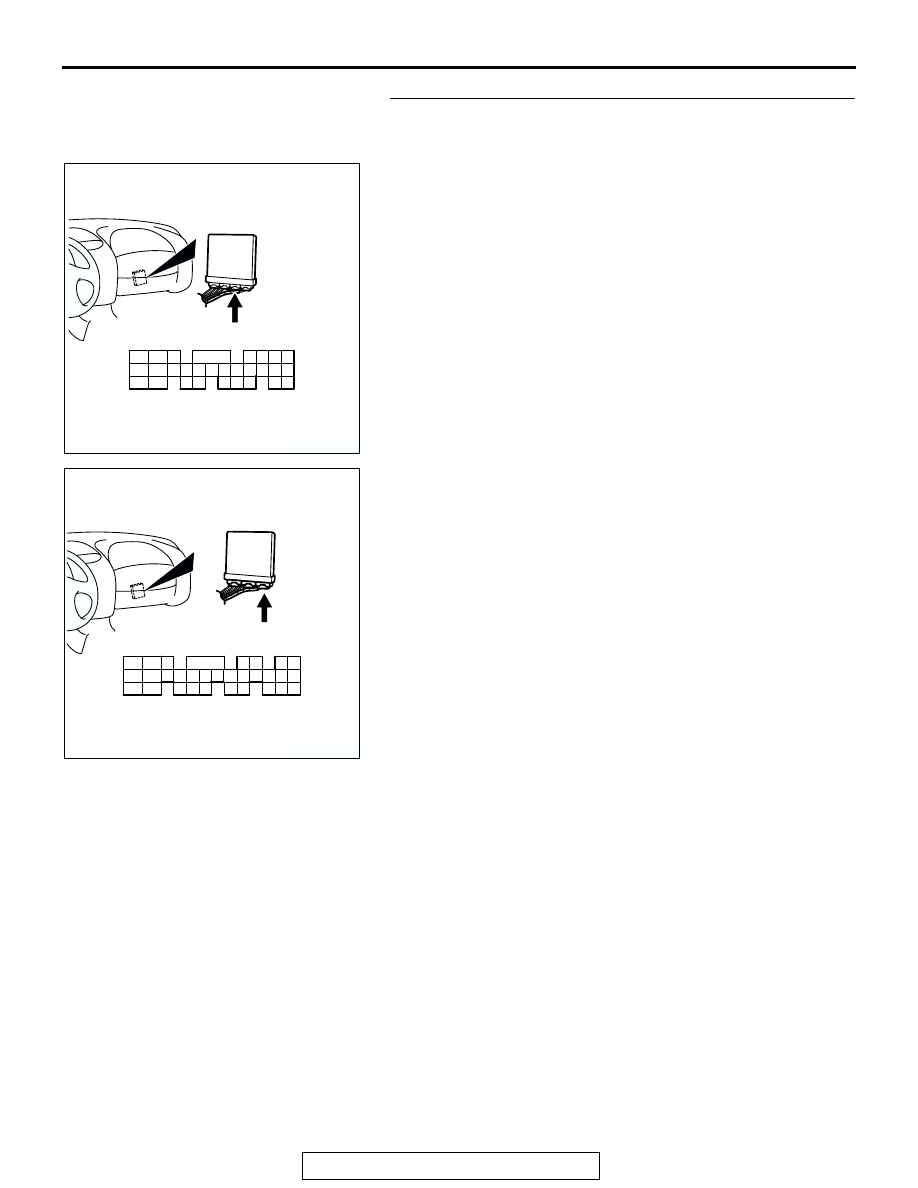

STEP 3. Measure the sensor output voltage at ECM
connector C-62 <M/T> or PCM connector C-59 <A/T> by
backprobing.
(1) Do not disconnect the connector C-62 <M/T> or C-59

<A/T>.

(2) Turn the ignition switch to the "ON" position.

AK300460

98

78

71

88

89

76

77

72
79
91

73
80

74

75

81
92

82

83

93

84

85

94

86

87

95

96

90

97

CONNECTOR: C-59 <A/T>

C-59 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300445

80

87

81

94

85

82

84

93

86

98

99

74

92

73

83

88

91

95

97 96

100

89

78

71

90

76

77

75

72
79

CONNECTOR: C-62 <M/T>

C-62 (GR)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-74

(3) Measure the voltage between terminal No. 92 <M/T> or No.

91 <A/T> and ground.

• When altitude is 0 m (0 foot), voltage should be 3.7 and

4.3 volts.

• When altitude is 600 m (1,969 feet), voltage should be

3.4 and 4.0 volts.

• When altitude is 1,200 m (3,937 feet), voltage should be

3.2 and 3.8 volts.

• When altitude is 1,800 m (5,906 feet), voltage should be

2.9 and 3.5 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the voltage normal?

YES : Go to Step 4.
NO :  Go to Step 6.

AK300868

A

71 72

73 74

78

80 81

79

82 83 84 85 86 87 88 89

75 76

91 92 93

94 95

96

98

99

97

AB

<M/T>

C-62 HARNESS
CONNECTOR:
HARNESS SIDE

77

90

100

AK300867

7172 73 74

75 76 77

78 79 80 81 82 83 84 85 86 87 88 89
90 91

92 93 94

95 96

97 98

C-59 HARNESS
CONNECTOR:
HARNESS SIDE

AB

<A/T>
