MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-769

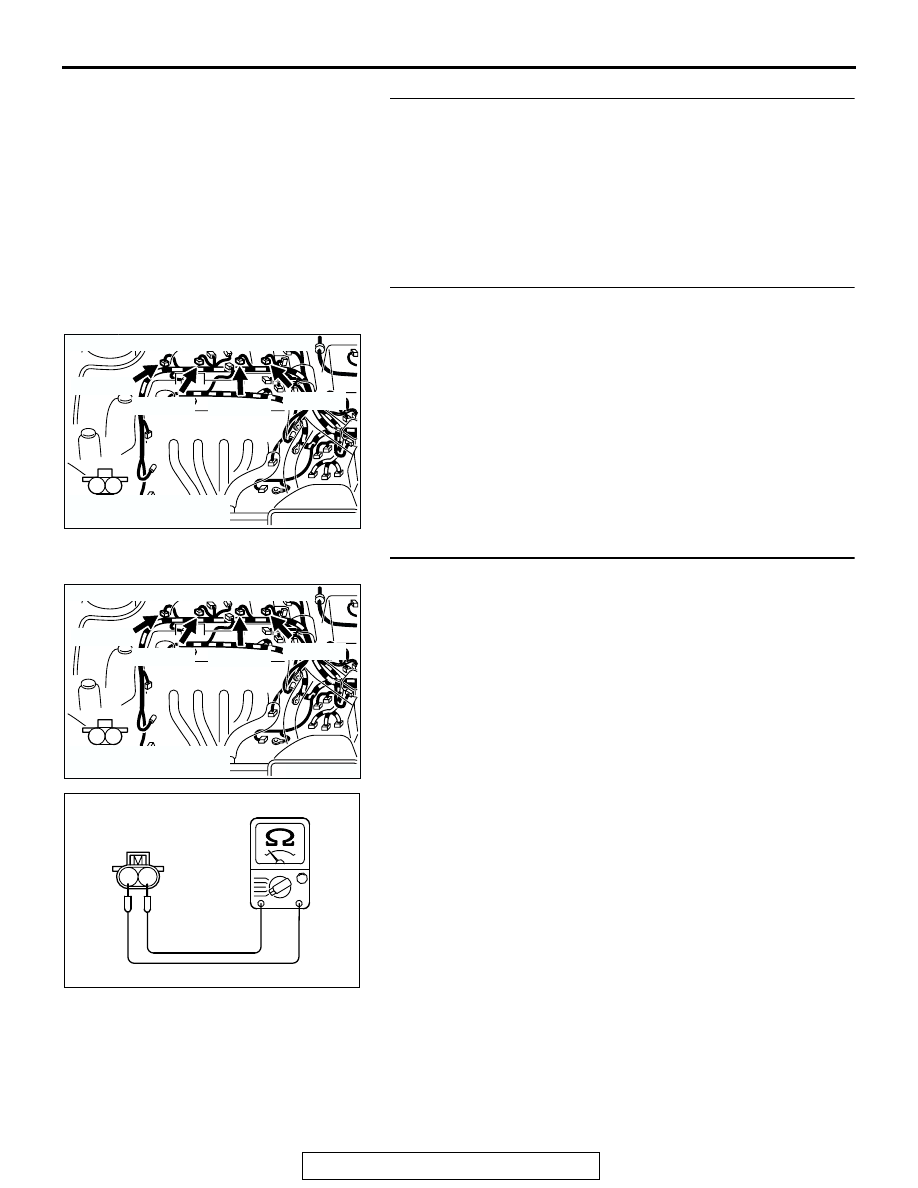

STEP 5. Check the ignition timing.
(1) Check the ignition timing at cranking.

Standard value: 5

° BTDC ± 3°

Q: Is the ignition timing normal?

YES : Go to Step 6.
NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

STEP 6. Check harness connector B-01 or B-02 or B-05 or
B-06 at injector for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 7. Check the injector.
(1) Disconnect the injector connector B-01, B-02, B-05, B-06.

(2) Measure the resistance between each injector side

connector terminal No. 1 and No. 2.

Standard value: 13

 16 ohms [at 20°C (68°F)]

Q: Is the resistance between 13 and 16 ohms?

YES : Go to Step 8.
NO :  Repair the injector. Then confirm that the malfunction

symptom is eliminated.

AK300737

1

2

CONNECTORS: B-01, B-02, B-05, B-06

AB

B-02 (GR)

B-01 (GR)

B-05 (GR)

B-06 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300737

1

2

CONNECTORS: B-01, B-02, B-05, B-06

AB

B-02 (GR)

B-01 (GR)

B-05 (GR)

B-06 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-770

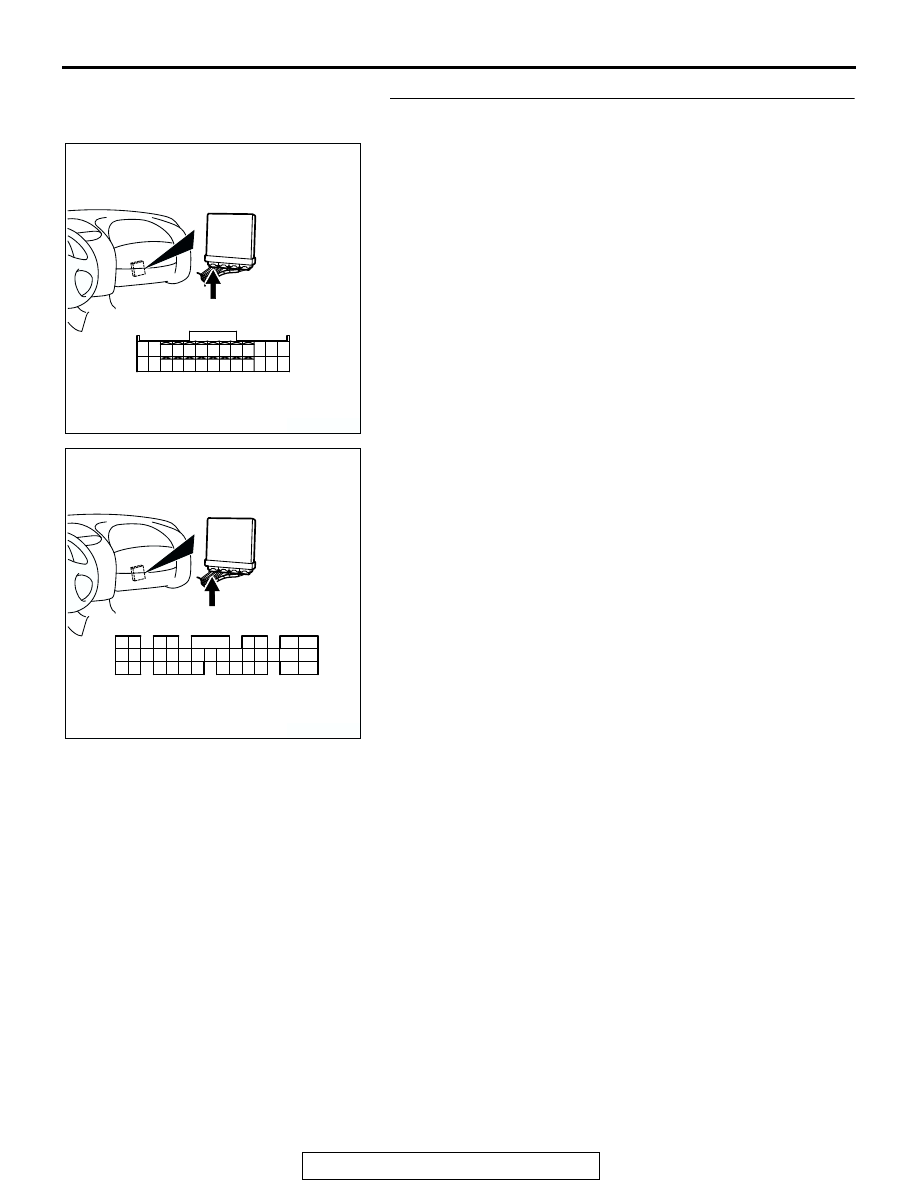

STEP 8. Check connector C-49 at ECM <M/T> or connector
C-50 at PCM <A/T> for damage.
Q: Is the connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK300413

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

21

23

26

24

25

3

10

11

12

13

CONNECTOR: C-49 <M/T>

C-49 (G)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300414

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

C-50 (GR)

CONNECTOR: C-50 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-771

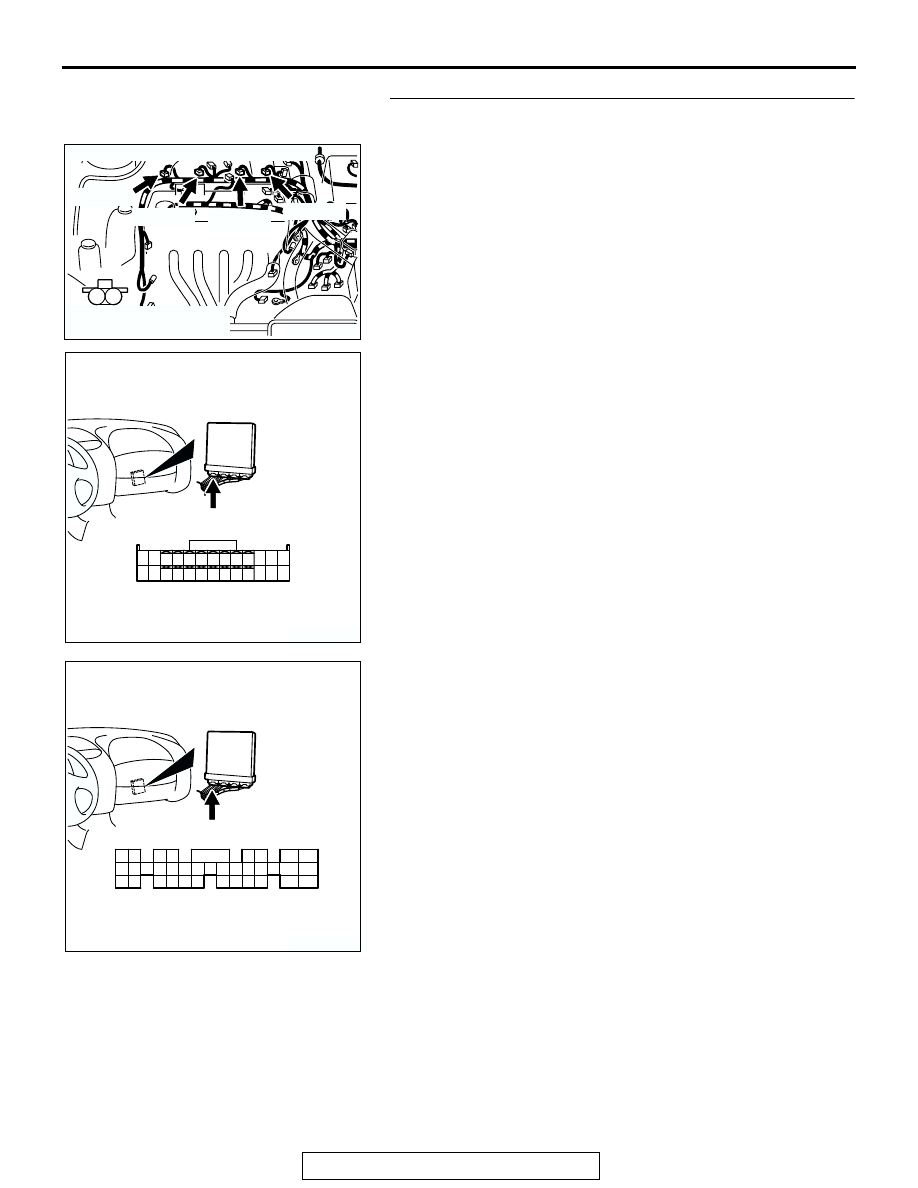

STEP 9. Check for harness damage between injector
connector and ECM <M/T> or PCM <A/T> connector.

a. Check the harness wire between injector connector B-01

(terminal No. 2) and ECM connector C-49 (terminal No. 1)
<M/T> or PCM connector C-50 (terminal No. 1) <A/T> when
checking No. 1 cylinder.

b. Check the harness wire between injector connector B-02

(terminal No. 2) and ECM connector C-49 (terminal No. 14)
<M/T> or PCM connector C-50 (terminal No. 9) <A/T> when
checking No. 2 cylinder.

c. Check the harness wire between injector connector B-05

(terminal No. 2) and ECM connector C-49 (terminal No. 2)
<M/T> or PCM connector C-50 (terminal No. 24) <A/T>
when checking No. 3 cylinder.

d. Check the harness wire between injector connector B-06

(terminal No. 2) and ECM connector C-49 (terminal No. 15)
<M/T> or PCM connector C-50 (terminal No. 2) <A/T> when
checking No. 4 cylinder.

Q: Is the harness wire in good condition?

YES : Check the following items, and repair or replace the

defective items.

a. Check the ignition coil, spark plugs, spark plug

cables.

b. Check if the injectors are clogged.

c. Check compression pressure.

d. Check if the foreign materials (water,

kerosene, etc.) got into fuel.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

AK300737

1

2

CONNECTORS: B-01, B-02, B-05, B-06

AB

B-02 (GR)

B-01 (GR)

B-05 (GR)

B-06 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK300413

1

14

4

19

5

22

6

17

8

15

9

18

7

20

16

2

21

23

26

24

25

3

10

11

12

13

CONNECTOR: C-49 <M/T>

C-49 (G)

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK300414

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19

20

30

21

22

23

24

25

26

27

28

29

31

32

33

34

35

1

10

C-50 (GR)

CONNECTOR: C-50 <A/T>

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-772

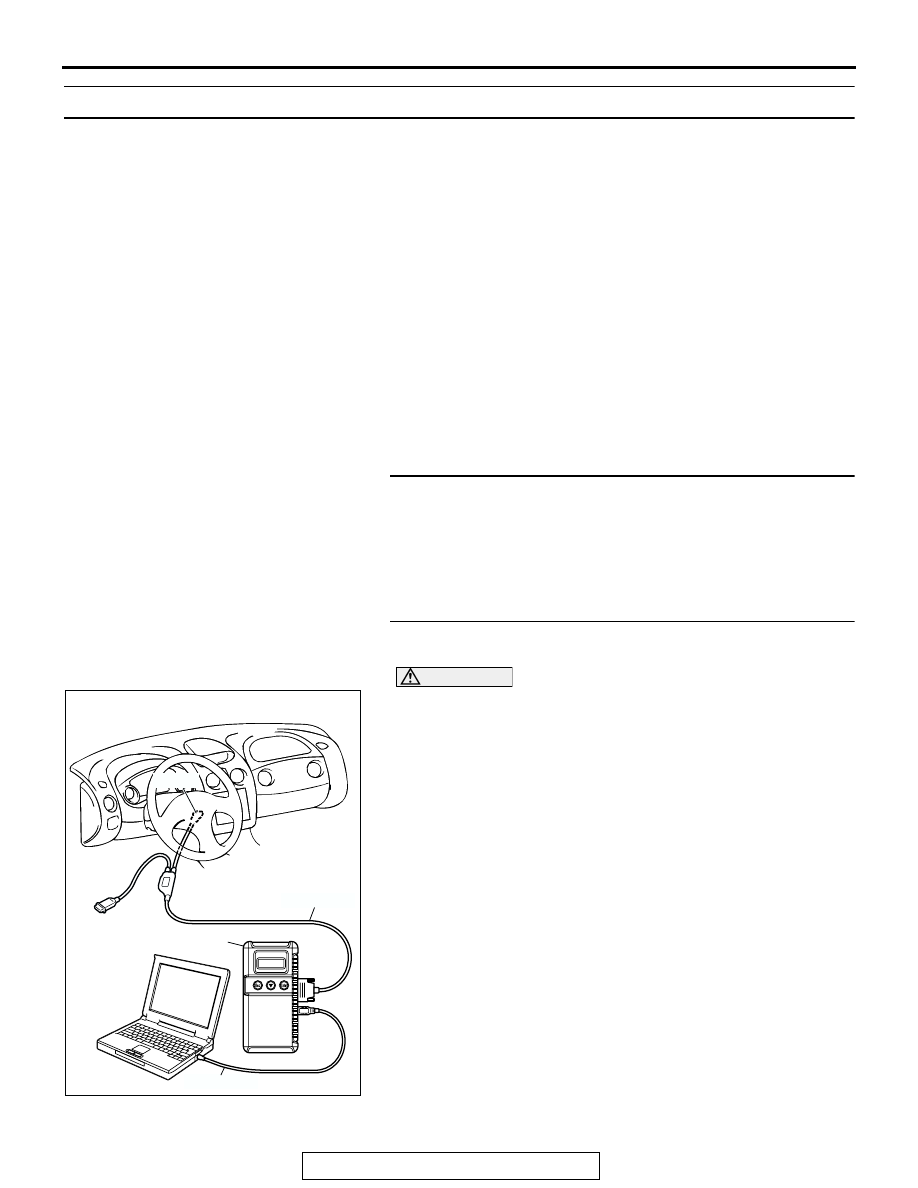

INSPECTION PROCEDURE 8: Unstable Idle (Rough Idle, Hunting).

.

COMMENT

• In cases such as the above, the cause is proba-

bly the air/fuel mixture or idle air control motor.
Other systems affecting idle quality include the
ignition system and compression.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case: )

• Malfunction of the ignition system.

• Malfunction of air/fuel ratio control system.

• Malfunction of the IAC system.

• Malfunction of the evaporative emission purge

solenoid system.

• Poor compression pressure.

• Vacuum leak.

• Malfunction of the EGR vacuum regulator sole-

noid valve system.

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

STEP 1. Check if the battery terminal is disconnected.
Q: Has the battery terminal been disconnected lately?

YES : Start the engine and let it run at idle for approximate

10 minutes after engine warm up. Then, if a
malfunction occurs, go to Step 2.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch is to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC set?

YES : Refer to, Diagnostic Trouble Code Chart

P.13A-24

.

NO :  Go to Step 3.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824
