MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-597

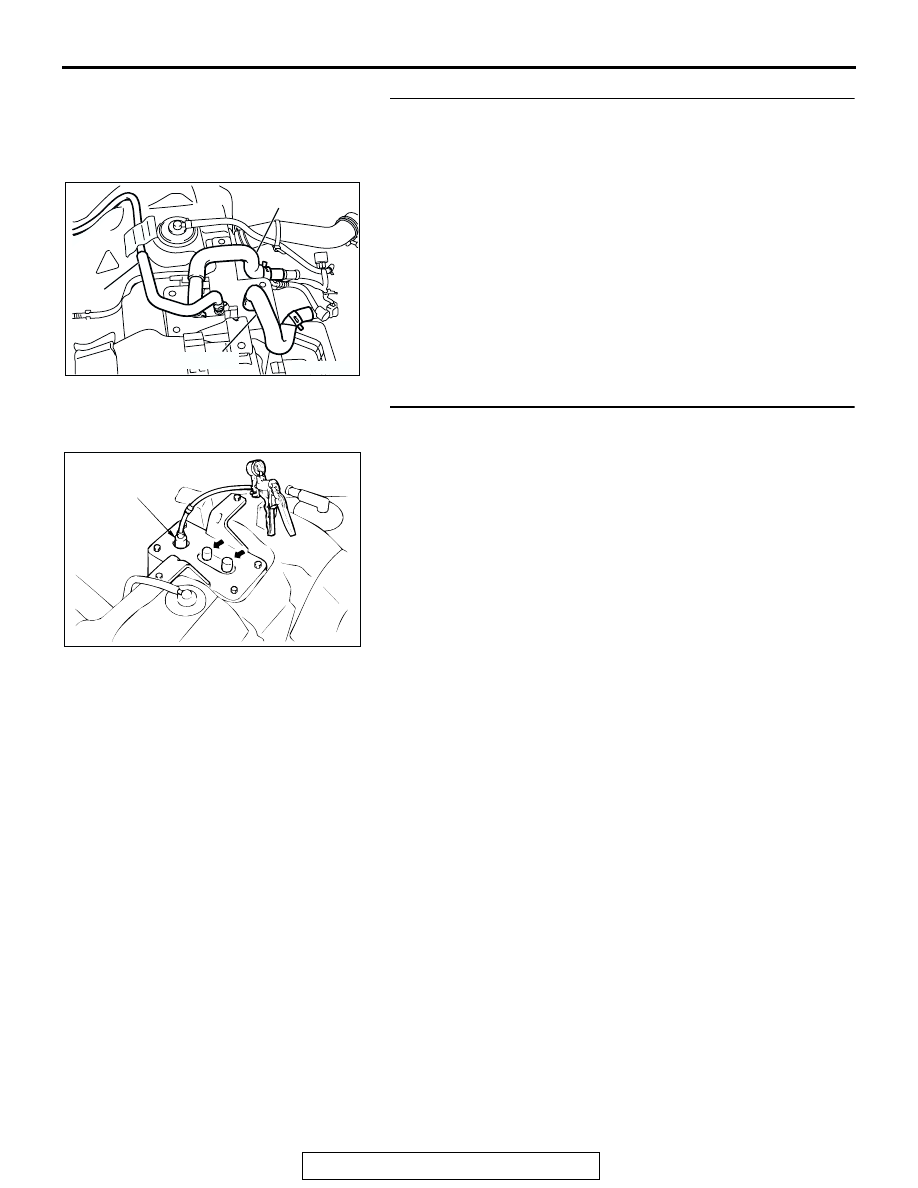

STEP 8. Check for leaks in the evaporator line hose D to
hose F.
(1) Remove the fuel tank. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.)

(2) The leakage test with a hand vacuum pump on each hose

from hose D to hose F.

Q: Are the hoses in good condition?

YES : Go to Step 9.
NO :  Replace that hose, reinstall the fuel tank. (Refer to

GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step

18.

STEP 9. Check for leaks in the evaporative emission
canister.
(1) Connect a hand vacuum pump to the vent nipple of the

evaporative emission canister.

(2) Plug the other two nipples or loop a hose between the other

nipples.

(3) Apply a vacuum with the hand vacuum pump, and confirm

that the applied vacuum does not fluctuate.

Q: Is the evaporation emission canister in good condition?

YES : Go to Step 18.
NO :  Replace the evaporative emission canister (Refer to

GROUP 17, Evaporative Emission Canister and Fuel
Tank Pressure Relief Valve

P.17-117

,) and reinstall

the fuel tank. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

AC002037AE

HOSE D

HOSE F

HOSE E

AC000191AB

VENT
NIPPLE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-598

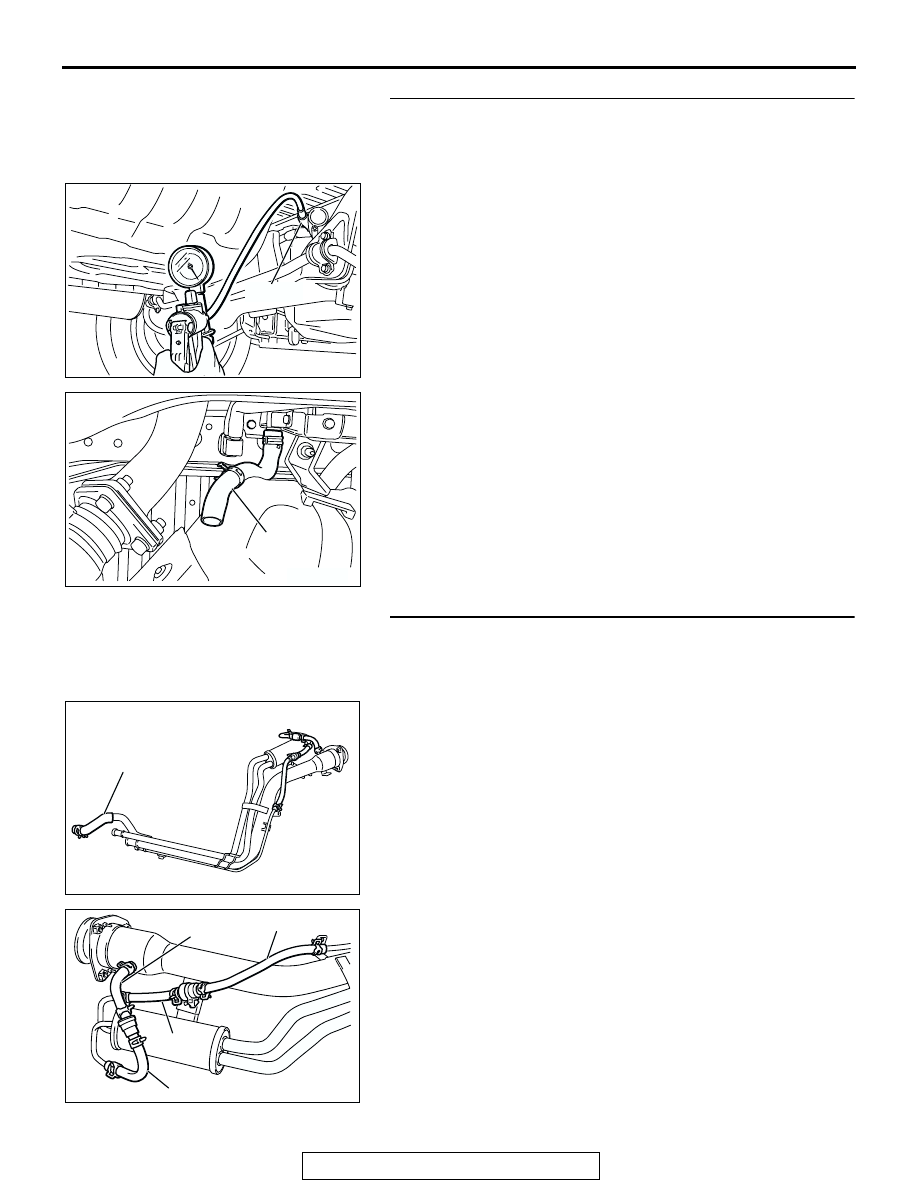

STEP 10. Check for leaks in the evaporator line from hose
H and hose I.
(1) Remove the fuel filler neck protector. (Refer to GROUP

13C, Fuel Tank

P.13C-13

.)

(2) Disconnect hose H at the liquid separator, and then connect

a hand vacuum pump to the hose.

(3) Disconnect hose I at the fuel tank side, and then plug the

hose.

(4) Apply vacuum with the hand vacuum pump, and confirm

that the applied vacuum does not fluctuate.

Q: Are the evaporator line in good condition?

YES : Go to Step 11.
NO :  Replace that hose, reinstall the fuel filler neck

protector. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

STEP11. Check for leaks in the evaporator line hose G, J,
K, L and M.
(1) Remove the fuel tank and fuel filler neck assembly. (Refer

to GROUP 13C, Fuel Tank

P.13C-13

.)

(2) The leakage test with a hand vacuum pump on each hose

from hose G, J, K, L and M.

Q: Are the hoses in good condition?

YES : Go to Step 12.
NO :  Replace the hose, reinstall the fuel tank and fuel filler

neck assembly. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

AC02040 AC

HOSE H

AC002038

HOSE I

AC

AC002032

AB

HOSE G

AC

AC002039

AB

HOSE L

AC

HOSE K

HOSE M

HOSE J

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-599

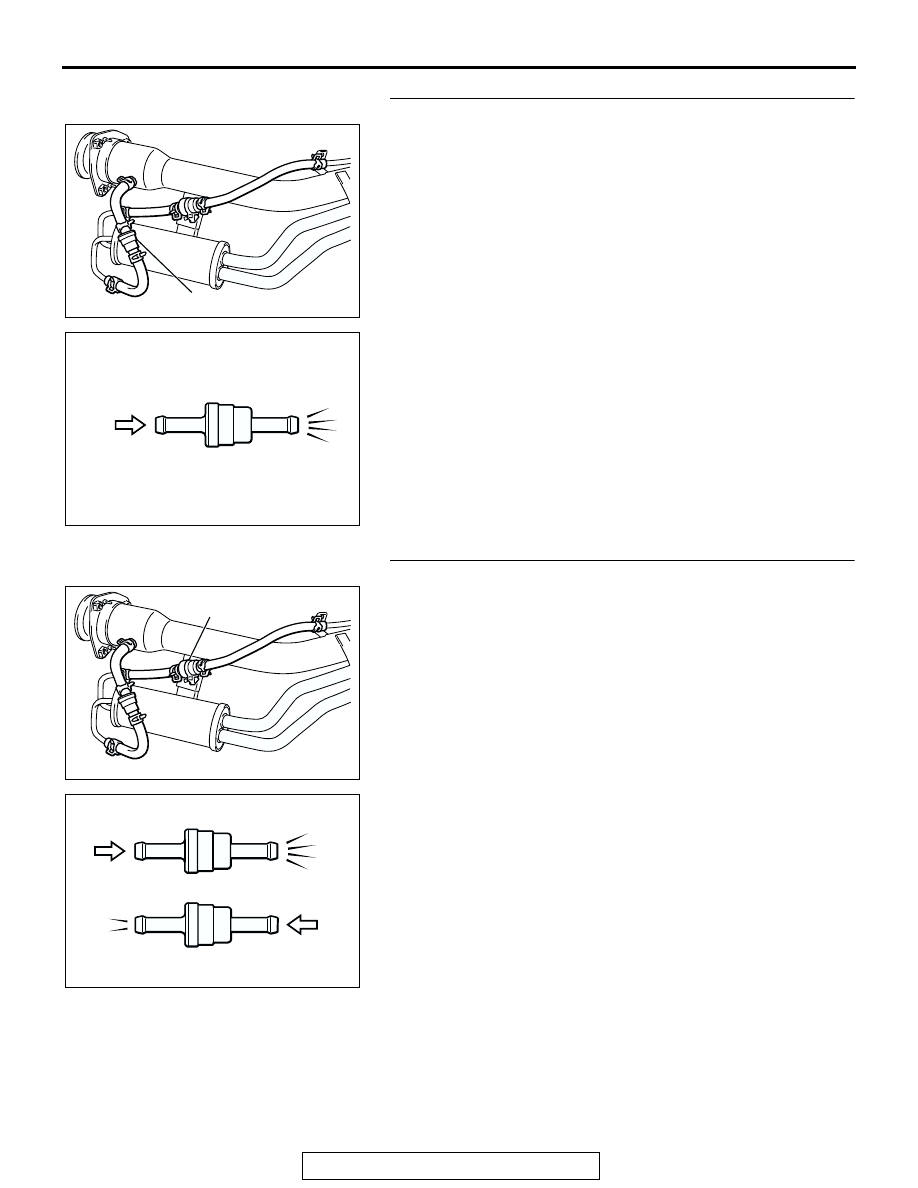

STEP 12. Check the check valve A.
(1) Only when you blow the check valve from the direction

shown, it should pass air.

(2) When you blow the check valve, air should leak from the

check valve body.

Q: Is the check valve A in good condition?

YES : Go to Step 13.
NO :  Replace the check valve A, reinstall the fuel tank and

fuel filler neck assembly. (Refer to GROUP 13C, Fuel
Tank

P.13C-13

.) Then go to Step 18.

STEP 13. Check the check valve B.
(1) When you blow the check valve from the arrow direction

shown above, it should pass more air.

(2) When you blow the check valve from the arrow direction

shown below, it should pass less air.

(3) When you blow the check valve, on air should leak from the

check valve body.

Q: Is the check valve B in good condition?

YES : Go to Step 14.
NO :  Replace the check valve B, reinstall the fuel tank and

fuel filler neck assembly. (Refer to GROUP 13C, Fuel
Tank

P.13C-13

.) Then go to Step 18.

AC002039

CHECK VALVE A

AE

AC002076 AB

CHECK VALVE A

AC002039

CHECK VALVE B

AF

AC002078

CHECK VALVE B

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-600

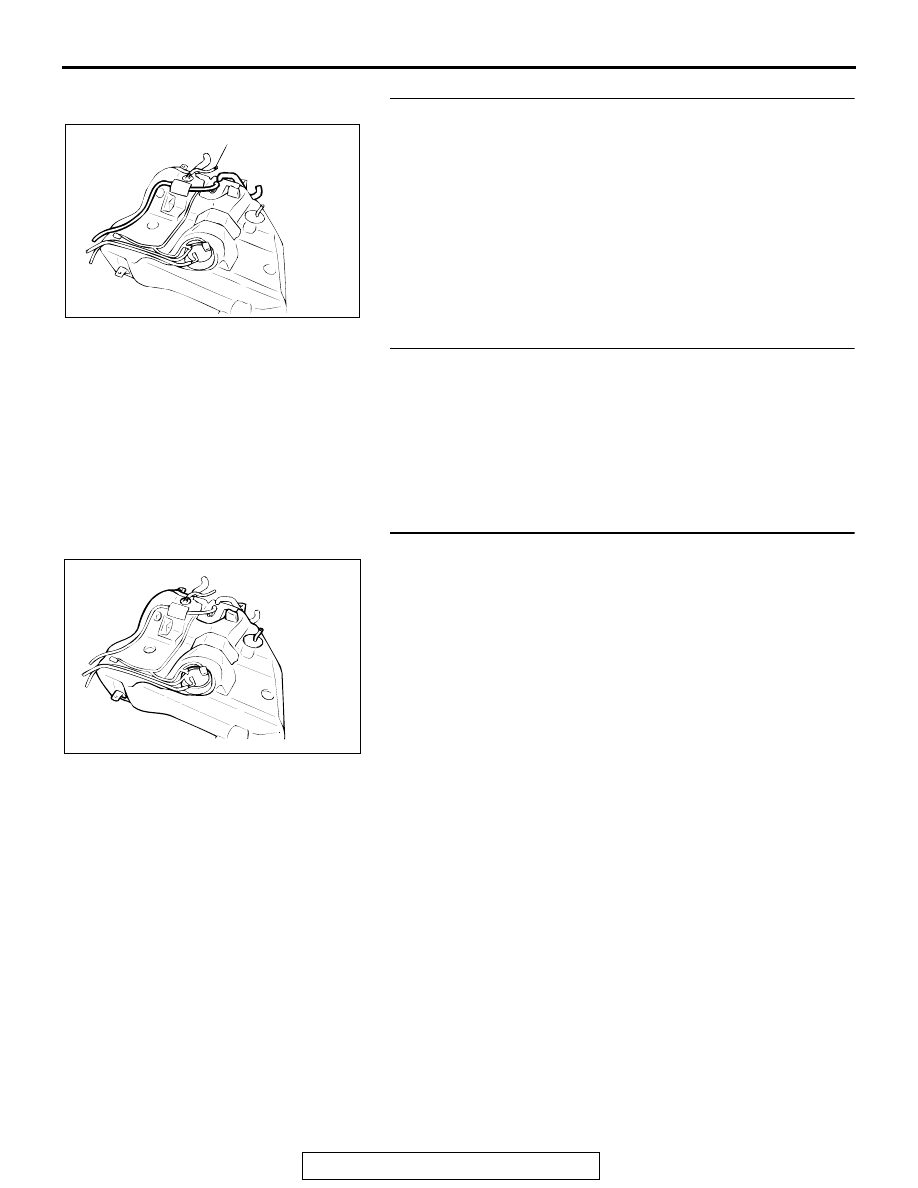

STEP 14. Check for leaks in the evaporator line hose N.
(1) The leakage test with a hand vacuum pump on each hose

from hose N.

Q: Is the hose in good condition?

YES : Go to Step 15.
NO :  Replace the hose, reinstall the fuel tank and fuel filler

neck assembly. (Refer to GROUP 13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

STEP 15. Visually check for cracks in the fuel filler neck
assembly.

Visually check for cracks in the fuel filler neck assembly.

Q: Is the fuel filler neck assembly in good condition?

YES : Go to Step 16.
NO :  Replace the fuel filler neck assembly, reinstall the fuel

tank and fuel filler neck assembly. (Refer to GROUP
13C, Fuel Tank

P.13C-13

.) Then go to Step 18.

STEP 16. Check for leaks in the fuel tank.
(1) Visually check for cracks and leaks, etc.

NOTE: Carefully check the fuel pump assembly and the
inner pressure sensor installation section in the fuel tank.

AC000195

HOSE N

AD

AC000196
