MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-101

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0108 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0111: Intake Air Temperature Circuit Range/Performance Problem

AK300333

2 3

7

4 5 6

1

BROWN

RED

-BL

U

E

C-60 <M/T>
(MU803772)

C-54 <A/T>
(MU803781)

40 <M/T>*1
16 <A/T>*3

72 <M/T>*2
64 <A/T>*4

B-14

INTAKE AIR TEMPERATURE SENSOR
(INCORPORATED IN VOLUME
AIRFLOW SENSOR)

ENGINE CONTROL
MODULE (ECM) <M/T>
OR
POWERTRAIN CONTROL
MODULE (PCM) <A/T>

5

6

5 V

82

78

81

80

89 90 91 92

79

87

71

74

73

72

76

75

77

85

88

83 84

86

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41

2

3 4

5 6

7 8

9

11 12 13 14 15 16 17 18 19 20

30

21 22 23

24 25

26 27 28 29

3132 33

34 35

1

10

C-50 <A/T>
(MU803784)

NOTE
*1: ECM connector C-53 <M/T>
*2: ECM connector C-60 <M/T>
*3: PCM connector C-50 <A/T>
*4: PCM connector C-54 <A/T>

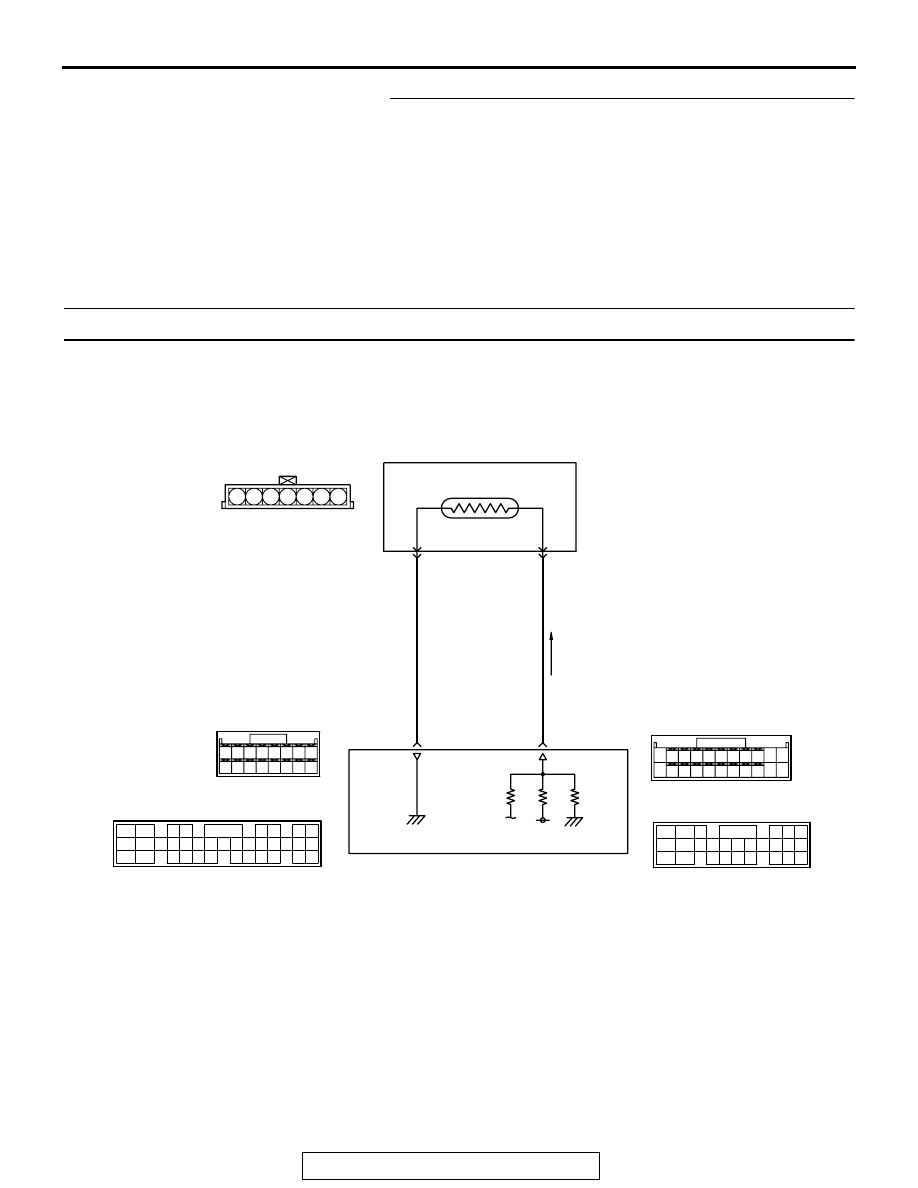

Intake Air Temperature Sensor Circuit

C-53 <M/T>
(MU803771)

34

33

32

36

35

37

42

45

31

39

38

46

40 41

43 44

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-102

.

CIRCUIT OPERATION

• Approximately 5 volts are applied to the intake air

temperature sensor output terminal (terminal No.
6) from the ECM (terminal No. 72) <M/T> or PCM
(terminal No. 64) <A/T> via the resistor in the
ECM <M/T> or PCM <A/T>. The ground terminal
(terminal No. 5) is grounded with ECM (terminal
No. 40) <M/T> or PCM (terminal No. 16) <A/T>.

• The intake air temperature sensor is a negative

temperature coefficient type of resistor. When the
intake air temperature rises, the resistance
decreases.

• The intake air temperature sensor output voltage

increases when the resistance increases and
decreases when the resistance decreases.

.

TECHNICAL DESCRIPTION

• The intake air temperature sensor converts the

intake air temperature to a voltage.

• The ECM <M/T> or PCM <A/T> checks whether

this voltage is within a specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Intake air temperature sensor output voltage does

not change when specified go/stop operations
are repeated.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AK300053

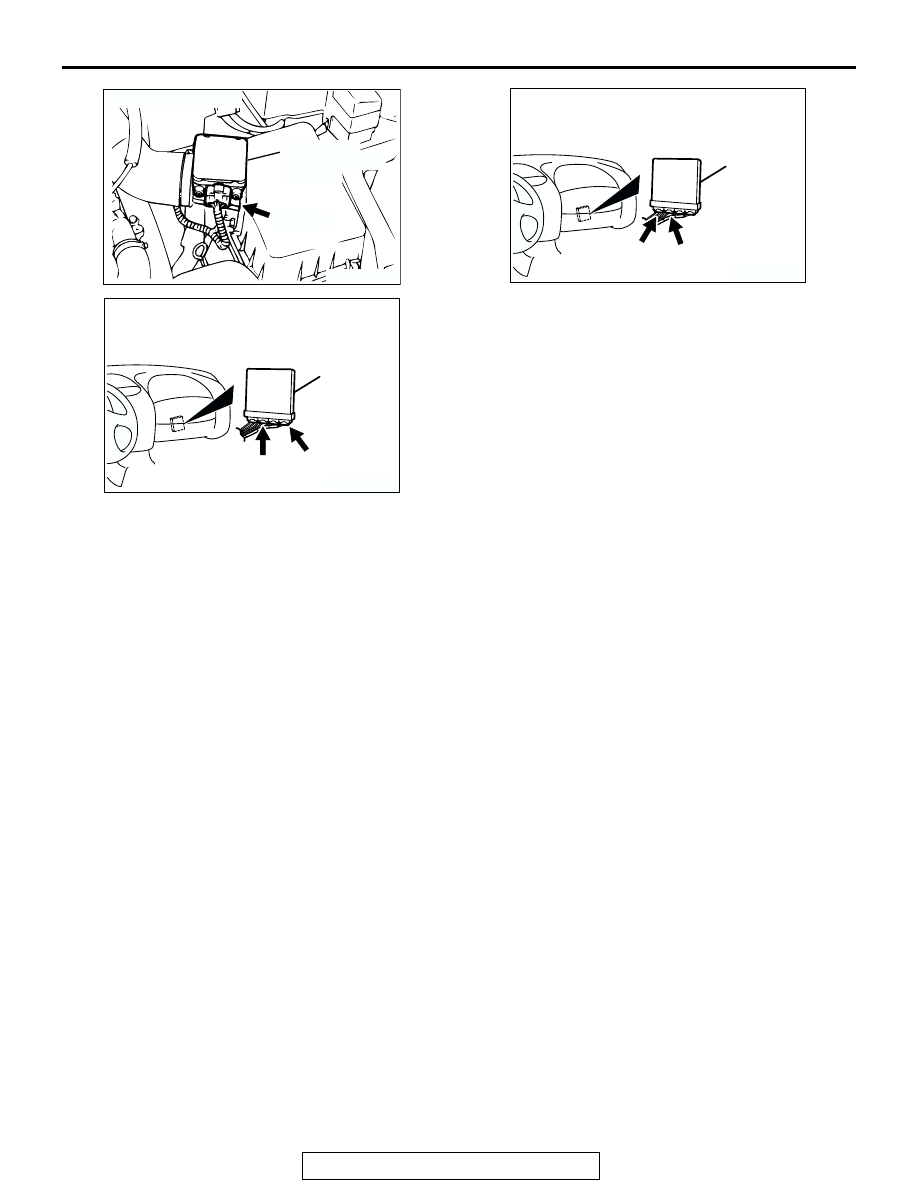

CONNECTOR: B-14

AD

B-14 (B)

INTAKE AIR
TEMPERATURE
SENSOR

AK300060

ECM

CONNECTORS: C-53, C-60 <M/T>

AN

C-53 (G)

C-60 (G)

AK300060

PCM

CONNECTORS: C-50, C-54 <A/T>

AO

C-54 (GR)

C-50 (GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-103

DTC SET CONDITIONS

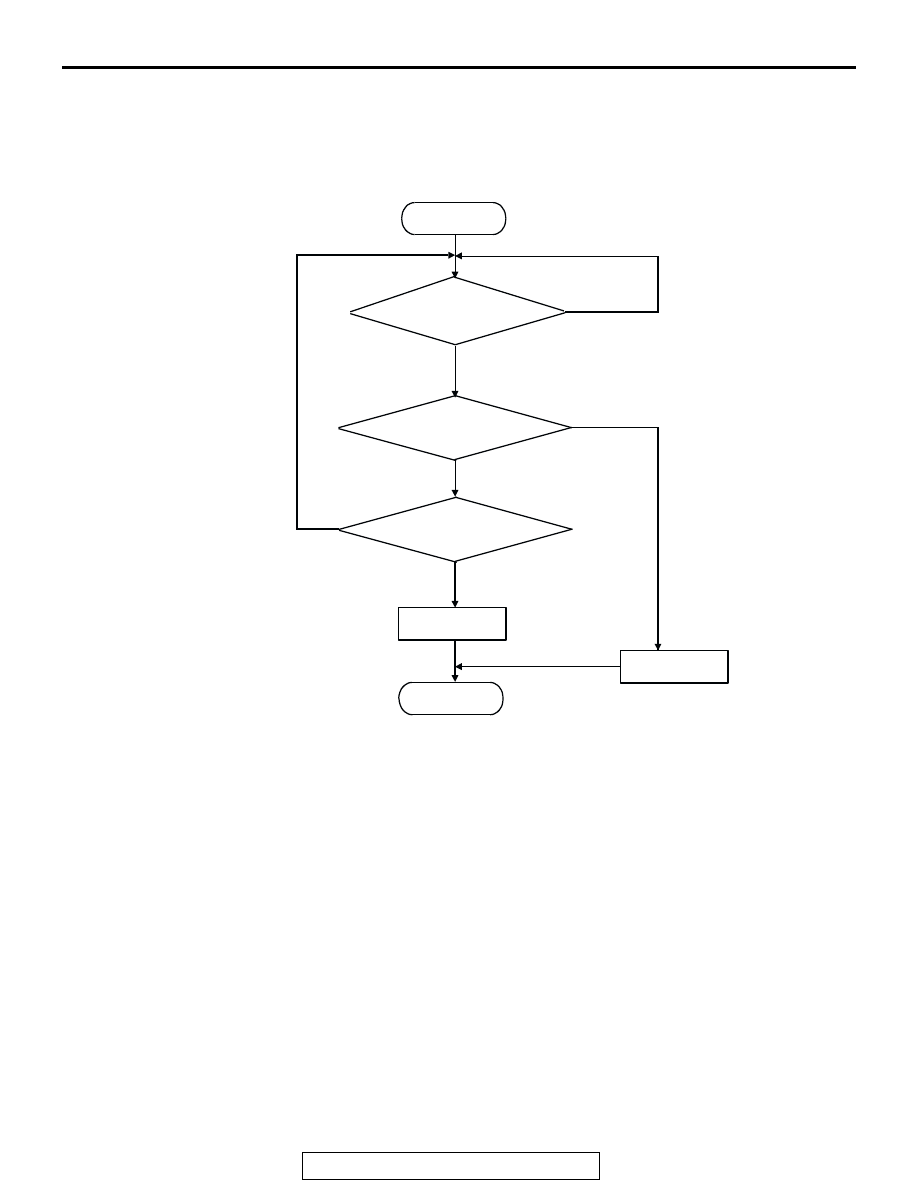

Logic Flow Chart

.

Check Conditions

• Engine coolant temperature is higher than 76°C

(169

°F).

• Repeat 5 or more times: drive

*1

, stop

*2

.

Drive

*1

: vehicle speed higher than 50 km/h (31

mph) lasting a total of more than 60 seconds.

Stop

*2

: vehicle speed lower than 1.5 km/h (1

mph) lasting more than 30 seconds.

Judgement Criteria

• Changes in the intake air temperature is lower

than 1

°C (1.8°F).

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 6

− Other Monitor

P.13A-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Intake air temperature sensor failed.

• Harness damage in intake air temperature sensor

circuit, or connector damage.

• ECM failed. <M/T>

• PCM failed. <A/T>

DIAGNOSIS

Required Special Tools:

• MB991958 (MUT-III Sub Assembly)

• MB991824: V.C.I.

END

YES

NO

NO

NO

START

MONITORING

CONDITION

YES

MALFUNCTION

GOOD

F1: COUNTER OF A DRIVING STATE.
F2: COUNTER OF A STOP STATE.

INTAKE AIR TEMP.

CHANGES

GO/STOP OPERATION

FOR SPECIFIED TIMES

YES

AK301423

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-104

• MB991827: USB Cable

• MB991911: Main Harness B

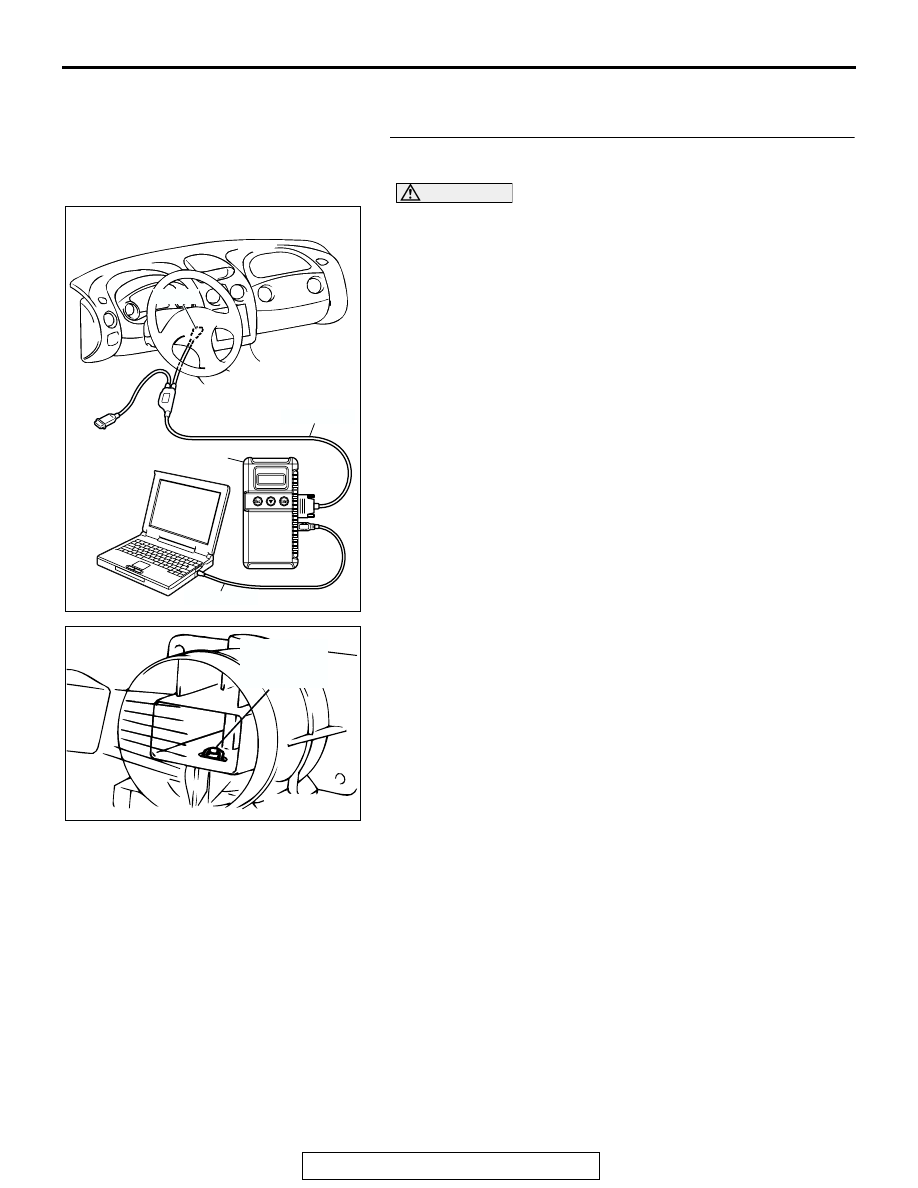

STEP 1. Using scan tool MB991958, check data list item 13:
Intake Air Temperature Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Remove the air intake hose from the volume airflow sensor.
(3) Turn the ignition switch to the "ON" position.
(4) Set scan tool MB991958 to the data reading mode for item

13, Intake Air Temperature Sensor.

(5) Heating the sensor using a hair drier.

• The indicated temperature increases.

NOTE: Do not allow it to increase over 80

°

C (176

°

F).

(6) Turn the ignition switch to the "LOCK" (OFF) position.
(7) Attach the air intake hose.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AK300810

AB

MB991911

16-PIN

MB991827

MB991824

AKX01621 AB

INTAKE AIR
TEMPERATURE
SENSOR
