ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-19

5. Hold the engine assembly with a chain block or similar tool.
6. Place a garage jack against the engine oil pan with a piece

of wood in between, jack up the engine so that the weight of
the engine is no longer being applied to the engine mount
bracket, and then remove the engine mount bracket.

.

<<E>> ENGINE ASSEMBLY REMOVAL
After checking that all cables, hoses and harness connectors,
etc., are disconnected from the engine, lift the chain block
slowly to remove the engine assembly upward from the engine
compartment.

INSTALLATION SERVICE POINTS

.

>>A<< ENGINE ASSEMBLY INSTALLATION
Install the engine assembly, checking that the cables, hoses,
and harness connectors are not clamped.

.

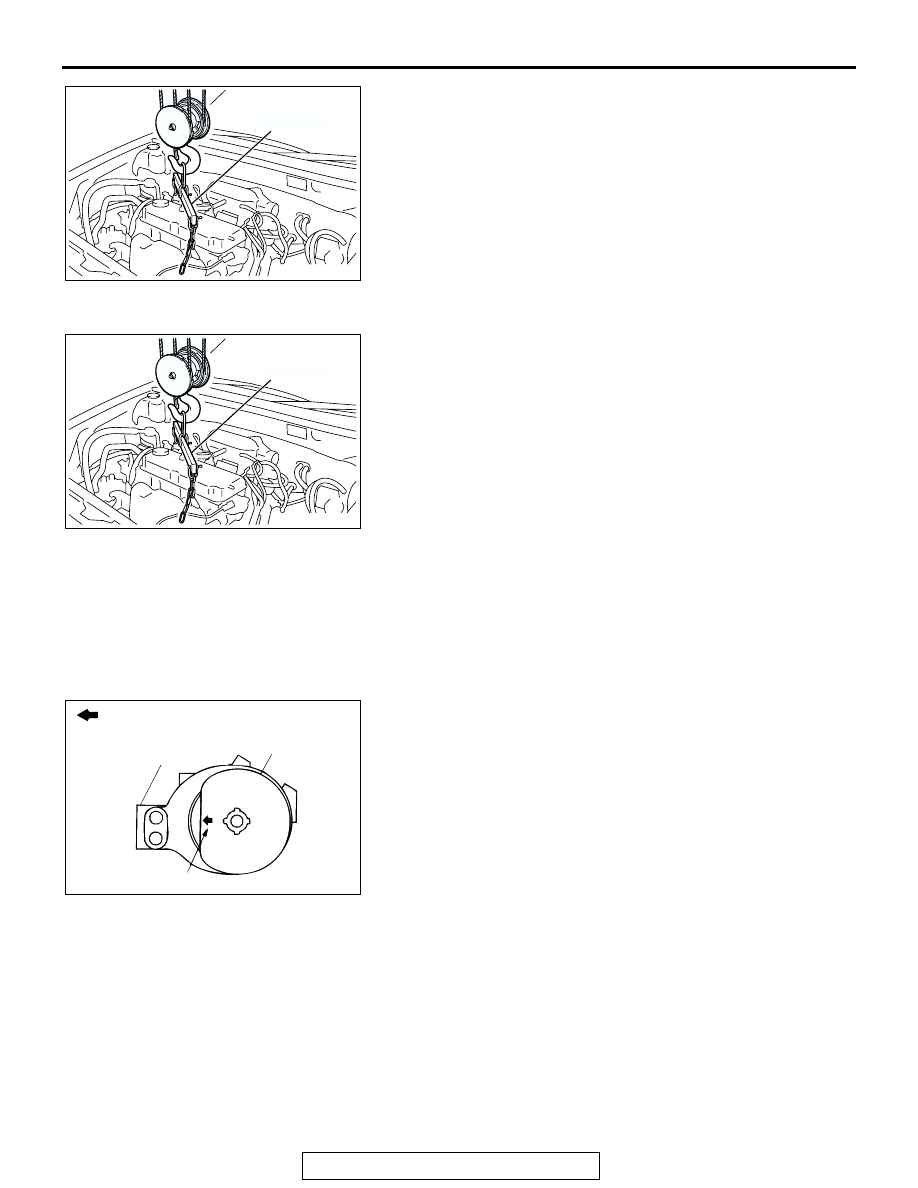

>>B<< ENGINE MOUNT STOPPER INSTALLATION
Clamp the engine mount stopper so that the arrow points in the
direction as shown in the diagram.

.

AC102341AC

MB991454

AC102341AC

MB991454

AC000128

ENGINE SIDE

ENGINE MOUNT
BRACKET

ENGINE MOUNT
STOPPER

ARROW

AB

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-20

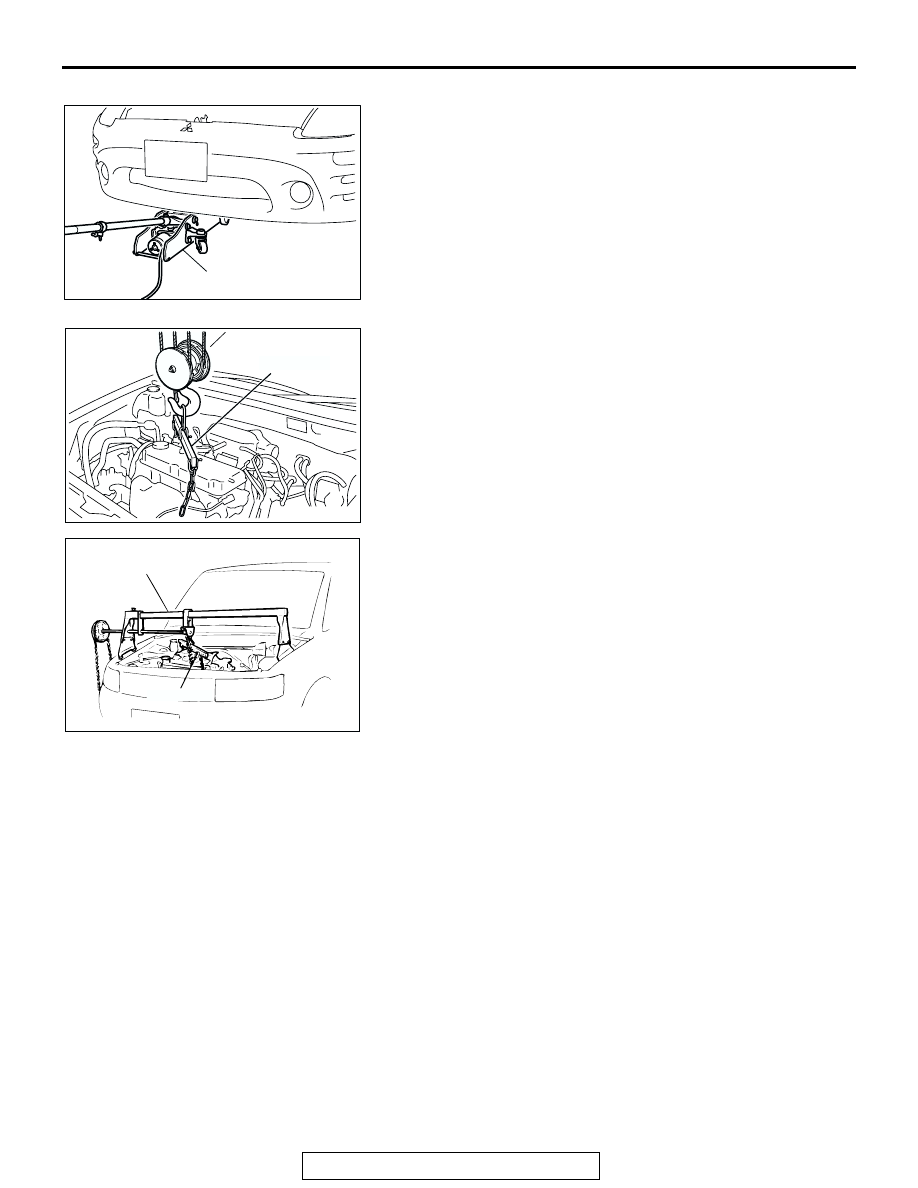

>>C<< ENGINE MOUNT BRACKET INSTALLATION
1. Place a garage jack against the engine oil pan with a piece

of wood in between, and install the engine mount bracket
while adjusting the position of the engine.

2. Support the engine with the garage jack.

3. <Engine lifter MZ2073827 is used>

Remove the chain block and support the engine assembly
with special tools MB991453 and MZ203827.

AC106167

GARAGE JACK

AB

AC102341AC

MB991454

AC000127

MZ203827

MB991453

AB

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-21

4. <Engine hanger MB991895 is used>

Remove the chain block and support the engine assembly
with special tools MB991895.

5. <Engine hanger MB991928 is used>

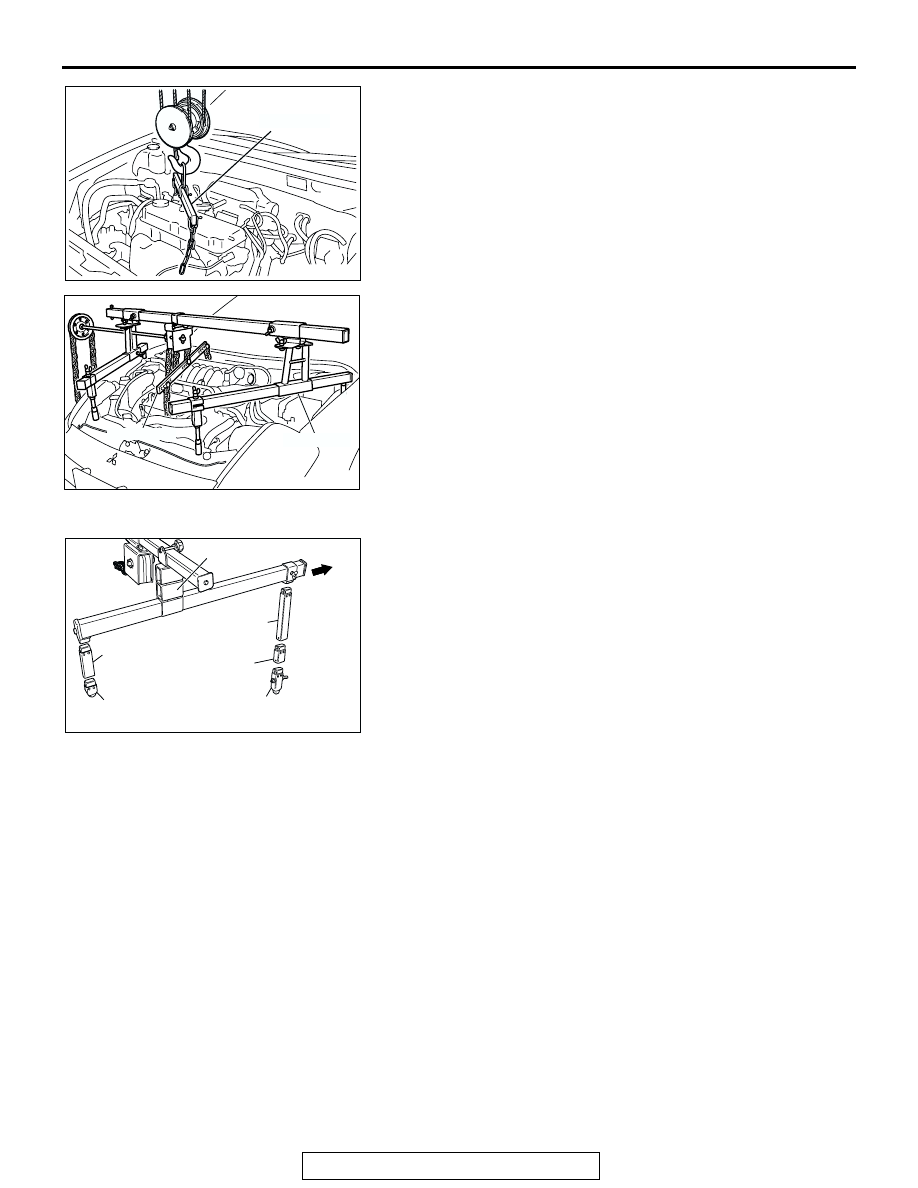

(1) Assemble the engine hanger (special tool

MB991928).Set following parts the base hanger.

• Slide bracket (HI)

• Foot (standard) (MB991932)

• Foot (short) (MB991933)

• Joint (50) (MB991929)

• Joint (90) (MB991930)

• Joint (140) (MB991931)

AC102341AC

MB991454

AC106164

MB991454

MB991895

AB

AC302468

FOOT (SHORT) (MB991933)

JOINT (90)
(MB991930)

FOOT (STANDARD)
(MB991932)

JOINT (50)
(MB991929)

JOINT (140)
(MB991931)

FRONT S

SLIDE BRACKET (HI)

AB

ENGINE ASSEMBLY

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-22

(2) Remove the chain block and support the engine

assembly with special tools MB991895.

.

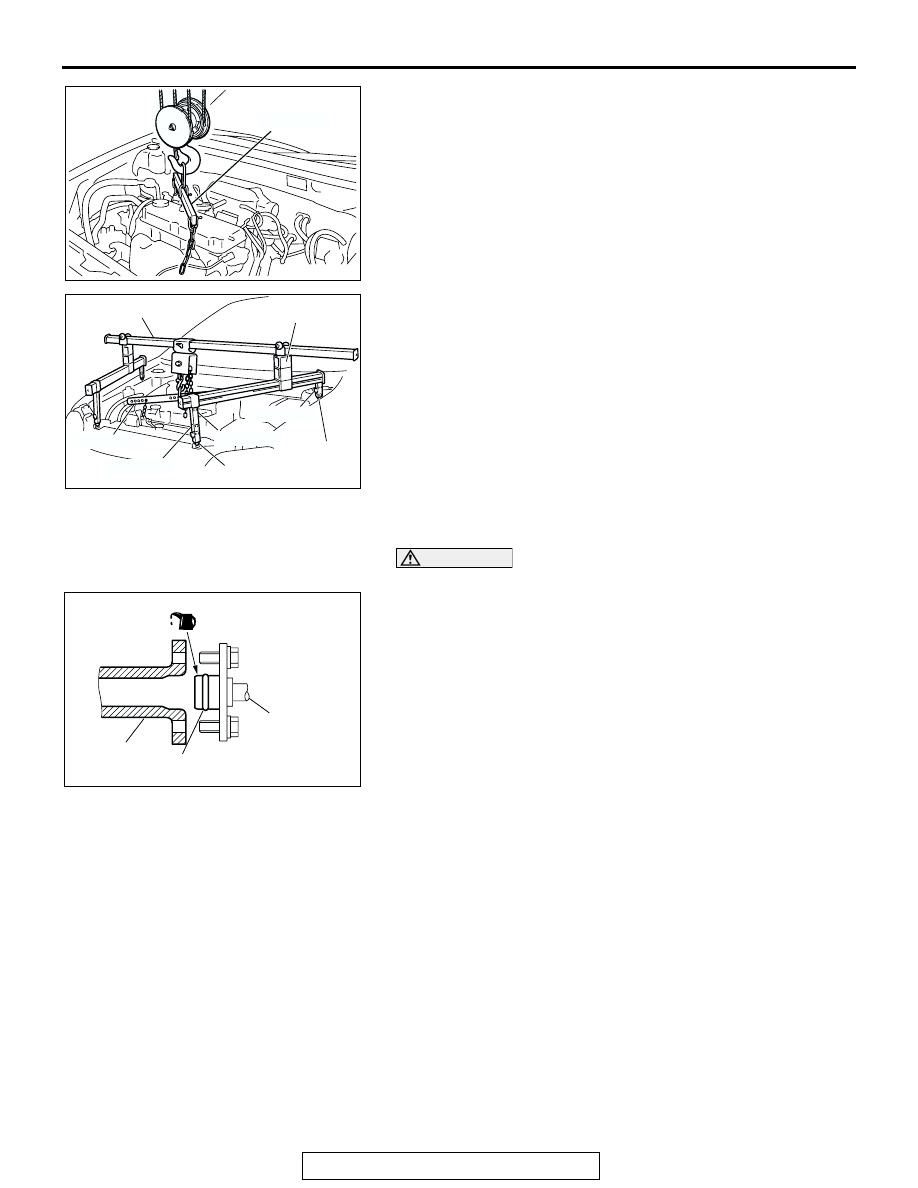

>>D<< FUEL HIGH-PRESSURE HOSE INSTALLATION

CAUTION

Do not allow any engine oil to enter the fuel rail.
1. Apply a small amount of new engine oil to the O-ring.
2. While turning the fuel high-pressure hose to the right and

left, install it to the fuel rail, while being careful not to
damage the O-ring. After installing, check that the hose
turns smoothly.

3. If the hose does not turn smoothly, the O-ring is probably

being clamped. Disconnect the fuel high-pressure hose and
check the O-ring for damage. Replace if necessary.

4. Re-insert the fuel rail and confirm the hose turns smoothly.

AC102341AC

MB991454

AC302400AC

MB991928

SLIDE BRACKET (HI)

MB991454

MB991932

MB991931

MB991933

MB991929

MB991930

AC206397

FUEL HIGH-
PRESSURE
HOSE

O-RING

FUEL RAIL

AB
