Mitsubishi Eclipse. Manual - part 98

ENGINE AND TRANSAXLE

TSB Revision

SPLICE LOCATIONS

80B-7

AC106439AB

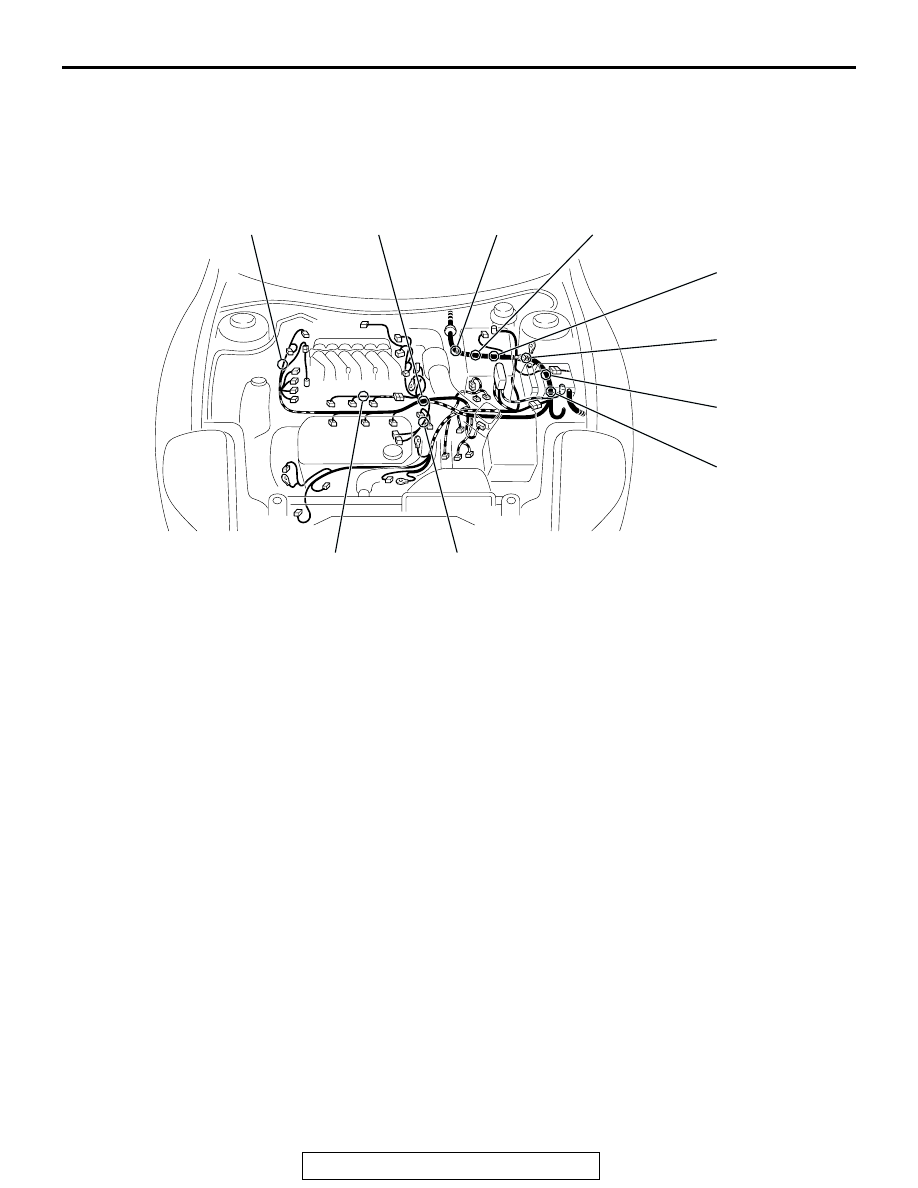

3.0L ENGINE <WITH INTAKE MANIFOLD TUNING (IMT) SYSTEM>

S028

S029

S049
S050
S051

S052
S053
S054

S047

S042

S058
S059
S060

S055
S056
S057

S061
S062

S048

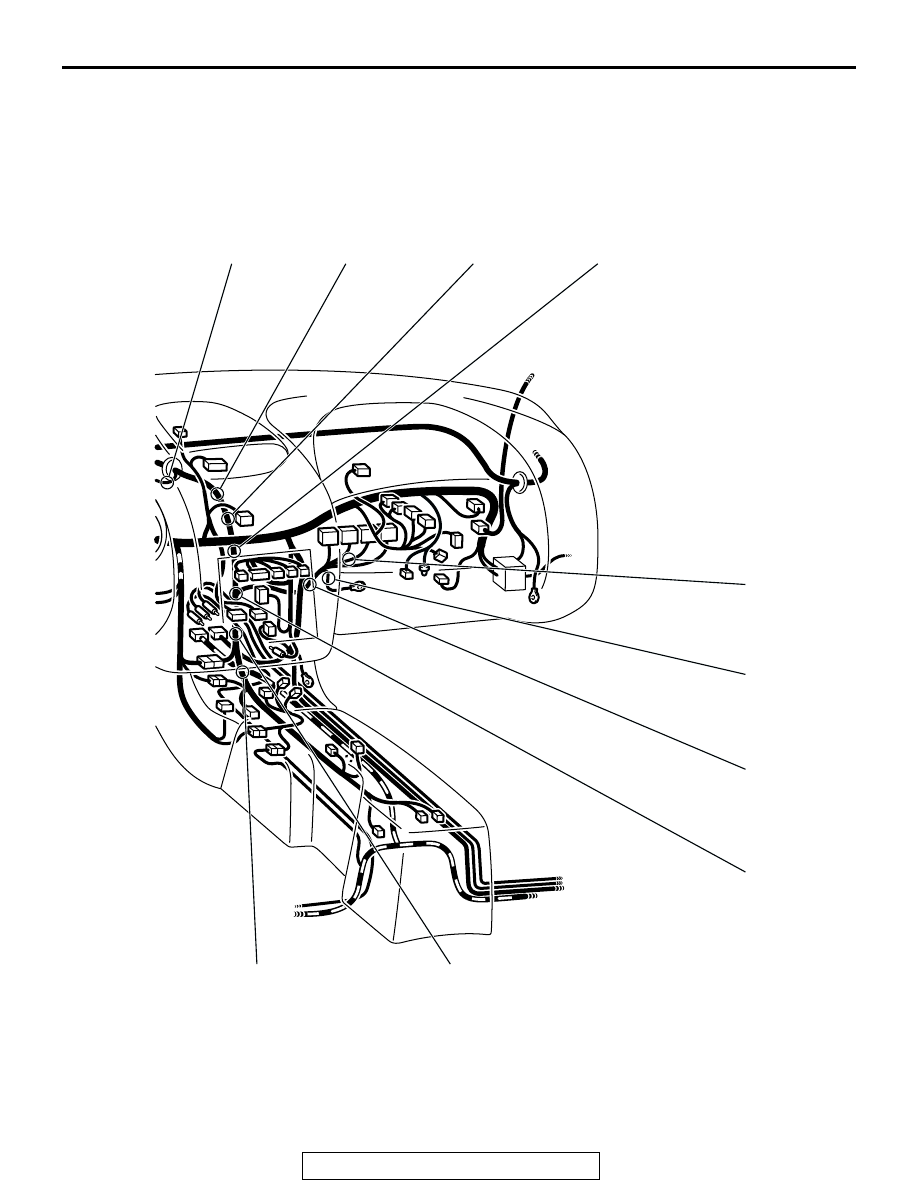

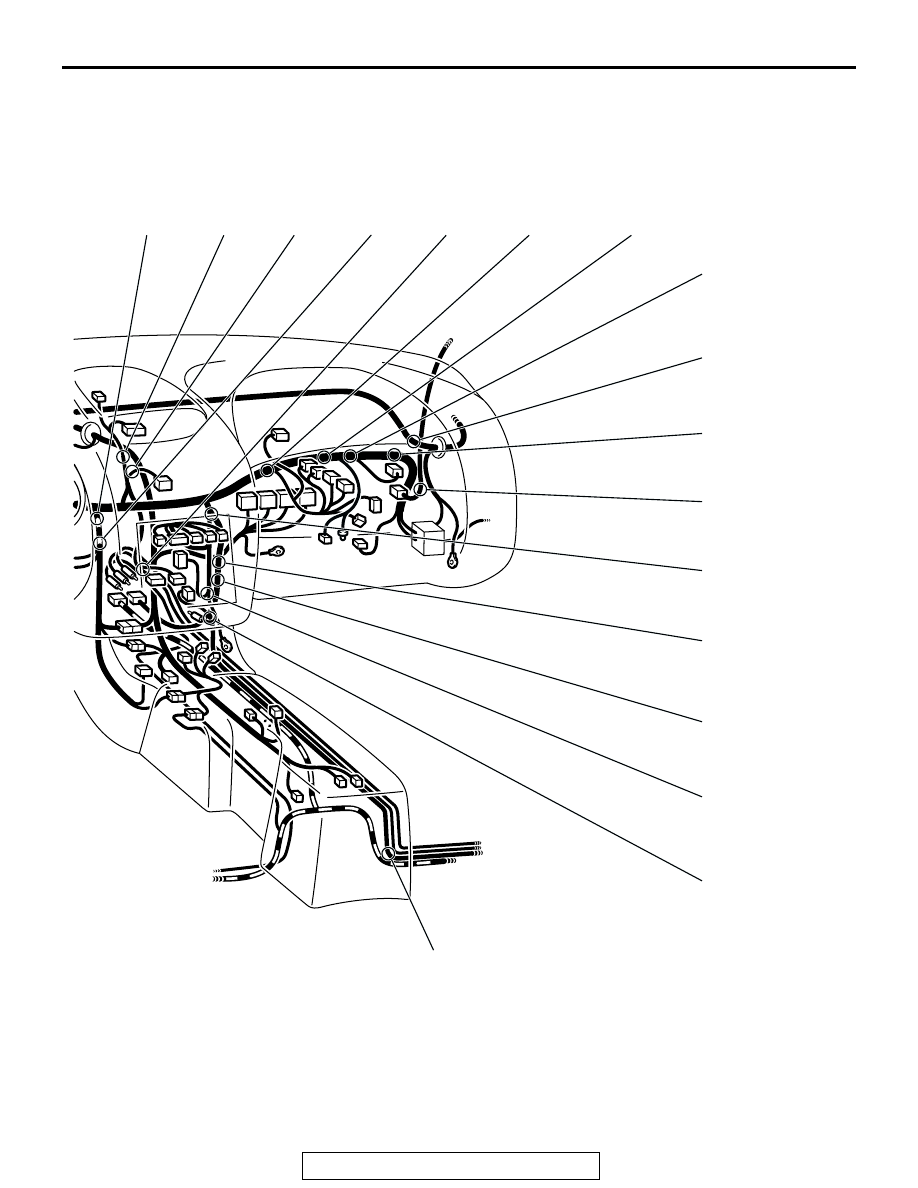

DASH PANEL

TSB Revision

SPLICE LOCATIONS

80B-8

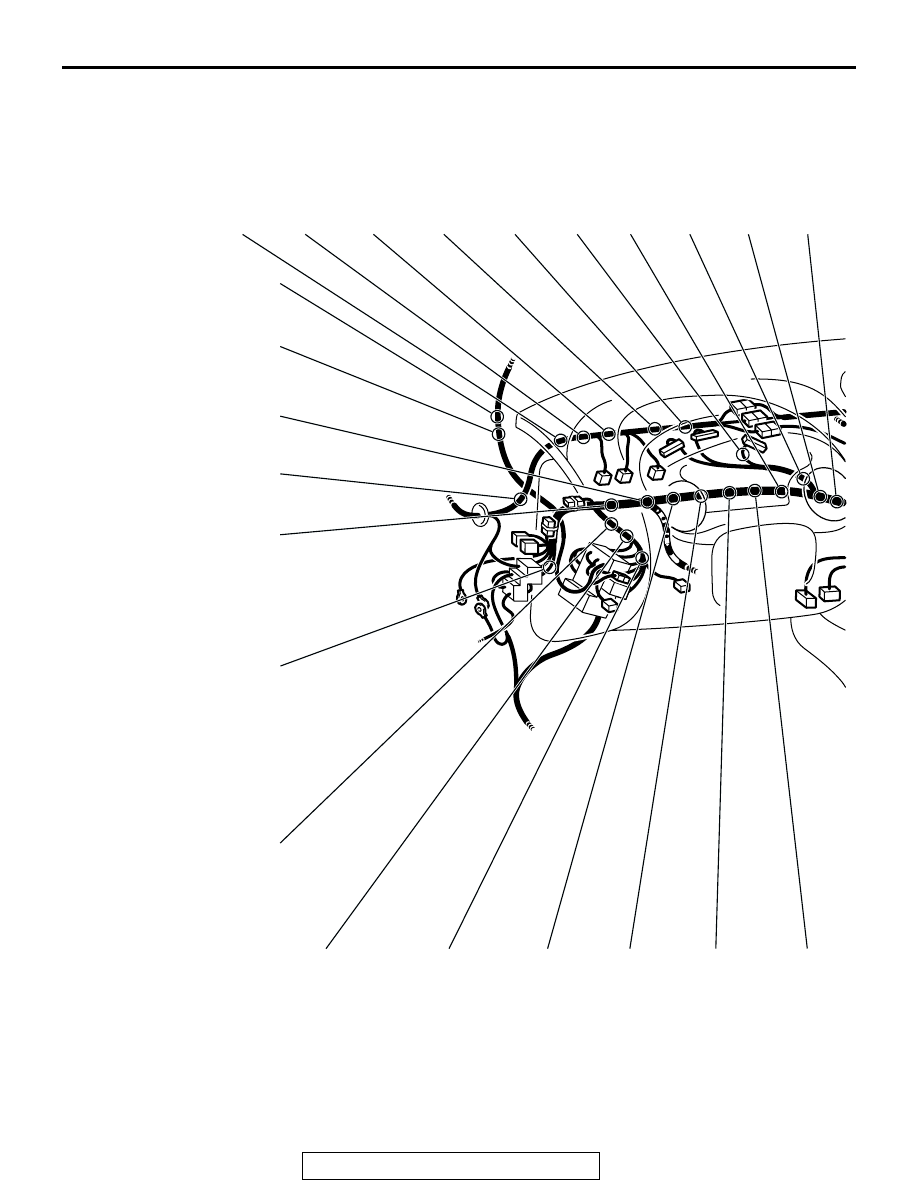

DASH PANEL

M1802000300555

AC102635AE

S063

S215

S118

S117

S212

S218

S114
S115
S116
S217

S109
S110
S111
S112
S113

S106
S107
S108

S105

S101
S102

S100

S064

S068

S071
S072

S067

S065

S066

S103
S104

S097

S069
S070

S099

S098

DASH PANEL

TSB Revision

SPLICE LOCATIONS

80B-9

AC106440AD

S073

S074

S075
S076

S077

S078

S079

S080
S216

S096

S083

S084

S085

S086
S087

S090
S091
S211

S092
S093

S081
S082

S088
S089

S094
S095

DASH PANEL

TSB Revision

SPLICE LOCATIONS

80B-10

AC106441 AB

S119
S120

S121
S122

S125
S126
S127

S128

S129
S130
S131

S132
S133

S213

S140

2.4L ENGINE

S123
S124

S134 S137
S135 S138
S136 S139
