LUGGAGE COMPARTMENT <ECLIPSE>
TSB Revision

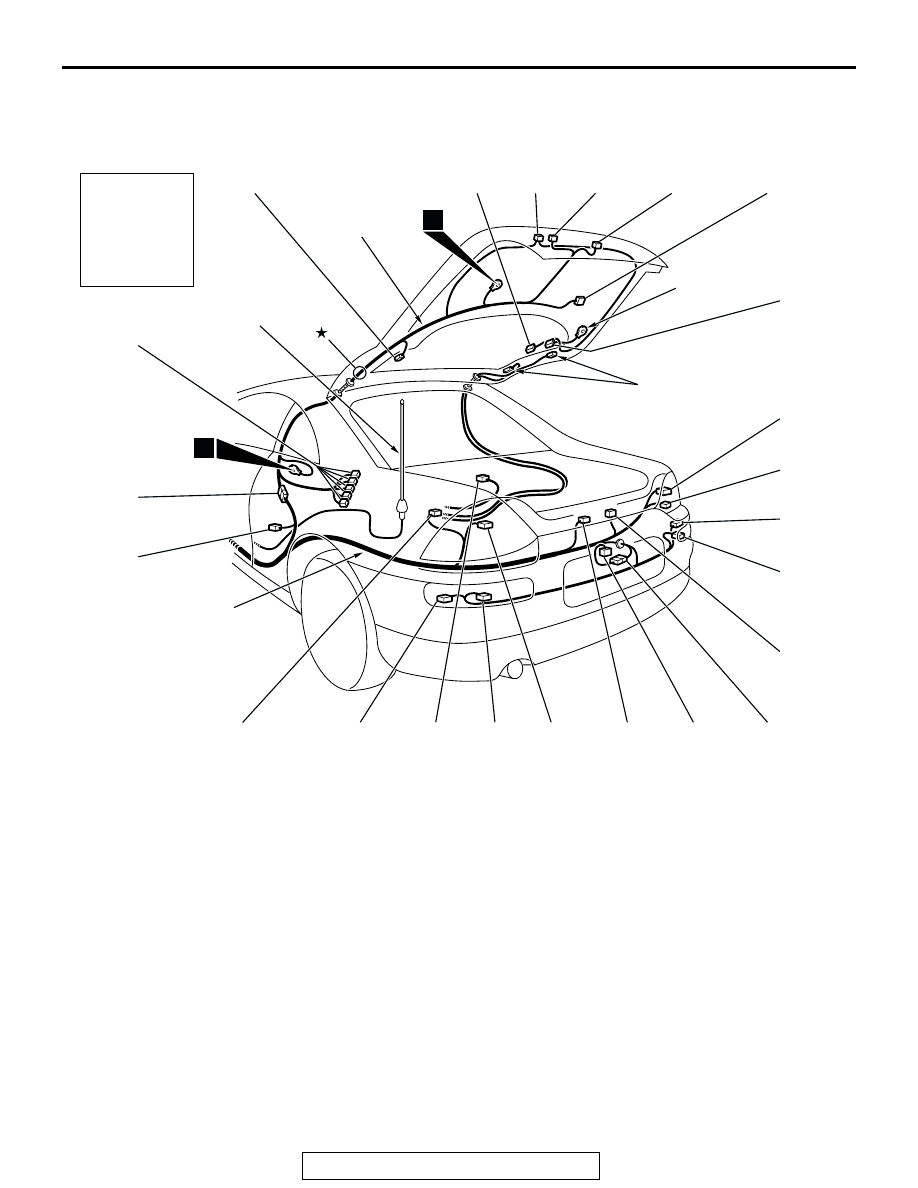

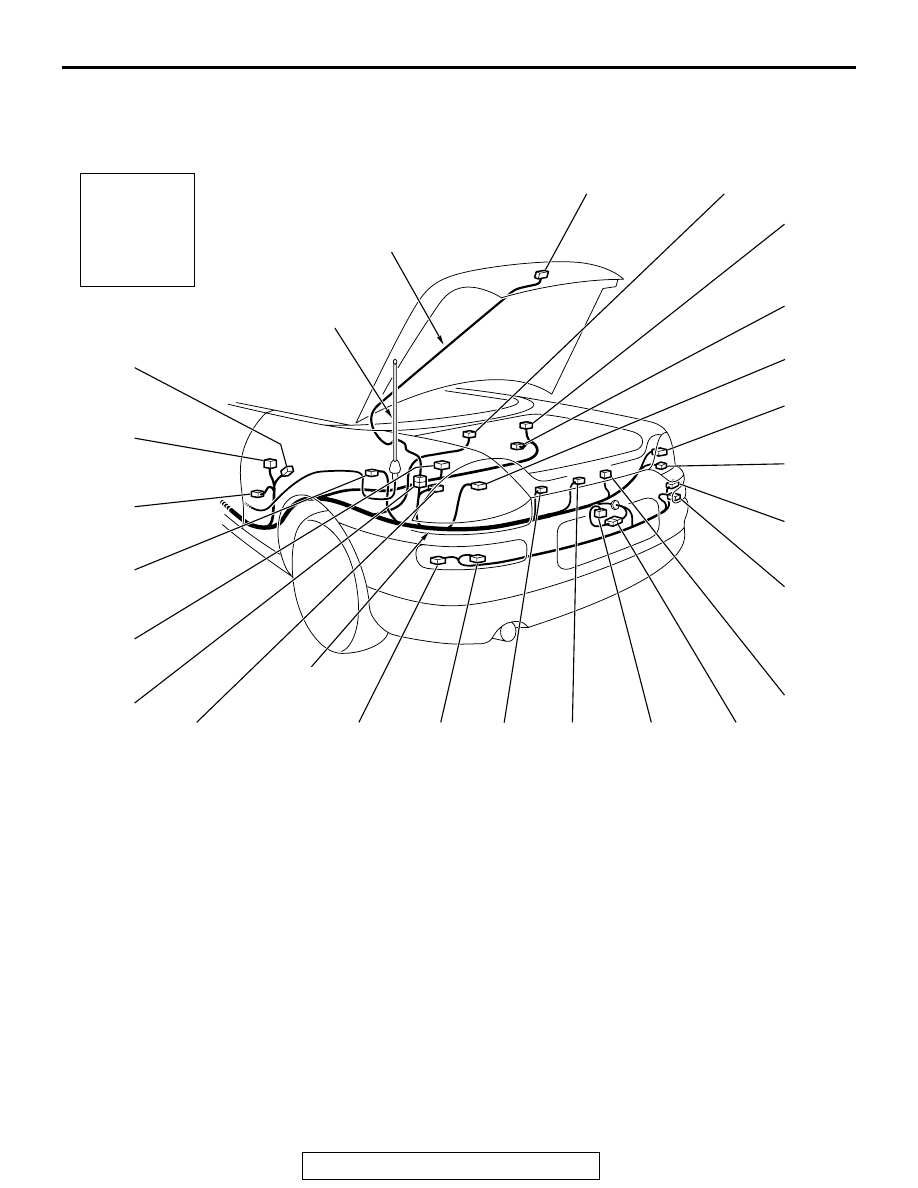

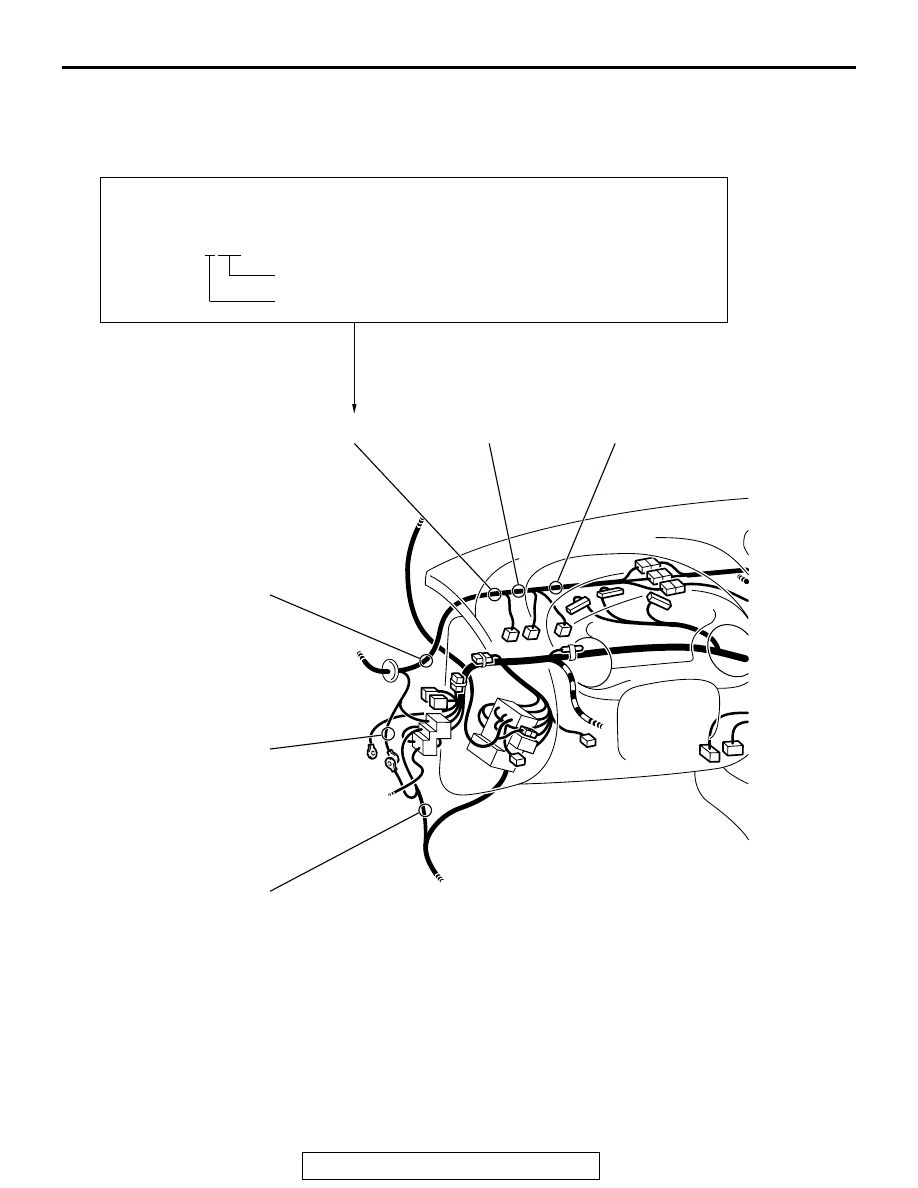

CONFIGURATION DIAGRAMS
80A-31
LUGGAGE COMPARTMENT <ECLIPSE>
M1801001500184
AC106121
Connector
symbol
F
AB
WHIP
ANTENNA
F-01
F-03
F-04
F-05
F-06
F-07
DEFOGGER
GROUND
F-08
F-09
F-10
GLASS
ANTENNA
F-11
F-12
F-13
F-14
F-15
F-16
F-17
F-18
F-19
F-20
F-21
F-23
F-24
F-25
F-26
F-27
F-28
F-29
8
9
LIFTGATE
WIRING
HARNESS
FLOOR
WIRING
HARNESS
F-01
(1-B)
DEFOGGER (+)
F-03
(1-B)
DEFOGGER (
−) <GLASS ANTENNA>
F-04
(2)
CHOKE COIL <GLASS ANTENNA>
F-05
(1-B)
CHOKE COIL <GLASS ANTENNA>
F-06
(2-GR)
HIGH MOUNTED STOPLIGHT
F-07
(3-B)
REAR WIPER MOTOR
F-08
(1-B)
DEFOGGER (
−) <WHIP ANTENNA>
F-09
(6)
REAR COMBINATION LIGHT (RH)
F-10
(2)
LIFTGATE LOCK KEY CYLINDER
SWITCH <WITH THEFT-ALARM
SYSTEM>
F-11
(2-GR)
REAR SIDE MARKER LIGHT (RH)
F-12
(2)
BACKUP LIGHT (RH)
F-13
(1-B)
LIFTGATE LIGHT SWITCH
<WITHOUT THEFT-ALARM
SYSTEM>
F-14
(2-B)
FLOOR WIRING HARNESS AND
REAR BUMPER WIRING HARNESS
COMBINATION
F-15
(2-GR)
LICENSE PLATE LIGHT
F-16
(2-B)
LIFTGATE LATCH SWITCH <WITH
THEFT-ALARM SYSTEM>
F-17
(6)
REAR COMBINATION LIGHT (LH)
F-18
(2-B)
BACKUP LIGHT (LH)
F-19
(2-B)
REAR SPEAKER (RH)
F-20
(2-GR)
REAR SIDE MARKER LIGHT (LH)
F-21
(2)
LUGGAGE COMPARTMENT LIGHT
F-23
(2-B)
REAR SPEAKER (LH)
F-24
(6)
FLOOR WIRING HARNESS AND
LIFTGATE WIRING HARNESS
COMBINATION
F-25
(1-B)
CAPACITOR <GLASS ANTENNA>
F-26
(1-B)
CAPACITOR <GLASS ANTENNA>
F-27
(1-B)
CAPACITOR <GLASS ANTENNA>
F-28
(1-B)
CAPACITOR <GLASS ANTENNA>
F-29
(1-B)
CAPACITOR <GLASS ANTENNA>
