Mitsubishi Eclipse. Manual - part 94





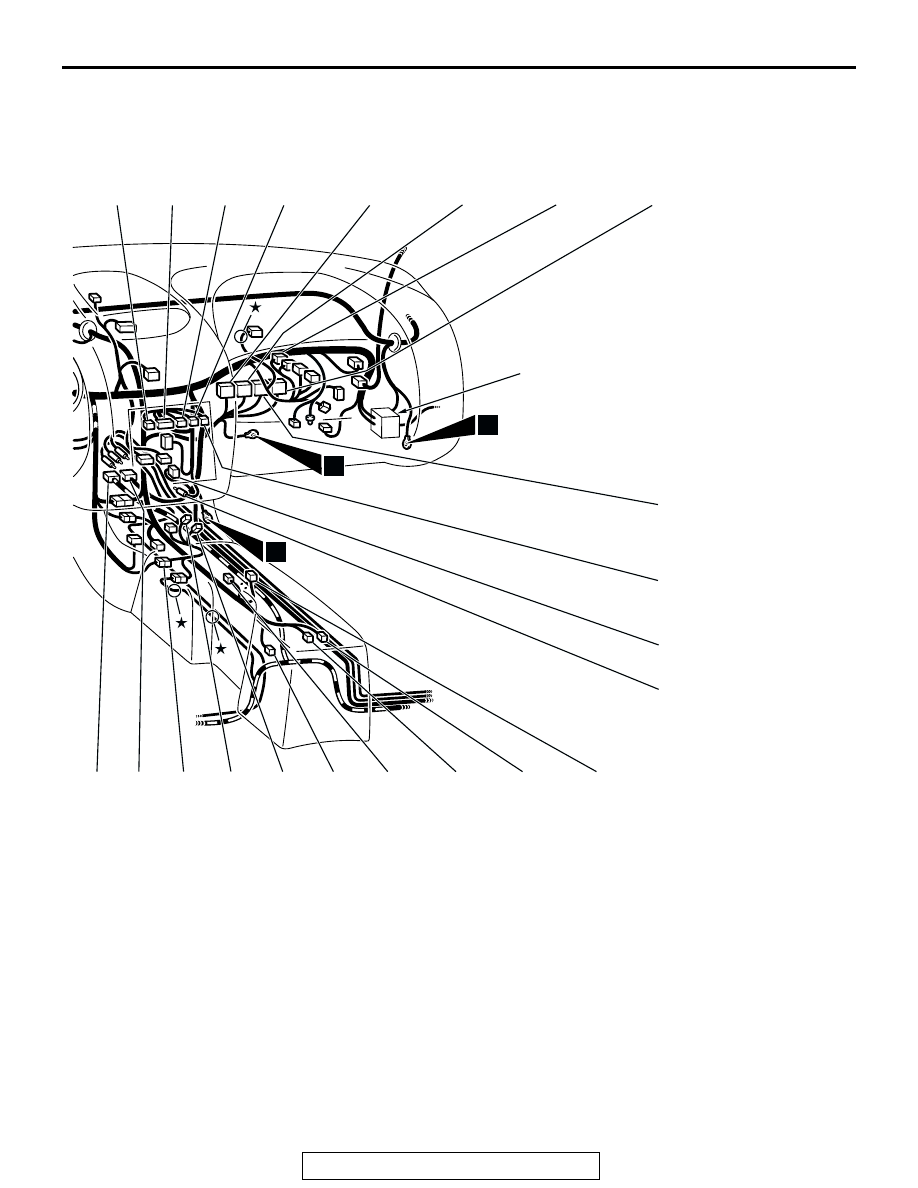

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

AC106117 AC

C-44

C-46

C-47

C-48

C-49 C-50
C-51 C-52

C-53 C-54
C-55

C-56 C-57
C-58 C-59

C-60 C-61
C-62 C-63

CONNECTOR
BLOCK (RH)

C-79

C-64

C-65

C-66

C-67

C-68

C-69

C-70

C-71

C-73

C-72

C-74

5

14

3

C-121

C-122

C-61

(30-GR) POWERTRAIN CONTROL MODULE

<2.4L ENGINE-A/T>

C-62

(30-GR) ENGINE CONTROL MODULE <3.0L

ENGINE-M/T>

C-63

(30-GR) POWERTRAIN CONTROL MODULE

<3.0L ENGINE-A/T>

C-64

(2)

ASHTRAY ILLUMINATION LIGHT

C-65

(6)

SHIFT SWITCH ASSEMBLY <WITH
SPORT MODE TYPE A/T>

C-66

(1)

ACCESSORY SOCKET

C-67

(1-B)

ACCESSORY SOCKET

C-68

(2)

A/T SELECTOR LEVER POSITION
ILLUMINATION LIGHT <WITHOUT
SPORT MODE TYPE A/T>

C-69

(1-B)

PARKING BRAKE SWITCH

C-70

(1-B)

CIGARETTE LIGHTER

C-71

(1)

CIGARETTE LIGHTER

C-72

(16-Y)

SRS-ECU

C-73

(3)

INSTRUMENT PANEL WIRING
HARNESS AND CONSOLE WIRING
HARNESS COMBINATION

C-74

(22-Y)

SRS-ECU <WITH SIDE AIR BAG>

C-75

(3)

RHEOSTAT

C-76

(7)

FOG LIGHT SWITCH

C-77

(33)

JOINT CONNECTOR (1)

C-78

(33)

JOINT CONNECTOR (2)

C-79

(12)

IMMOBILIZER-ECU

C-121 (7)

WATER SHUT MOTOR <ECLIPSE>

C-122 (8)

WATER SHUT VALVE CONTROLLER
<ECLIPSE>

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-24

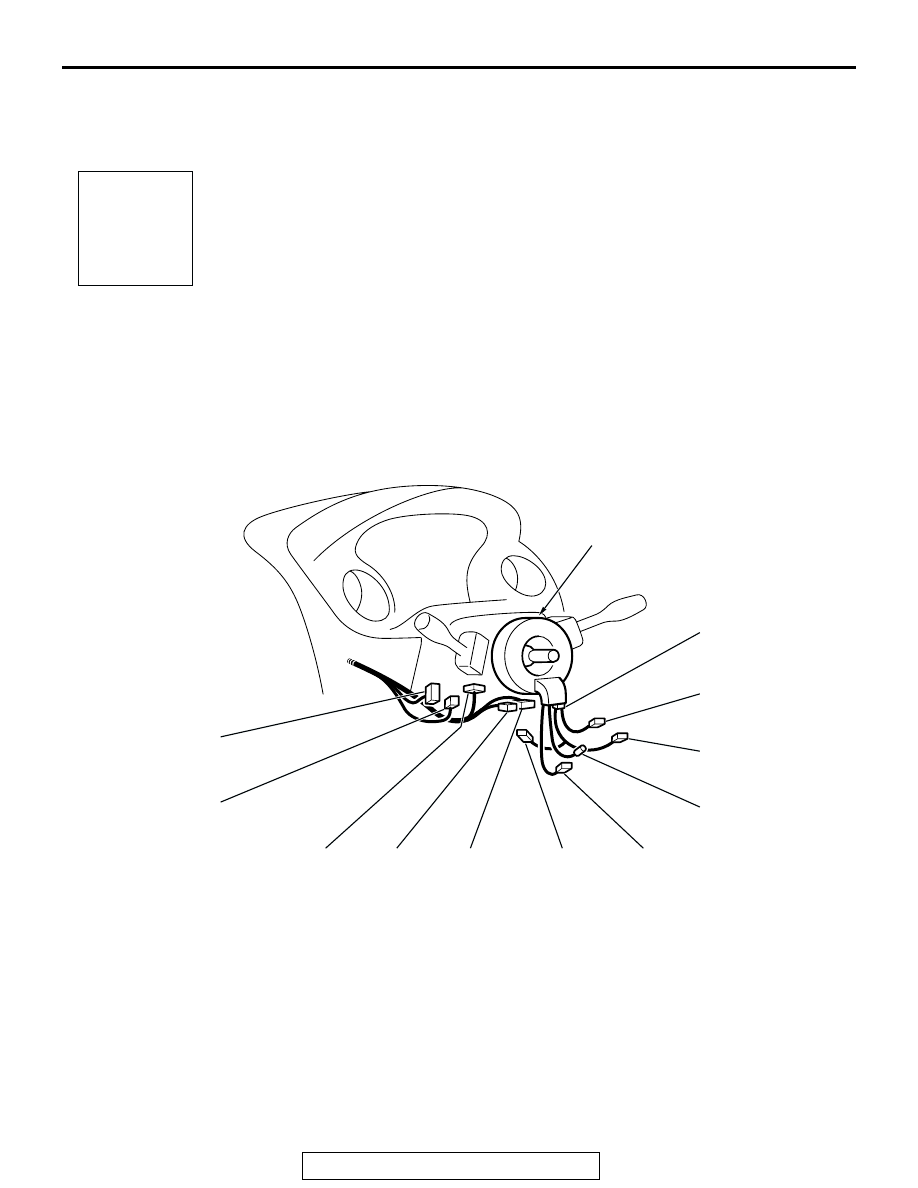

DASH PANEL (CONTINUED)

AC106118

Connector
symbol

-81
thru
-98

C

AB

STEERING COLUMN

C-88

C-97

C-83

C-81

C-84

C-85

C-86

C-87

C-98

C-82

C-96

CLOCK
SPRING

C-81

(2)

AIR BAG MODULE (SQUIB)
(DRIVER'S SIDE)

C-82

(3)

AUTO-CRUISE CONTROL SWITCH

C-83

(1)

HORN SWITCH

C-84

(6-B)

CLOCK SPRING

C-85

(4-Y)

CLOCK SPRING

C-86

(10)

COLUMN SWITCH

C-87

(6)

IGNITION SWITCH

C-88

(7)

KEY REMINDER SWITCH

C-89

(38)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS (LH) COMBINATION

C-90

(43)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

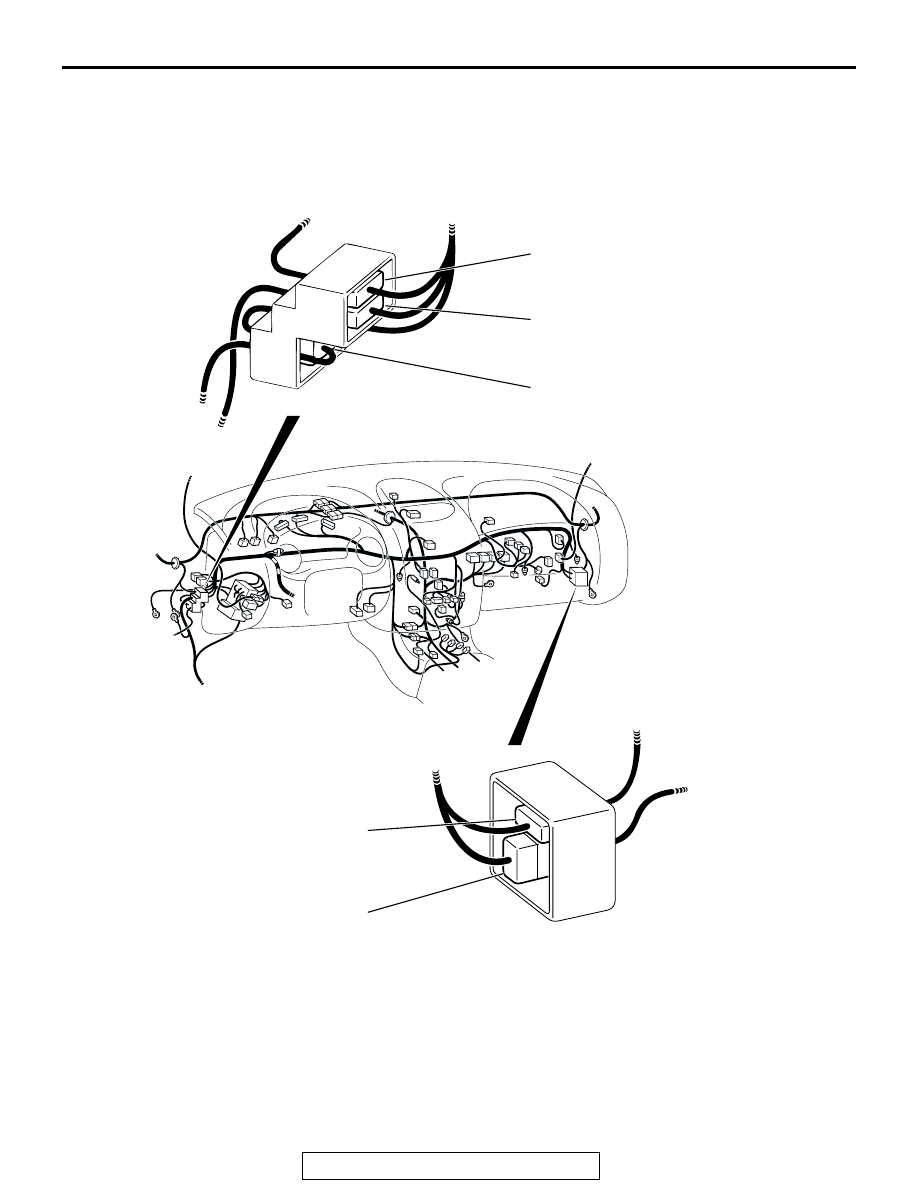

80A-25

ACX02057

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

AG

CONNECTOR BLOCK (LH)

CONNECTOR BLOCK (RH)

C-89

C-90

C-91

C-94

C-95

C-91

(32-B)

INSTRUMENT PANEL WIRING
HARNESS AND DOOR WIRING
HARNESS (LH) COMBINATION

C-94

(20)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS (RH) COMBINATION

C-95

(32)

INSTRUMENT PANEL WIRING
HARNESS AND DOOR WIRING
HARNESS (RH) COMBINATION

C-96

(5)

CLOCK SPRING AND CLOCK
SPRING WIRING HARNESS
COMBINATION

C-97

(2)

REMOTE CONTROLLED RADIO
SWITCH (RH)

C-98

(2)

REMOTE CONTROLLED RADIO
SWITCH (LH)

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-26

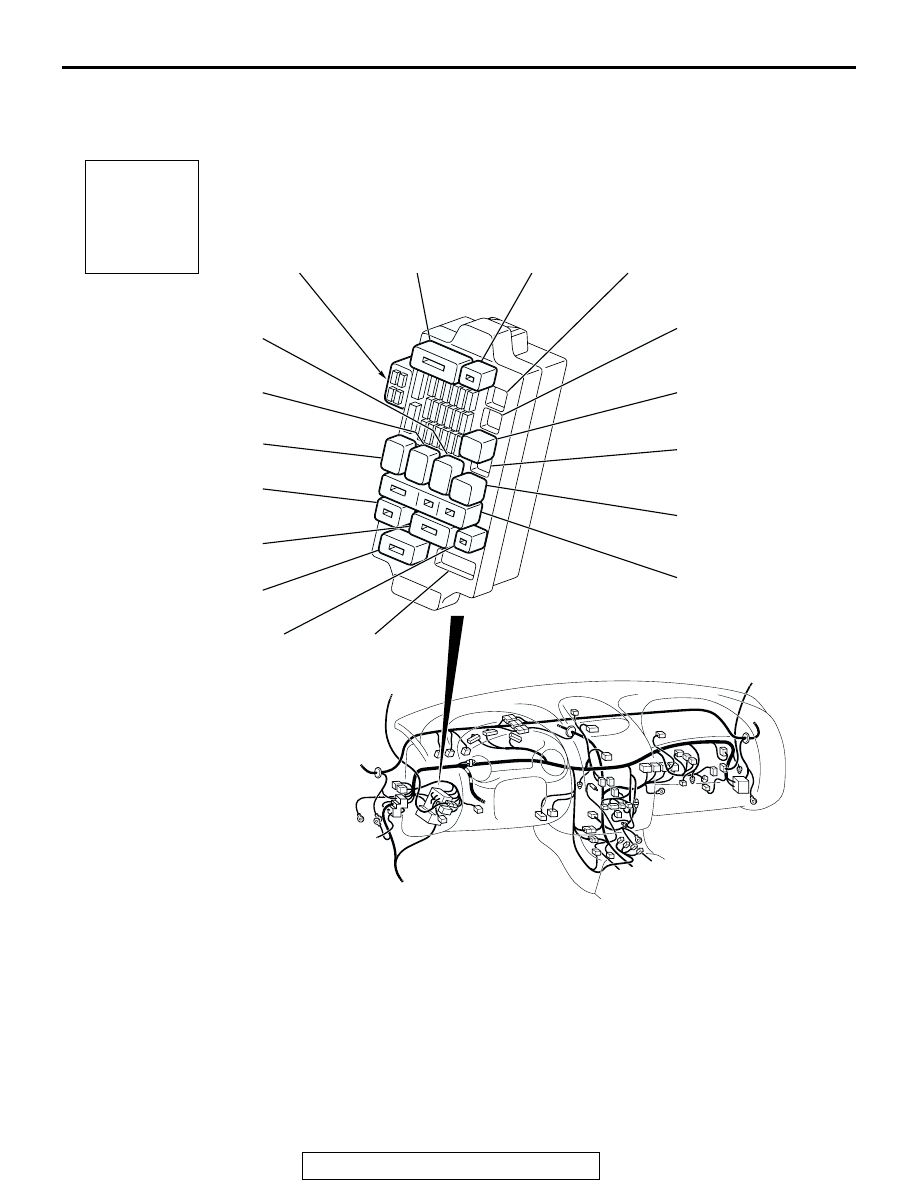

DASH PANEL (CONTINUED)

AC106139

Connector
symbol

-101
thru
-119

C

C-101

C-103

C-102

C-104

C-105

C-106

C-107

C-108

DEDICATED
FUSES

JUNCTION BLOCK
(FRONT VIEW)

AB

C-116

C-115

C-114

C-113

C-112

C-111

C-110

C-109

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

C-101 (15)

FLOOR WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-102 (3)

ROOF WIRING HARNESS AND
JUNCTION BLOCK COMBINATION

C-103 (4)

NO CONNECTION

C-104 (4)

NO CONNECTION

C-105 (4)

FUEL PUMP RELAY (2)

C-106 (4)

NO CONNECTION

C-107 (4)

FUEL PUMP RELAY (1)

C-108 (28)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION

C-109 (13)

NO CONNECTION

C-110 (2)

INSTRUMENT PANEL WIRING
HARNESS AND JUNCTION BLOCK
COMBINATION
