POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-25

NOTES

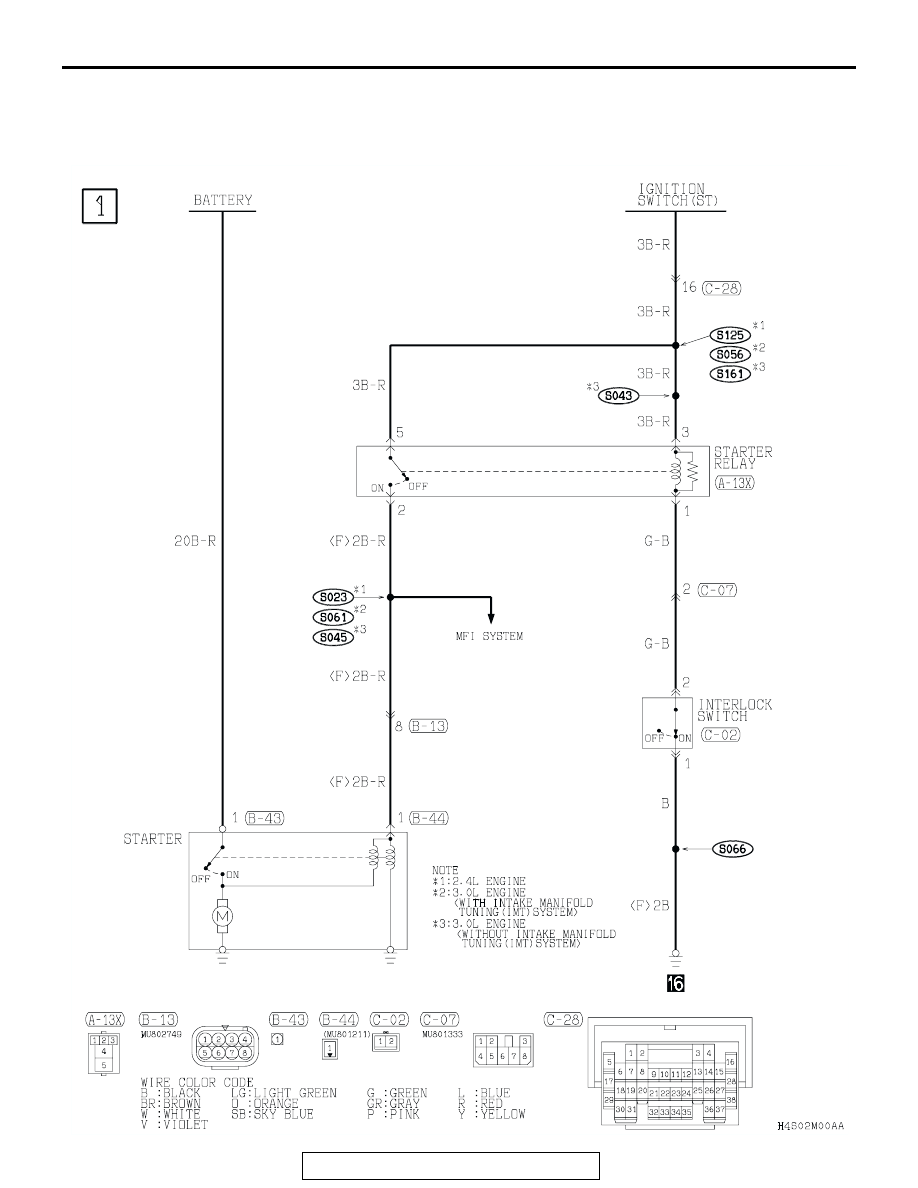

STARTING SYSTEM <M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-26

STARTING SYSTEM <M/T>

M1901000500809

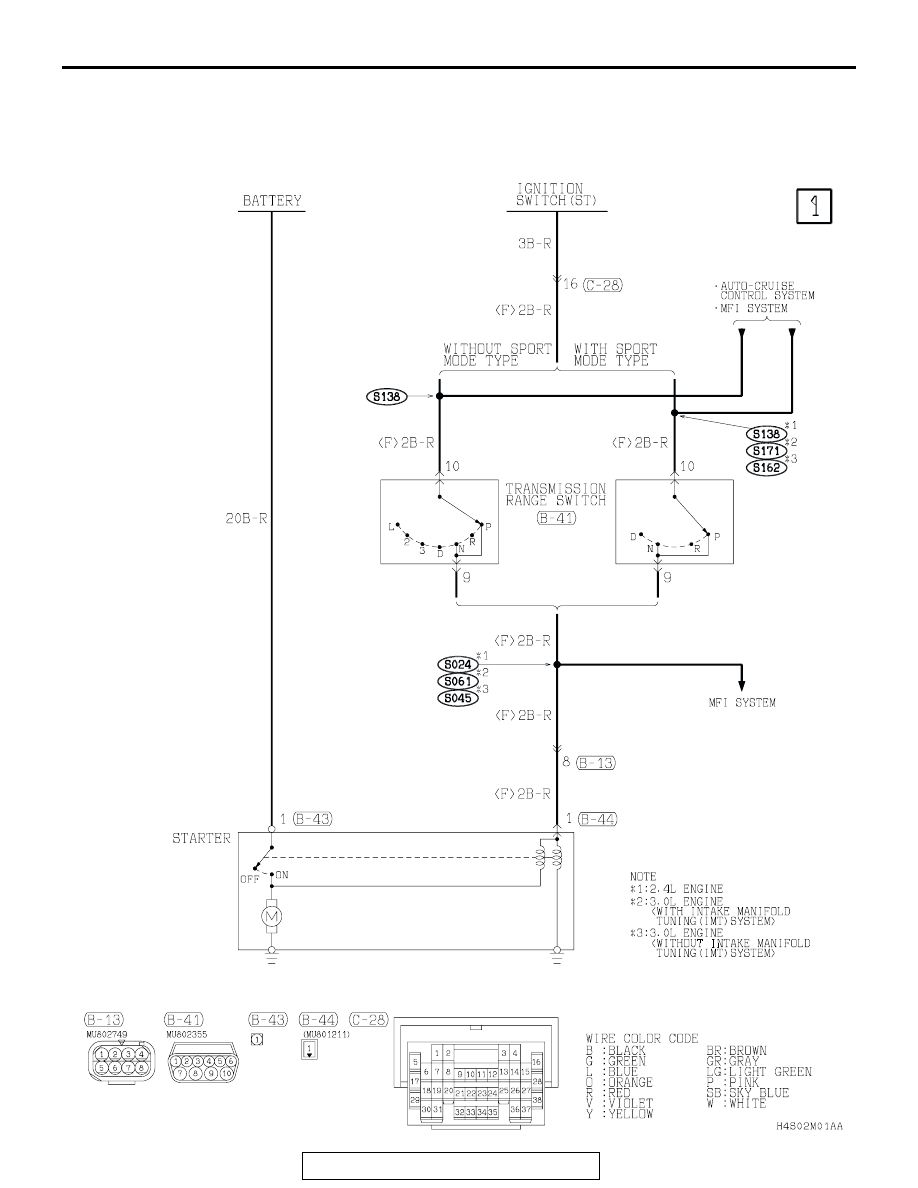

STARTING SYSTEM <A/T>

TSB Revision

CIRCUIT DIAGRAMS

90-27

STARTING SYSTEM <A/T>

M1901000500810

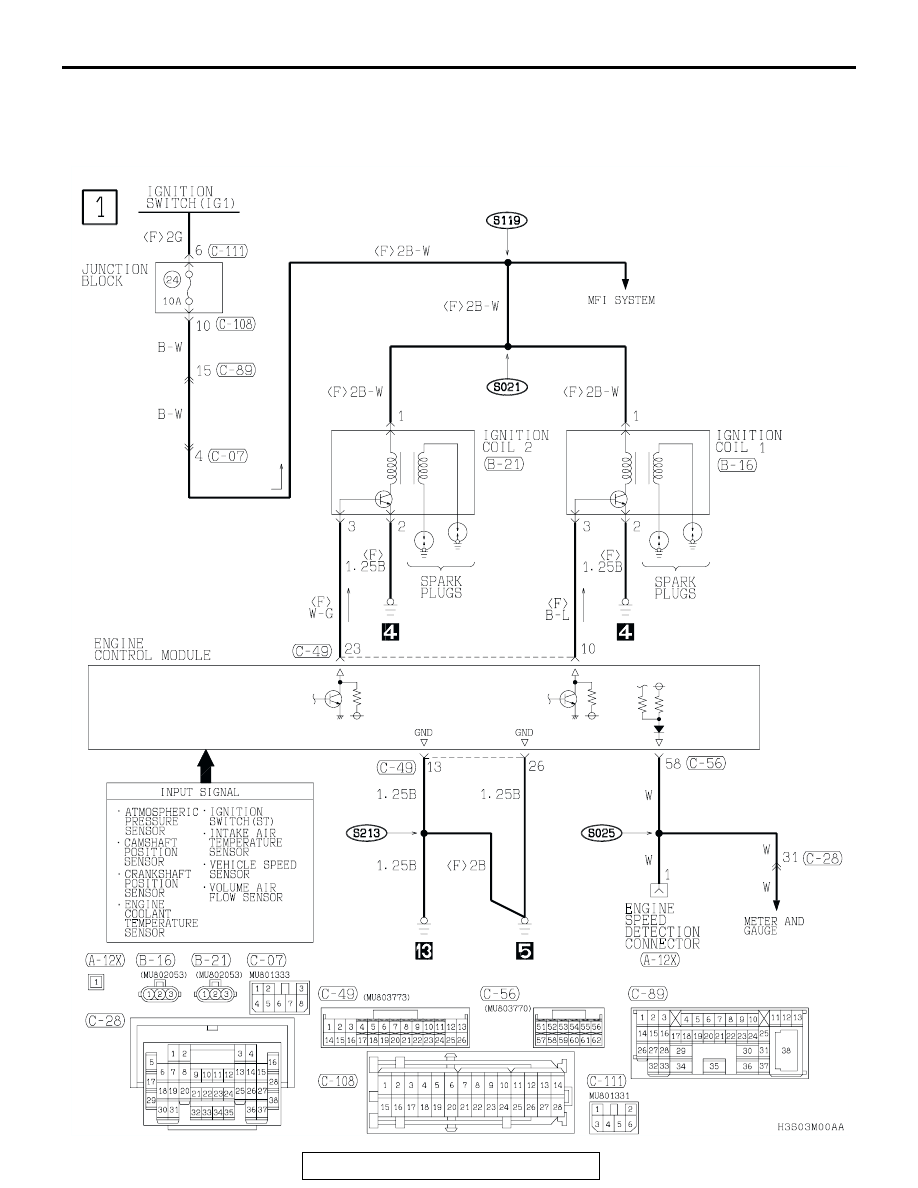

IGNITION SYSTEM <2.4L ENGINE-M/T>

TSB Revision

CIRCUIT DIAGRAMS

90-28

IGNITION SYSTEM <2.4L ENGINE-M/T>

M1901000600709
