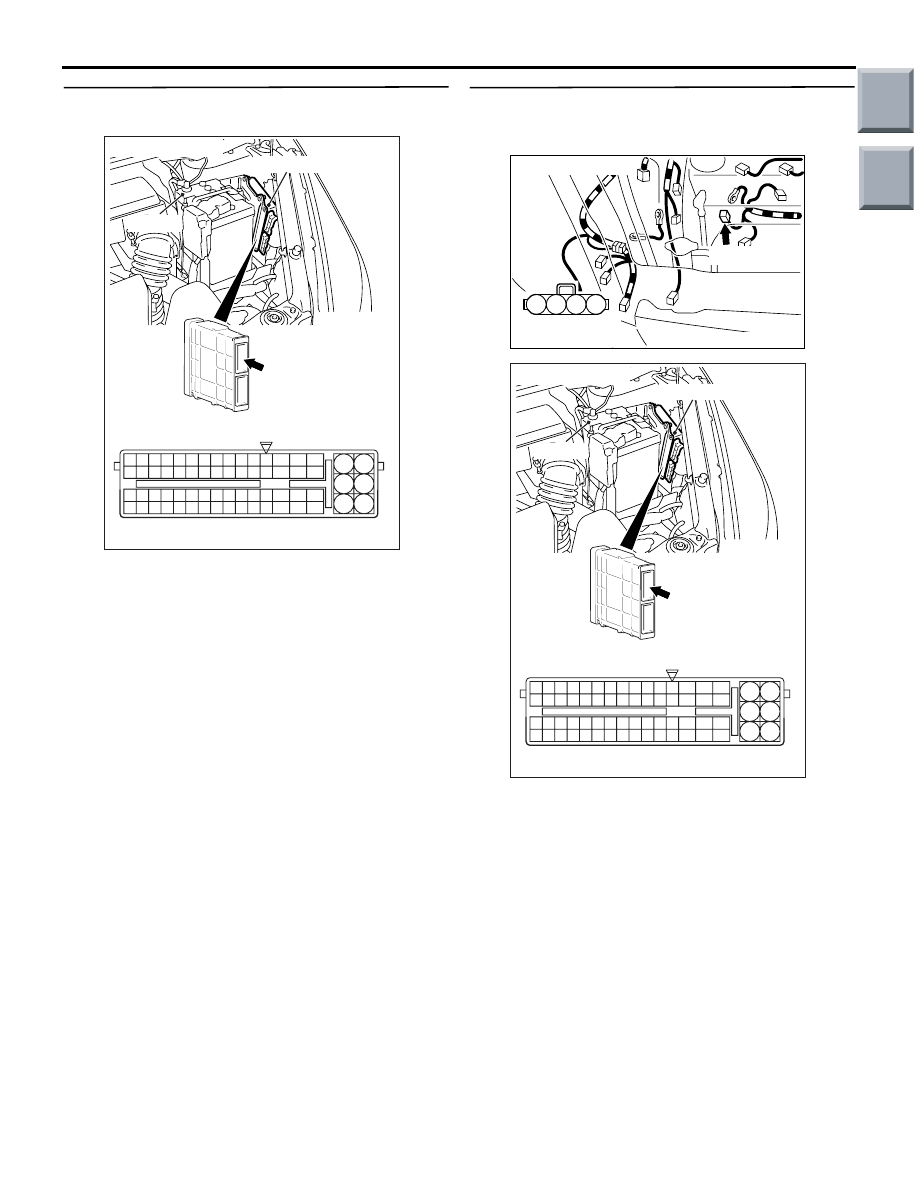

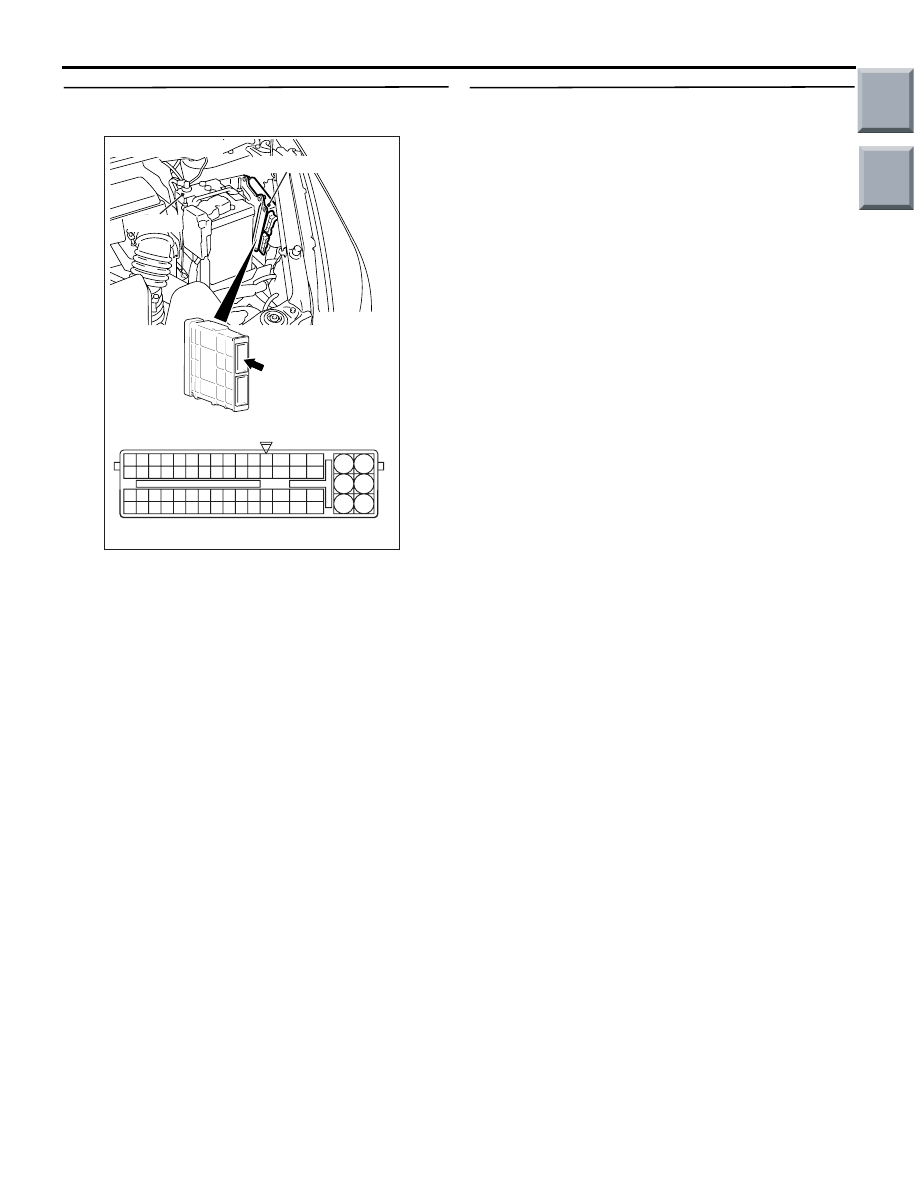

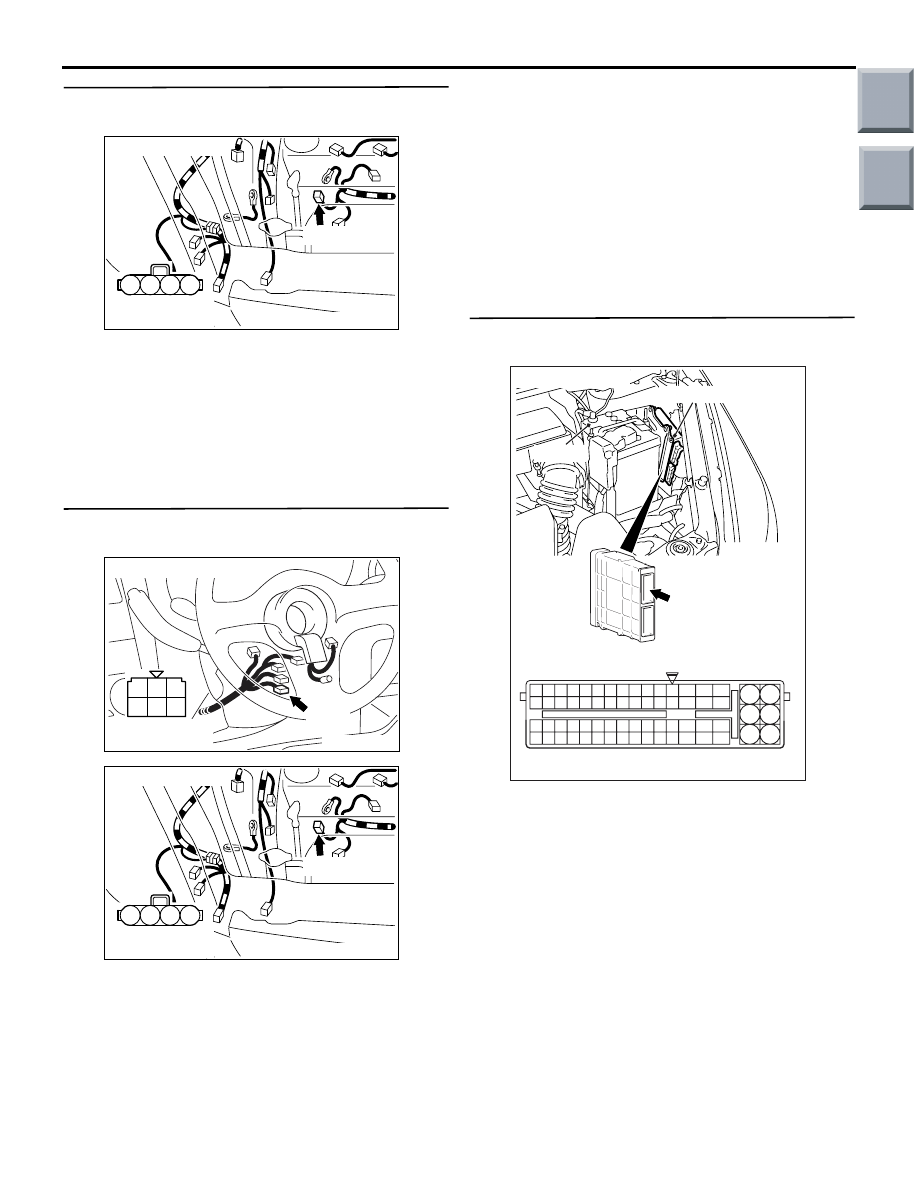

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-269

STEP 3. Perform voltage measurement at A-131
alternator connector.

Disconnect connector and measure at harness side.

• Ignition switch: ON

• Voltage between terminal No. 3 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 4 .

STEP 4. Connector check: B-141 ignition switch
connector

Q: Is the check result normal?

YES :

Check intermediate connectors A-17, B-41,

B-14, B-22, B-131, B-129, and repair if
necessary. If intermediate connectors are
normal, check and repair harness between
B-141 (terminal No. 2) ignition switch
connector and A-131 (terminal No. 3)
alternator connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

STEP 5. Connector check: A-114 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace.

2

1

3

4

AK402098

A-131(G)

Connector: A-131

Harness side
connector

AC

1

2

3

4

5

6

AK402103

Connector: B-141

Harness side
connector

B-141

AC

2

1

3

4

AK402098

A-131(G)

Connector: A-131

Harness side
connector

AC

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-270

STEP 6. Perform voltage measurement at A-114
engine-ECU connector.

Disconnect connector and measure at harness side.

• Ignition switch: ON

• Voltage between terminal No. 64 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 7 .

STEP 7. Check harness between A-131 (terminal
No. 1) alternator connector and A-114 (terminal
No. 64) engine-ECU connector.

Check output line for open/short circuit.

Q: Is the check result normal?

YES :

Replace alternator.

NO :

Repair.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

2

1

3

4

AK402098

A-131(G)

Connector: A-131

Harness side
connector

AC

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-271

STEP 8. Perform voltage measurement at A-114
engine-ECU connector.

Disconnect engine-ECU connector, and connect

Special Tool Power Plant ECU Check Harness
(MB991987), and measure the voltage on the
check connector.

• Engine: Idling after warm-up

• Transmission: Neutral

• Cooling fan: Inactive

• Voltage between terminal No. 64 and earth.

OK: Switching the headlamps to ON from
OFF causes the voltage to increase 0.2

 3.5

V.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Check alternator.

STEP 9. Check the trouble symptom.

Q: Does trouble symptom recur?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-272

Inspection Procedure 18: Overheating

COMMENT ON TROUBLE SYMPTOM

• Failure is possibly caused by failed engine cool-

ing system, failed engine coolant temperature
sensor, or other faults.

PROBABLE CAUSES

• Lack of or deteriorated engine coolant

• Failed fan control relay

• Failed engine coolant temperature sensor

• Failed thermostat

• Failed water pump

• Failed radiator core

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is the diagnosis code output?

YES :

Inspection chart for diagnosis code (Refer

to

P.13B-18

).

NO :

Go to Step 2.

STEP 2. Check engine coolant.
NOTE: If engine coolant level falls too early, check
for leaky spots, and repair if necessary.

• Check engine coolant (Refer to GROUP 14 −

On-vehicle Service

− Engine Coolant Leak Check

P.14-3

).

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace or add engine coolant.

STEP 3. M.U.T.-III actuator test

• Refer to Actuator Test Reference Table

P.13B-344

.

a. Item 20: Cooling fan motor (HI)
b. Item 21: Cooling fan motor (LO)

Q: Are the check result normal?

YES :

Go to Step 4.

NO :

Check fan control relay system (Refer to
Inspection Procedure 23

P.13B-303

).

STEP 4. M.U.T.-III data list

• Item 21: Engine coolant temperature sensor

OK:

Engine cold state: At ambient temperature

(atmospheric temperature) or equivalent.

Engine hot state: At 80

 120°C

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Check engine coolant temperature sensor
(Refer to Code No. P0115

P.13B-45

).

STEP 5. Check thermostat.

• Check thermostat (Refer to GROUP 14 − Ther-

mostat

− Thermostat Inspection

P.14-12

).

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace thermostat.

STEP 6. Check water pump.

• Check water pump.

Q: Is the check result normal?

YES :

Replace radiator.

NO :

Replace water pump.

Main

Index

Group

TOC
