TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-241

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnosis

• Using M.U.T.-III, perform CAN busline diagnosis.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN busline (Refer to GROUP
54D

− Troubleshooting − CAN Bus

Diagnosis Table

P.54D-13

). After repairing

the CAN busline, go to Step 6.

STEP 2. M.U.T.-III other system diagnosis codes

• Check whether diagnosis codes is output from

meter-A/C-ECU.

Q: Is the diagnosis code output?

YES :

Perform troubleshooting of the air

conditioning system (Refer to GROUP 55B
−Troubleshooting

P.55B-3

 ).

NO :

Go to Step 3.

STEP 3. M.U.T.-III other system diagnosis codes
Check whether the diagnosis code U1110: A/C-ECU
time-out is output from the following ECU having
CAN communication with meter-A/C-ECU.

• ETACS-ECU

Q: Is the diagnosis code output?

YES :

Go to Step 4.

NO :

Go to Step 5.

STEP 4. M.U.T.-III diagnosis code
Reconfirm whether the diagnosis code is output from
engine-ECU.

1. Erase the diagnosis code being output.
2. Ignition switch: LOCK (OFF) to ON
3. Confirm whether the diagnosis code is output.

Q: Is the diagnosis code output?

YES :

Replace the A/C-ECU, and then go to Step

6.

NO :

Intermittent malfunction in the CAN bus-line
between the engine-ECU and
meter-A/C-ECU (Refer to GROUP 00

− How

to use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunctions

P.00-13

).

STEP 5. M.U.T.-III diagnosis code

• Reconfirm whether the diagnosis code is output

from engine-ECU.

1. Erase the diagnosis code being output.
2. Ignition switch: LOCK (OFF) to ON
3. Confirm whether the diagnosis code is output.

Q: Is the diagnosis code output?

YES :

Replace engine-ECU, and then go to Step

6.

NO :

Intermittent malfunction in the CAN bus-line
between the engine-ECU and
meter-A/C-ECU (Refer to GROUP 00

− How

to use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunctions

P.00-13

).

STEP 6. M.U.T.-III diagnosis code

• Reconfirm whether the diagnosis code is output

from engine-ECU.

1. Erase the diagnosis code being output.
2. Ignition switch: LOCK (OFF) to ON
3. Confirm whether the diagnosis code is output.

Q: Is the diagnosis code output?

YES :

Go to Step 1.

NO :

Check end.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-242

SYMPTOM PROCEDURES

Inspection Procedure 1: Communication with Engine-ECU is Not Possible

OPERATION

• Data is communicated between diagnosis con-

nector output terminal (terminal No. 7) and
engine-ECU (terminal No. 121).

COMMENT ON TROUBLE SYMPTOM

• The problem may probably be traced to

engine-ECU power circuit or earth circuit.

PROBABLE CAUSES

• Open/short circuit in or damage to the

engine-ECU power circuit

• Between engine-ECU and diagnosis connector

for open/short circuit or damage

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check engine start.

Q: Does engine start?

YES :

Go to Step 2 .

NO :

Check engine-ECU power source, engine
control relay, and ignition switch-IG1 system
(Refer to Inspection Procedure 21

P.13B-282

).

AK402806

1 2 3 4 5 6

12

11

10

1516

14

13

9

7 8

R

92 93 94 95969798

77 78 79 808182838485868788899091

99

100

107 108 109 110 111112113114115116117118119120121
122 123 124 125126127128129130131132133134135136

101102103104105106

71 72

73 74

75 76

B-32

MU803797

20

121

7

B-41

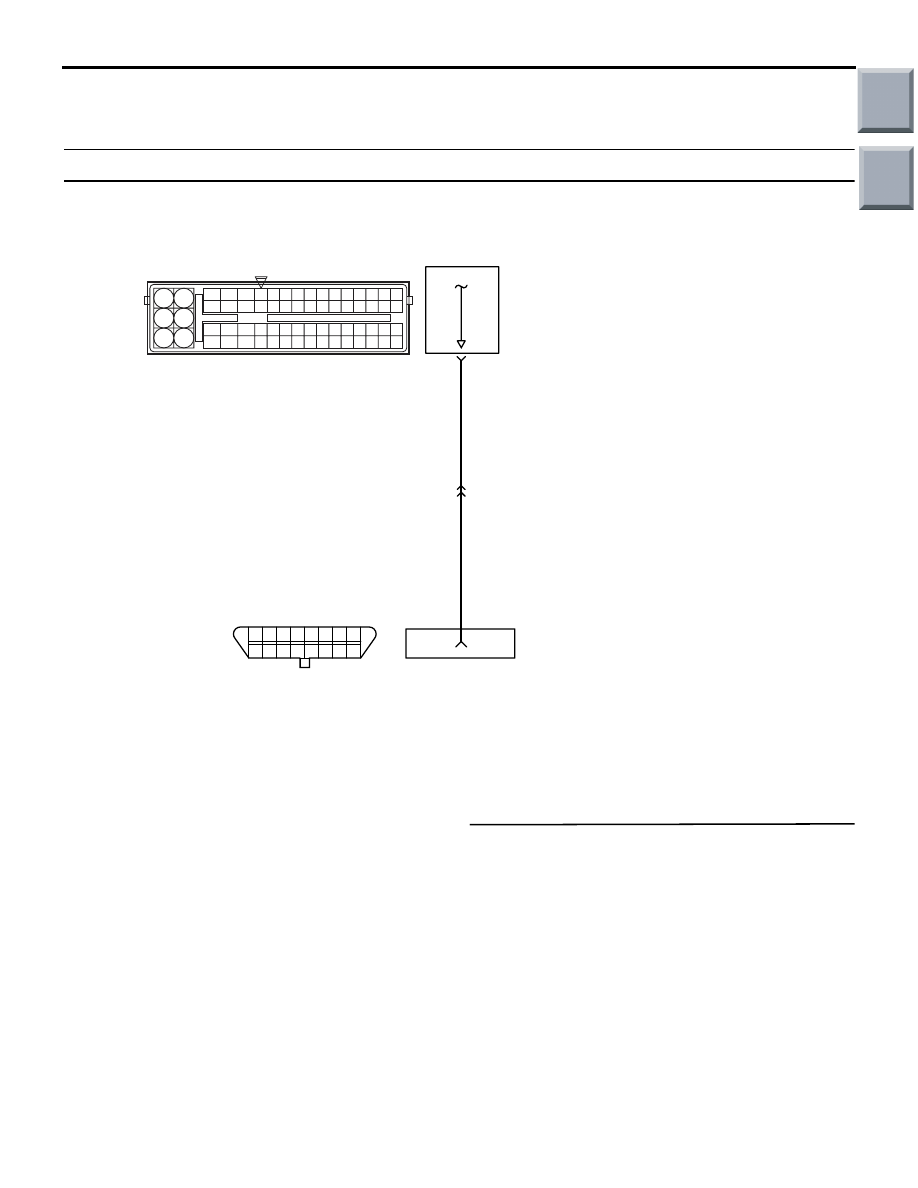

Diagnosis Connector Circuit

AD

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Viole

  P: Purple

t

A-08

Engine-ECU

Diagnosis connector

O-L

O-L

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-243

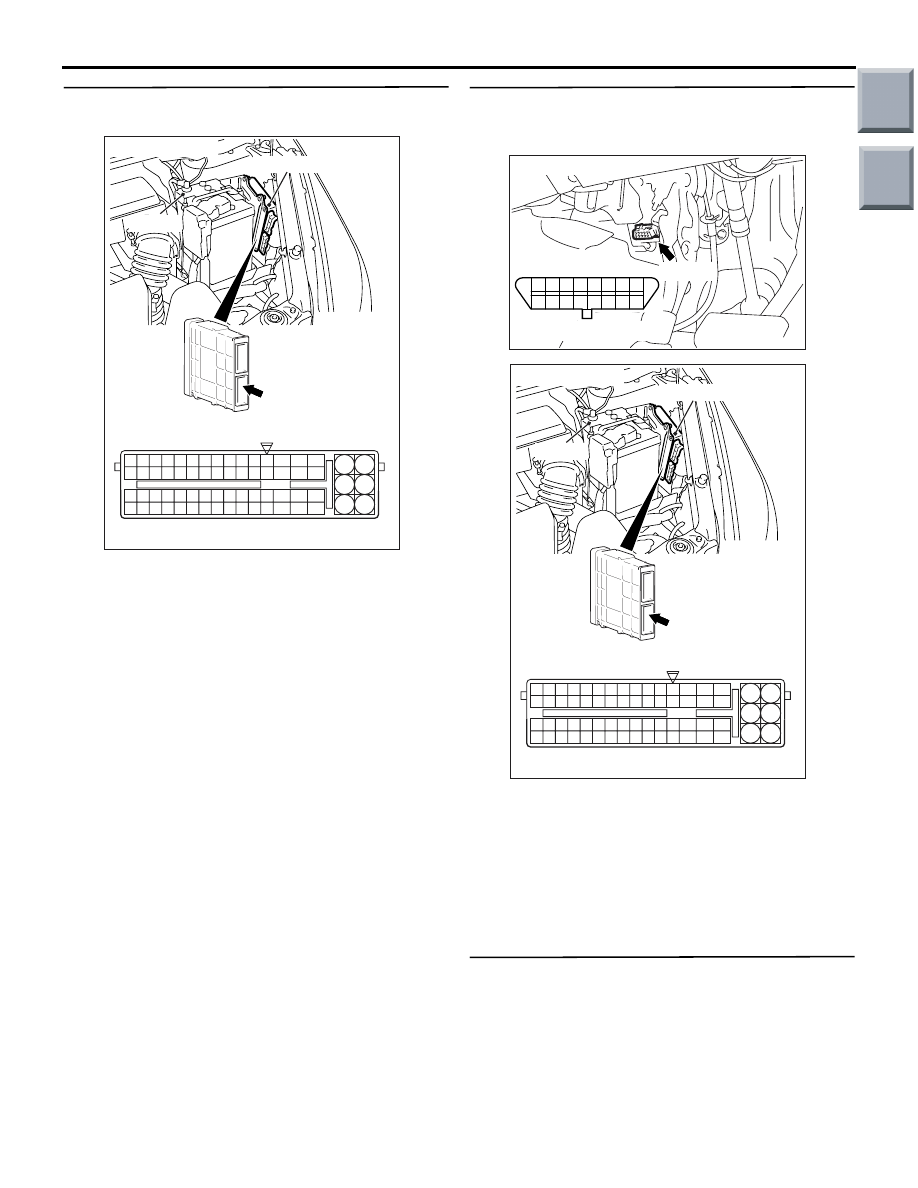

STEP 2. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace.

STEP 3. Check harness between B-32 (terminal
No. 7) diagnosis connector and A-08 (terminal
No. 121) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector B-41 and repair if necessary.

• Check signal line for open/short circuit or dam-

age.

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair.

STEP 4. Check the trouble symptom.

Q: Does trouble symptom recur?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

AK403279

1 2 3 4 5 6

12

11

10

1516

14

13

9

7 8

AC

Harness side connector

Connector: B-32

B-32(B)

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery
