TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-197

STEP 2. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item No. 78: Accelerator pedal position sen-

sor (main)

b. Item No. 77: Accelerator pedal position sen-

sor (sub)

Q: Are the check results normal?

YES :

Replace engine-ECU.

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13B-18

).

Code No. P1238: Air Flow Sensor Trustful For Torque Monitoring

FUNCTION

• Compare the actual measurement of volumetric

efficiency by an air flow sensor signal with volu-
metric efficiency estimated from a throttle position
sensor (main or sub) signal.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position.

• While engine is running.

• Throttle position sensor (main or sub) is normal.

Judgment Criteria

• The difference between volumetric efficiency esti-

mated from the throttle position sensor (main)
and volumetric efficiency estimated from the
throttle position sensor (sub) exceeds the speci-
fied value.

• The difference between volumetric efficiency

(actual measurement) by the air flow sensor and
volumetric efficiency estimated from the throttle
position sensor (main) exceeds the specified
value.

• The difference between volumetric efficiency

(actual measurement) by the air flow sensor and
volumetric efficiency estimated from the throttle
position sensor (sub) exceeds the specified
value.

PROBABLE CAUSES

• Failed air flow sensor

• Damage in air flow sensor circuit or loose con-

nector contact

• Failed intake air system

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is any other diagnosis code than P1238 output?

YES :

Inspection chart for diagnosis code (Refer

to

P.13B-18

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item No. 12: Air flow sensor

Q: Is the check result normal?

YES :

Replace the engine-ECU.

NO :

Check air flow sensor system (Refer to
Code No. P0100

P.13B-31

).

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-198

Code No. P1239: Trustful Check Engine Speed

FUNCTION

• Compare the actual engine speed through the

crank angle sensor signal trip with the assumed
engine speed through the crank angle sensor sig-
nal pulse number after the specified period.

TROUBLE JUDGMENT

Check Condition

• While engine is running.

Judgment Criterion

• Difference is more than 500 r/min between actual

engine speed and supposed engine speed.

PROBABLE CAUSE

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

• After clearing the diagnosis code through

M.U.T.-III, start the engine and confirm whether
the diagnosis code is output.

Q: Diagnosis code set?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

Code No. P1240: Trustful Check Engine Speed <Vehicle with ASC>

FUNCTION

• The ignition timing retard request signal is abnor-

mal from ASC-ECU.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is "ON" position.

Judgment Criterion

• Retard request signal for ignition timing is abnor-

mal.

PROBABLE CAUSES

• Failed ASC-ECU

• Failed CAN

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Is diagnosis code related with CAN communication

displayed?
YES :

Inspection chart for diagnosis code (Refer

to

P.13B-18

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III other system diagnosis code

• Confirm whether the diagnosis codes are output

from ASC-ECU.

Q:  Is the diagnosis code output?

YES :

Perform the troubleshooting of ASC (Refer

to Group 35C

−Troubleshooting − Diagnosis

Code Char

P.35C-6

).

NO :

Replace engine-ECU.

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-199

Code No. P1241: Torque Monitoring

FUNCTION

• Compare the difference between the actual

torque signal and the requested torque signal.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is "ON" position.

Judgment Criterion

• Difference is more than specified value between

actual torque signal and target torque signal.

PROBABLE CAUSE

• Failed air flow sensor

• Failed accelerator pedal position sensor

• AIr drawn in from gaps in gasket, seals, etc.

• Failed throttle valve control servo

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code

Q: Diagnosis code set?

YES :

Inspection chart for diagnosis code (Refer

to

P.13B-18

).

NO :

Go to Step 2 .

STEP 2. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item No. 78: Accelerator pedal position sen-

sor (main)

b. Item No. 77: Accelerator pedal position sen-

sor (sub)

c. Item No. 12: Air flow sensor

Q: Is the check results normal?

YES :

Go to Step 3 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13B-18

).

STEP 3. Check for intake of air from gaps in
gasket, seals, etc.

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair for intake of air from gaps in gasket,
seals, etc.

STEP 4. Check the throttle valve control servo
itself.

• Check the throttle valve control servo itself (Refer

to

P.13B-368

)

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Replace the throttle body assembly.

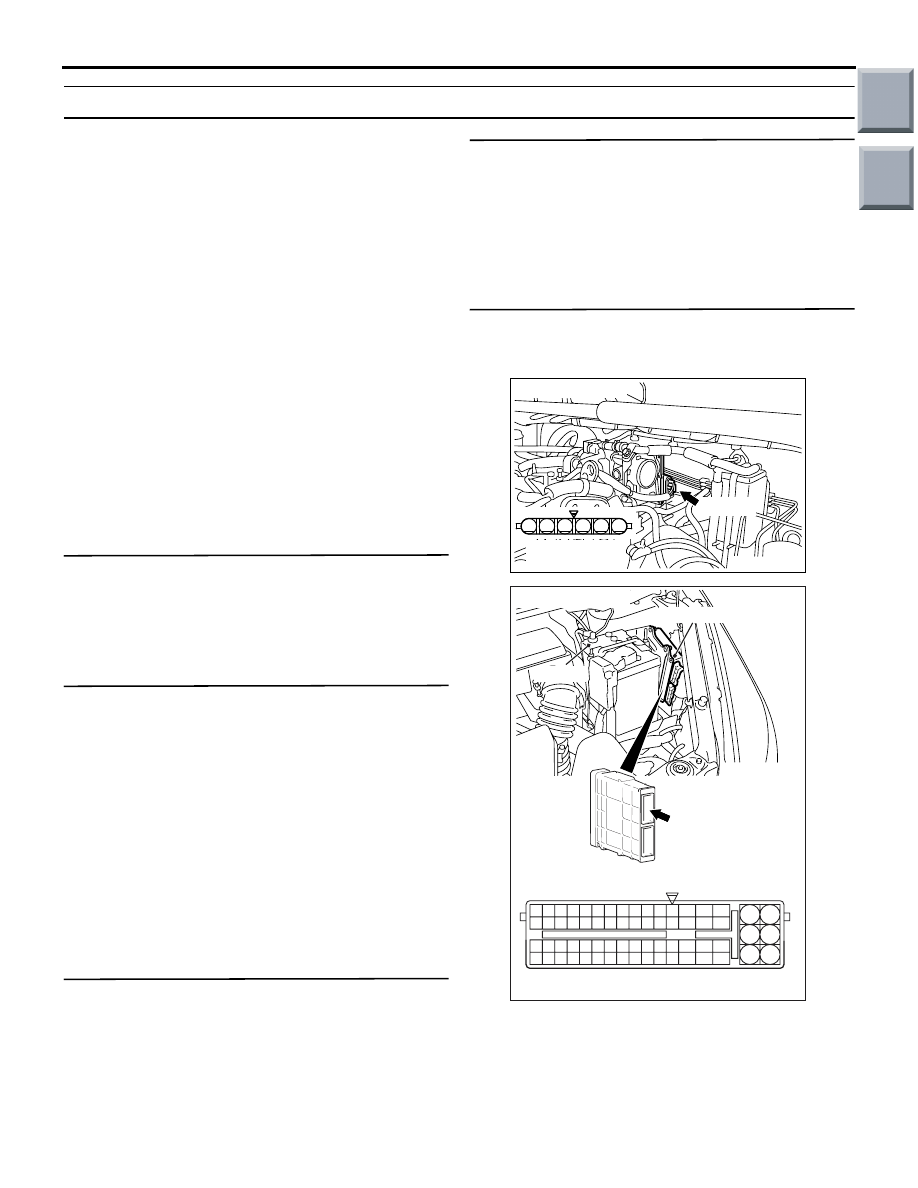

STEP 5. Connector check: A-107
electronic-controlled throttle valve connector
and A-114 engine-ECU connector.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

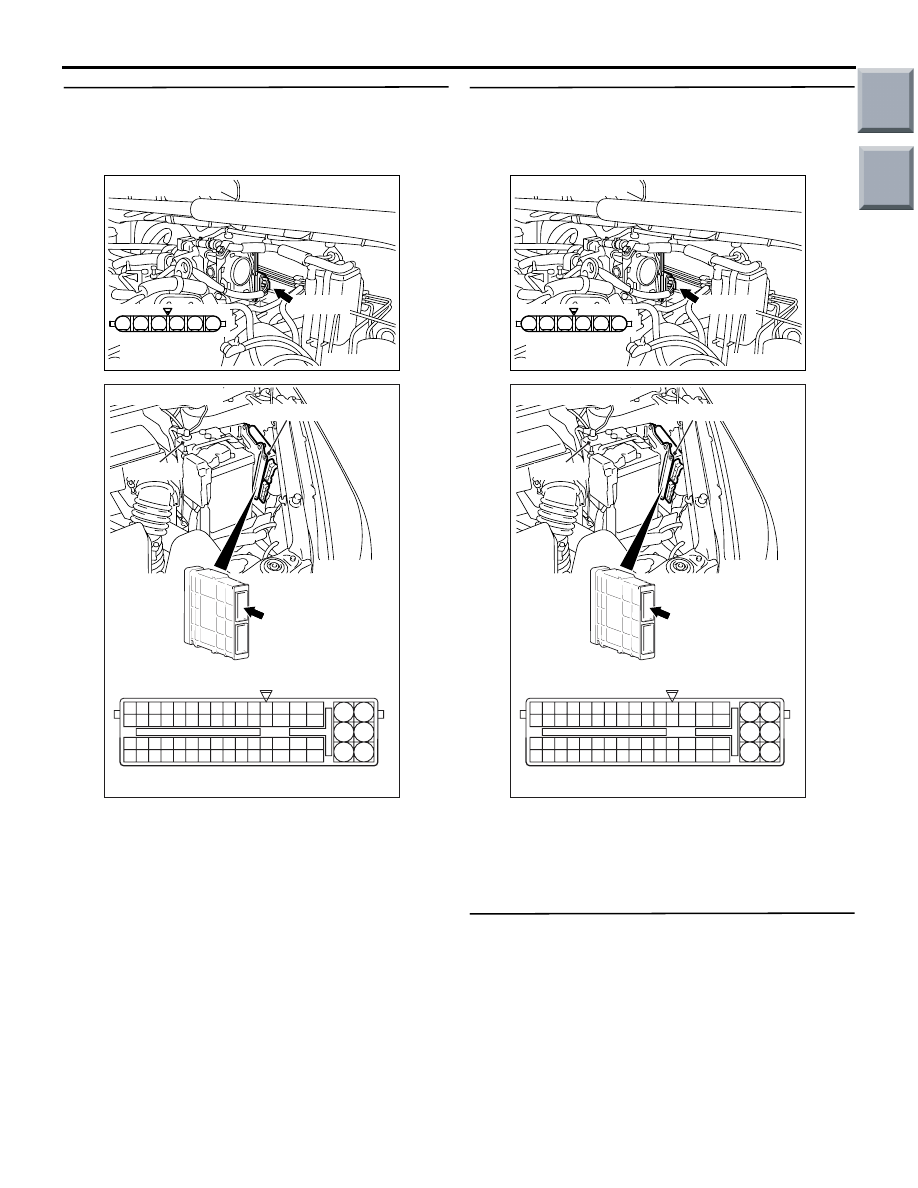

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-200

STEP 6. Check harness between A-107 (terminal
No. 6) electronic-controlled throttle valve
connector and A-114 (terminal No. 7) engine-ECU
connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

STEP 7. Check harness between A-107 (terminal
No. 5) electronic-controlled throttle valve
connector and A-114 (terminal No. 22)
engine-ECU connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the damaged harness wire.

STEP 8. M.U.T.-III diagnosis code.

• Reconfirmation of diagnosis code.

Q: Is the diagnosis code set?

YES :

Replace engine-ECU.

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery

AK402086

1

6 5 4 3 2

A-107(B)

AC

Connector: A-107

Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AF

A-114

Connector:

A-114

Harness side connector

Engine-ECU

Battery
