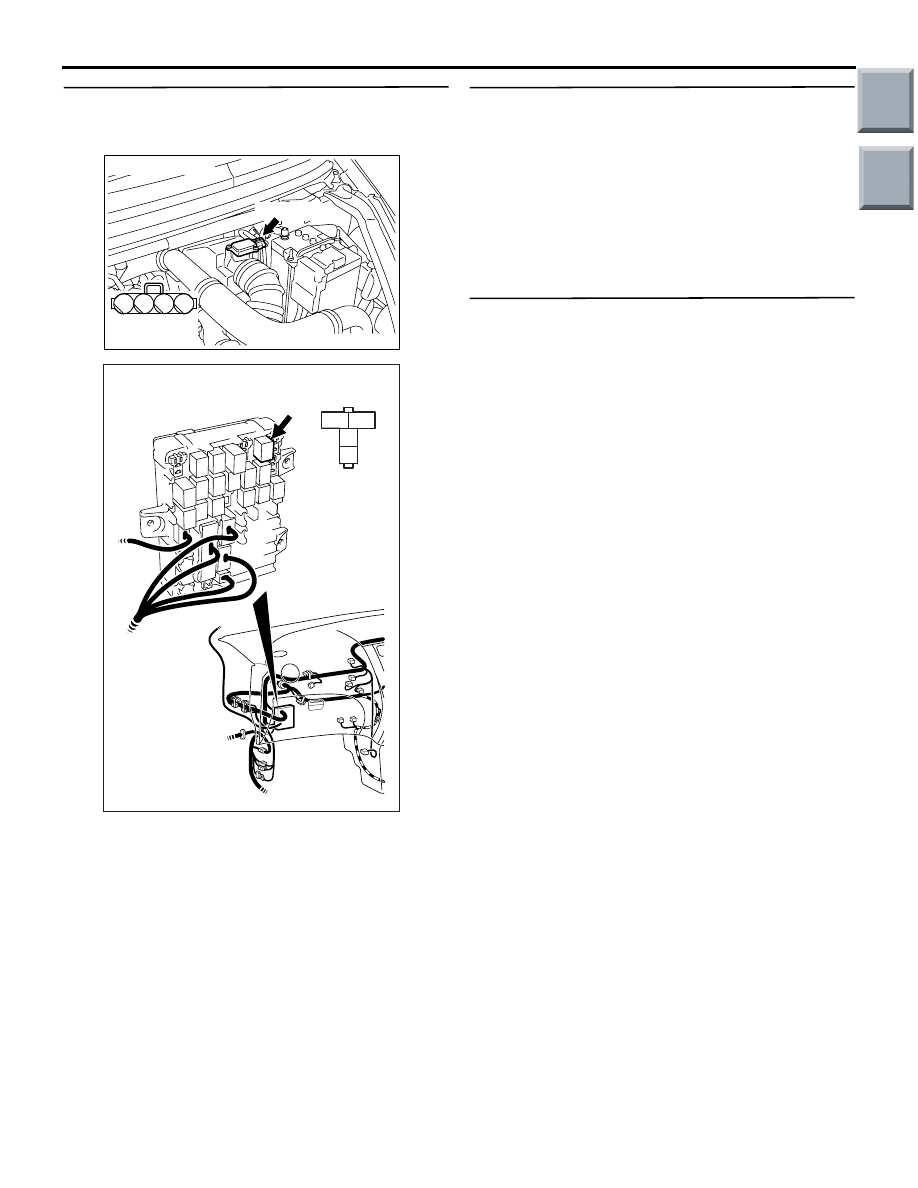

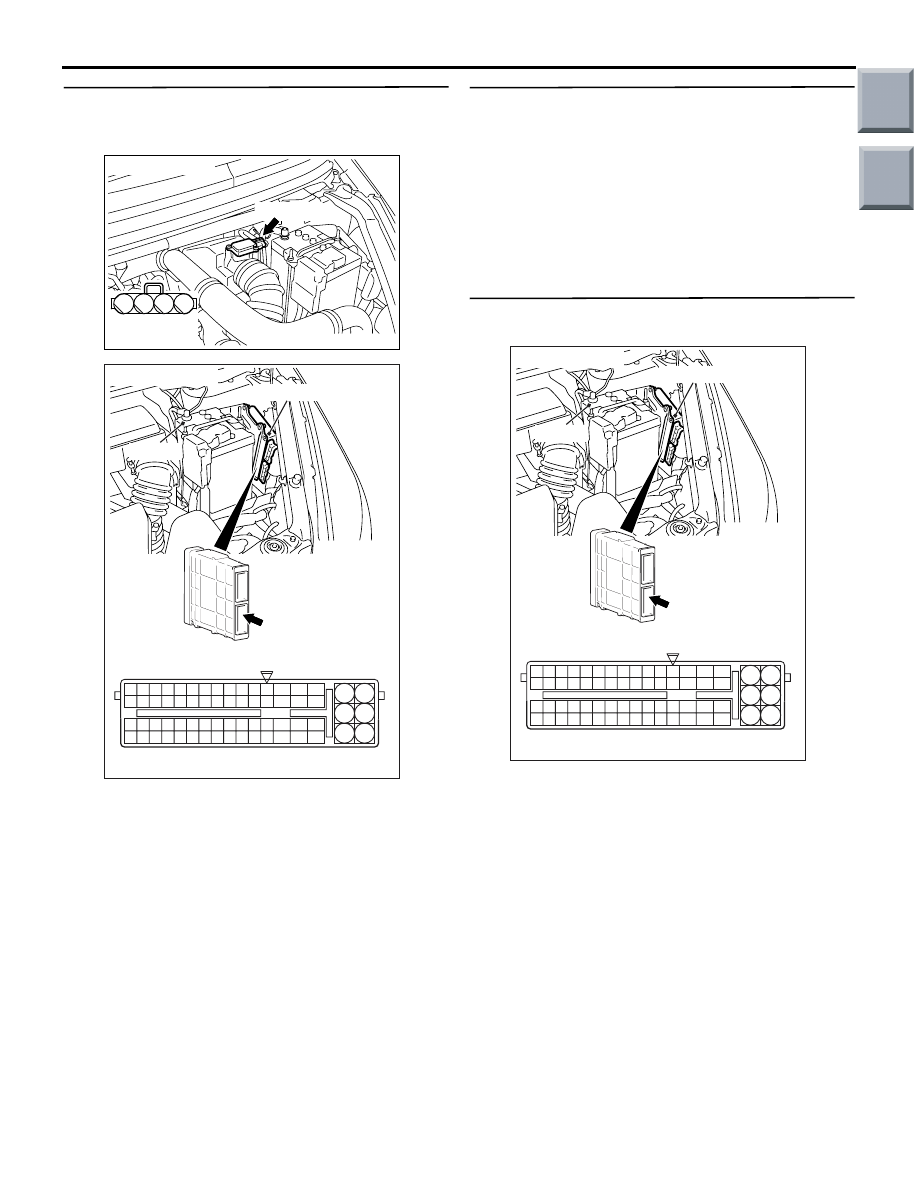

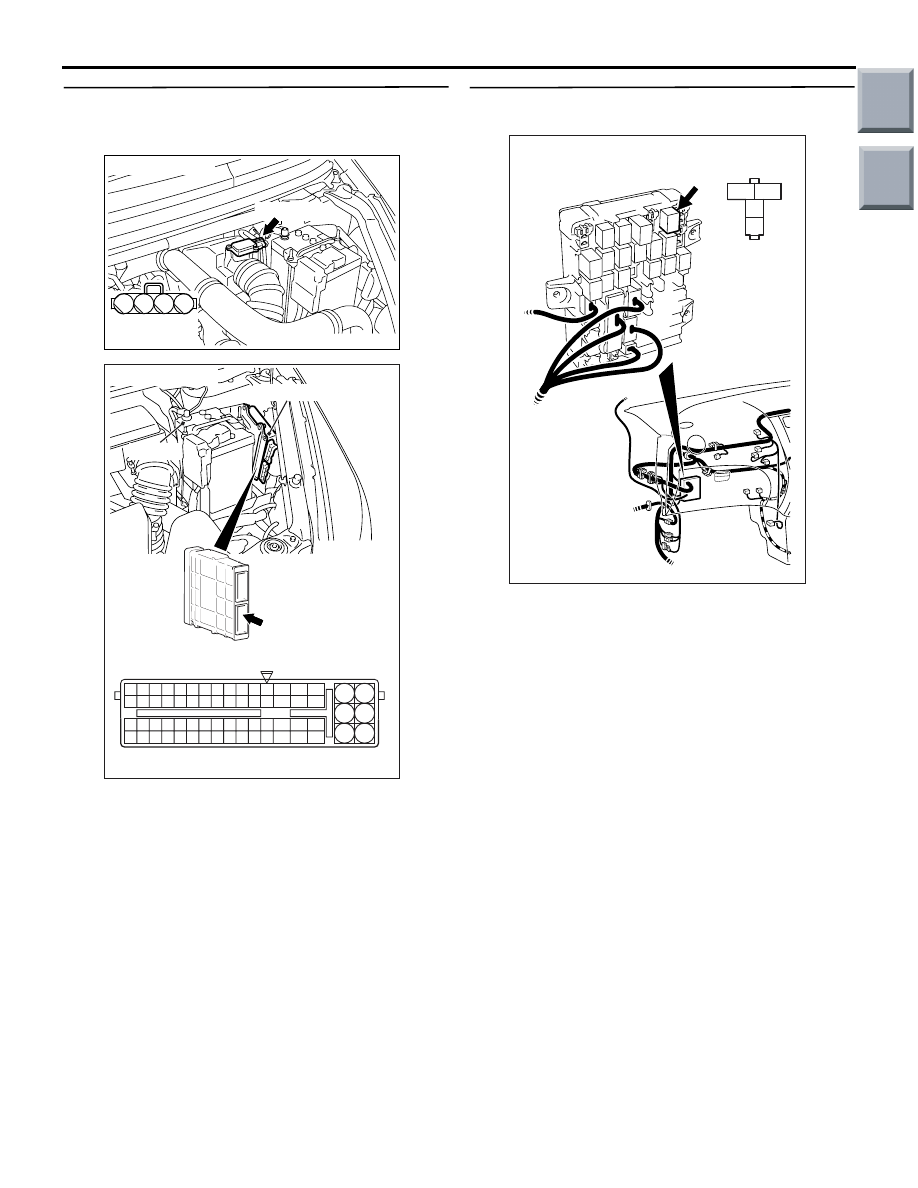

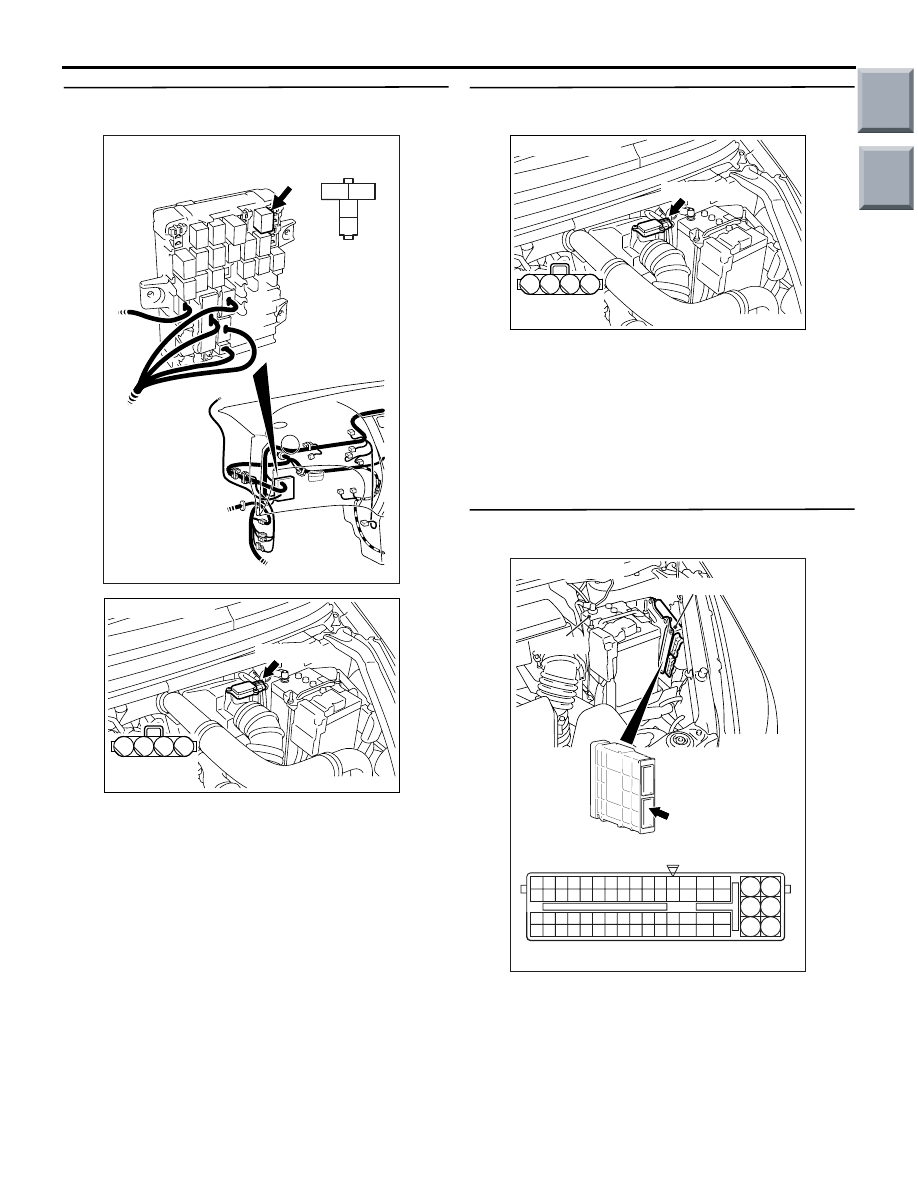

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-33

STEP 4. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Check intermediate connector B-112, and

repair if necessary. If the intermediate
connector is normal, check and repair the
harness between A-34 (terminal No. 2) air
flow sensor connector and B-106 (terminal
No. 4) engine control relay connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace.

STEP 5. Perform resistance measurement at A-34
air flow sensor connector.

• Disconnect connector and measure at harness

side.

• Resistance between terminal No. 4 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 6 .

STEP 6. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace.

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402083

2

1

3

4

Connector: A-34

Harness side

connector

A-34 (GR)

AC

AK402083

2

1

3

4

Connector: A-34

Harness side

connector

A-34 (GR)

AC

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-34

STEP 7. Check harness between A-34 (terminal
No. 4) air flow sensor connector and A-08
(terminal No. 102) engine-ECU connector.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair.

STEP 8. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 12: Air flow sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to Group 00

−

How to Use Troubleshooting/Inspection
Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU

STEP 9. Connector check: A-08 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace.

AK402083

2

1

3

4

Connector: A-34

Harness side

connector

A-34 (GR)

AC

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-35

STEP 10. Check harness between A-34 (terminal
No. 3) air flow sensor connector and A-08
(terminal No. 90) engine-ECU connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 11 .

NO :

Repair.

STEP 11. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace.

AK402083

2

1

3

4

Connector: A-34

Harness side

connector

A-34 (GR)

AC

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AI

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Engine-ECU

Battery

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4G1>

13B-36

STEP 12. Check harness between A-34 (terminal
No. 2) air flow sensor connector and B-106
(terminal No. 4) engine control relay connector.

NOTE: Before checking harness, check intermediate
connector B-112, and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 13 .

NO :

Repair.

STEP 13. M.U.T.-III data list

• Refer to Data List Reference Table

P.13B-335

.

a. Item 12: Air flow sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to Group 00

−

How to Use Troubleshooting/Inspection
Service Points

− How to Cope with

Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 14 .

STEP 14. M.U.T.-III diagnosis code

• Reconfirmation of diagnosis code after air flow

sensor replacement

Q: Is the diagnosis code output?

YES :

Replace engine-ECU.

NO :

Check end.

AK402083

2

1

3

4

Connector: A-34

Harness side

connector

A-34 (GR)

AC

3

2

1

4

AK402084

J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC
