AUTOMATIC AIR CONDITIONER PANEL ASSEMBLY (A/C-ECU)

AUTOMATIC AIR CONDITIONER

55B-29

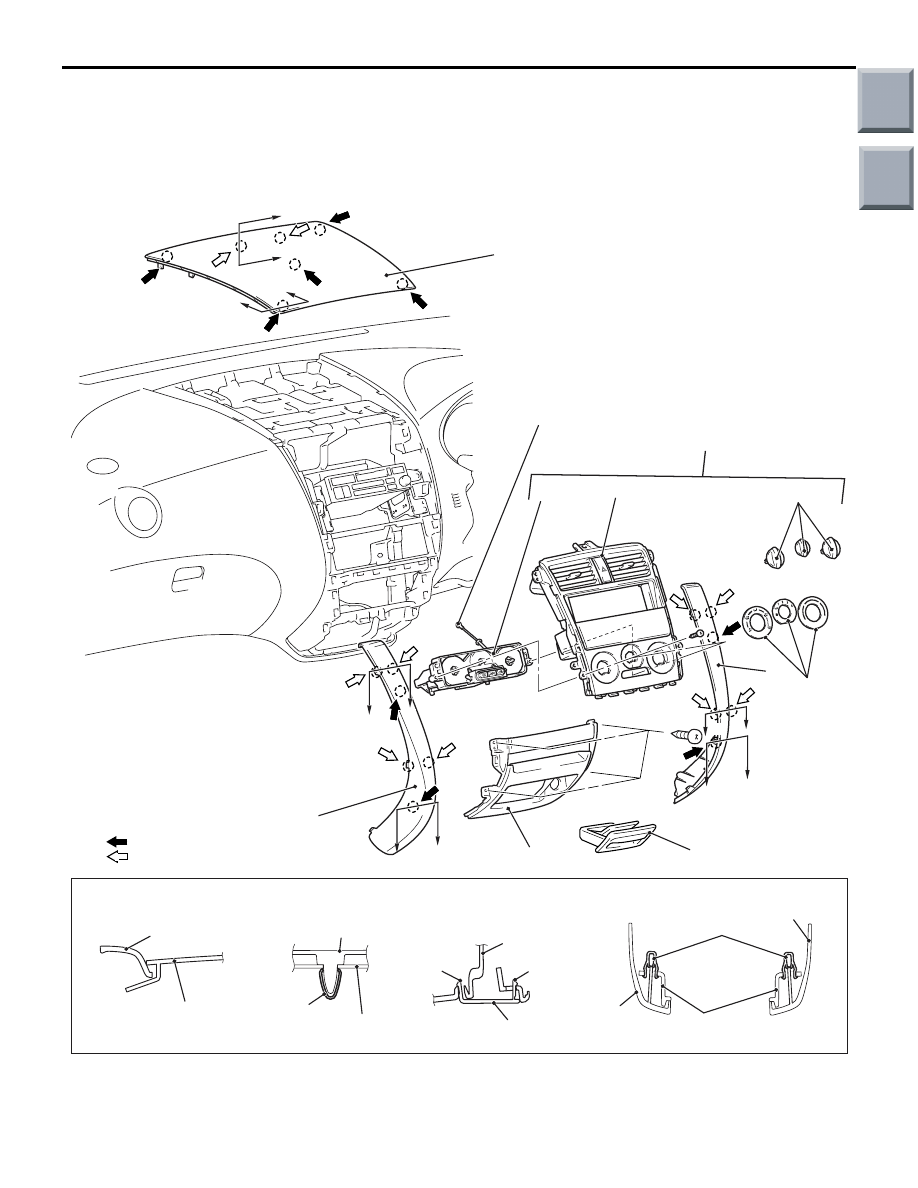

AUTOMATIC AIR CONDITIONER PANEL ASSEMBLY

(A/C-ECU)

REMOVAL AND INSTALLATION

M1552002400541

AC206399 AB

2

1

2

9

3

10

7

5

8

C

C

D

D

A

A

B

B

E

E

C

C

4

6

NOTE
(1)        : Clip position
(2)        : Claw position

AC208885

Section A – A

Section B – B

Section D – D

AB

Section C – C

Section E – E

Instrument panel

Upper centre
panel

Upper centre
panel

Clip

Instrument
panel

Claw

Claw

Instrument
panel

Console
panel

Console
panel

Clip

Console panel

Instrument
panel

Removal steps

1.

Upper centre panel

2.

Console panel

3.

Ashtray

4.

Lower centre panel

>>

A

<<

5.

Mode selection damper control
cable connection

6.

Heater control panel assembly

Removal steps (Continued)

Main

Index

Group

TOC

AUTOMATIC AIR CONDITIONER PANEL ASSEMBLY (A/C-ECU)

AUTOMATIC AIR CONDITIONER

55B-30

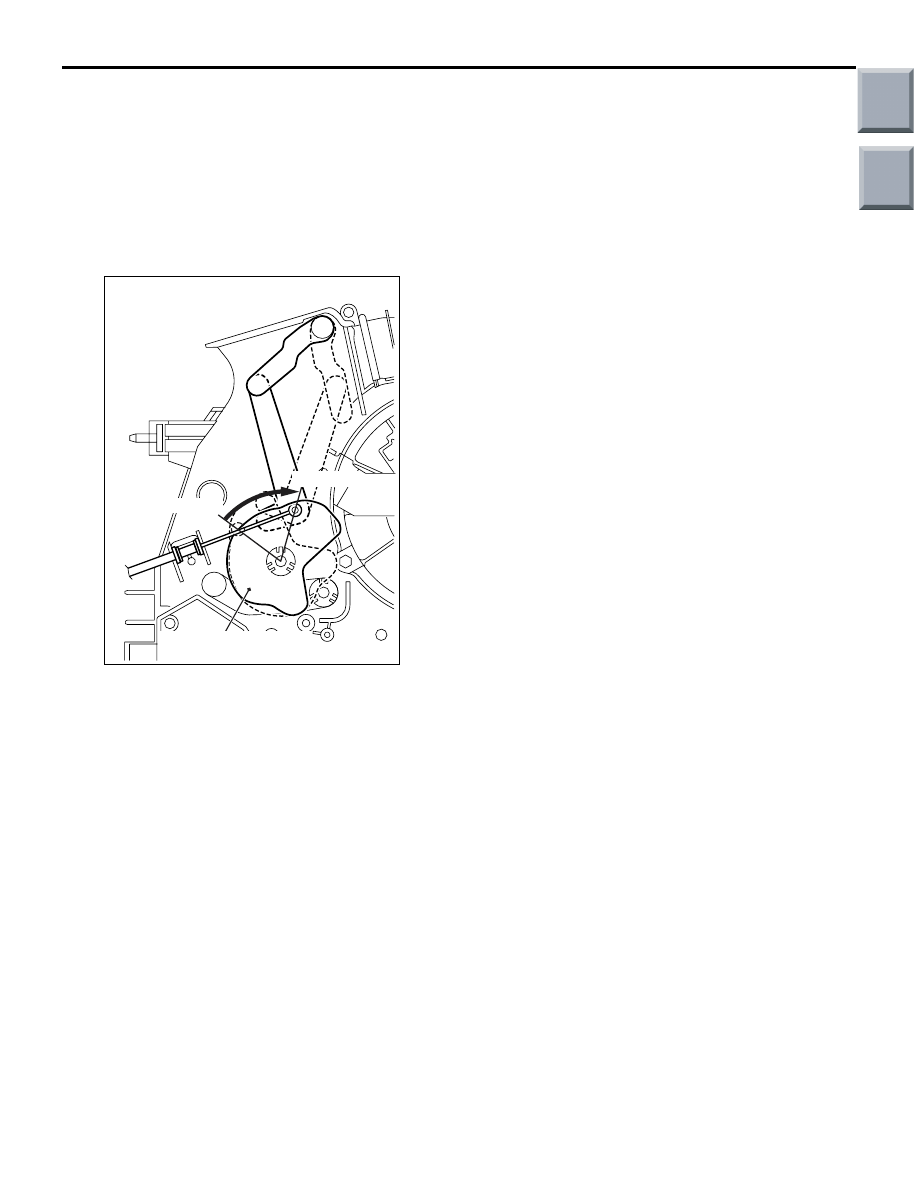

INSTALLATION SERVICE POINT
>>A<< MODE SELECTION DAMPER CON-
TROL CABLE CONNECTION

AC206695

Mode selection damper
control cable connection

AB

FACE position

DEF position

1. Set the air outlet changeover knob of the heater

control assembly to DEF position.

2. Turn the air outlet changeover damper lever of

heater unit to the DEF position (Turn the damper
lever to the left until it stops.) and then install the
cable.

3. Install the cable to the clip and fix it while aligning

the case.

7.

Knob

8.

Heater control assembly

9.

Mode label

10. Heater control panel

Removal steps (Continued)

Main

Index

Group

TOC

AUTOMATIC AIR CONDITIONER PANEL ASSEMBLY (A/C-ECU)

AUTOMATIC AIR CONDITIONER

55B-31

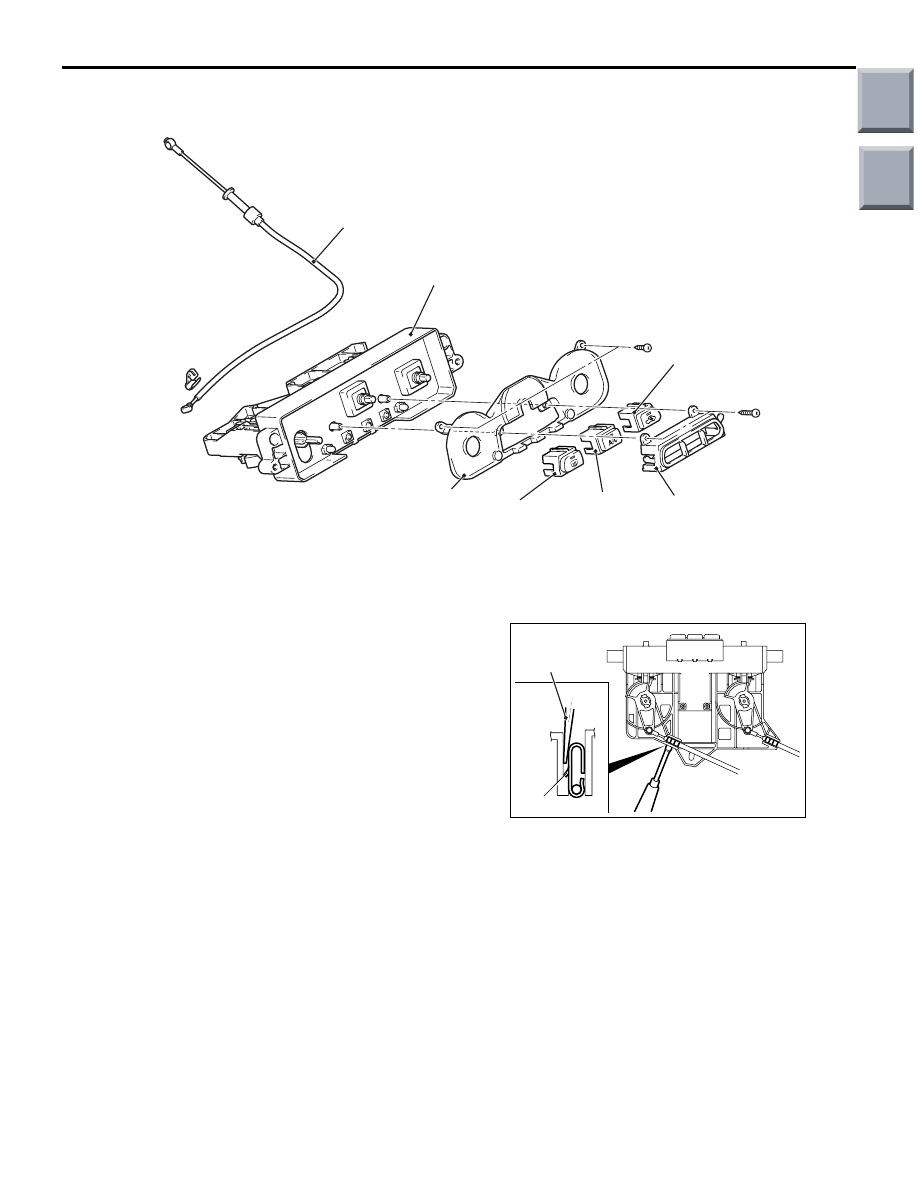

DISASSEMBLY AND REASSEMBLY

M1552014200328

AC206398

6

7

5

4

3

2

1

AB

Disassembly steps

1.

Switch panel

2.

Outside/Inside air selection switch

3.

A/C switch

4.

Rear window defogger switch

5.

Prism

<<

A

>>

6.

Mode selection damper control
cable

7.

Heater control

DISASSEMBLY SERVICE POINT
<<A>> MODE SELECTION DAMPER CON-
TROL CABLE AND AIR MIXING DAMPER
CONTROL CABLE REMOVAL

AC206424

AC

Clip claw

Flat-tipped
screwdriver

To remove the damper cable, insert the flat-tipped
screwdriver from the inside of control base to the clip
and remove the clip claw.

Main

Index

Group

TOC

HEATER UNIT

AUTOMATIC AIR CONDITIONER

55B-32

HEATER UNIT

REMOVAL AND INSTALLATION

M1554009100224

The removal of heater unit is the same as it for the heater, air conditioner and ventilation. (Refer to GROUP
55A, Heater unit and cooling unit

P.55A-57

.)

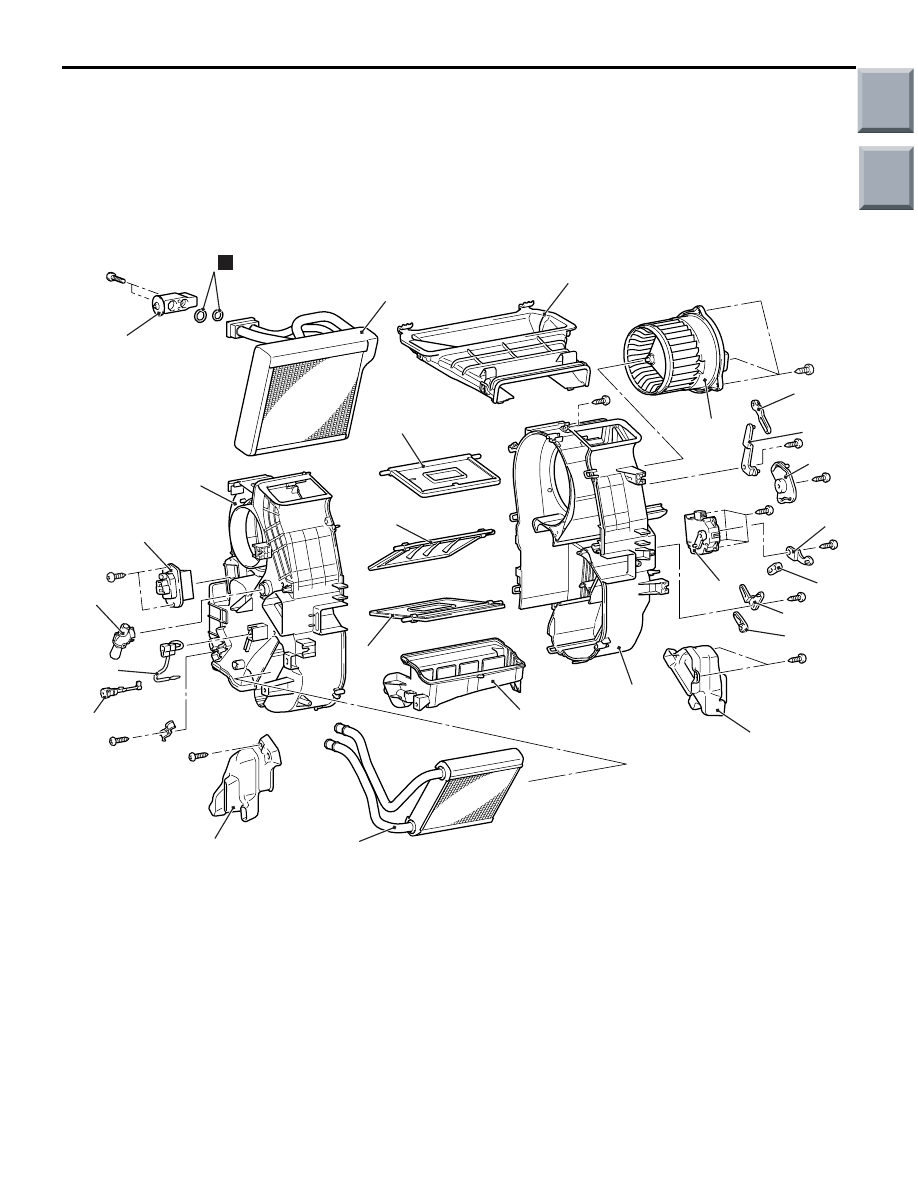

DISASSEMBLY AND REASSEMBLY

M1551005400451

AC208758AB

2

18

23

22

21

13

12

10

9

8

7

3

4

1

24

25

5

18

20

16

17

N

11

6

14

15

19

Disassembly steps

1.

Foot heater duct LH

2.

Foot heater duct RH

3.

Heater joint duct

4.

Heater core

5.

Power transistor

6.

Heater control vacuum aspirator

7.

Blower motor

8.

FACE/DEF plate

9.

Mode main plate

10. FACE/DEF sub plate
11. Air mixing damper control motor

and potentiometer

12. Foot sub plate
13. Foot plate

14. Air mix plate
15. Air mix main plate
16. Expansion valve
17. O ring
18. Heater case
19. Heater lower case
20. Evaporator
21. Mode selection damper control

(FACE)

22. Mode selection damper (FOOT)
23. Air mixing damper
24. Air thermo sensor clip
25. Air thermo sensor

Disassembly steps (Continued)
