GROUP 22B

MANUAL

TRANSMISSION

OVERHAUL

CONTENTS

GENERAL SPECIFICATIONS . . . . . .

22B-2

TORQUE SPECIFICATION . . . . . . . .

22B-2

SEALANTS . . . . . . . . . . . . . . . . . . . . .

22B-2

TRANSMISSION . . . . . . . . . . . . . . . . .

22B-3

DISASSEMBLY AND REASSEMBLY . . . . .

22B-3

Main

Index

Group

TOC

GENERAL SPECIFICATIONS

MANUAL TRANSMISSION OVERHAUL

22B-2

GENERAL SPECIFICATIONS

M1222000200633

TRANSMISSION MODEL TABLE

Transmission model

Final gear ratio

Vehicle model

Engine model

F5MGA-1-B3Z

4.158

Z23A

4A91

F5MGB-1-A4Z

3.737

Z27A

4G15

GEAR RATIO TABLE

Item

F5MGA-1-B3Z

F5MGB-1-A4Z

1st

3.308

3.538

2nd

1.913

1.913

3rd

1.258

1.344

4th

0.943

1.027

5th

0.763

0.833

Reverse

3.231

3.357

TORQUE SPECIFICATION

M1222012100451

Item

Specifications

Shift cover Cpl. mounting screw

23

± 2 N⋅m

Control harness bracket mounting screw

27

± 1 N⋅m

Back-up lamp switch mounting screw

7.0

± 1.0 N⋅m

Cable bracket mounting screw

23

± 2 N⋅m

SEALANTS

M1222000500270

Item

Specified sealant

Shift cover Cpl.

− Transmission case mating surface

Loctite 518

Main

Index

Group

TOC

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL

22B-3

TRANSMISSION

DISASSEMBLY AND REASSEMBLY

M1222001000717

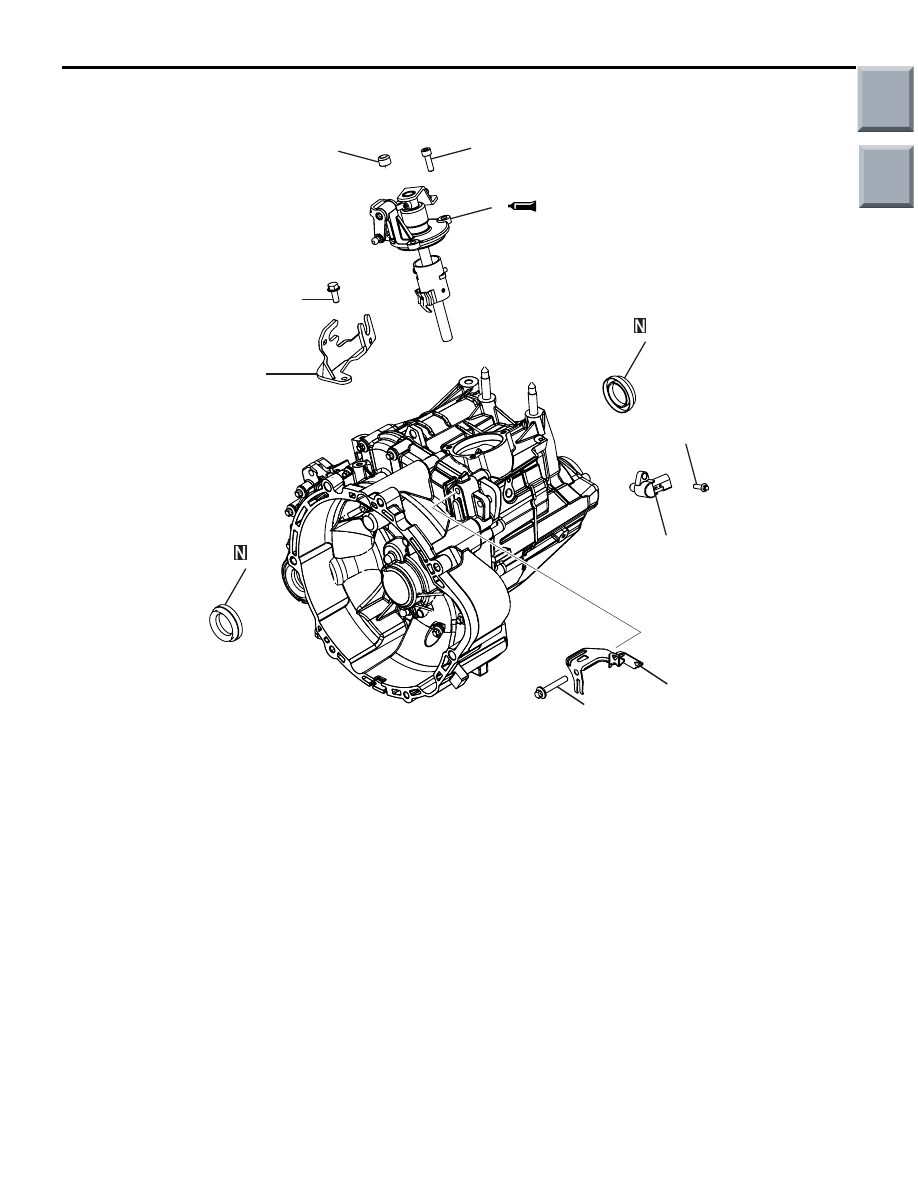

<F5MGA-1-B3Z>

AK600544 AB

2

23 ± 2 N·m

4

7.0 ± 1.0 N·m

27 ± 1 N·m

6

7

23 ± 2 N·m

3

5

1

Disassembly steps

1.

Seal ring

2.

Seal ring

3.

Cable bracket

4.

Back-up lamp switch

5.

Control harness bracket

6.

Seal cap vent

>>

A

<<

7.

Shift cover Cpl.

Disassembly steps (Continued)

Main

Index

Group

TOC

TRANSMISSION

MANUAL TRANSMISSION OVERHAUL

22B-4

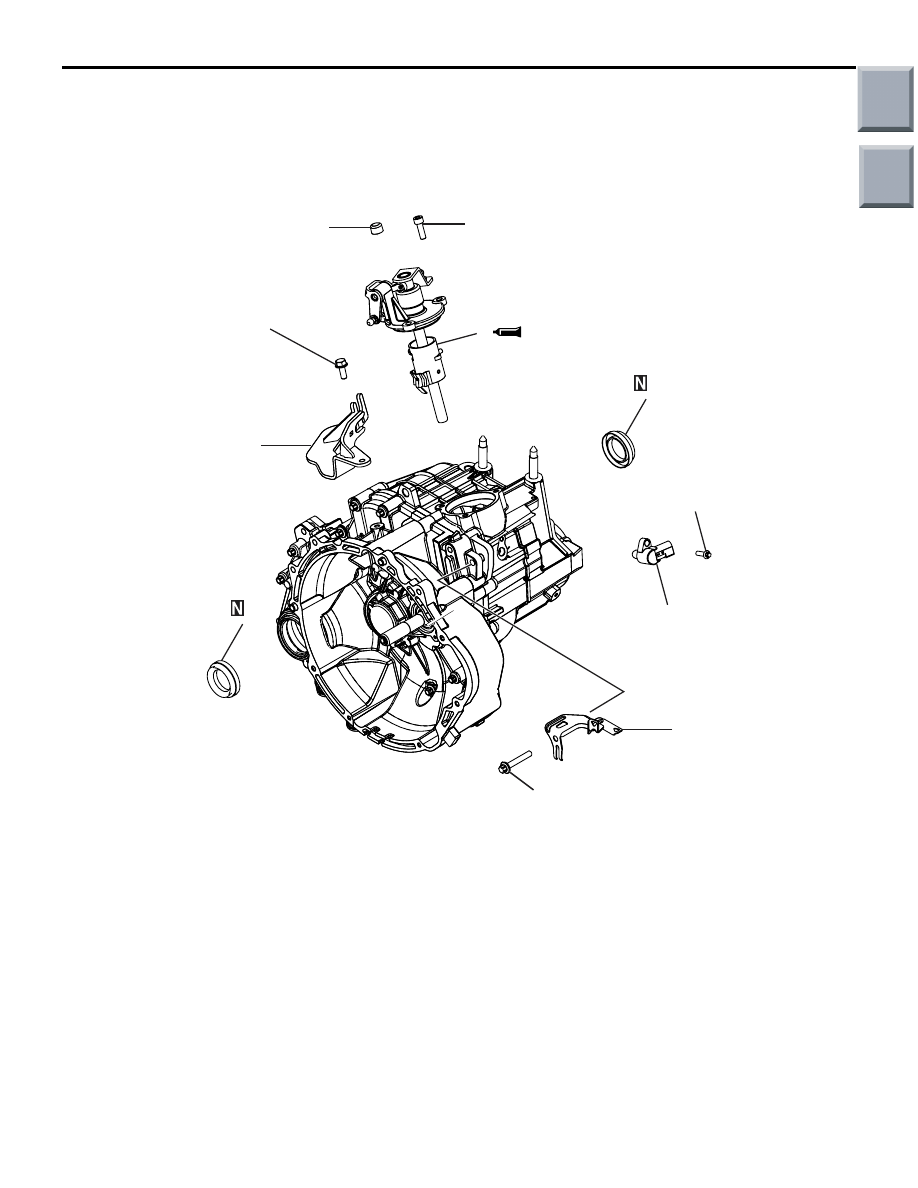

<F5MGB-1-A4Z>

A - A

AK600548

2

4

7.0 ± 1.0 N·m

23 ± 2 N·m

23 ± 2 N·m

6

7

3

5

27 ± 1 N·m

1

AB

Disassembly steps

1.

Seal ring

2.

Seal ring

3.

Cable bracket

4.

Back-up lamp switch

5.

Control harness bracket

6.

Seal cap vent

>>

A

<<

7.

Shift cover Cpl.

REASSEMBLY SERVICE POINT
>>A<< SHIFT COVER CPL. INSTALLA-
TION

Coat the mating face with the specified sealant.

Specified sealant: Loctite 518
