PISTON AND CONNECTING ROD

ENGINE OVERHAUL <4G1>

11D-44

REMOVAL SERVICE POINTS
<<A>> CONNECTING ROD CAP
REMOVAL

AK402390

Cylinder
number

AC

Mark the cylinder number on the side of the connect-
ing rod big end as a guide for reassembly.

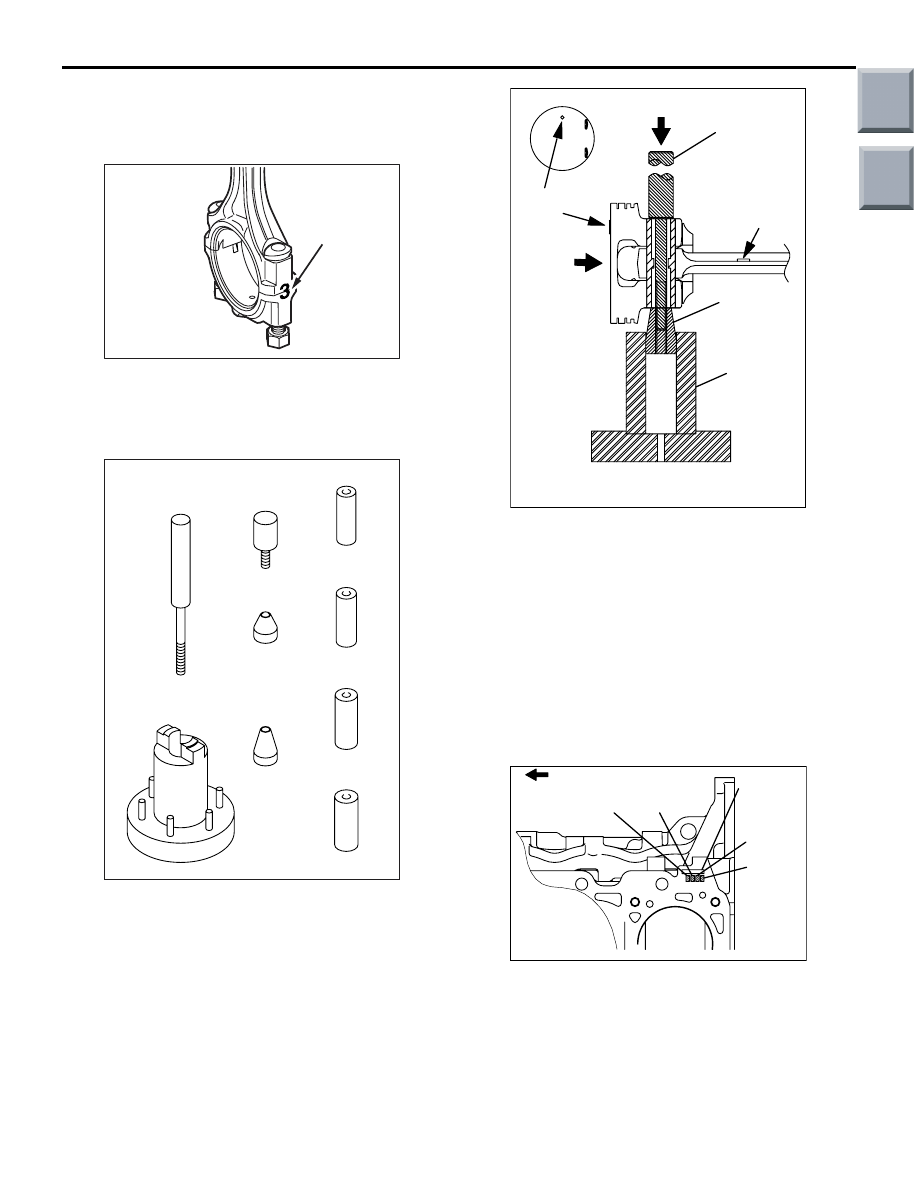

<<B>> PISTON PIN REMOVAL

AK201840AC

Push rod

Base

Guide B

Guide C

Guide D

(MB991659)

Guide A: 17.9 mm

Guide A: 18.9 mm

Guide A: 20.9 mm

Guide A: 21.9 mm

1. The special tool Piston pin setting tool

(MD998780) consists of the elements shown in
the illustration.

2. When removing the piston pin, the special tool

Guide D (MB991659) is also used.

AK202405AC

Base

Guide D

Front mark

Front mark

Push rod

P

View P

3. Insert Push rod, into the piston from the front mark

side, then attach Guide D, to the push rod.

4. Place the piston and connecting rod assembly on

Base, with the front mark facing up.

5. Use a press to remove the piston pin.

NOTE: Keep the disassembled pistons, piston
pins and connecting rods per cylinder.

INSTALLATION SERVICE POINTS
>>A<< PISTON PIN INSTALLATION

AK200851

Timing belt side

Cylinder
bore
size mark

No.4

No.1

No.2

No.3

AC

1. When replacing a piston, check the cylinder bore

size mark stamped at the indicated location on the
cylinder block and select an appropriate
replacement piston using the following table.

Main

Index

Group

TOC

Cylinder bore size
mark

Piston size mark

A

A

B

None

C

C

PISTON AND CONNECTING ROD

ENGINE OVERHAUL <4G1>

11D-45

NOTE: The piston size mark is located on the pis-
ton top surface.

2. Insert the push rod into the piston pin and install

the guide "A."

3. Align the front mark of the piston with that of the

connecting rod. Align the piston with the
connecting rod.

4. Apply engine oil to the outer circumference of the

piston pin.

5. Insert the piston pin guide "A" installed at Step 2

into the pin hole from the front mark of the piston.

AK201193AE

L

Guide A

Guide B

6. Screw the guide "B" into "A" until the clearance "L"

reaches 2.25mm between "A" and "B."

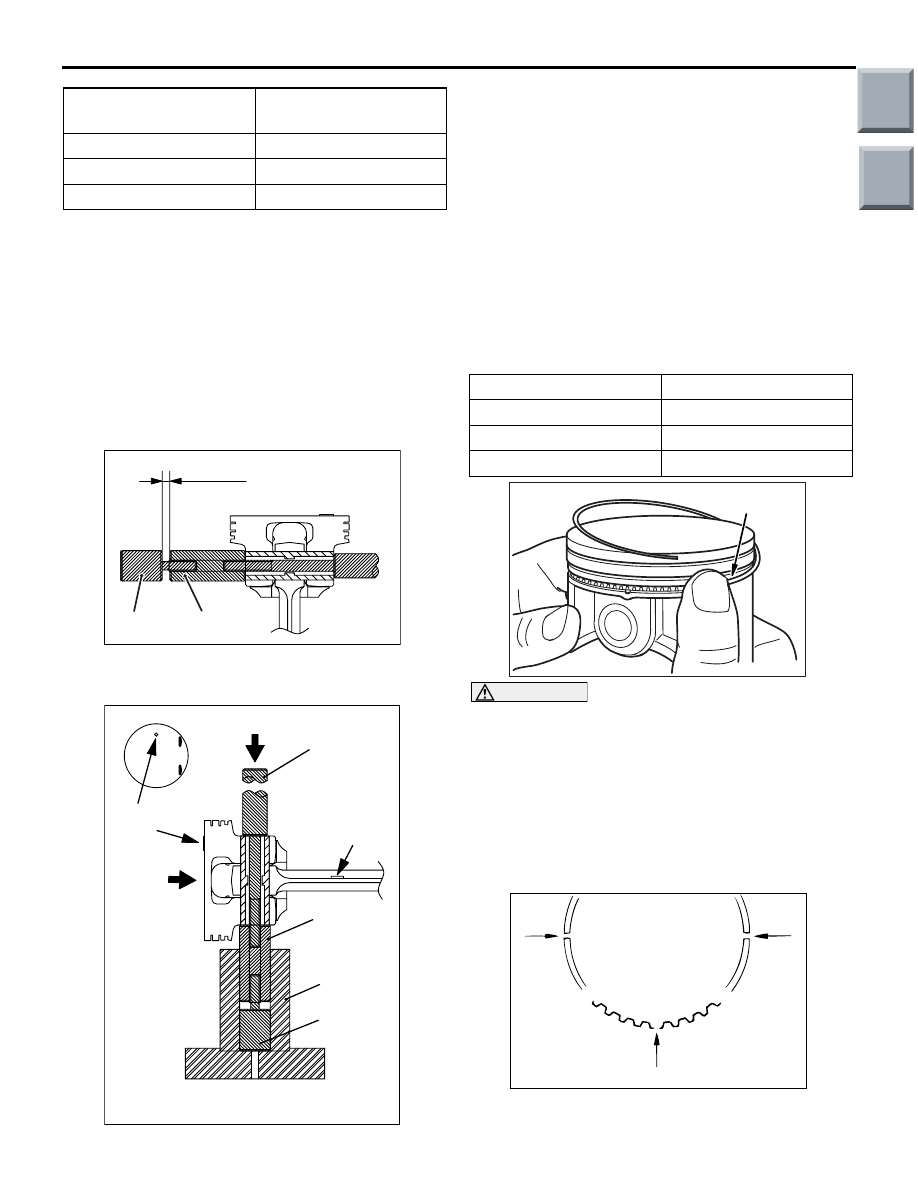

AK202406 AC

Base

Guide A

Front mark

Front mark

Push rod

P

View P

Guide B

7. Place the piston and connecting rod assembly

onto Base, with the front marks facing up.

8. Install the piston pin using a press. If the required

press force is less than the standard value,
replace the piston and piston pin assembly or the
connecting rod, or both.

Standard value: 4,900

 14,700 N

>>B<< OIL RING INSTALLATION

1. Fit the oil ring spacer into the piston ring groove.

Install the upper side rail, then the lower side rail.
NOTE: New spacers and side rails are an identi-
fied by color marks as follows:

Size

Color mark

Standard

No mark

0.50 mm oversize

Blue

1.00 mm oversize

Yellow

AK201803AC

Side rail end

CAUTION

Use of ring expander to expand the side rail end
gap can break the side rail, unlike other piston
rings.
2. To install each side rail, first fit one end of the rail

into the piston groove, then press the remaining
portion progressively into position by finger as
shown in the illustration.

3. Make sure that the installed side rails move

smoothly in either direction.

AK103812AC

Upper
side
rail
closed
gap

Lower
side
rail
closed
gap

Spacer closed gap

4. Locate the side rail and spacer end gaps as

shown in the illustration.

Main

Index

Group

TOC

PISTON AND CONNECTING ROD

ENGINE OVERHAUL <4G1>

11D-46

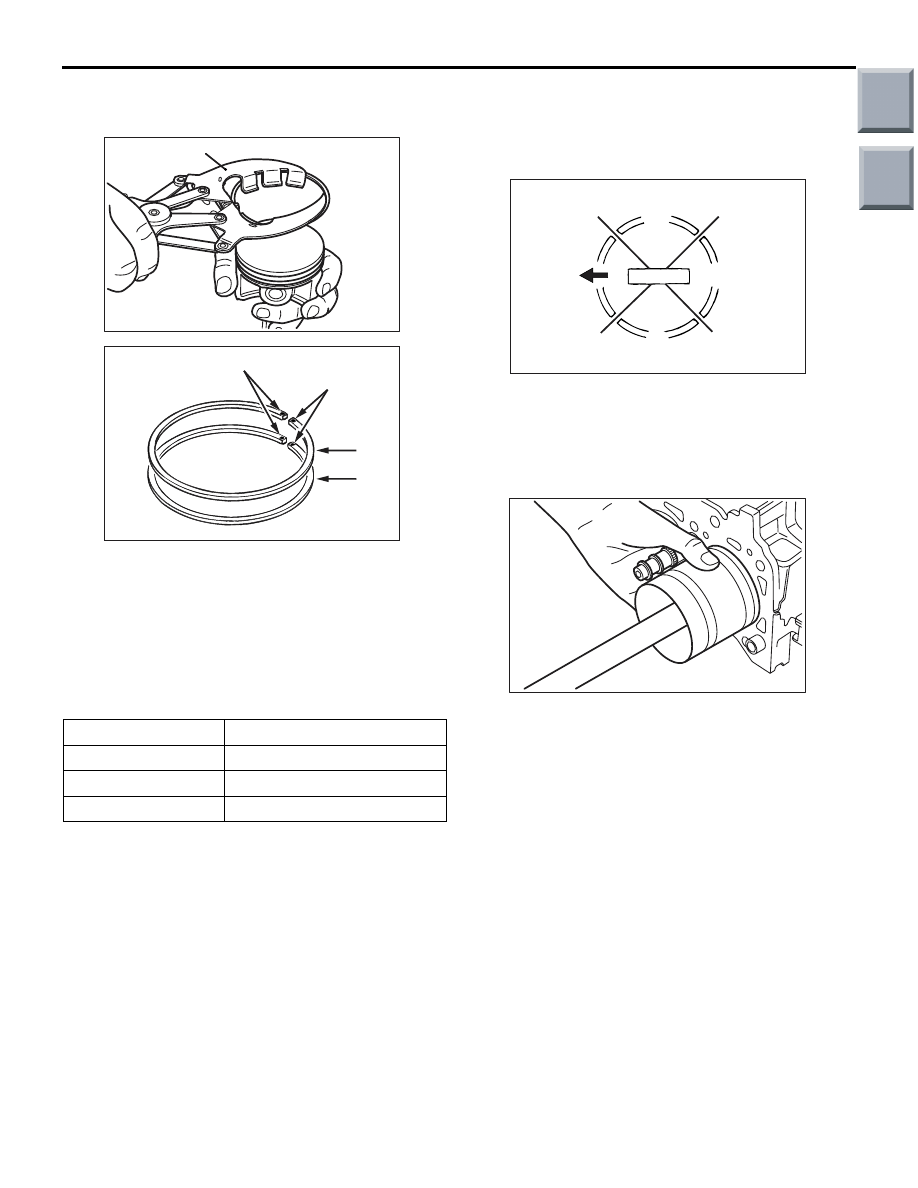

>>C<< PISTON RING NO. 2/PISTON RING
NO. 1 INSTALLATION

AK201804AC

Piston ring
expander

AK202807

No. 2

AB

No. 1

Size marks

Identification mark

Using a piston ring expander, install the piston rings
with their identification marks facing up (toward the
piston crown).

Identification marks:

No. 1 ring 1R
No. 2 ring 2R

NOTE: . Each of the available piston rings has a size
mark as follows:

Size

Size mark

Standard

No mark

0.50 mm oversize

50

1.00 mm oversize

100

>>D<< PISTON AND CONNECTING ROD
ASSEMBLY INSTALLATION

1. Apply engine oil generously to the piston's outside

surface, piston rings, and oil ring.

AK202553

No. 1

No. 2

Side rail

Side rail

AB

2. Align the end gaps of the piston rings and oil ring

(side rails and spacer) as shown in the illustration.

3. Insert the piston and connecting rod assembly

from the top of cylinder with the front mark on the
crown toward the timing belt side.

AK201805

4. Use a piston ring band to hold the piston rings

compressed when inserting the piston and
connecting rod assembly into the cylinder.

Main

Index

Group

TOC

PISTON AND CONNECTING ROD

ENGINE OVERHAUL <4G1>

11D-47

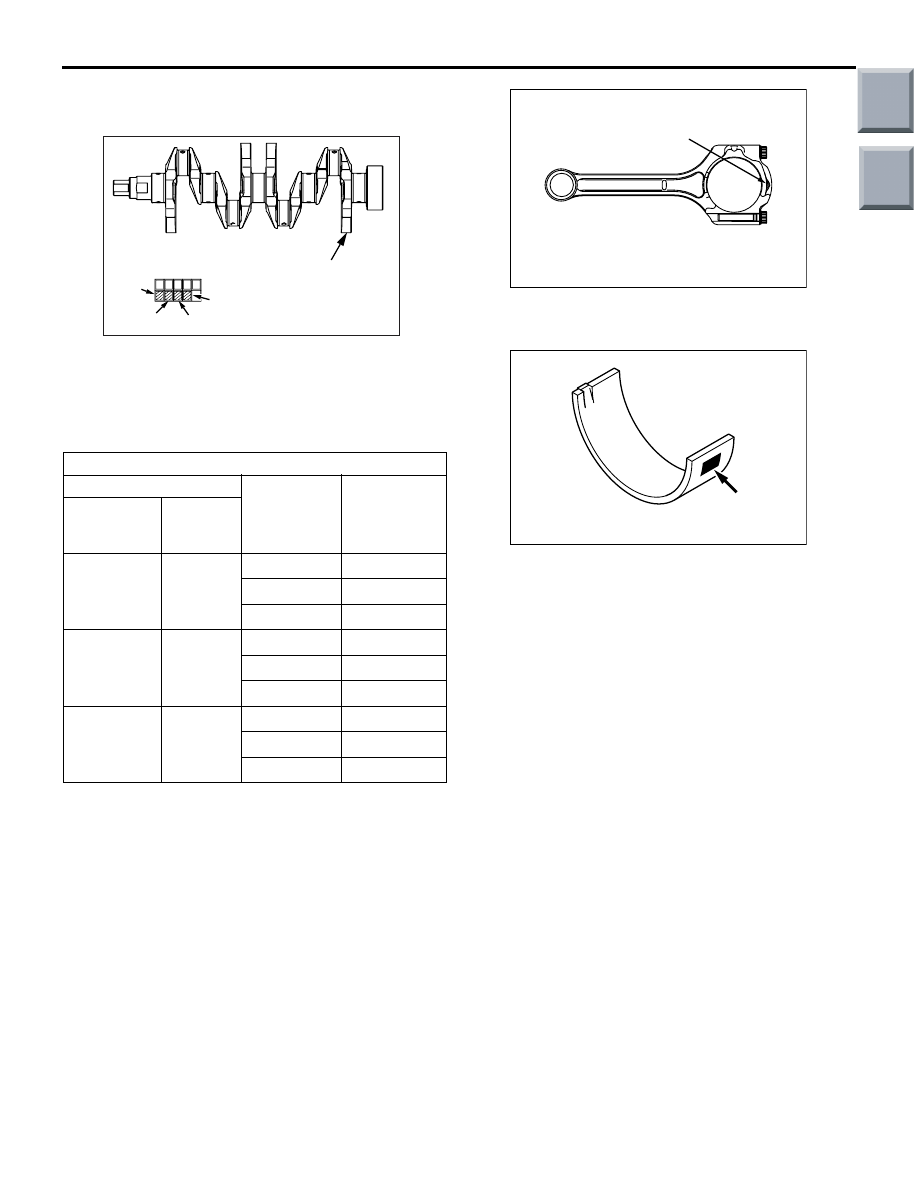

>>E<< CONNECTING ROD BEARING
INSTALLATION

AK402143

P

No. 1

No. 2

No. 3

No. 4

P

AC

1. When replacing the connecting rod bearing,

select a bearing of the size appropriate for the
crankshaft pin diameter in accordance with the
crankshaft pin and connecting rod bearing
matching table shown below.

Bearing Selection Table
Crankshaft

Connecting
rod
Identification
mark

Bearing
identification
mark

Identification
mark

Pin
diameter
mm

A or I

41.994

−

42.000

A

0

None

1

C

2

B or II

41.988

−

41.994

A

1

None

2

C

3

C or III

41.982

−

41.988

A

2

None

3

C

4

AK305611AB

Front mark

2. The identification mark of the connecting rod is

found in the position shown in the illustration.

AK304598

Connecting bearing

Identification
mark position

AB

3. Select bearings from the bearing selection table in

accordance with the identification marks and color
codes checked at steps 1 and 2 above.

 <Bearing selection example>

(1) If the measured outside diameter of crankshaft

pin is 42.000 mm, the identification mark are
"A" and I, respectively.

(2) Based on the above, if the identification of the

connecting rod is "A," select the bearing
marked in I.
