DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-150

>>C<< STEERING WHEEL/DRIVER’S AIR
BAG MODULE INSTALLATION

CAUTION

When installing the steering wheel, and driver’s
air bag module ensure that the harness of the
clock spring does not become caught or tangled.
1. Before installing the steering wheel, and driver’s

air bag module turn the vehicle’s front wheels to
the straight-ahead position and align the mating
marks of the clock spring.

2. After securing the steering wheel, turn the

steering wheel all the way in both directions to
confirm that the steering wheel rotation is normal.

>>D << COVER INSTALLATION

1. Secure the horn connector to the cover.
2. Install the cover to the steering wheel assembly.

>>E<< POST-INSTALLATION
INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to “ON” position.

3. Does the "SRS" warning lamp illuminate for

approximately seven seconds, and go out?

4. If yes, the SRS system is functioning properly. If

no, refer to

P.52B-10

.

AC209070AE

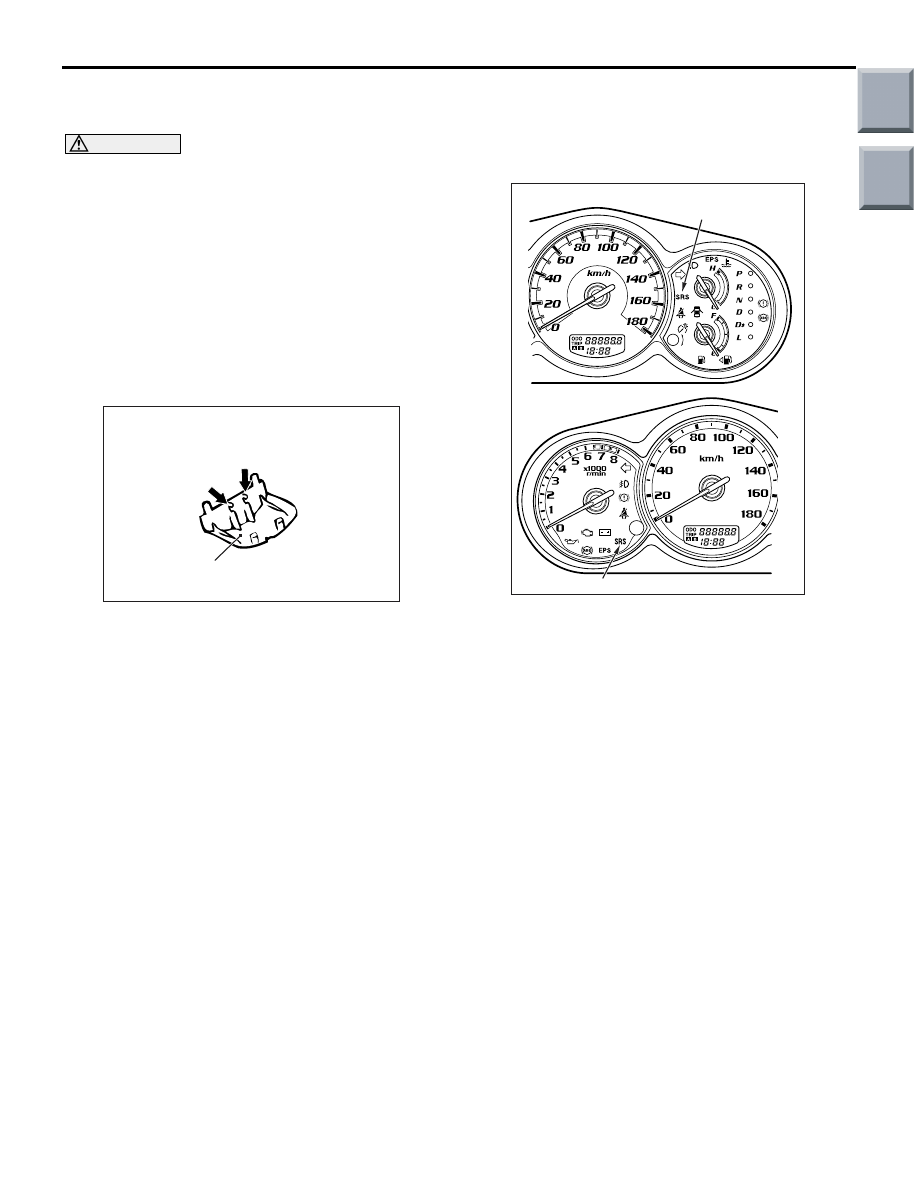

Horn connector fixing point

Cover

AC510172

<VR-X>

<Except-VR-X>

SRS warning lamp

SRS warning lamp

AC

Main

Index

Group

TOC

DRIVER'S AND PASSENGER'S (FRONT) AIR BAG MODULES AND CLOCK SPRING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-151

INSPECTION

M1524014600244

AIR BAG MODULE CHECK

WARNING

•

If any component damage is found during
the following inspection, replace the air
bag module(s) with a new one. Dispose of
the old one according to the specified
procedure (Refer to

P.52B-162

).

•

Never attempt to measure the circuit
resistance of he air bag module (squib)
even if you are using the specified tester.
If the circuit resistance is measured with a
tester, accidental air bag module(s)
deployment will result in serious personal
injury.

1. Check the pad cover for dents, cracks or

deformation.

2. Check the connectors for damage, the terminals

for deformation, and the harness for binds.

3. Check the air bag inflator case for dents, cracks or

deformation.

4. Install the driver’s air bag module to the steering

wheel and check fit and alignment with the wheel.

5. Install the passenger’s (front) air bag module to

the instrument panel and front deck crossmember
and check fit and alignment.

CLOCK SPRING CHECK

If any malfunction is found in the following inspec-
tions, replace the clock spring with a new one.
1. Check the connectors and protective tube for

damage, and the terminals for deformation.

2. Visually check the case for damage.
3. Check to see that there is a charge (continuity)

between the B-137 clock spring connector
terminal 1 and B-139 horn switch.

CAUTION

 Do not directly insert a probe, etc. into the termi-
nal from the front of the connector.
4.  Insert the special tool extra fine probe

(MB992006) from behind the B-138 driver’s air
bag module connector.

5.  As shown in the Figure, connect the circuit tester

to the special tool extra fine probe (MB992006)
and check to see that there is a charge between
the terminals.

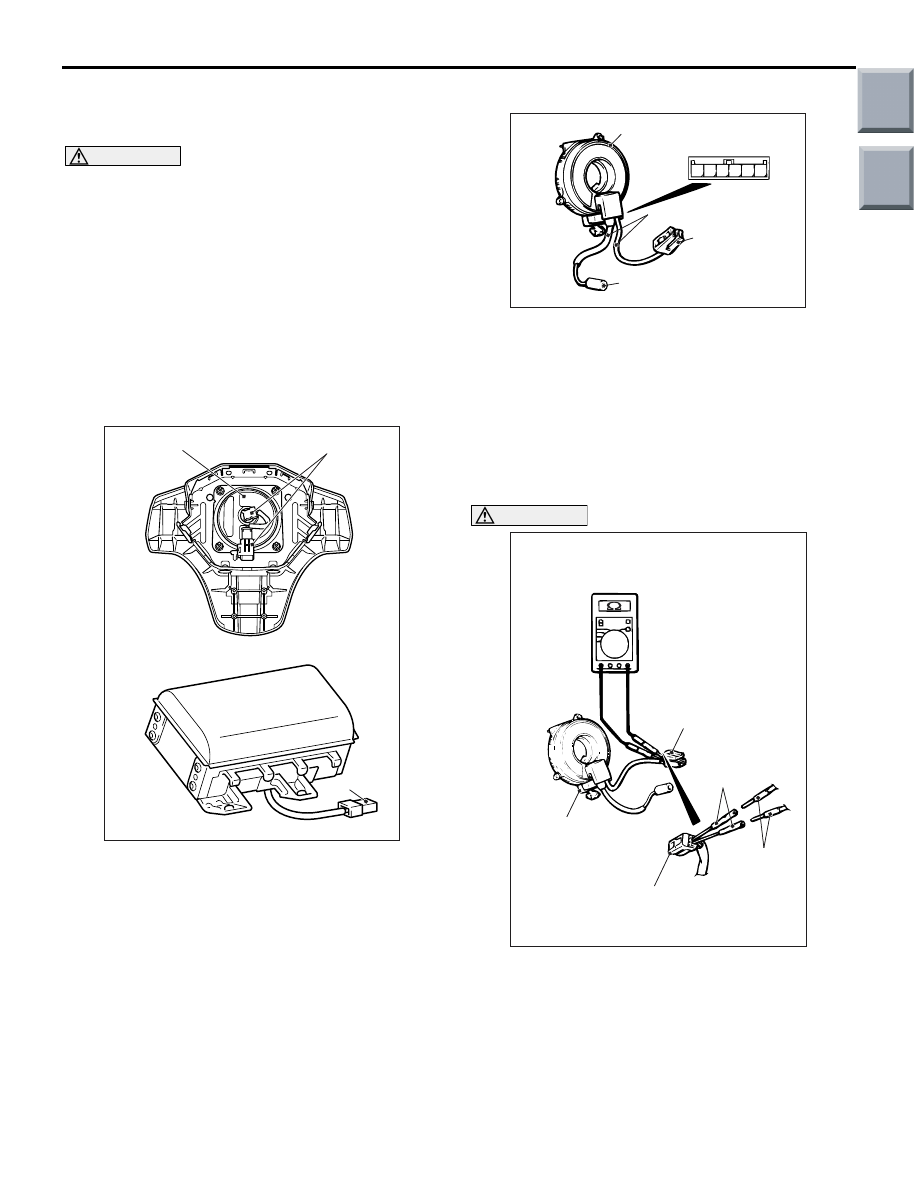

AC208717

Connector

Inflator case

Connector

AC

5 6

1 2 3 4

AC300312AE

Case

B-137 Clock spring
connector

Protective tube

B-138 Air bag
module connector

B-139 Horn switch

AC100448

Clock spring

MB992006

Digital
multi-meter

AS

B-138 Driver's air bag
module connector

B-138 Driver's air bag
module connector

Main

Index

Group

TOC

SIDE AND CURTAIN AIR BAG MODULES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-152

SIDE AND CURTAIN AIR BAG MODULES

REMOVAL AND INSTALLATION

M1524014800248

WARNING

•

Disconnect the negative battery terminal and wait for 60 seconds or more before starting
work. Also, the disconnected battery terminal should be insulated with tape (Refer to

P.52B-5

).

•

Never attempt to disassemble or repair the air bag modules. If faulty, just replace with new
one(s).

•

Do not drop the air bag modules or allow contact with water, grease or oil. Replace if a
dent, crack, deformation or rust are present.

•

Store the air bag modules on a flat surface with the deployment surface facing up. Do not
place anything on top of them.

•

Do not store the air bag modules in a place more than 93

°

C.

•

When the side and curtain air bags have been deployed, replace the front seatback
assembly and curtain air bag modules with new ones.

•

Put on gloves and safety glasses when handling deployed air bags.

•

When discarding the undeployed air bag module(s), be sure to deploy the air bag(s) in
advance as specified in the service procedure (Refer to

P.52B-162

).

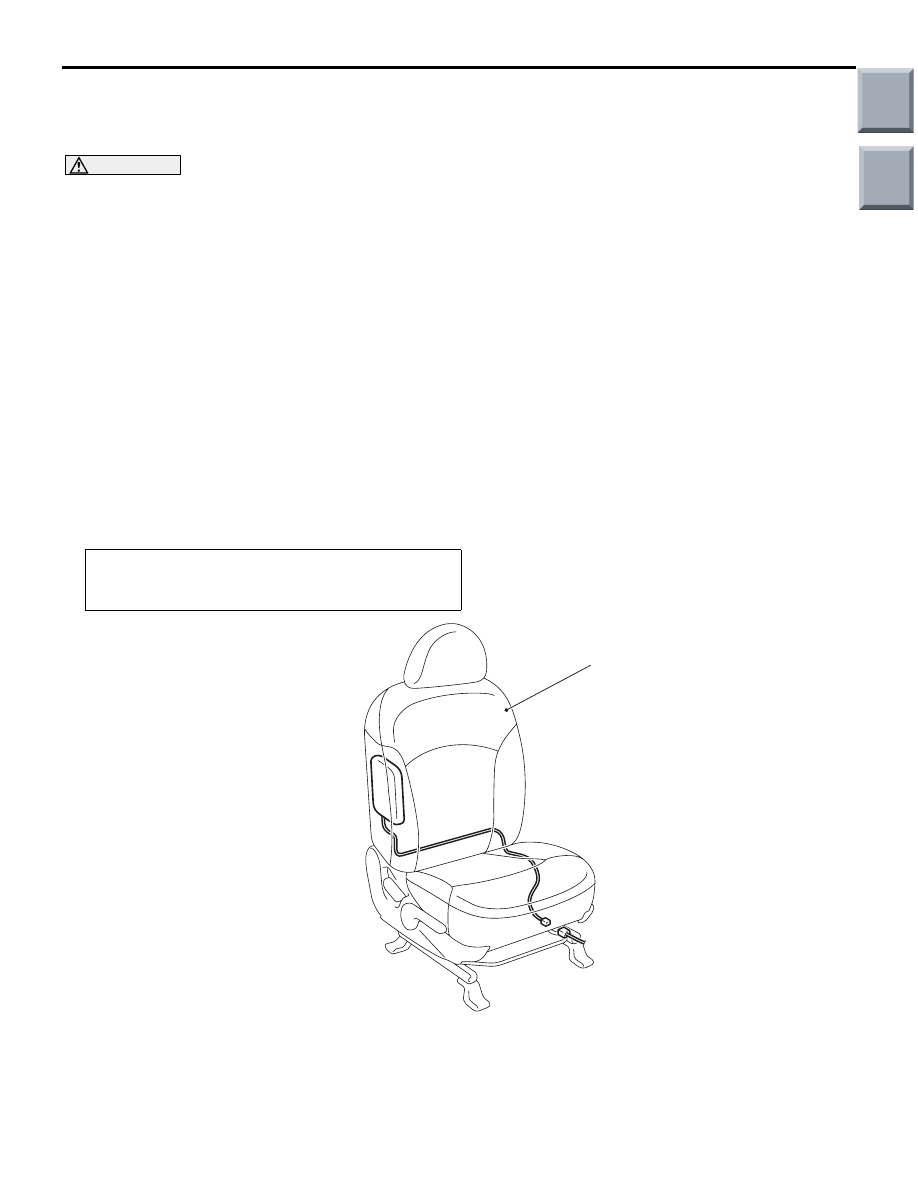

<SIDE-AIRBAG MODULE>

Pre-removal Operation
• Turn the ignition switch to the "LOCK" (OFF) position.

• Disconnect the Negative Battery Terminal.

AC208417

1

AD

Side air bag module removal steps

<<

A

>>

1. Front seat assembly

Side air bag module installation
steps

>>

A

<< • Pre-installation inspection

1. Front seat assembly

•

Negative (

−) battery cable connection

>>

D

<< • Post-installation inspection

Side air bag module installation
steps (Continued)

Main

Index

Group

TOC

SIDE AND CURTAIN AIR BAG MODULES

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-153

<CURTAIN AIR BAG MODULE>

REMOVAL SERVICE POINTS
<<A>> FRONT SEAT ASSEMBLY
REMOVAL

WARNING

Dispose of air bag modules only according
to the specified procedure (Refer to

P.52B-162

).

Refer to GROUP52A, Front seat assembly

P.52A-23

.

<<B>> CONNECTOR REMOVAL

Use a flat-tipped screwdriver to pull out forward and
unlock the locking button of the curtain air bag har-
ness-side connector.

Pre-removal Operation
• Turn the ignition switch to the "LOCK" (OFF) position.
• Disconnect the Negative Battery Terminal.

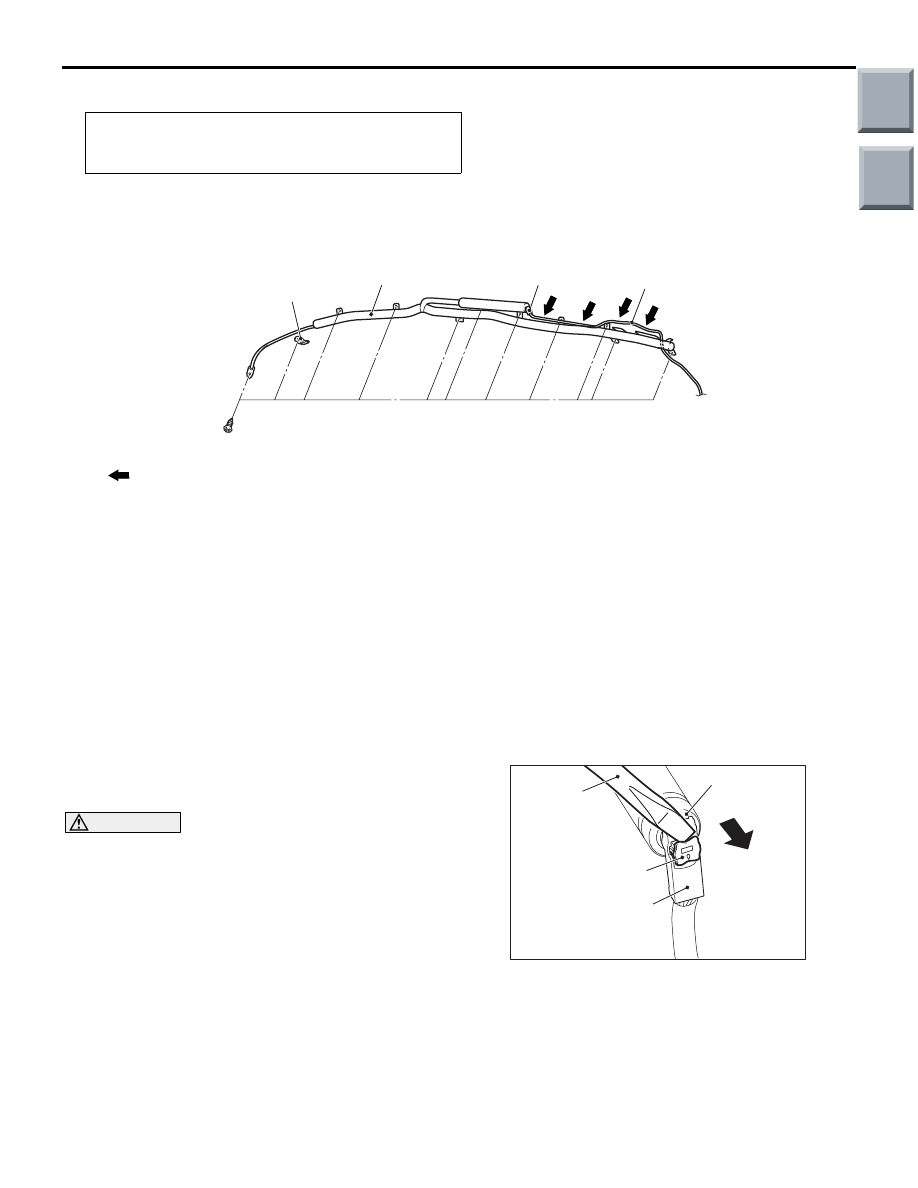

AC208406

NOTE

 : Harness clip positions

AC

1

3

2

4

Curtain air bag module removal
steps

•

Headlining (Refer to GROUP 52A,
Headlining

P.52A-16

.)

<<

B

>>

1. Connector
2. Curtain air bag module
3. Strap guide bracket
4. Curtain air bag harness

Curtain air bag module installation
steps

>>

A

<< • Pre-installation inspection

>>

B

<< 4. Curtain air bag harness

3. Strap guide bracket

>>

C

<< 2. Curtain air bag module

1. Connector
•

Headlining (Refer to GROUP 52A,
Headlining

P.52A-16

.)

•

Negative (

−) battery cable connection

>>

D

<< • Post-installation inspection

AC208384 AC

Locking button

Inflator connector

Curtain air bag
harness connector

Flat-tip screw
driver
