TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-40

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Drive belt tension check
Refer to GROUP 11A

− Engine adjustment

P.11A-6

.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Replace the drive belt.

Step 7. Check the magnetic clutch for A/C
compressor
 Refer to

P.55A-64

.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the magnetic clutch.

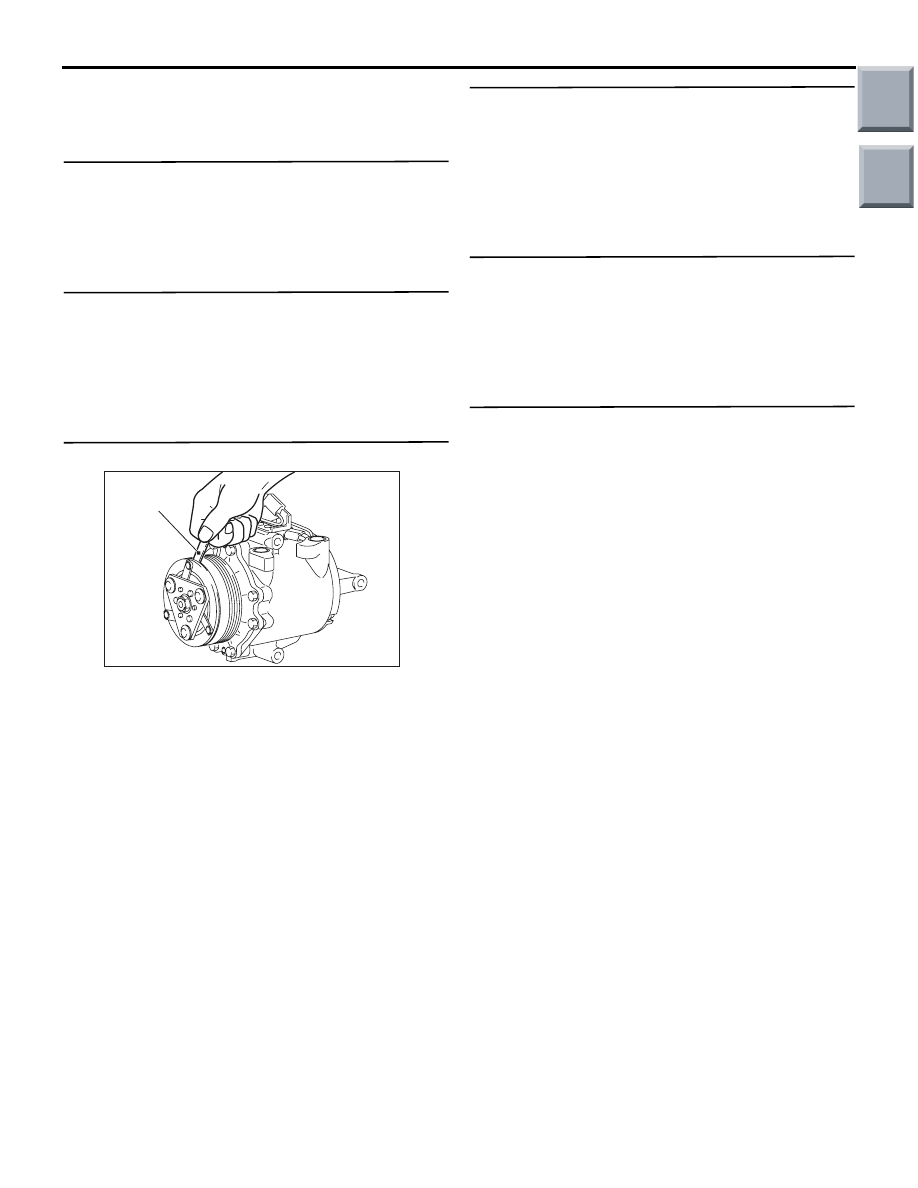

Step 8. Check the air gap.

AC208396

Thickness
gauge

AB

Use a feeler gauge and check that the air gap is
within the standard value.

Standard value: 0.25

 0.5 mm

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Adjust the air gap.

Step 9. Check the refrigerant temperature switch
(1) Remove the refrigerant temperature switch.

Refer to

P.55A-65

.

(2) Refer to

P.55A-66

 and check it.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Replace the refrigerant temperature switch.

Step 10. Check the refrigerant level.
 Refer to

P.55A-50

.

Q: Is the refrigerant level correct?

YES :

Go to Step 11.

NO :

Correct the refrigerant level (Refer to
On-vehicle Service

P.55A-50

).

Step 11. Replace the A/C compressor assembly
(1) Replace the A/C compressor assembly.
(2) Operates the A/C.
(3) Check that the A/C indicator lamp does not flash.

Q: Is the check result normal?

YES :

This diagnosis is complete.

NO :

Replace the combination meter (meter and
A/C-ECU).

Main

Index

Group

TOC

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-41

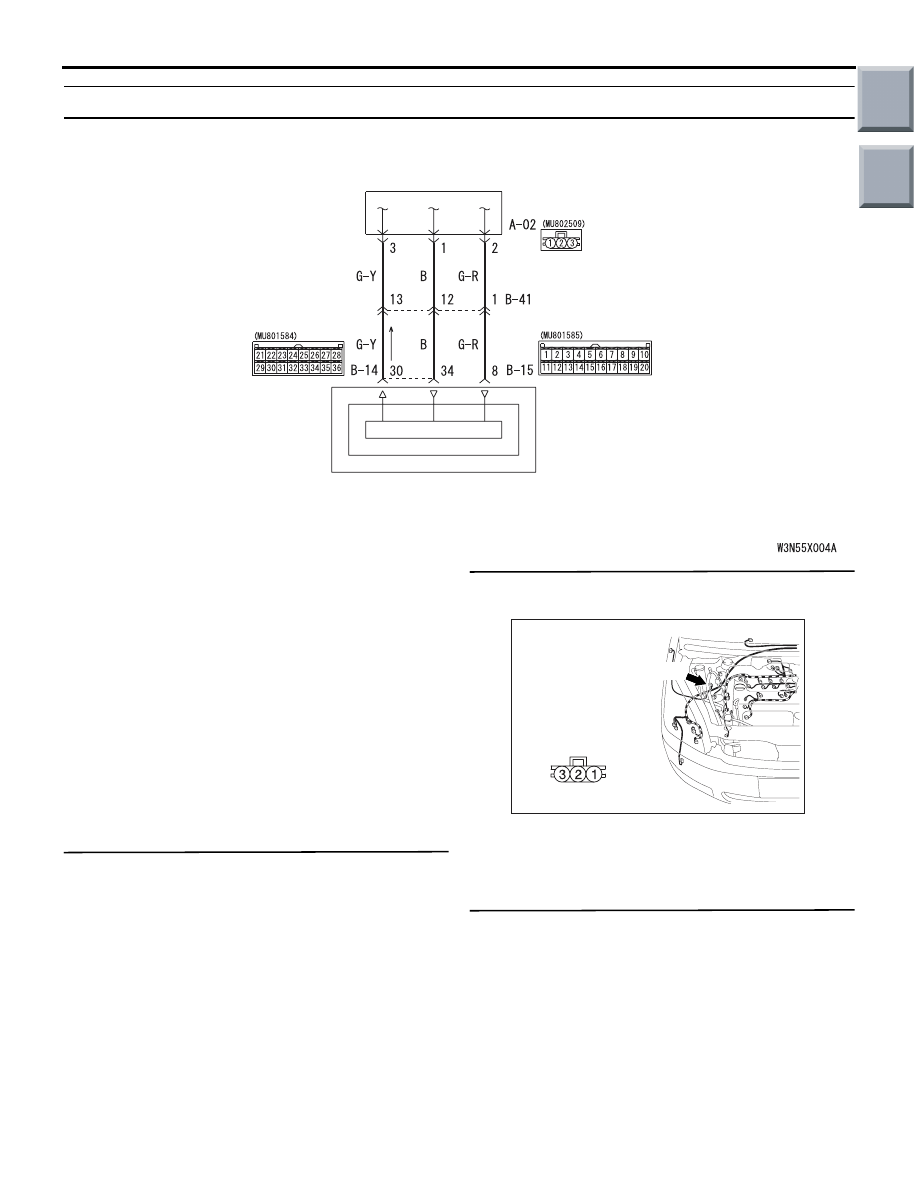

Inspection Procedure 10: A/C pressure sensor system

A/C PRESSURE
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

COMBINATION
METER

SENSOR CIRCUIT

METER AND A/C-ECU

A/C Pressure Circuit

COMMENTS ON TROUBLE SYMPTOM

If the A/C pressure sensor is defective, the damaged
wiring harness between the A/C pressure sensor and
the combination meter (meter and A/C-ECU) may be
suspected.

POSSIBLE CAUSES

• Malfunction of A/C pressure sensor

• Malfunction of the combination meter (meter and

A/C-ECU)

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. M.U.T.-III data list
Check that the following service data display con-
tents are normal. (Refer to

P.55A-44

.)

• Item 04: Pressure sensor

Q:  Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 2.

Step 2. Connector check: A-02 A/C pressure
sensor connector

AC313797

Connector: A-02

Harness side

AF

A-02 (B)

Q:  Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

Step 3. Inspection of A/C pressure sensor
 Refer to

P.55A-51

.

Q:  Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the A/C pressure sensor.

Main

Index

Group

TOC

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-42

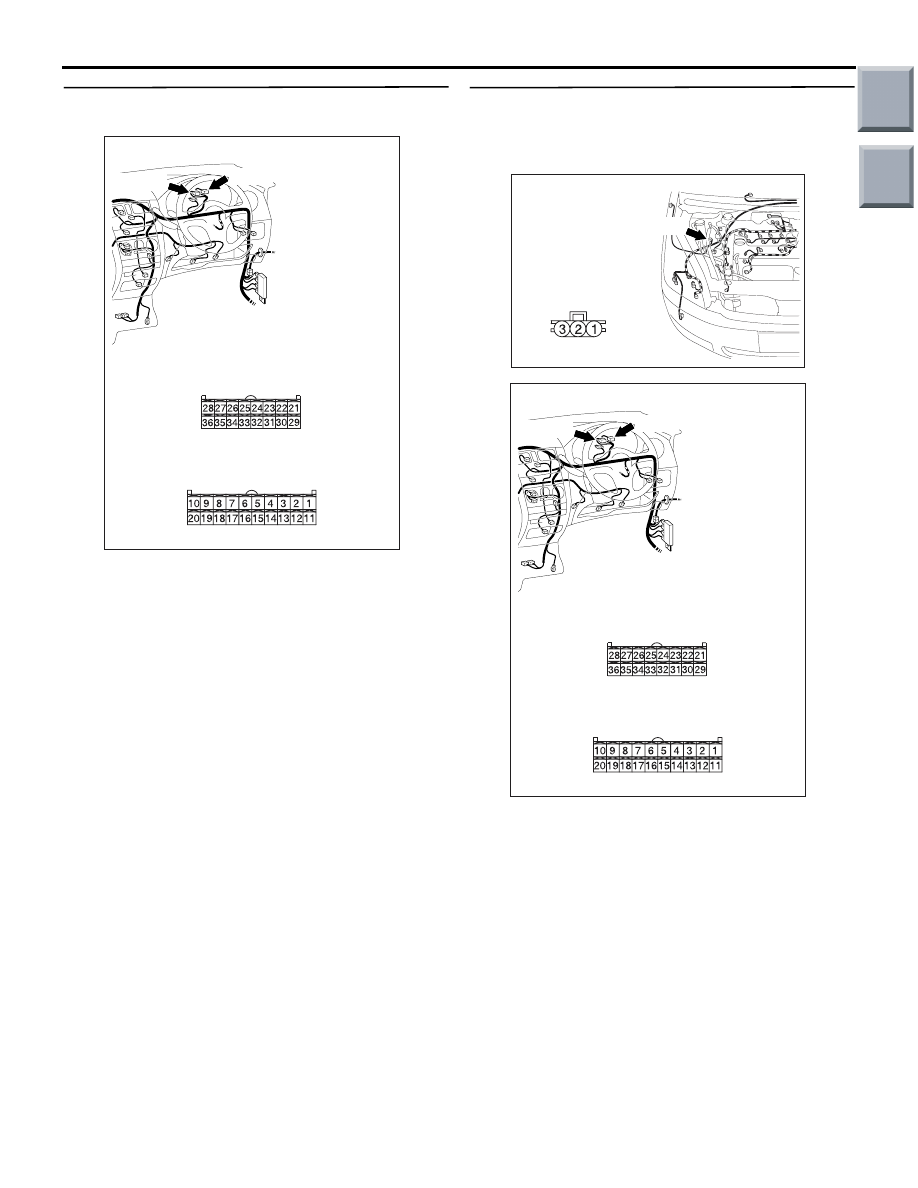

Step 4. Connector check: B-14 and B-15
combination meter connector

AC401056

AI

Connectors: B-14, B-15

Harness side

B-15 (B)

B-15

B-14 (B)

Harness side

B-14

Q:  Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

Step 5. Check the wiring harness between B-14,
B-15 combination meter connector (terminals 8,
34 and 30) and A-02 A/C pressure sensor
connector (terminals 2, 1 and 3).

AC313797

Connector: A-02

Harness side

AF

A-02 (B)

AC401056

AI

Connectors: B-14, B-15

Harness side

B-15 (B)

B-15

B-14 (B)

Harness side

B-14

Main

Index

Group

TOC

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-43

NOTE:

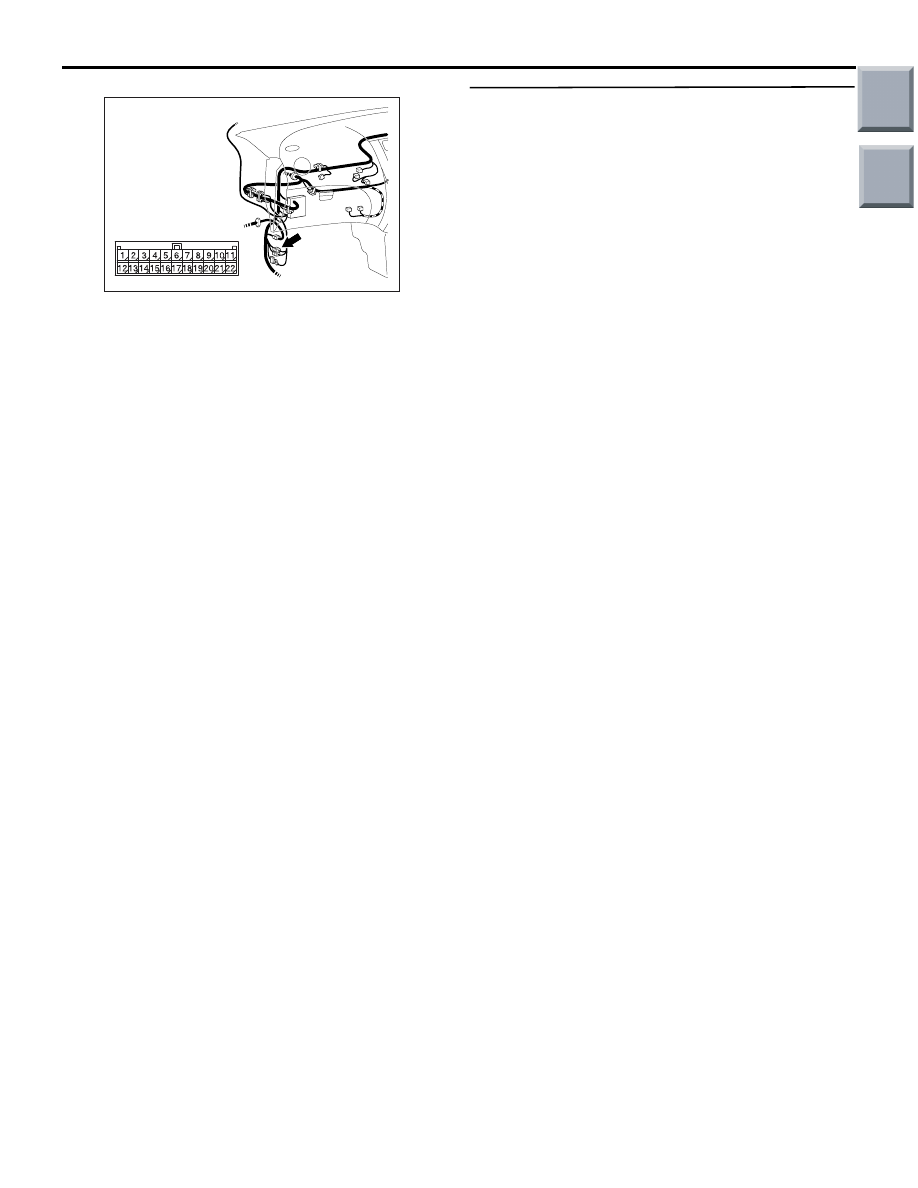

AC401053

AD

Connector: B-41

Prior to the wiring harness inspection, check interme-
diate connector B-41, and repair if necessary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Step 6. Recheck the trouble symptom

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-13

).

NO :

Replace the combination meter (meter and
A/C-ECU).
