TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-12

Step 2. M.U.T.-III diagnosis code
Check whether the air conditioner sets a diagnosis
code or not.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to diagnosis code chart

P.55A-5

.

Step 3. M.U.T.-III data list
Check that the following service data display con-
tents are normal. (Refer to

P.55A-44

.)

• Item 04: Pressure sensor

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Inspection Procedure 10: Refer to A/C
pressure sensor system

P.55A-41

.

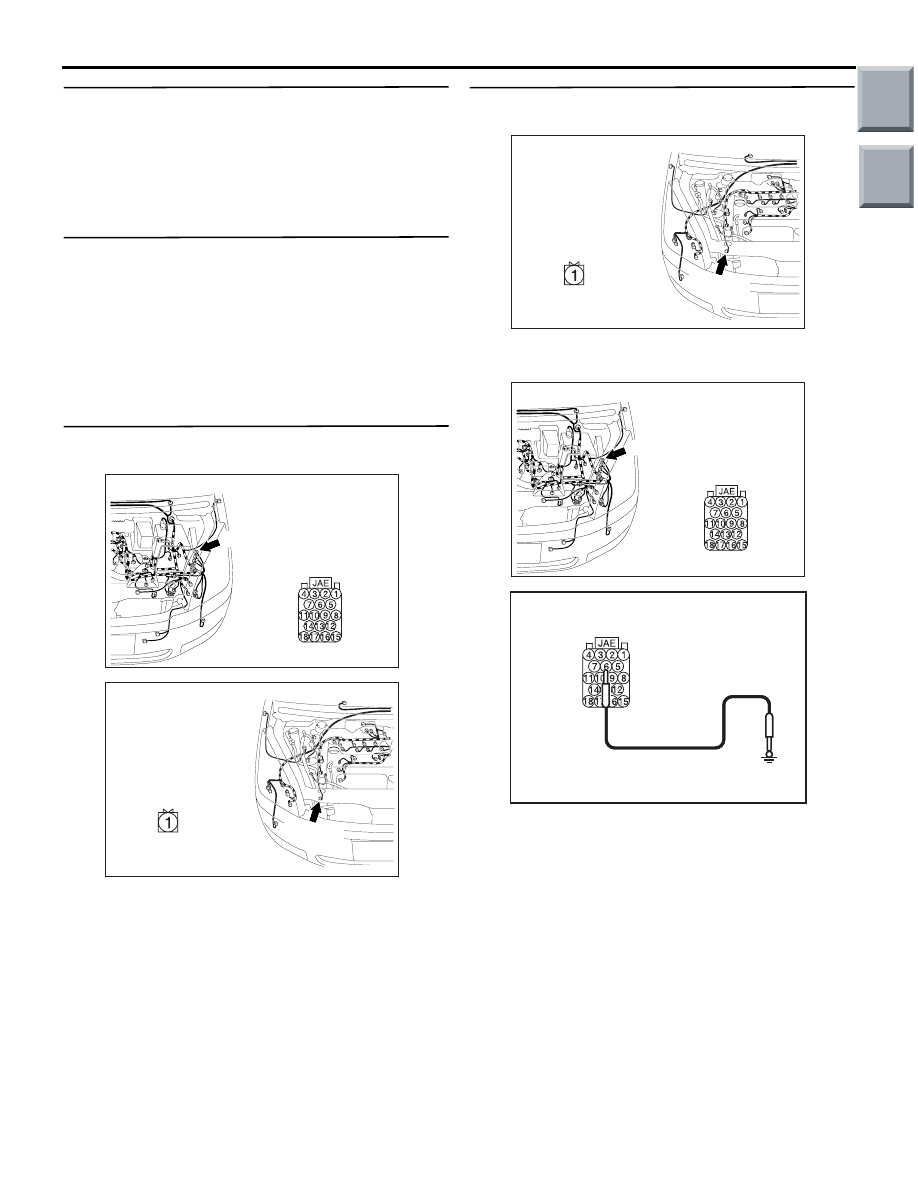

Step 4. Connector check: A-130 A/C compressor
connector and A-08 engine-CVT-ECU

AC313811

Connector: A-08

AL

Harness side

A-08 (B)

AC313797

Connector: A-130

AB

Harness side

A-130 (B)

Q:  Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the connector.

Step 5. Voltage measurement at A-130 A/C
compressor connector.

AC313797

Connector: A-130

AB

Harness side

A-130 (B)

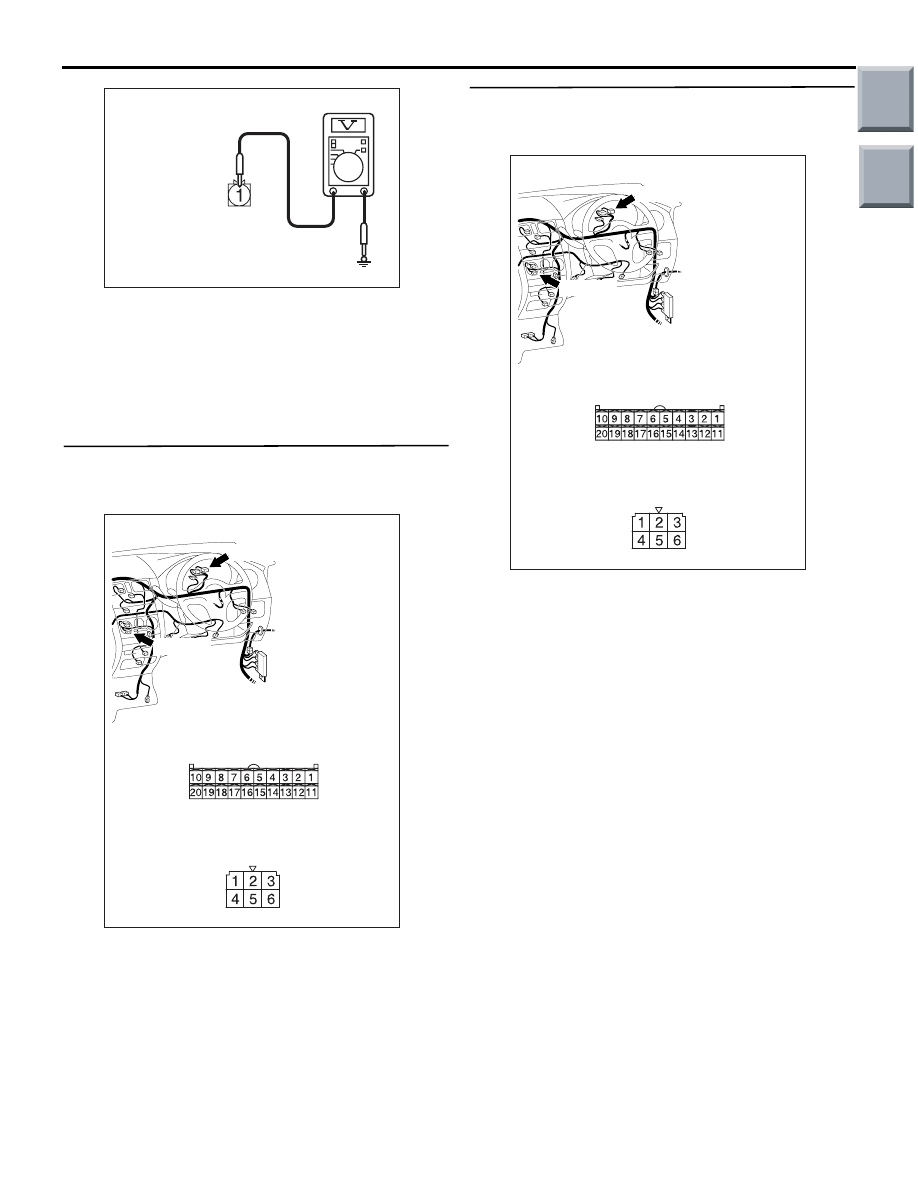

(1) Disconnect the connector, and measure at the

wiring harness side.

AC313811

Connector: A-08

AL

Harness side

A-08 (B)

AC309471

AC309471

Connector A-08
(Harness side)

AL

(2) Disconnect engine-CVT-ECU connector A-08

and earth terminal 6.

Main

Index

Group

TOC

AC310507

Connector A-130
(Harness side)

EY

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-13

(3) Voltage between terminal 1 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

 Go to Step 6.

NO :

Refer to Inspection Procedure 7 " The
compressor does not work

P.55A-27

 ".

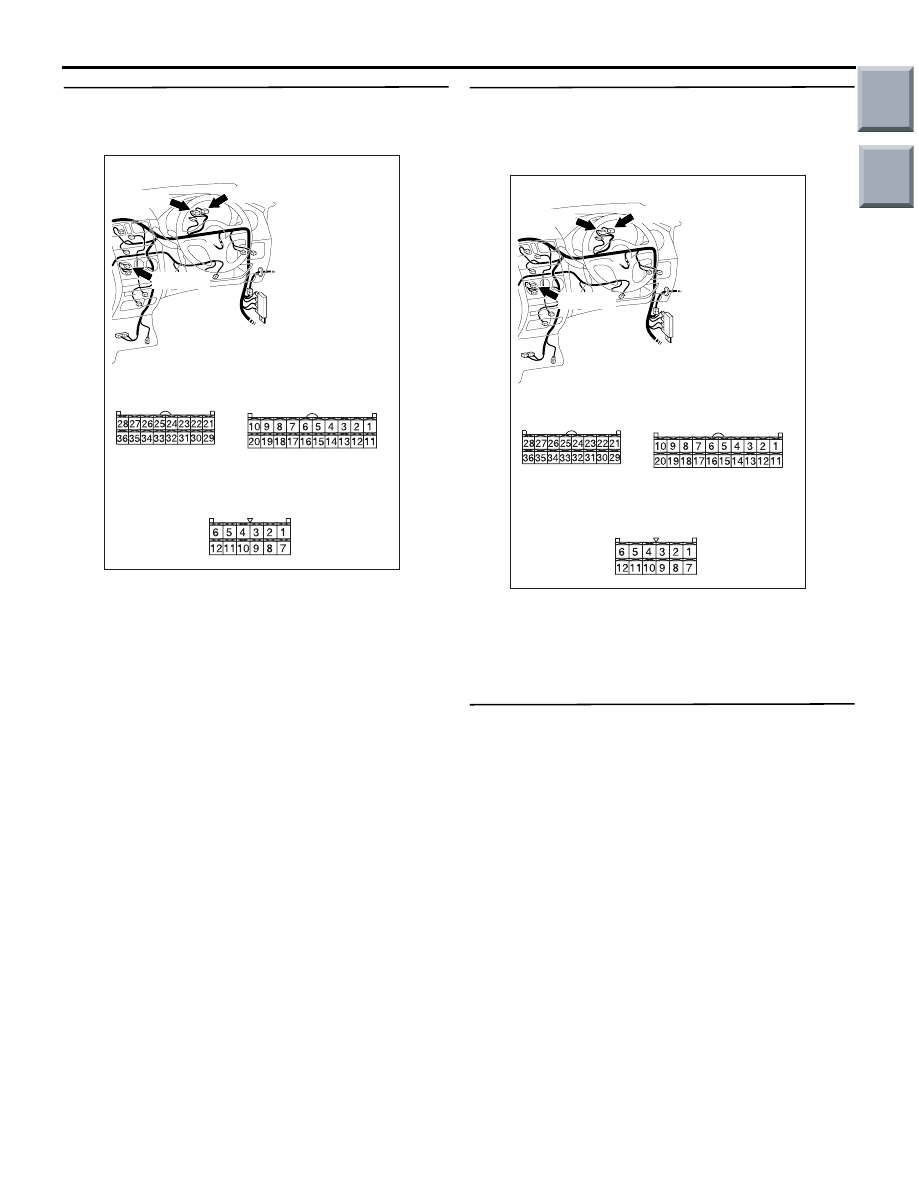

Step 6. Connector check: B-31 blower switch
connector and B-15 combination meter
connector

AC401056

AF

Connectors: B-15, B-31

Harness side

B-15 (B)

B-31 (B)

B-15

Harness side

B-31

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the connector.

Step 7. Check the wiring harness between B-31
blower switch connector terminal No.1 and B-15
combination meter connector terminal No.7.

AC401056

AF

Connectors: B-15, B-31

Harness side

B-15 (B)

B-31 (B)

B-15

Harness side

B-31

• Check the blower switch signal line and earth line

for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the wiring harness.

Main

Index

Group

TOC

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-14

Step 8. Connector check: B-30 heater control
assembly connector, B-14 and B-15 combination
meter connector

AC401056

AG

Connectors: B-14, B-15, B-30

Harness side

B-15 (B)

B-30 (B)

B-15

Harness side

B-30

B-14 (B)

Harness side

B-14

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the connector.

Step 9. Check the wiring harness between B-14,
B-15 combination meter connector (terminals 29,
35 and 6) and B-30 heater control assembly
connector (terminals 6, 7 and 10).

AC401056

AG

Connectors: B-14, B-15, B-30

Harness side

B-15 (B)

B-30 (B)

B-15

Harness side

B-30

B-14 (B)

Harness side

B-14

• Check the input line for open or short circuit.

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the wiring harness.

Step 10. Refrigerant level check
Check that the refrigerant level is adequate. Refer to

P.55A-50

.

Q: Is the check result normal?

YES :

Intermittent malfunction. (Refer to GROUP

00, How to Cope with Intermittent
Malfunction

P.00-13

.)

NO :

Charge or remove the refrigerant level.
Refer to

P.55A-48

 or

P.55A-48

.

Main

Index

Group

TOC

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55A-15

Inspection Procedure 4: The blower does not work

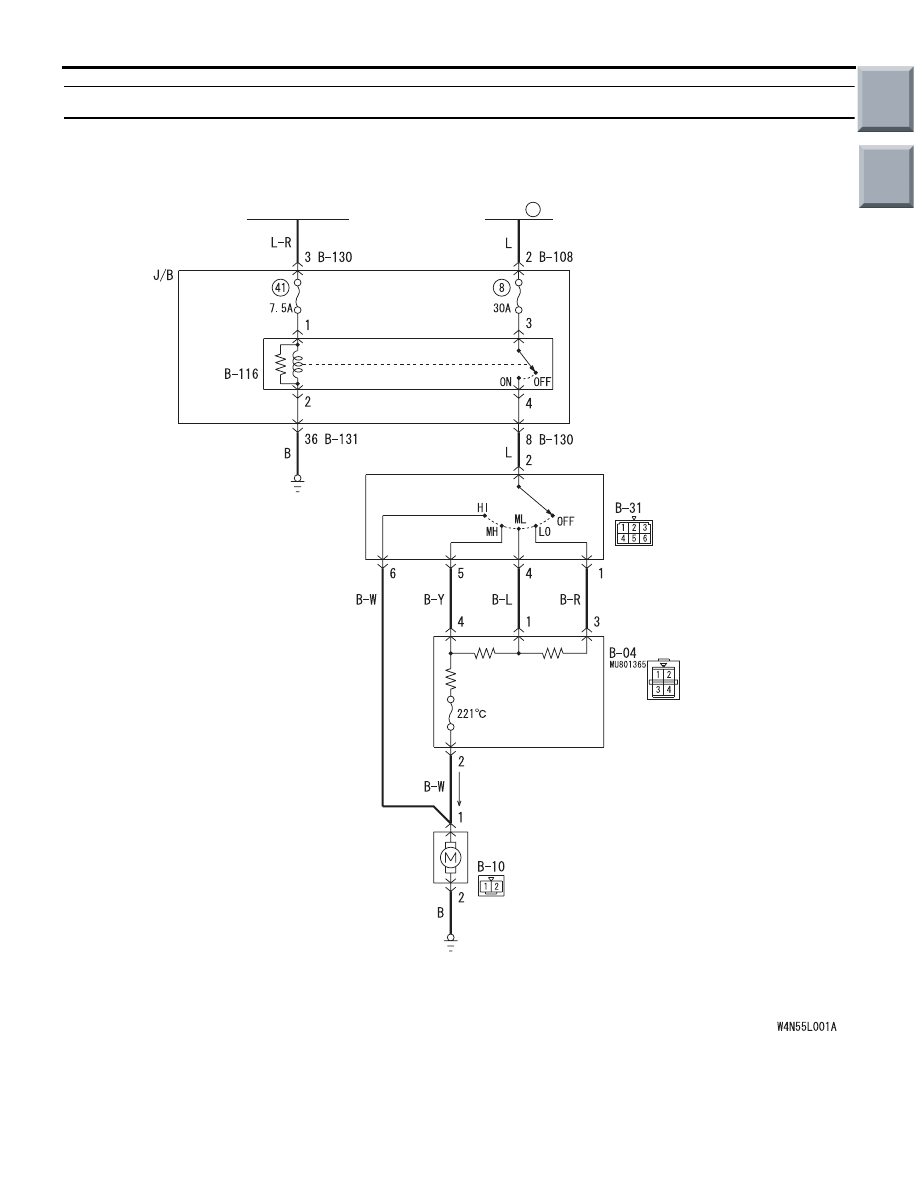

Blower Motor Circuit

BLOWER
SWITCH

RESISTOR

BLOWER
MOTOR

FUSIBLE
LINK

6

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

IGNITION
SWITCH (IG2)

BLOWER
RELAY

COMMENTS ON TROUBLE SYMPTOM

If the blower motor does not operate, the blower
motor circuit system may be defective.

POSSIBLE CAUSES

• Malfunction of the front blower relay

• Malfunction of the blower motor

• Malfunction of the blower switch

• Damaged the wiring harness or connectors
