ACX00476 AB

WINDOW GLASS

BODY

42-18

CAUTION

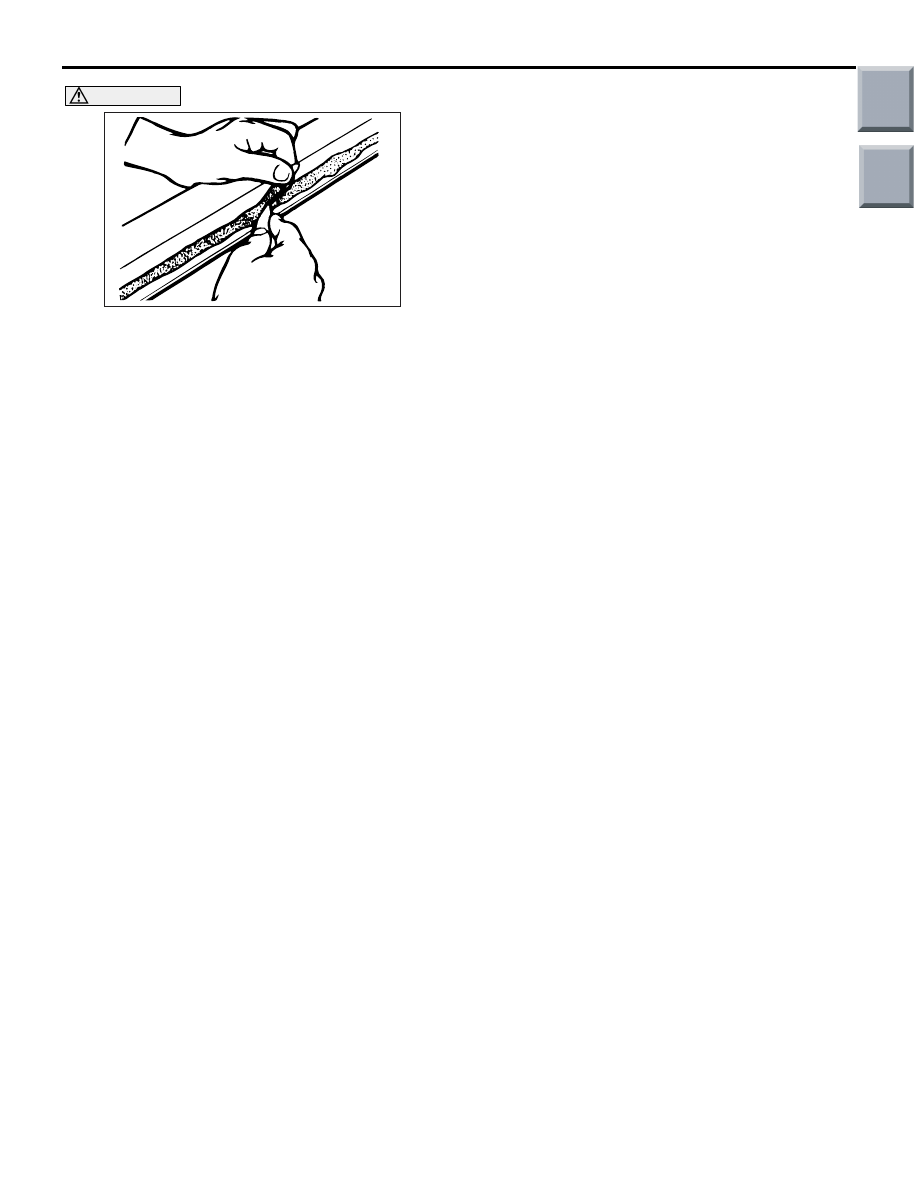

• Be careful not to remove more adhesive than

is necessary.

• Be careful also not to damage the paintwork

on the body surface with the knife. If the
paintwork is damaged, repair the damaged
area with repair paint or anti-rust agent.

5. Use a knife to cut away the remaining adhesive so

that the thickness is within 2 mm around the entire
circumference of the body flange.

6. Finish the flange surfaces so that they are

smooth.

7. If the windshield glass is reused, scrape away all

traces of old adhesive from the glass.

Main

Index

Group

TOC

WINDOW GLASS

BODY

42-19

INSTALLATION SERVICE POINTS
>>A<< WINDSHIELD SPACER/GLASS
STOPPER INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.

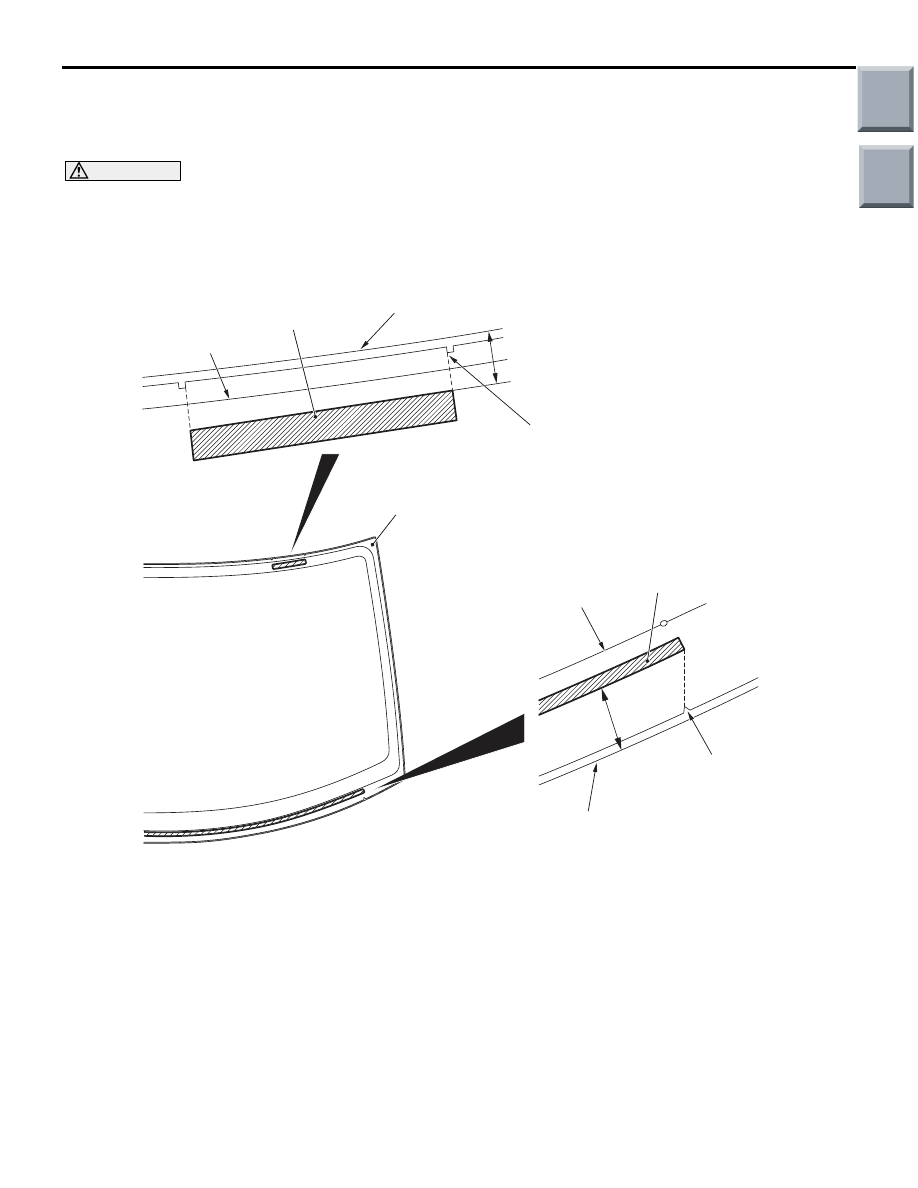

1. Use isopropyl alcohol to degrease the inside and

outside of the windshield and the body flanges.

AC104651AC

16 mm

19.5 mm

Align the end of the glass
stopper with the notch
on the ceramic.

Windshield

Glass stopper

Seal line

End of glass

Seal line

End of glass

Windshield spacer

Align the windshield
spacer end with the
ceramic notch.

2. Position the windshield spacer, ensuring that

there are no bends or warpages inside the
windshield.

3. Secure the glass stoppers to the specified

positions on the windshield glass.

Main

Index

Group

TOC

WINDOW GLASS

BODY

42-20

>>B<< WINDSHIELD INSTALLATION

1. Install the windshield moulding to the windshield.
2. When replacing the windshield, temporarily set

the windshield against the body, and place a
mating mark on the windshield and body.

CAUTION

• The primer strengthens the adhesive, so be

sure to apply it evenly around the entire cir-
cumference. However, a too thick application
will weaken the adhesive.

• Do not touch the coated surface.
• Do not apply the primer on the remaining

adhesive because of weakening the adhesive.

3. Soak a sponge in the primer, and apply evenly to

the windshield and the body in the specified
places. If the old adhesive does not remain on the
body flange because of the body panel or others,
also apply the primer to the specified body side.

4. Allow the windshield to dry for at least three

minutes after applying primer.

ACX00480

10 mm

15 mm

AB

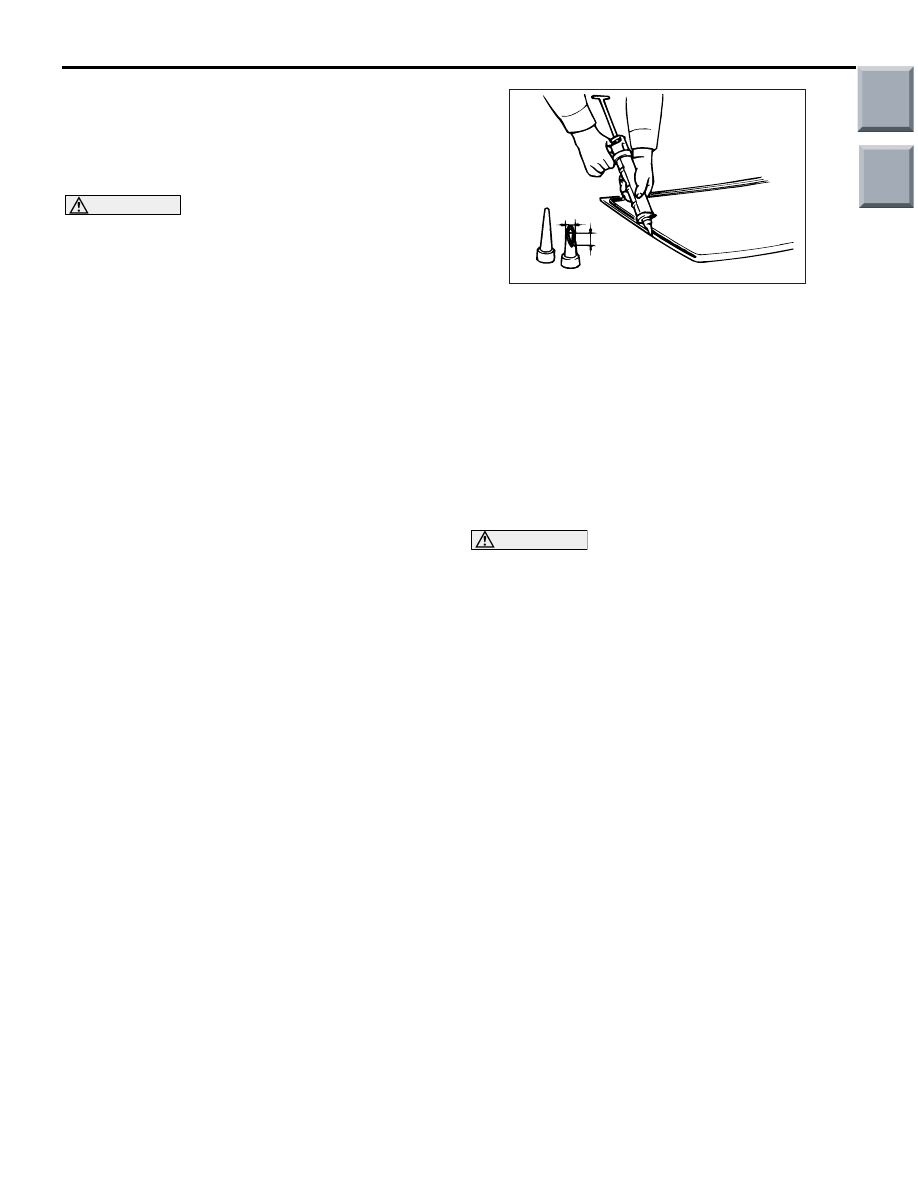

5. Fill a sealant gun with adhesive. Then apply the

adhesive evenly around the windshield within 30
minutes after applying the primer.
NOTE: Cut the tip of the sealant gun nozzle into a
V shape to simplify adhesive application.

6. Align the mating marks on the windshield and the

body, and lightly press the windshield evenly so
that it adheres completely.

7. Use spatula or the like to remove any excessive

adhesive. Then clean the surface with isopropyl
alcohol.

CAUTION

• Do not move the vehicle unless absolutely

necessary.

• When testing for water leakage, do not pinch

the end of the hose to spray the water.

8. Wait 30 minutes or more, and then test for water

leakage.

Main

Index

Group

TOC

WINDOW GLASS

BODY

42-21

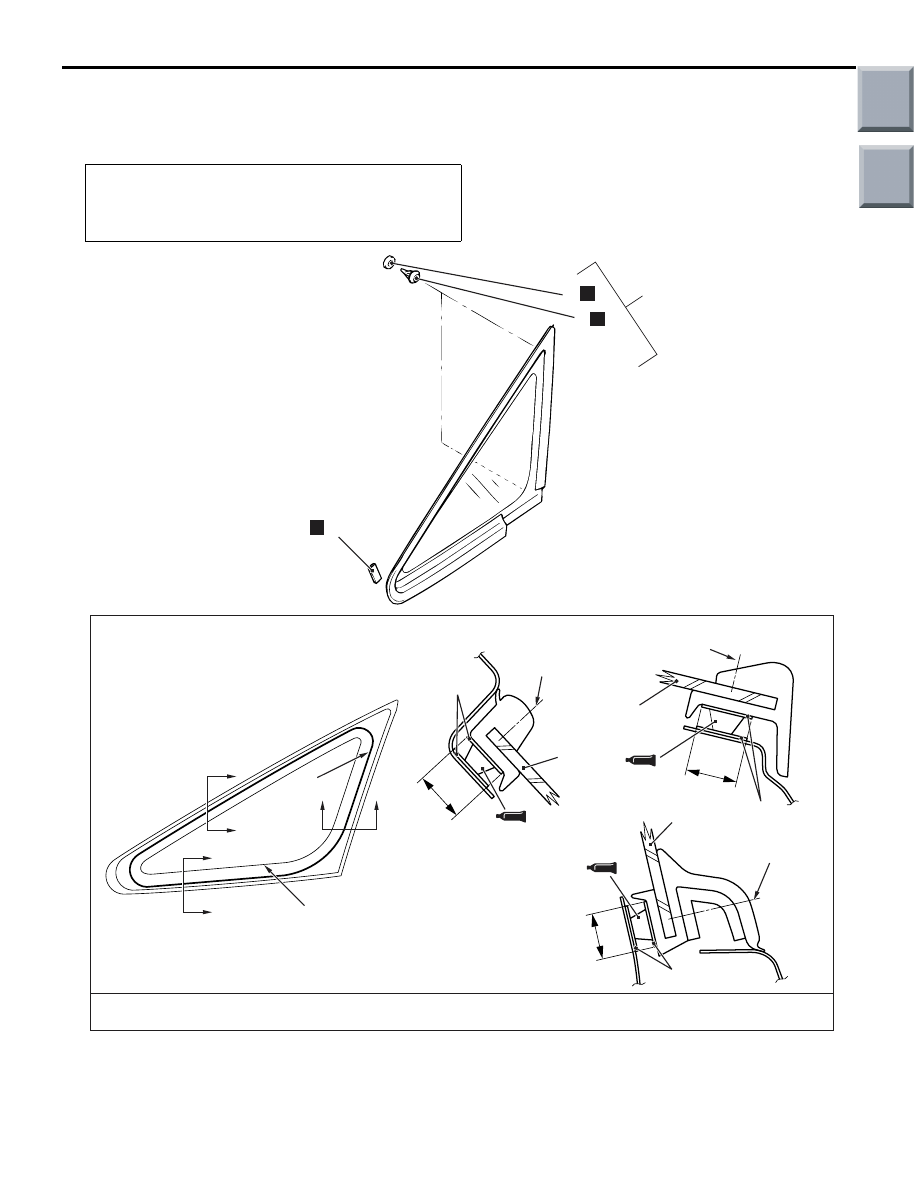

DELTA WINDOW GLASS

REMOVAL AND INSTALLATION

M1422001300110

Pre-removal and Post-installation Operation
• Front Fender Removal and Installation (Refer to

P.42-7

).

• Front Pillar Trim Removal and Installation (Refer to

GROUP 52A, Interior Trim

P.52A-11

).

AC313741

N

AC

1

2

3

4

1

1

1

A

A

C

C

B

B

N

12

12

12

N

Section A – A

Section B – B

Section C – C

Units: mm

Seal
line

Ceramic line

Primer

Primer

Centre of
seal line

Centre of seal line

Centre of
seal line

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

Primer

Removal steps

<<

A

>>

>>

B

<<

1.

Delta window glass assembly

>>

B

<<

2.

Clip

>>

B

<<

3.

Gasket

>>

A

<<

4.

Fastener

Removal steps (Continued)

Main

Index

Group

TOC
