COMBINATION METER

CHASSIS ELECTRICAL

54A-29

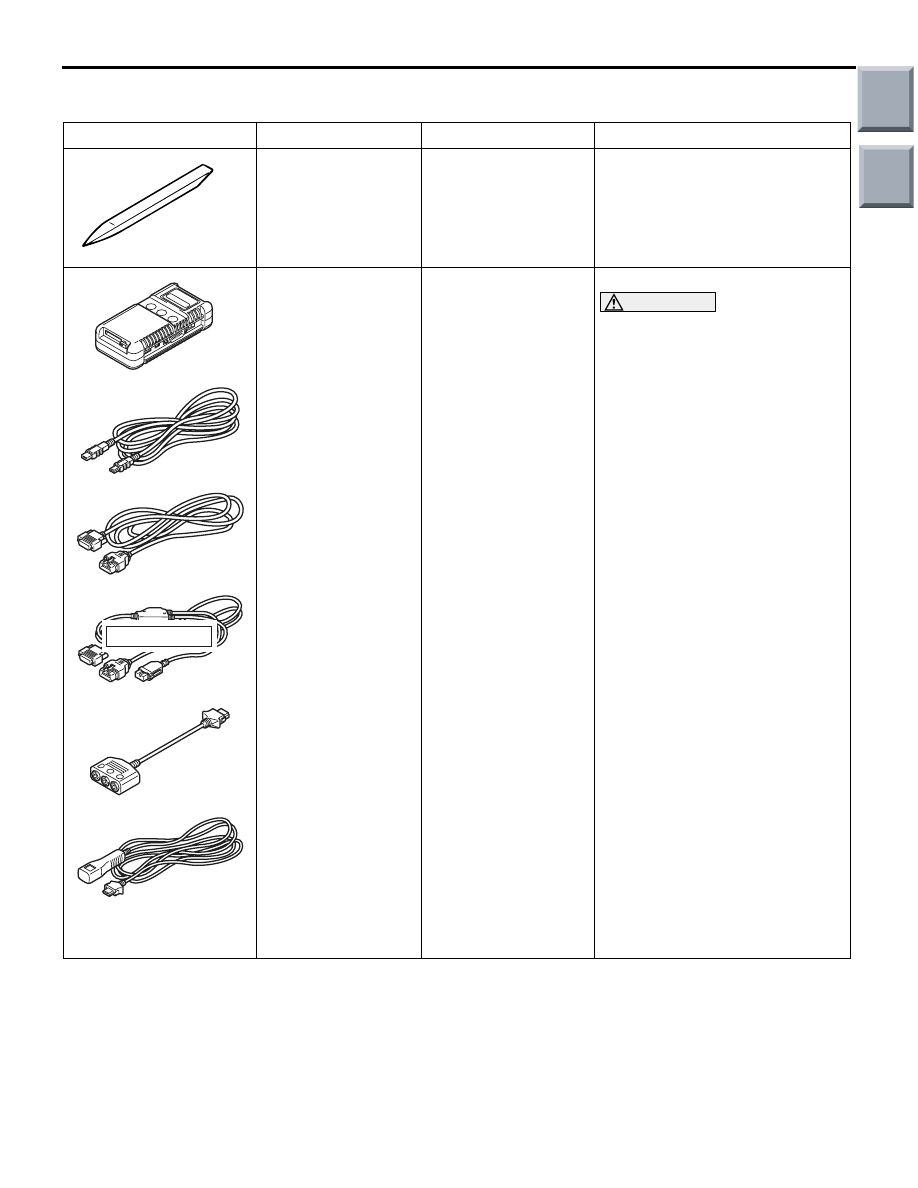

SPECIAL TOOLS

M1543000603261

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

combination meter bezel removal

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

communication
interface (V.C.I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

Check for CAN bus line

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness
B instead, the CAN
communication does not
function correctly.

Main

Index

Group

TOC

MB991223

A

D

C

B

AZ

DO NOT USE

COMBINATION METER

CHASSIS ELECTRICAL

54A-30

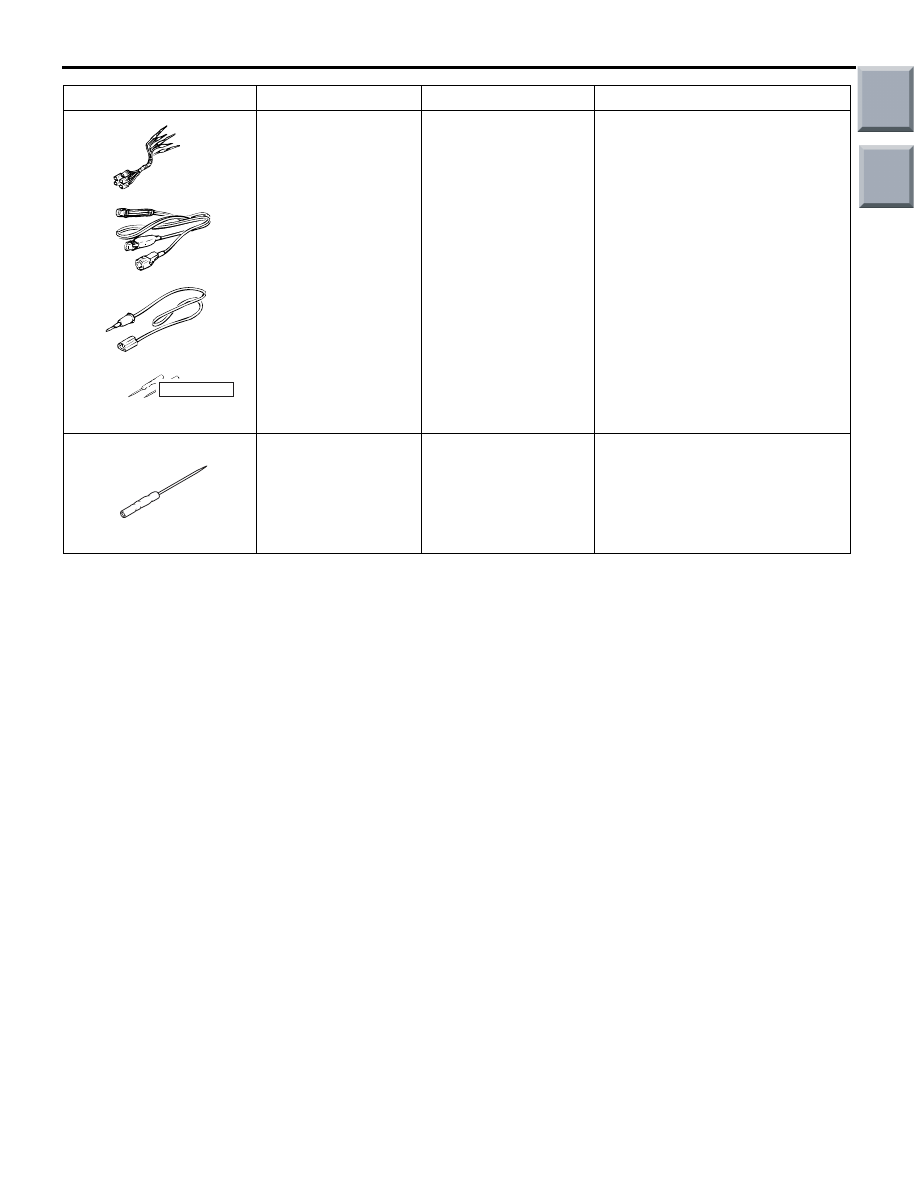

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set
A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

Making voltage and resistance
measurements during
troubleshooting

A: Connect pin contact pressure

inspection

B: Power circuit inspection
C: Power circuit inspection
D: Commercial tester connection

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-31

TROUBLESHOOTING

DIAGNOSIS FUNCTION

M1543007000755

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

P.00-7

.

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00, How to Use Troubleshoot-
ing/Inspection Service Points

P.00-7

.

DIAGNOSIS CODE CHART

M1543007101261

CAUTION

During diagnosis, a diagnosis code associated
with other system may be set when the ignition
switch is turned on with connector(s) discon-
nected. On completion, confirm all systems for
diagnosis code(s). If diagnosis code(s) are set,
erase them all.

Diagnosis
code No.

Diagnosis item

Reference page

U1073

Bus Off

P.54A-32

U1100

Engine-ECU <M/T> or engine-CVT-ECU <CVT> time-out
(related to engine)

P.54A-33

U1101

Engine-CVT-ECU (related to CVT) <CVT>

U1102

ABS-ECU or ASC-ECU time-out

P.54A-35

U1106

EPS-ECU time-out

P.54A-36

U1109

ETACS-ECU time-out

P.54A-38

U1112

SRS-ECU time-out

P.54A-39

U1120

Failure information on engine-ECU <M/T> or
engine-CVT-ECU <CVT> (related to engine)

P.54A-40

U1206

Flag invalid

P.54A-41

B1001

Interior temperature sensor system (short circuit)

Refer to GROUP 55A,
Check chart for diagnosis
codes

P.55A-5

. Refer to

GROUP 55B, Check chart
for diagnosis codes

P.55B-3

.

B1002

Interior temperature sensor system (open circuit)

B1011

Ambient temperature sensor system (short circuit)

B1012

Ambient temperature sensor system (open circuit)

B1021

Air thermo sensor system (short circuit)

B1022

Air thermo sensor system (open circuit)

B1041

Potentiometer system for the air mix damper (short to power
supply)

B1042

Potentiometer system for the air mix damper (short to earth or
open circuit)

B1045

Motor drive system for the air mix damper

B1081

Communication error with control parts

B1082

Automatic/manual types abnormal error

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-32

DIAGNOSTIC TROUBLE CODE
PROCEDURES

Code No.U1073 Bus Off

CAUTION

If diagnosis code U1073 is set in the combination
meter, always diagnose the CAN bus lines.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

TROUBLE JUDGMENT

If the combination meter ceases communicating
once (i.e. bus off) and then returns to it, the combina-
tion meter will not communicate for three minutes
immediately after that point. This three-minute period
is called "Penalty mode." Immediately after the com-
bination meter returns to communication, the diagno-
sis code is set.

COMMENTS ON TROUBLE SYMPTOM

The wiring harness wire or connectors may have
loose, corroded, or damage terminals, or terminals
pushed back in the connector, or the combination
meter may be defective.

POSSIBLE CAUSES

• Damaged harness wires and connectors

• Malfunction of combination meter

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result satisfactory?

YES :

Go to Step 2.

NO :

Repair the CAN bus lines. (Refer to GROUP
54D, Diagnosis

− Can Bus Diagnostics

Table

P.54D-13

). Repair the CAN bus line

and go to Step 3.

STEP 2. Check whether the diagnosis code is
reset.
Recheck if the diagnosis code is set.
(1) Erase the diagnosis code.
(2) Turn the ignition switch to "ON" position.
(3) Check if the diagnosis code is set.

Q: Is the check result satisfactory?

YES :

If the trouble is solved, it is determined that

there is an intermittent malfunction such as
poor engaged connector(s) or open circuit
(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Replace combination meter and then go to
Step 3.

STEP 3. Check whether the diagnosis code is
reset.
Recheck if the diagnosis code is set.
(1) Erase the diagnosis code.
(2) Turn the ignition switch to "ON" position.
(3) Check if the diagnosis code is set.

Q: Is the check result satisfactory?

YES :

The procedure is complete.

NO :

Go to Step 1.
