IGNITION SWITCH

CHASSIS ELECTRICAL

54A-25

IGNITION SWITCH

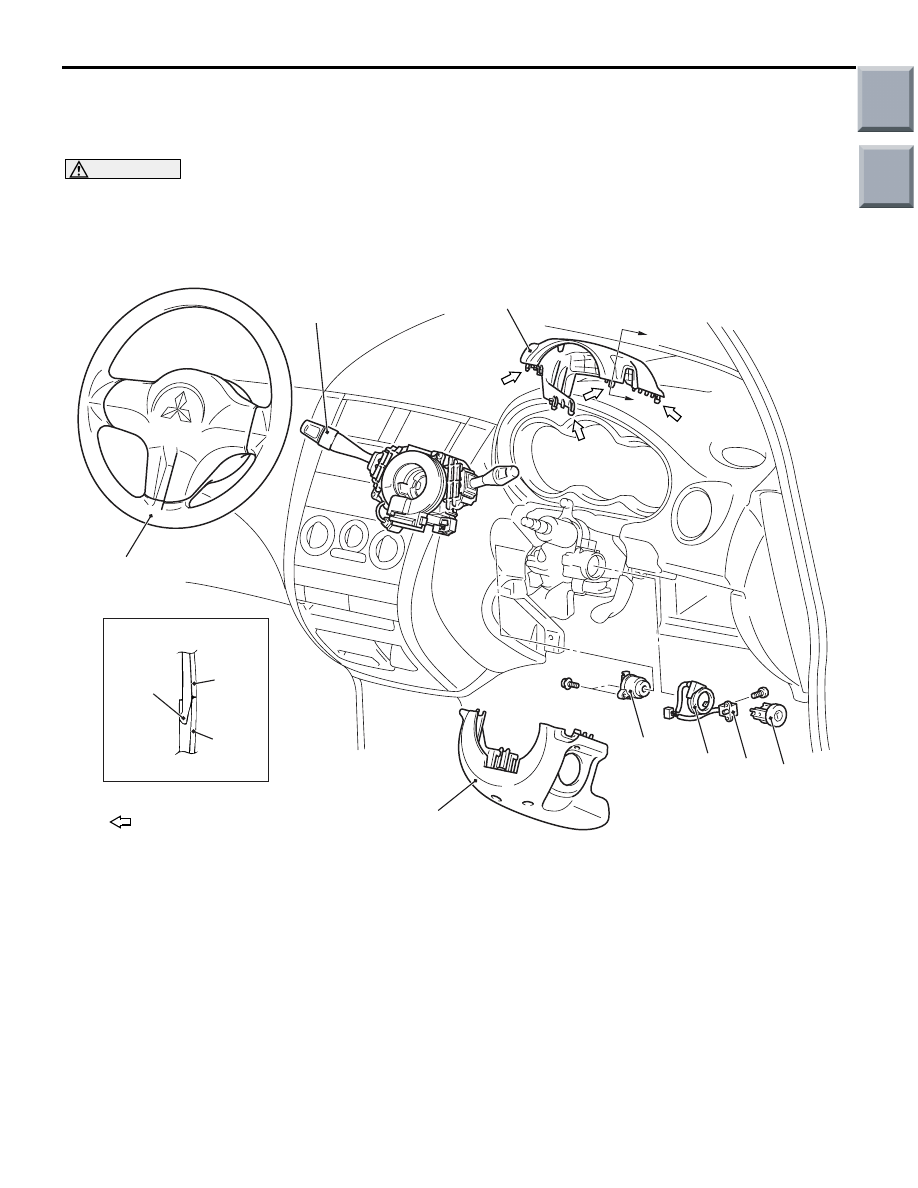

REMOVAL AND INSTALLATION

M1543002101222

WARNING

•

Before removal of the air bag module, refer to GROUP 52B, Service Precautions (

P.52B-5

)

and Driver’s, Front Passenger’s Air Bag Module(s) and Clock Spring (

P.52B-145

).

•

AC207701AC

1

2

3

4

5

6

7

8

1

2

A

A

Section A – A

Claw

NOTE
       : Claw position

When removing and installing the steering wheel, do not let it bump against the air bag
module.

Main

Index

Group

TOC

AC509610

9

AB

5.0 ± 1.0 N·m

Ignition switch removal steps

•

Lower panel (Refer to GROUP 52A,
Instrument panel assembly

P.52A-3

.)

1.

Steering column upper cover

2.

Steering column lower cover

3.

Steering wheel (Refer to GROUP
37, Steering wheel

P.37-90

.)

4.

Column switch

•

Selector lever assembly <Vehicles
for smart shift> (Refer to GROUP
23A, Transmission control

P.23A-146

.)

5.

Ignition switch

6.

Key reminder switch

7.

Key ring

<<

A

>>

8.

Steering lock cylinder

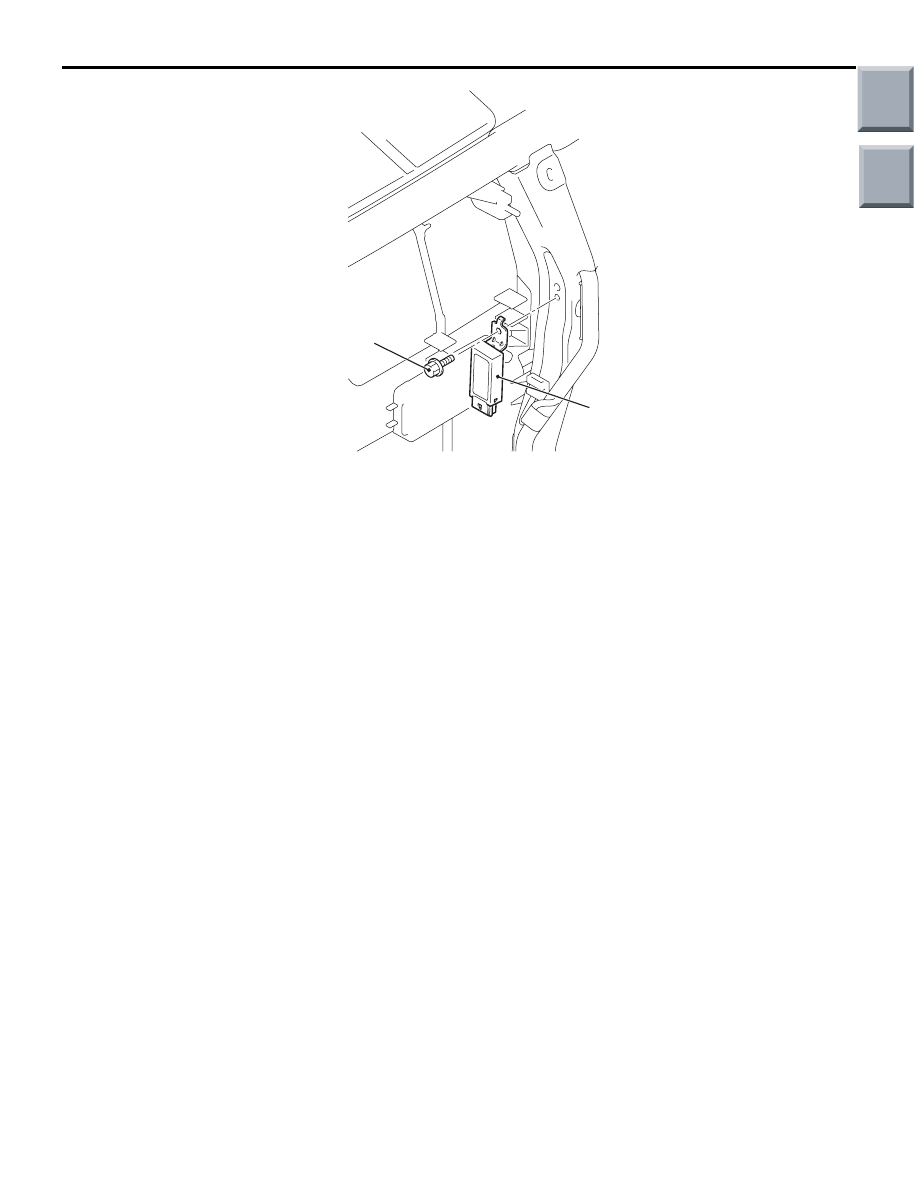

Immobiliser-ECU removal steps

•

Upper centre panel, Lower centre
panel, Parcel box bracket, Heater
control panel, Centre console
(Refer to GROUP 52A, Instrument
panel assembly

P.52A-3

.)

9.

Immobiliser-ECU

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-26

Ignition switch removal steps

Main

Index

Group

TOC

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-27

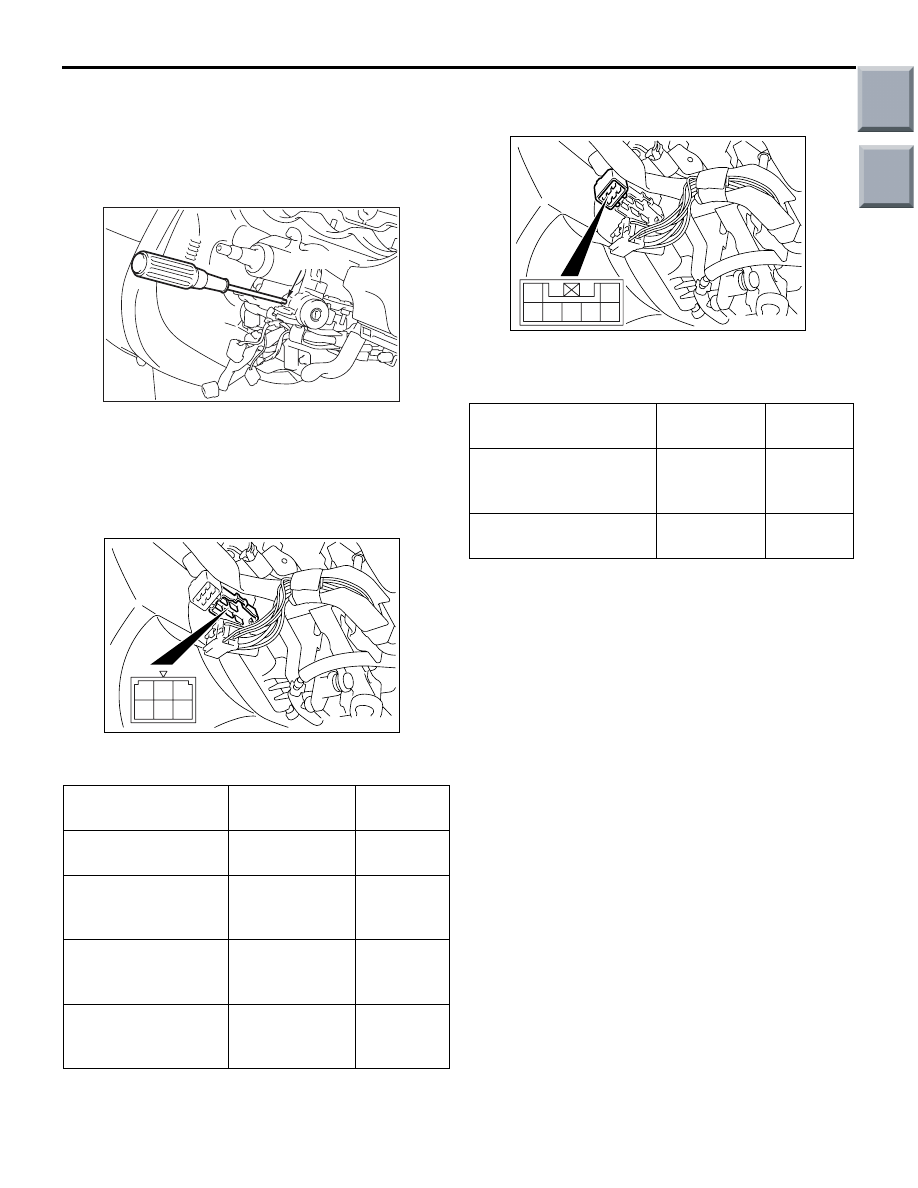

REMOVAL SERVICE POINT
<<A>> STEERING LOCK CYLINDER
REMOVAL

1. Insert the key in the steering lock cylinder and turn

it to the "ACC" position.

AC206363AC

Lock pin

2. Using a small Phillips head screwdriver, pull the

steering lock cylinder toward you.

INSPECTION

M1543019504588

IGNITION SWITCH CONTINUITY CHECK

AC206924

;;;;

;;;;

yyyy

yyyy

3
6

1
4

2
5

AB

Disconnect ignition switch connector without remov-
ing the ignition switch. Then check the continuity.

Switch position

Tester
connection

Specified
condition

"LOCK" (OFF)

1

− 2, 1 − 4, 1 − 5,

1

− 6

Open
circuit

"ACC"

1 -6

Continuity
exists (2

Ω

or less)

"ON"

1

− 2, 1 − 4, 1 − 6,

2

− 4, 2 − 6, 4 − 6

Continuity
exists (2

Ω

or less)

"START"

1

− 2, 1 − 5, 2 − 5 Continuity

exists (2

Ω

or less)

KEY REMINDER SWITCH CONTINUITY
CHECK

AC206923

6

2
7

5

1
3 4

AB

Disconnect key reminder switch connector without
removing the ignition switch and key reminder
switch. Then check the continuity.

Status of ignition key

Tester
connection

Specified
condition

Removed

4

− 6

Continuity
exists (2

Ω

or less)

Inserted

4

− 6

Open
circuit

Main

Index

Group

TOC

COMBINATION METER

CHASSIS ELECTRICAL

54A-28

COMBINATION METER

SERVICE SPECIFICATIONS

M1543000300937

Item

Standard
value

Limit

Speedometer indicating tolerance km/h

20

20 - 24

−

40

40 - 44

−

80

80.5 - 85.5

−

120

121.5 - 127.5

−

160

162.5 - 169.5

−

200

203.5 - 211.5

−

The speedometer needle fluctuation km/h (Vehicle speed is 35 km/h or more)

−

± 3

Tachometer indicating tolerance r/min

700

700

± 70

(2,000)

(2,000

± 80)

3,000

3,000

± 120

(4,000)

(4,000

± 120)

5,000

5,000

± 120

−

6,000

6,000

± 120

−

Fuel gauge unit resistance

Ω

Stopper position "F"

13.0

± 1

−

Stopper position "E"

120.0

± 1

−

Fuel gauge unit float height mm

Stopper position "F" (highest A)

57.7

−

Stopper position "E" (lowest B)

215

−
