ENGINE MOUNTING

POWER PLANT MOUNT

32-5

<CVT>

AC601218

AB

68 ± 7 N·m

20 ± 5 N·m

2

N

68 ± 7 N·m

<Up to Feb.
2006 models>
68 ± 7 N·m

<From Mar.
2006 models>
68 ± 7 N·m

1

5.0 ± 1.0 N·m

3

4

5

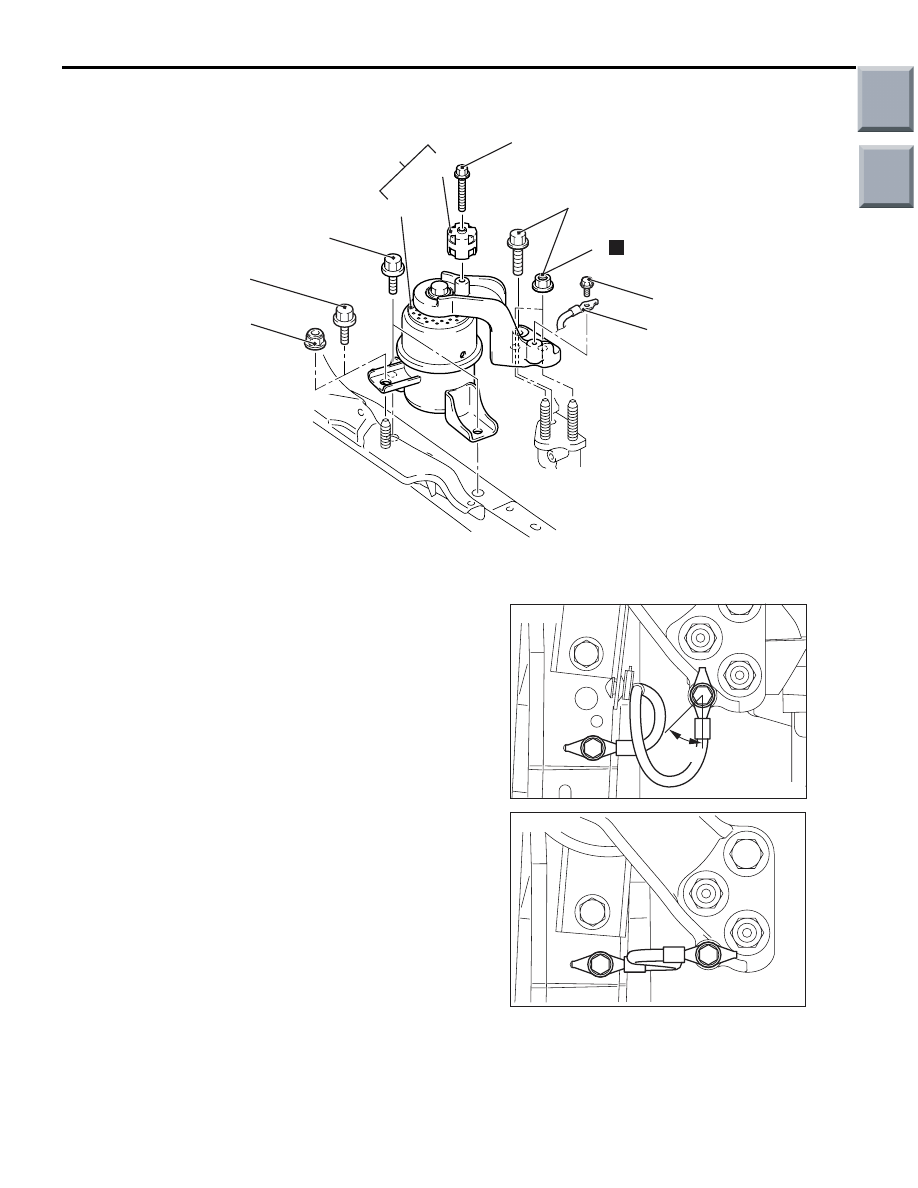

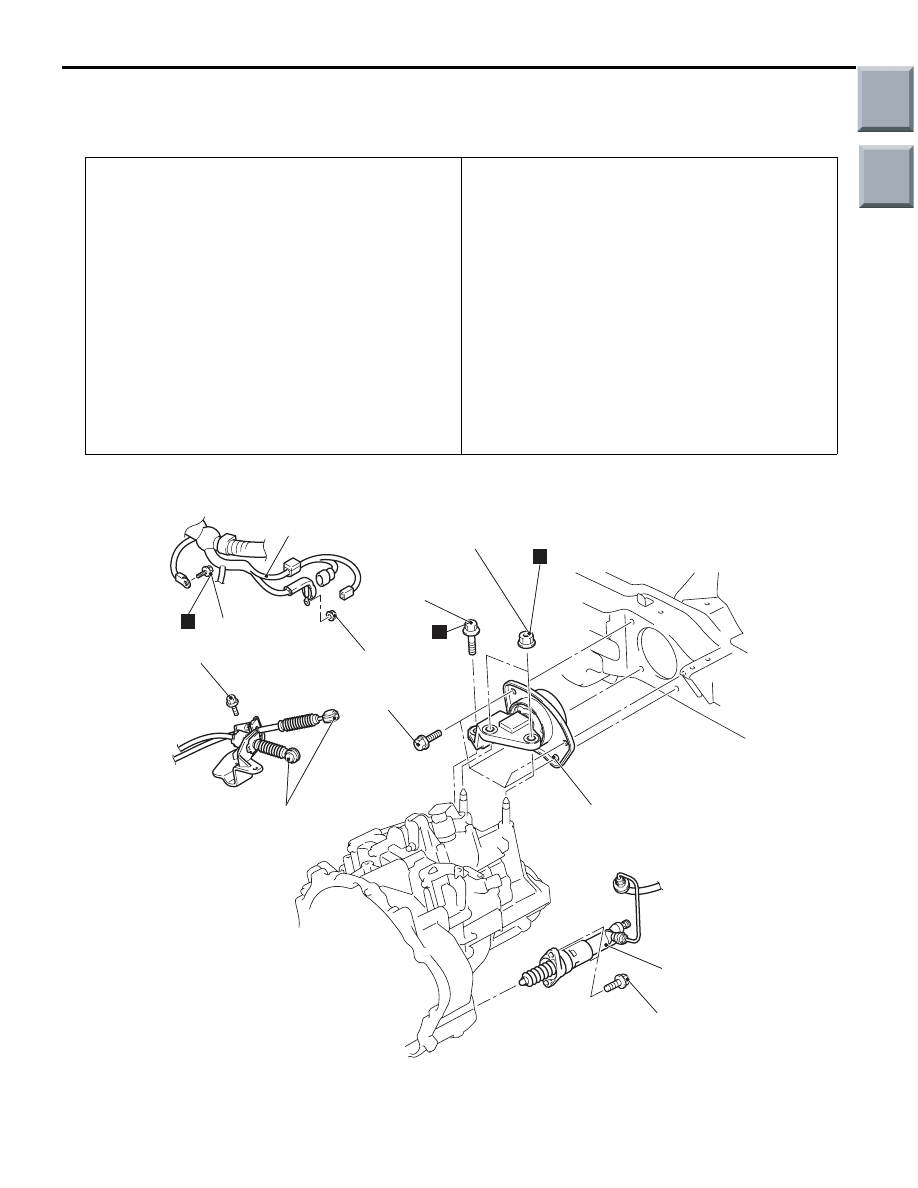

Removal steps

>>

A

<<

1.

Earth cable connection

2.

Self-locking nut

3.

Engine mounting insulator and
dynamic damper assembly

4.

Engine mounting bracket dynamic
damper

5.

Engine mounting insulator

INSTALLATION SERVICE POINT
>>A<< EARTH CABLE CONNECTION

AC601219

<M/T>

AB

0 – 45˚

AC601220

<CVT>

AB

1. Install the earth cable in the direction shown in the

illustration.

2. Tighten the earth cable mounting bolts to the

specified torque.

Tightening torque: 5.0

± 1.0 N⋅m

Main

Index

Group

TOC

ENGINE MOUNTING

POWER PLANT MOUNT

32-6

REMOVAL AND INSTALLATION <4G1>

M1321001101346

Pre-removal Operation
Raise the engine and transmission assembly until its weight
is not applied to the insulator, and support it securely.

AC402349
AC403041

AC600365

AC600364AB

25 ± 5 N·m

68 ± 7 N·m

3

68 ± 7 N·m

4

5

2

N

N

1

68 ± 7 N·m

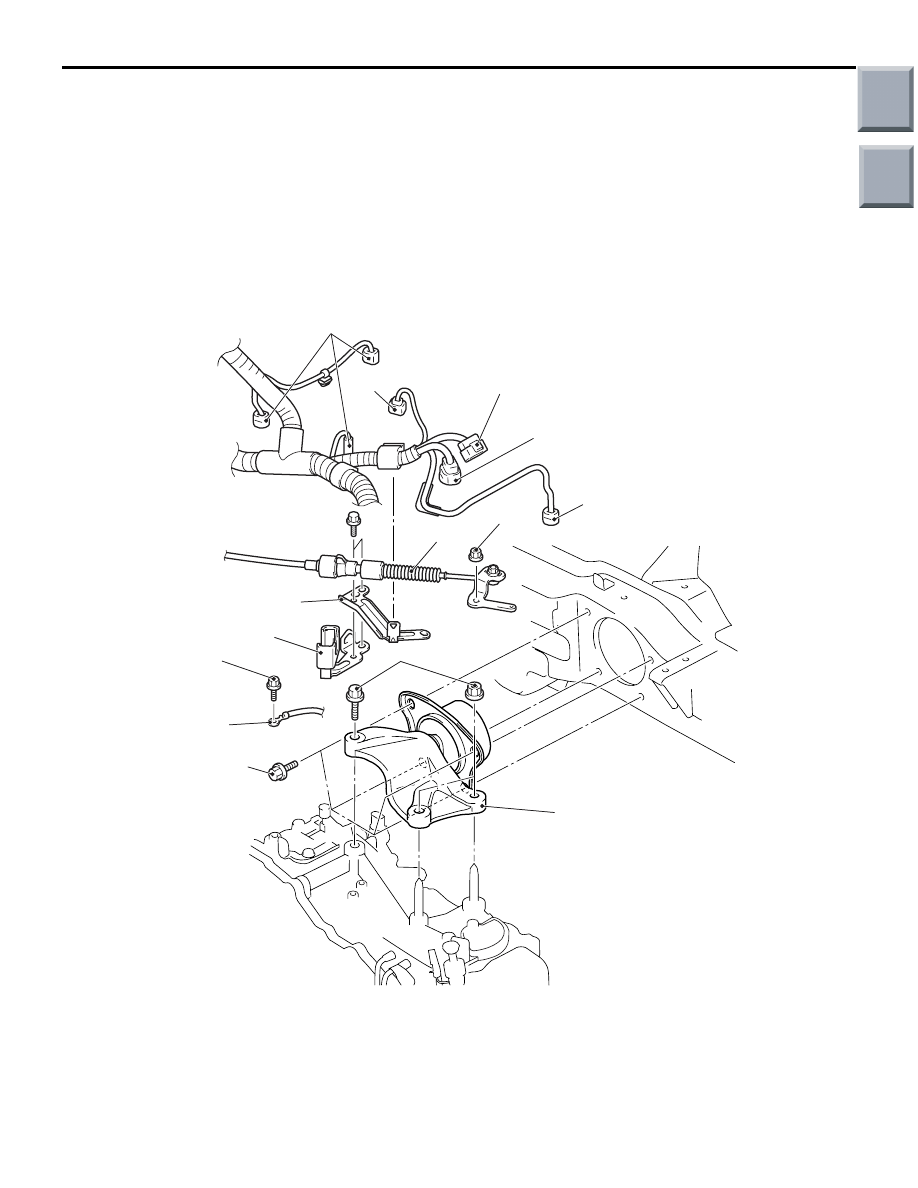

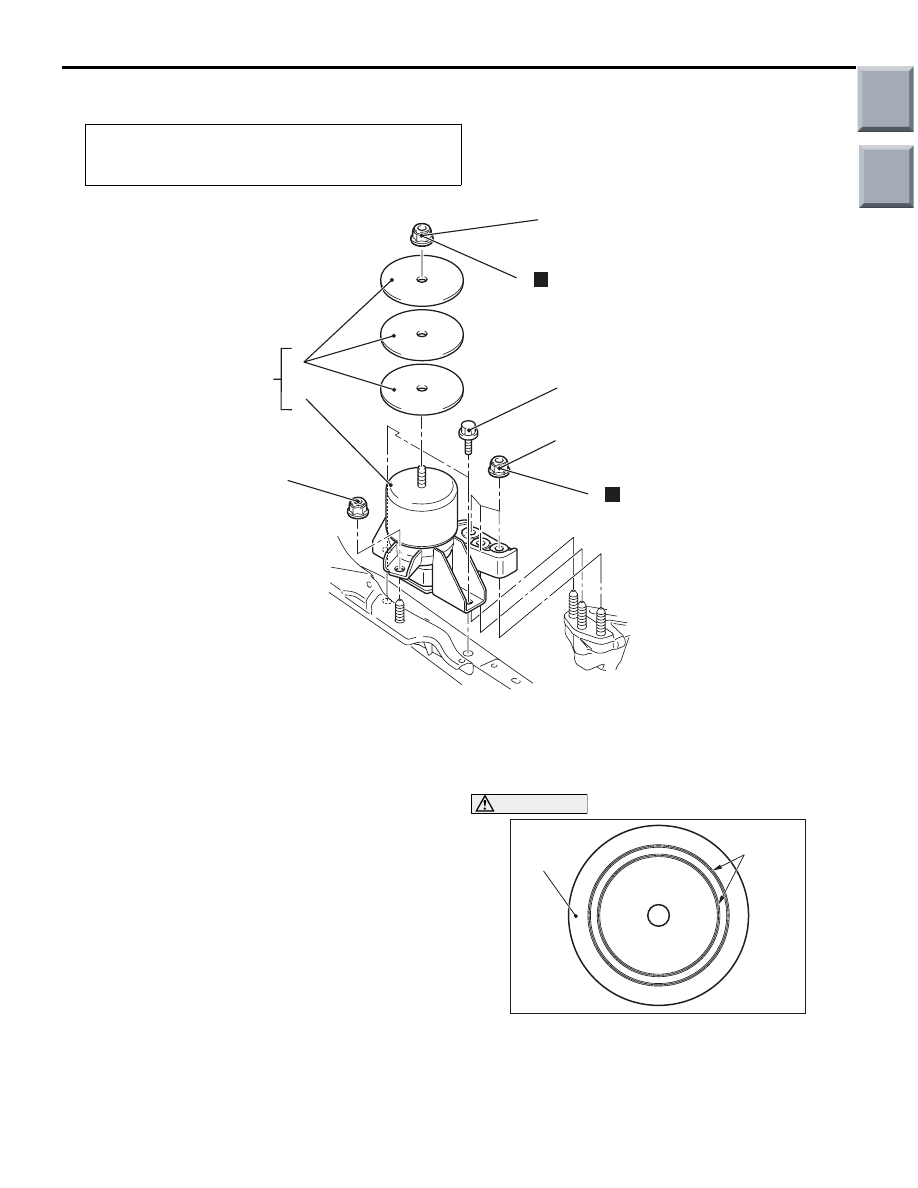

Removal steps

1.

Self-locking nut

2.

Engine mounting insulator and
weight assembly

3.

Self-locking nut

>>

A

<<

4.

Engine mounting weight

5.

Engine mounting insulator

INSTALLATION SERVICE POINT
>>A<< ENGINE MOUNTING WEIGHT
INSTALLATION

AC301203AC

Engine
mounting
weight

Identification
mark

CAUTION

The identification mark must face downwards.

Main

Index

Group

TOC

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-7

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

M1321001401176

Pre-removal Operation
• Air Cleaner Assembly Removal <4A9> (Refer to GROUP

15, Air Cleaner

P.15-5

).

• Air Cleaner Assembly Removal <4G1> (Refer to GROUP

15, Air Cleaner

P.15-6

).

• Battery and Battery Tray Removal
• Line Pressure Sensor Removal <CVT> (Refer to GROUP

23A, Valve Body Assembly, Sensors

P.23A-155

).

• Front Under Cover Panel Assembly Removal (Refer to

GROUP 51, Front Bumper Assembly and Radiator Grille

P.51-2

).

• Engine Room Side Under Cover (LH) Removal
• Front Exhaust Pipe Removal <4A9> (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-19

).

• Front Exhaust Pipe Removal <4G1> (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-21

).

• Engine Roll Stopper Rod Assembly Removal (Refer to

P.32-11

).

Post-installation Operation
• Engine Roll Stopper Rod Assembly Installation (Refer to

P.32-11

).

• Front Exhaust Pipe Installation <4A9> (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-19

).

• Front Exhaust Pipe Installation <4G1> (Refer to GROUP

15, Exhaust Pipe and Main Muffler

P.15-21

).

• Engine Room Side Under Cover (LH) Installation
• Front Under Cover Panel Assembly Installation (Refer to

GROUP 51, Front Bumper Assembly and Radiator Grille

P.51-2

).

• Line Pressure Sensor Installation <CVT> (Refer to

GROUP 23A, Valve Body Assembly, Sensors

P.23A-155

).

• Battery and Battery Tray Installation
• Air Cleaner Assembly Installation <4A9> (Refer to

GROUP 15, Air Cleaner

P.15-5

).

• Air Cleaner Assembly Installation <4G1> (Refer to

GROUP 15, Air Cleaner

P.15-6

).

<4A9-M/T>

AC601222

43 ± 4 N·m

43 ± 4 N·m

45 ± 10 N·m

11 ± 1 N·m

24 ± 4 N·m

1

2

3

4

N

AB

N

23 ± 3 N·m

23 ± 2 N·m

N

Main

Index

Group

TOC

Removal steps

<<

A

>>

1.

Gearshift cable and select cable
connection

2.

Control wiring harness connection

<<

B

>>

3.

Clutch release cylinder assembly

•

Raise the engine and transmission
assembly until its weight is not
applied to the transmission
mounting insulator, and support it
securely.

4.

Transmission mounting insulator

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-8

<4A9-CVT>

AC206585AC

1

12 ± 2 N·m

2

3

4

4

5

6

7

8

9

12 ± 2 N·m

63 ± 7 N·m

45 ± 10 N·m

Removal steps (Continued)

Removal steps

1.

CVT solenoid valve connector

2.

Inhibitor switch connector

3.

Speed sensor connector

4.

Oil pressure sensor connector

5.

Transmission control cable
connection

6.

Battery earth connection

7.

Bracket

8.

Control cable support bracket

Removal steps (Continued)
