POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-99

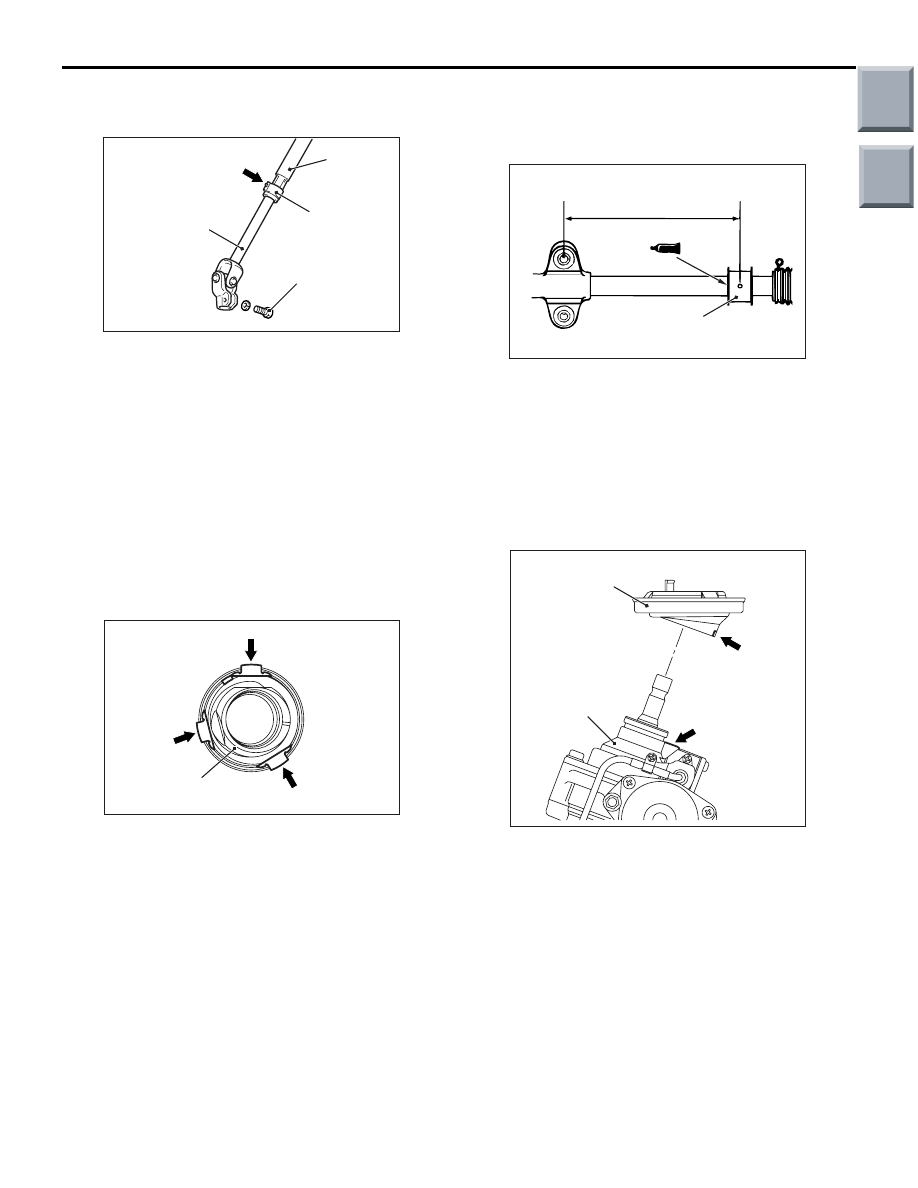

<<B>> STEERING GEAR AND STEERING
COLUMN ASSEMBLY DISCONNECTION

AC207740 AB

Clip

Steering column
bolt

Claw

Shaft B

Shaft A

1. Remove the steering column bolt connecting

steering gear to steering column assembly.

2. Disconnect the steering gear from the steering

column assembly while sliding shaft A to shaft B
with the clip claw as shown is pinched.

<<C>> FRONT AXLE NO.1
CROSSMEMBER (EQUIPPED WITH
STEERING GEAR AND LINKAGE
ASSEMBLY, STEERING COLUMN DASH
PANEL COVER, STABILIZER BAR)
REMOVAL

AC208331AB

Clip

Steering column
dash panel cover

1. Remove the 3 clips (shown in the figure) from

inside of the vehicle and drop the steering column
dash panel cover through the body panel.

2. Remove the front axle No.1 crossmember.

INSTALLATION SERVICE POINTS
>>A<< STEERING GEAR CUSHION
INSTALLATION

AC207427 AB

Steering gear cushion

251 mm

Apply the specified adhesive to the steering gear
cushion and install it to the steering gear and linkage
assembly as shown.

Instant adhesive: ThreeBond 1741 or equiva-
lent

>>B<< STEERING COLUMN DASH PANEL
COVER INSTALLATION

AC208332AB

Steering gear

Steering column
dash panel cover

Notch

Projection

Install the steering column dash panel cover so that
the cover notch is aligned with the projection of the
steering gear and linkage assembly.

Main

Index

Group

TOC

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-100

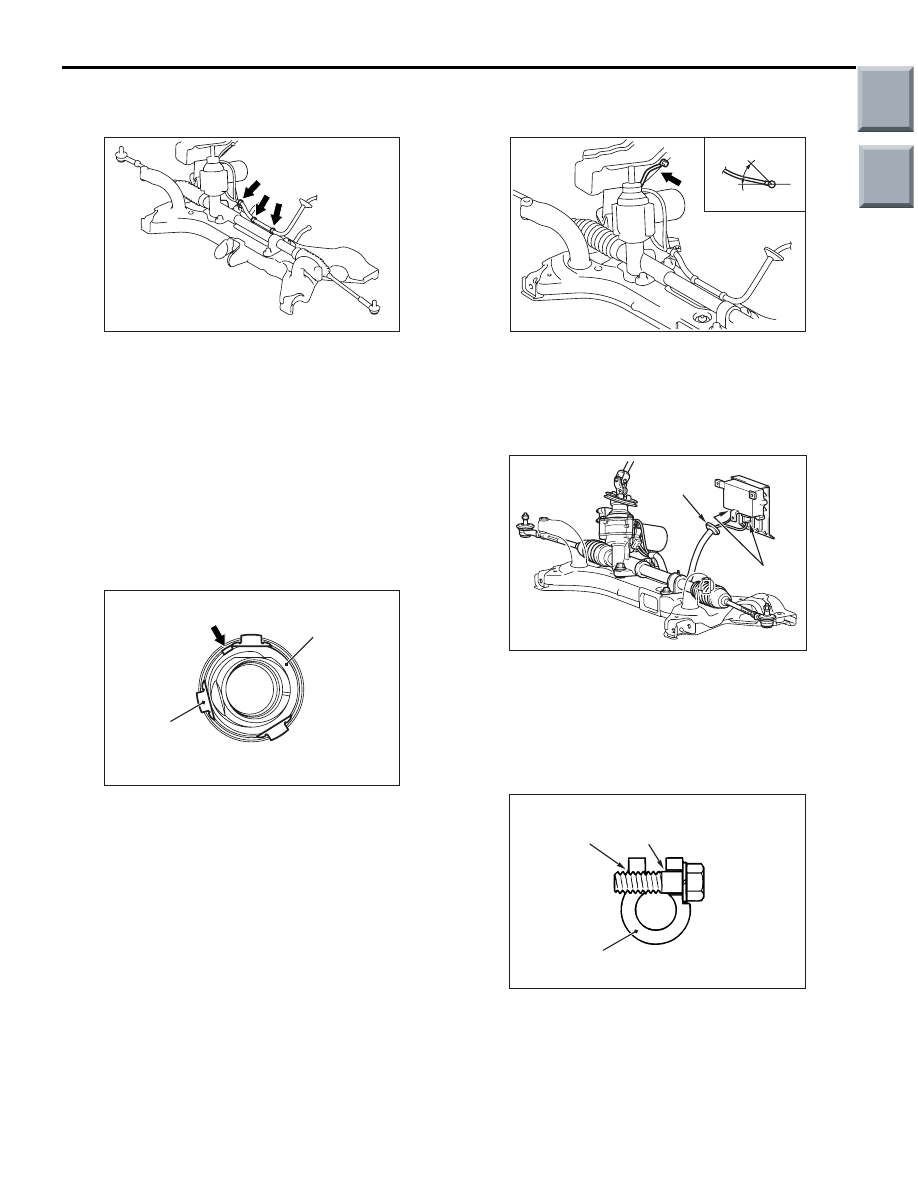

>>C<< STEERING GEAR AND LINKAGE
ASSEMBLY INSTALLATION

AC314191AB

Harness clip

After installing the steering gear and linkage assem-
bly to the front axle No.1 crossmember, secure the 3
harness clips of the steering gear and linkage
assembly to the front axle No.1 crossmember.

>>D<< FRONT AXLE NO.1
CROSSMEMBER (EQUIPPED WITH
STEERING GEAR AND LINKAGE
ASSEMBLY, STEERING COLUMN DASH
PANEL COVER, STABILIZER BAR)
INSTALLATION

AC208331AC

Clip

Steering column
dash panel cover

Tab

After installing the front axle No.1 crossmember to
the body, pull the steering column dash panel cover
tab (shown in the figure) from inside of the vehicle
and secure the 3 clips to the body panel.

>>E<< STEERING GEAR BOLT (EARTH
BOLT) INSTALLATION

AC403448AB

View A

A

0 to 45˚

Tighten the steering gear bolt so that the earth cable
is routed as shown.

>>F<< STEERING GEAR CONNECTOR
(IN-VEHICLE EPS-ECU) INSTALLATION

AC405880 AB

Electric power steering-ECU

Connector

Grommet

Firmly secure the grommet to the body panel and
connect the connector to the electric power steer-
ing-ECU.

>>G<< STEERING GEAR AND STEERING
COLUMN ASSEMBLY CONNECTION

AC208330 AB

Steering column assembly yoke

Bolt hole
(threaded)

Bolt hole
(non-threaded)

Insert the steering column bolt into the non-threaded
bolt hole.

Main

Index

Group

TOC

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-101

INSPECTION

M1372011000367

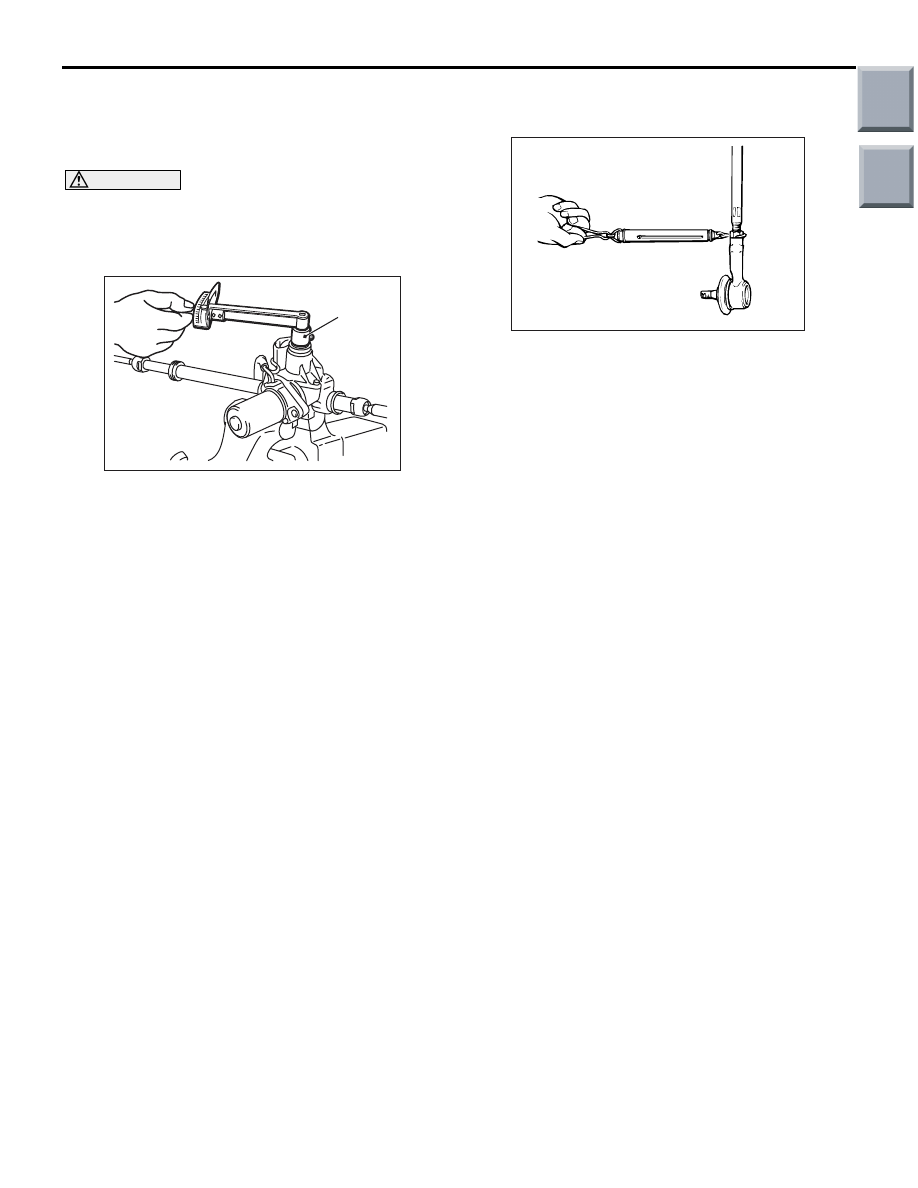

STEERING GEAR TOTAL PINION
TORQUE CHECK

CAUTION

When holding the steering gear in a vice, secure
its mounting positions. If it is secured in any
other place, the gear housing may become
deformed or damaged.

AC208337AB

MB991006

1. Using special tool preload socket (MB991006),

rotate the pinion gear at the rate of one rotation in
approximately 4 to 6 seconds to check the total
pinion torque.

Standard value:

TOTAL PINION TORQUE: 1.29

− 2.23 N⋅m

Change in torque: 0.92 N

⋅m or less

NOTE: When measuring, remove the bellows
from the rack housing. Measure the pinion torque
through the whole stroke of the rack.

2. If not within the specification, replace the steering

gear and linkage assembly (Refer to

P.37-96

).

TIE ROD SWING RESISTANCE CHECK

1. Give 10 hard swings to the tie rod.

AC000997

2. Measure the tie rod swing resistance [tie rod

swing torque] with a spring balance.

Standard value: 6

− 19 N [1.5 − 4.9 N⋅m]

3. If the measured value exceeds the standard

value, replace the tie rod.

4. If the measured value is below the standard value,

the tie rod can be re-used if it swings smoothly
without excessive play.

TIE ROD END BALL JOINT DUST COVER
CHECK

1. Check the dust cover for cracks or damage by

pushing it with your finger.

2. If the dust cover is cracked or damaged, replace

the tie rod end (Refer to

P.37-96

).

NOTE: Cracks or damage of the dust cover may
damage the ball joint. If it is damaged during serv-
ice work, replace the dust cover (Refer to

P.37-96

).

Main

Index

Group

TOC

ELECTRIC POWER STEERING CONTROL UNIT

POWER STEERING

37-102

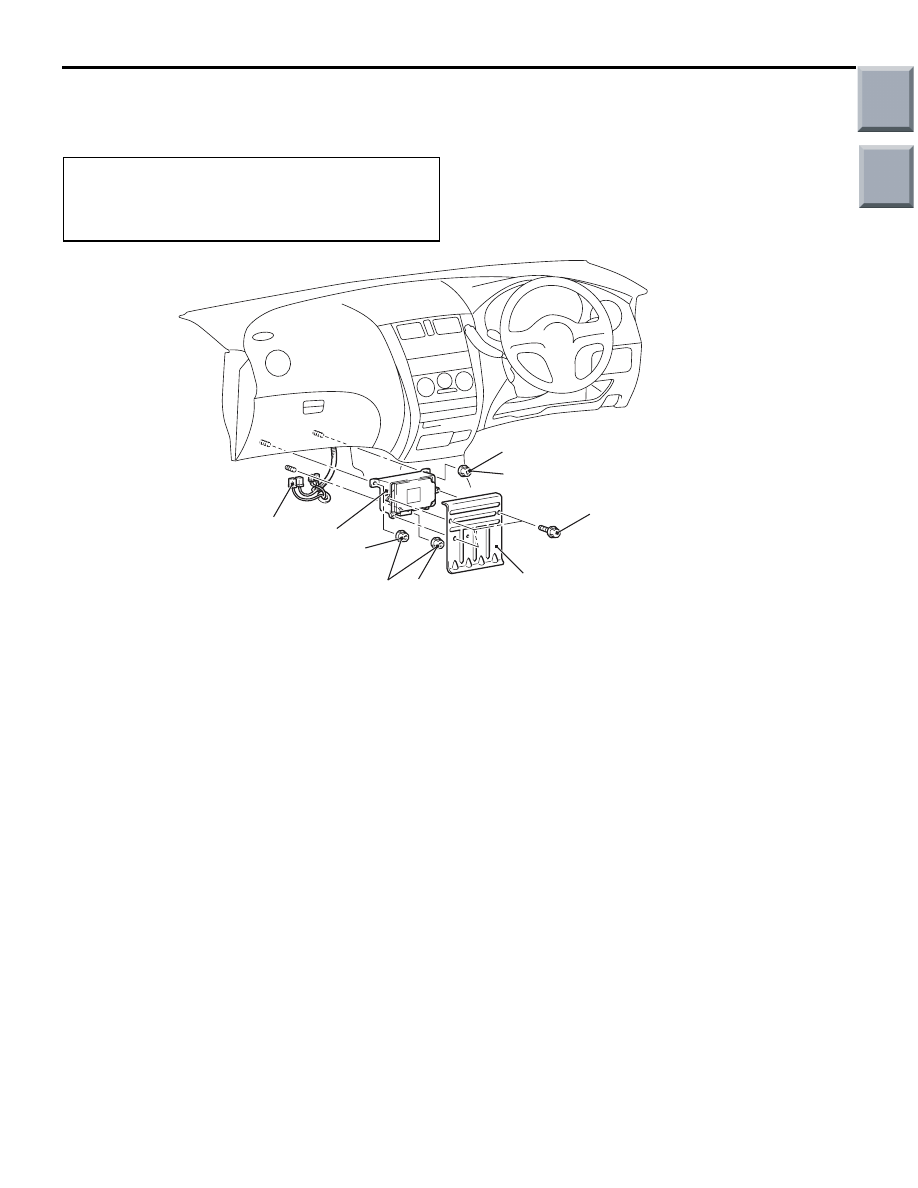

ELECTRIC POWER STEERING CONTROL UNIT

REMOVAL AND INSTALLATION

M1372006300049

Pre-removal and post-installation Operation
Front Scuff Plate, Cowl Side Trim Removal and
Installation (Refer to GROUP 52A, Trim

− Interior

Trim

P.52A-11

).

AC207737AC

1

13 ± 2 N·m

2

3

4

5.0 ± 1.0 N·m

3

13 ± 2 N·m

3

Removal steps

1.

Electric power steering-ECU
bracket

2.

Electric power steering-ECU
connector (4 pieces)

3.

Electric power steering-ECU
equipment nut (one of three nuts is
an earth nut).

4.

Electric power steering-ECU

Removal steps (Continued)
