MB991006

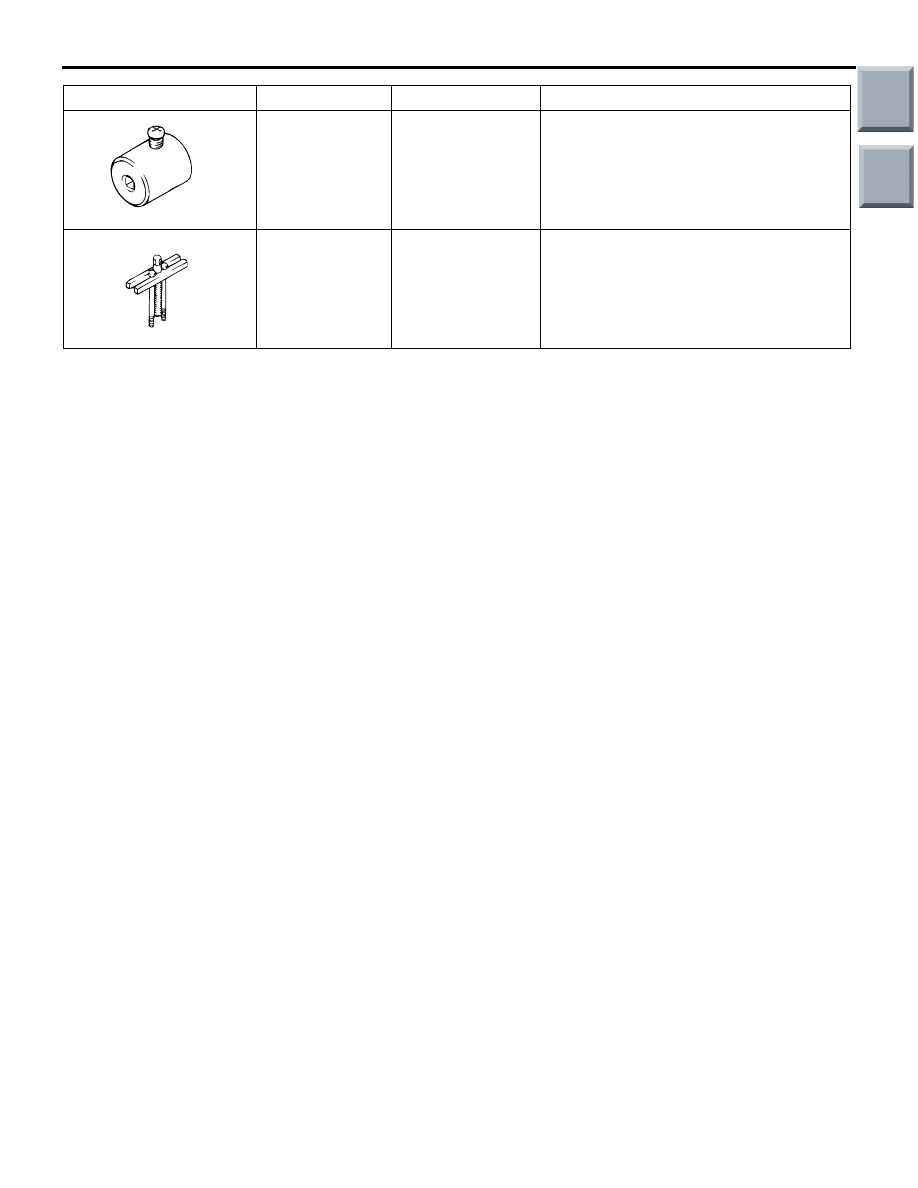

SPECIAL TOOLS

POWER STEERING

37-7

MB990228 or
MB991006

Preload socket

Steering gear total pinion torque check
and adjustment

MB990803

MB990803

Steering wheel
puller

Steering wheel disconnection

Tool

Number

Name

Use

Main

Index

Group

TOC

TROUBLESHOOTING

POWER STEERING

37-8

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1372007300257

Refer to GROUP 00

− Contents of Troubleshooting

P.00-5

 .

DIAGNOSTIC FUNCTION

M1372007400049

HOW TO READ DIAGNOSIS CODE

Connect the M.U.T.-III to the 16-pin diagnosis con-
nector, and read a diagnosis code (Refer to GROUP
00, How to Use Troubleshooting/Inspection Service
Points

− Diagnosis Function

P.00-7

).

How to erase diagnosis code

Connect the M.U.T.-III to the 16-pin diagnosis con-
nector, and erase a diagnosis code (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− Diagnosis Function

P.00-7

).

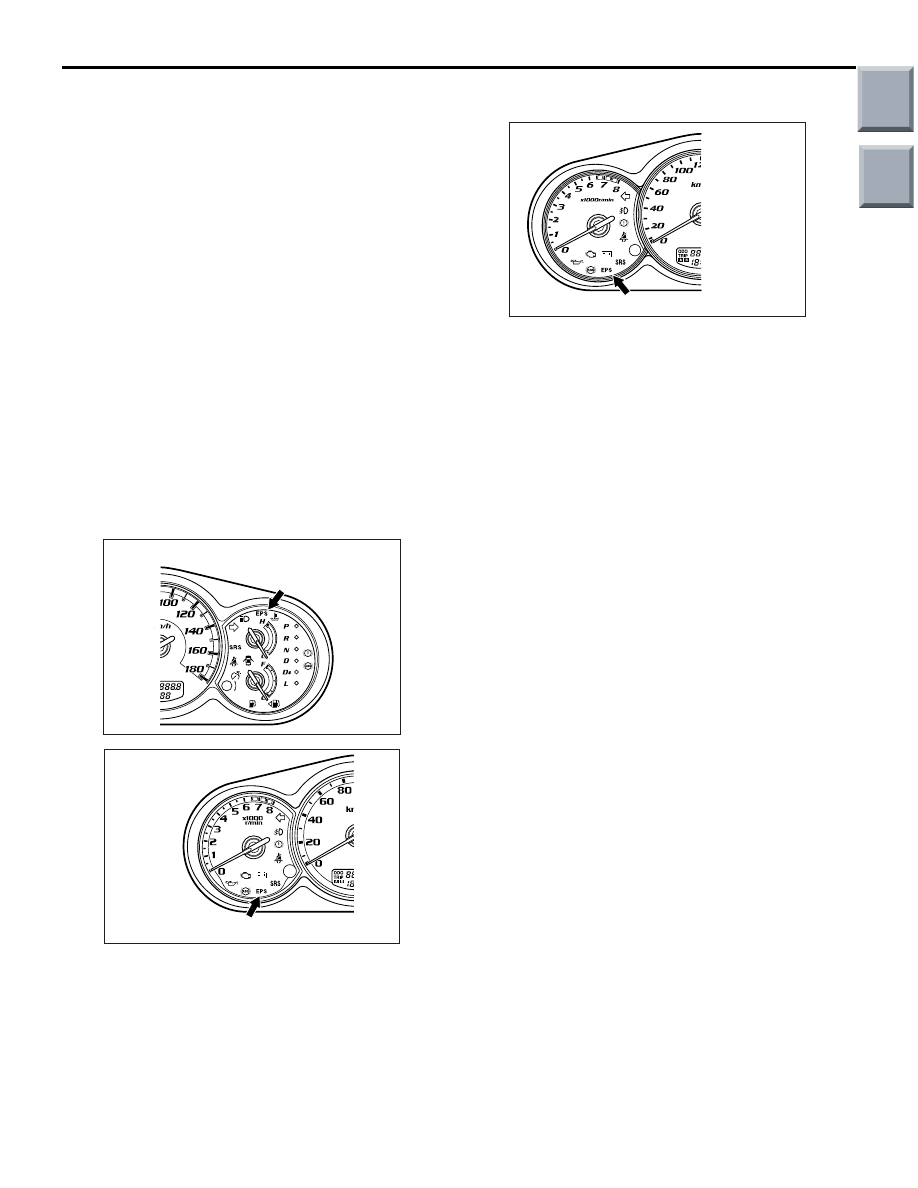

CHECK OF ELECTRIC POWER
STEERING WARNING LAMP

M1372013400101

AC510342

EPS warning lamp

AB

<VRX>

AC510343

EPS warning lamp

AC

<LS and VR>

AC601682

EPS warning lamp

AB

<RALLIART Version-R>

1. Check the electric power steering warning lamp

illuminates as follows.

• When the ignition switch is turned ON, the elec-

tric power steering warning lamp illuminates until
the engine is started. The lamp extinguishes after
the engine is started.

NOTE: Even if the ignition switch is turned to the ON

position (within approximately 0.3 seconds) again
immediately after it is turned to the LOCK (OFF)
position, the electric power steering warning lamp
does not illuminate.

2. If the lamp does not operate as described above,

the electric power steering system or the
combination meter may be defective. Check for
diagnosis code, and carry out diagnosis (Refer to

P.37-9

). If no diagnosis codes are set, carry out

diagnosis by referring to the electric power
steering warning lamp-related inspection items on
the trouble symptom chart (Refer to

P.37-71

).

Main

Index

Group

TOC

TROUBLESHOOTING

POWER STEERING

37-9

DIAGNOSIS CODE CHART

M1372007500046

CAUTION

• During diagnosis, a diagnosis code associ-

ated with other system may be set when the
ignition switch is turned on with connector(s)
disconnected. On completion, confirm all sys-
tems for diagnosis code(s). If diagnosis
code(s) are set, erase them all.

•

Diagnosis
code No.

Diagnostic item

Reference pages or actions

C1511

Torque sensor main system malfunction

P.37-10

C1512

Torque sensor sub system malfunction

C1513

Large difference between main torque sensor and
sub torque sensor

P.37-19

C1514

Torque sensor power supply abnormality

P.37-25

C1521

Vehicle speed sensor input malfunction

P.37-29

C1522

Engine speed input malfunction

P.37-33

C1531

Motor terminal voltage abnormality

P.37-36

C1532

Over real current of motor

P.37-39

C1533

Motor current sensor problem

Replace the electric power
steering-ECU (Refer to

P.37-102

).

C1534

Under real current of motor

P.37-41

C1541

Fail-safe relay is stuck to ON.

Replace the electric power
steering-ECU (Refer to

P.37-102

).

C1542

Fail-safe relay stuck off.

P.37-44

C1607

Abnormal ECU (microcomputer)

Replace the electric power
steering-ECU (Refer to

P.37-102

).

C1860

Power supply voltage abnormality (high voltage)

P.37-48

C1861

Power supply voltage abnormality (low voltage)

P.37-50

U1073

Bus off

P.37-53

U1100

Engine-related time-out

P.37-55

U1102

CAN communication time-out with ABS-ECU

P.37-59

U1120

Engine-related failure information

P.37-63

U1122

ABS-ECU failure information

P.37-67

If more than three minutes elapse after the
ignition switch is turned ON without starting
engine, the electric power steering-ECU may
set diagnosis codes U1100 and U1102 as past
trouble.

Main

Index

Group

TOC

TROUBLESHOOTING

POWER STEERING

37-10

DIAGNOSTIC TROUBLE CODE
PROCEDURES

Code No.C1511: Torque sensor main system malfunction



Code No.C1512: Torque sensor sub system malfunction

CAUTION

Whenever the ECU is replaced, ensure that the communication circuit is normal.

ELECTRIC POWER STEERING-ECU

TORQUE SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

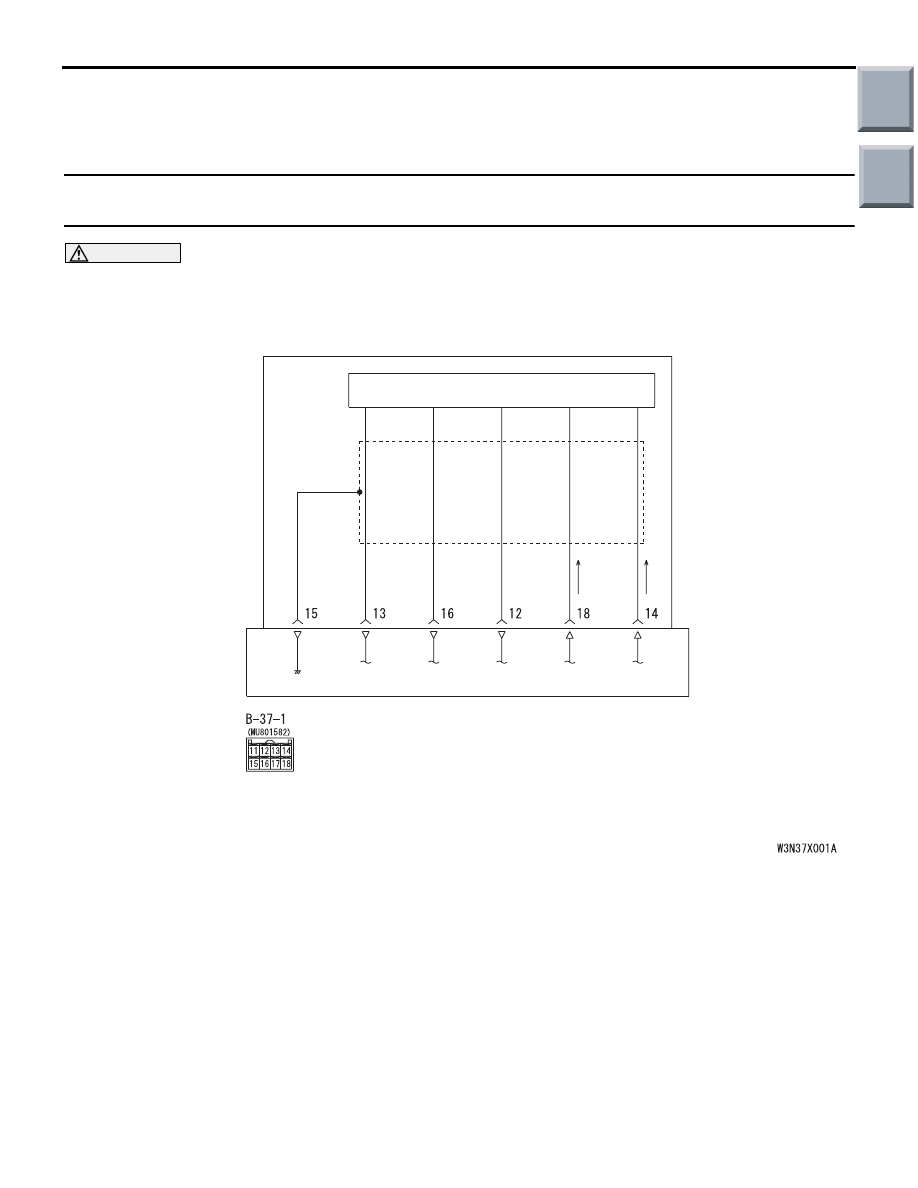

Torque Sensor Circuit

DIAGNOSIS CODE SET CONDITIONS

These diagnosis codes are set in the following case:

C1511: Torque sensor main system malfunction

• The torque sensor main output voltage does not

meet a predetermined voltage stored in the
microcomputer, and the microcomputer deter-
mines that there is a problem in the torque sensor
main system.
Criteria for judging malfunction

• The torque sensor main output voltage is

more than 4.5 V or less than 0.5 V.

C1512: Torque sensor sub system malfunction

• The torque sensor sub output voltage does not

meet a predetermined voltage stored in the
microcomputer, and the microcomputer deter-
mines that there is a problem in the torque sensor
sub system.
Criteria for judging malfunction

• The torque sensor sub output voltage is more

than 4.5 V or less than 0.5 V.
