INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-224

Step 4. Check the installation condition.
Check that the door switch is installed on the body
correctly.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Correct the installation condition.

Step 5. Check the door switch.
Refer to GROUP 42

− Door

P.42-39

.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the door switch.

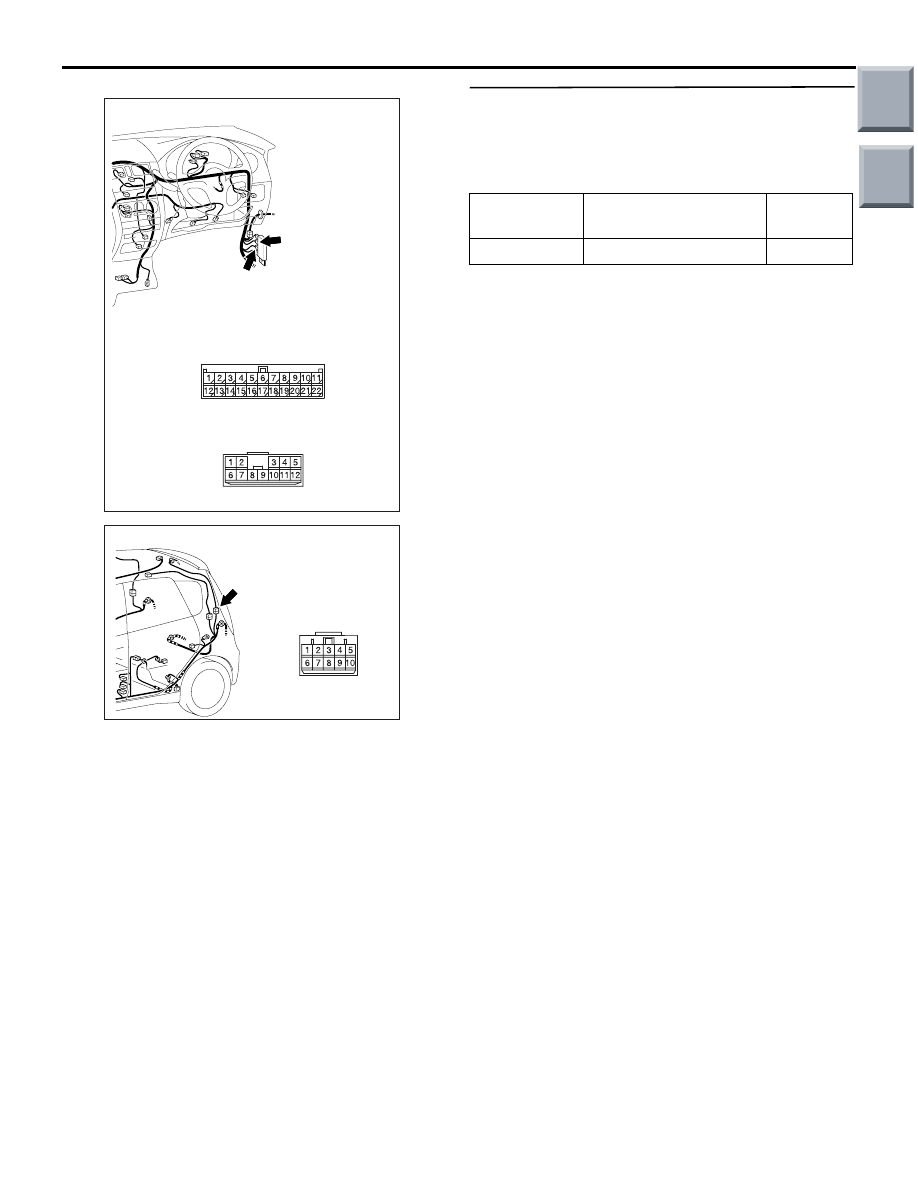

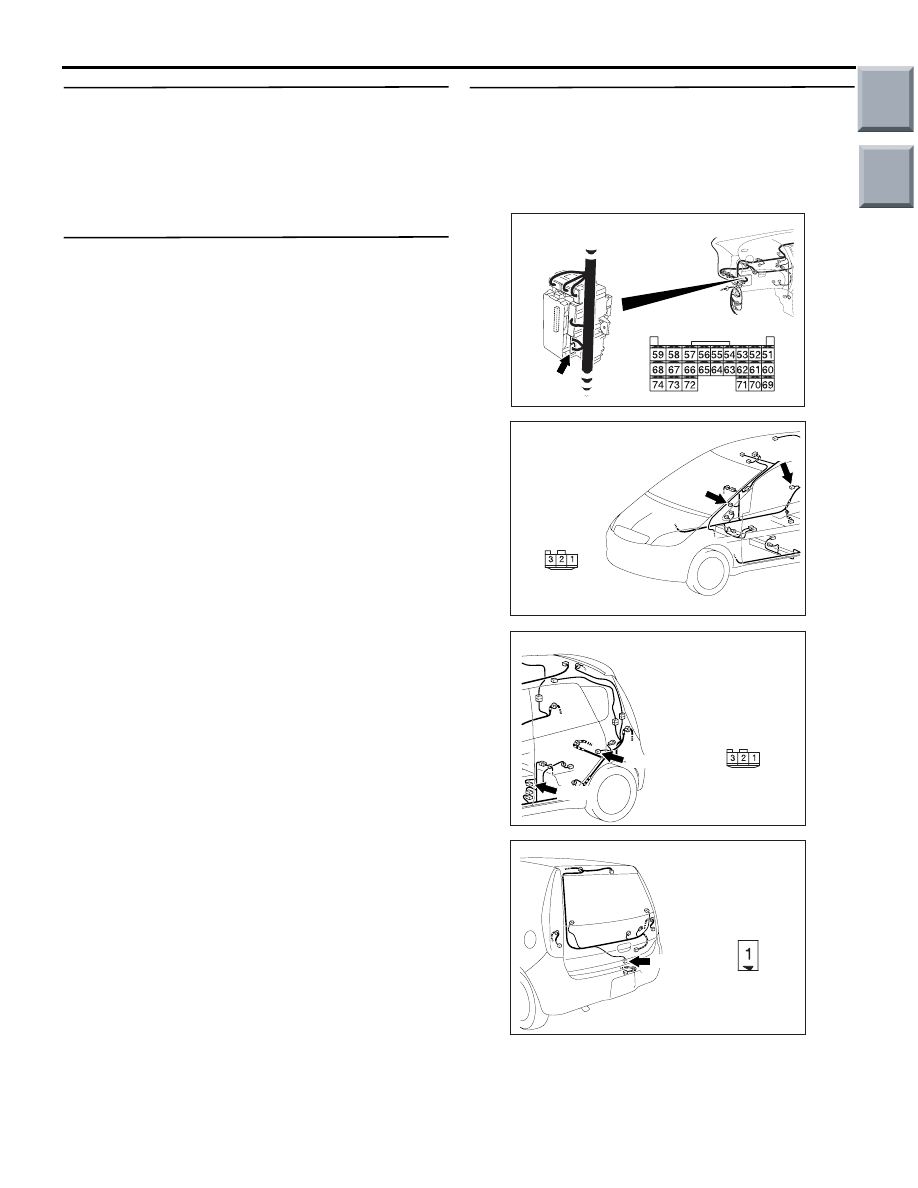

Step 6. Check the wiring harness from terminal
No.2 of the C-29 (front: RH), C-19 (front: LH), C-08
(rear: RH) or C-14 (rear: LH) door switch
connector or terminal No.1 of the E-08 tailgate
switch connector to terminal No.61 of the B-133
ETACS-ECU connector.

AC313826AC

B-133 (GR)

Connector: B-133

Harness side

Junction block (Rear view)

AC401057

AG

Connectors: C-08, C-29

Harness side

C-08, C-29

C-08

C-29

AC401059

Connectors: C-14, C-19

AE

C-14, C-19

C-14

C-19

Harness side

AC401046

Connector: E-08

AE

Harness side

E-08 (B)

Main

Index

Group

TOC

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-225

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-12 <tailgate> and junction block
connector B-23 or B-24 <RH> and repair if neces-
sary.

• Check the input line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness between each of
the door switches and the ETACS-ECU.

Step 7. ETACS switch data by using the SWS
monitor
Check the input signals from the door switches.

• Doors other than the driver's door: Closed to

open

OK: Normal condition is displayed.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC401056

Connectors: B-23, B-24

AC

B-23

B-24

B-24

B-23

AC401059

Connector: C-12

AC

Item No.

Item name

Normal
condition

Item 40

ALL DOOR SW

ON

Main

Index

Group

TOC

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-226

Inspection Procedure N-11: The driver's door lock actuator switch signal is not received.

CAUTION

Whenever the ECU is replaced, ensure that the
input signal circuit is normal.

COMMENTS ON TROUBLE SYMPTOM

Input signal from the driver's door lock actuator is
used to operate the functions below. If the signal is
abnormal, these functions will not work normally.

• Central door locking

• Room lamp

POSSIBLE CAUSES

• Malfunction of the front door lock actuator (RH)

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

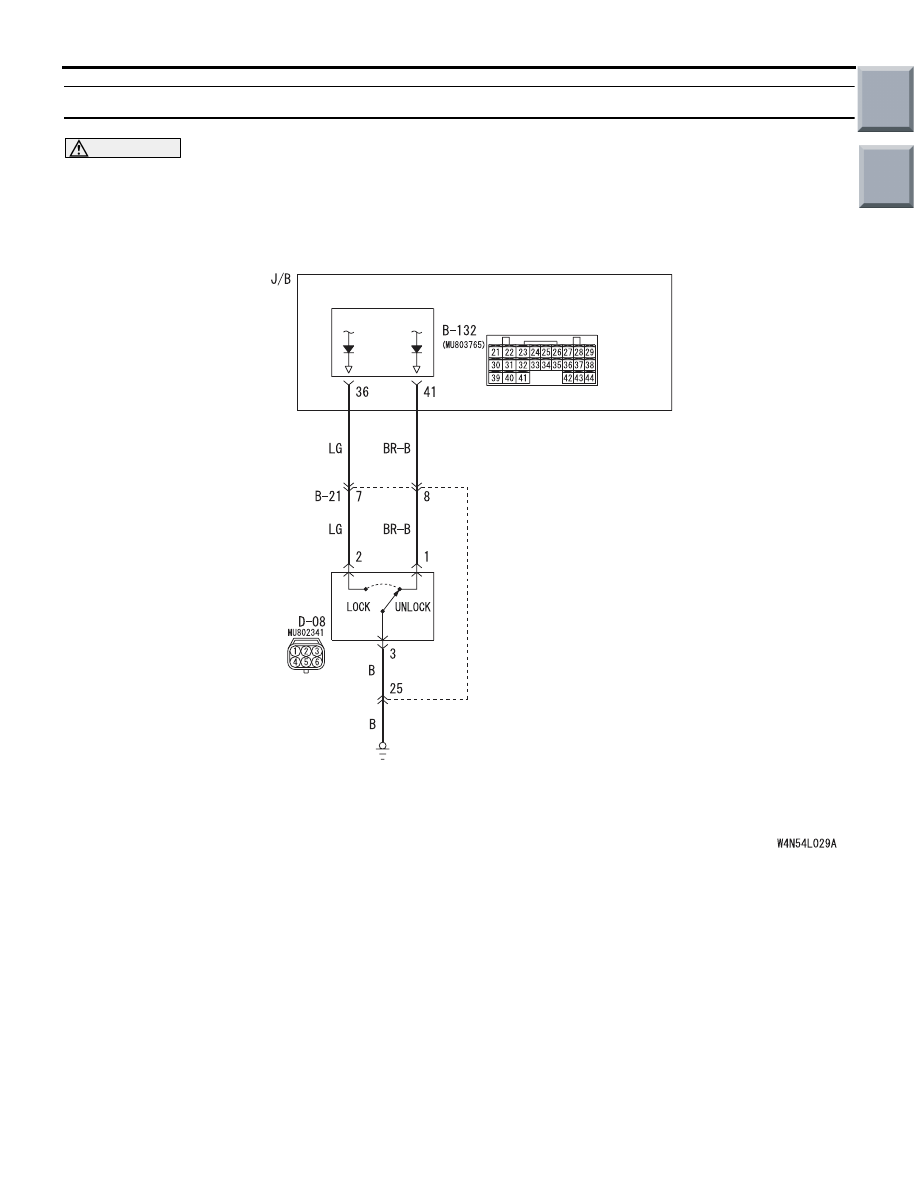

Door Lock Actuator Input Circuit

ETACS-ECU

FRONT
DOOR LOCK
ACTUATOR
(RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Main

Index

Group

TOC

INPUT SIGNAL PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-227

DIAGNOSIS PROCEDURE

Step 1.Connector check: D-08 front door lock
actuator (RH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the front door lock actuator (RH).
Refer to GROUP 42

− Door

P.42-46

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the front door lock actuator (RH).

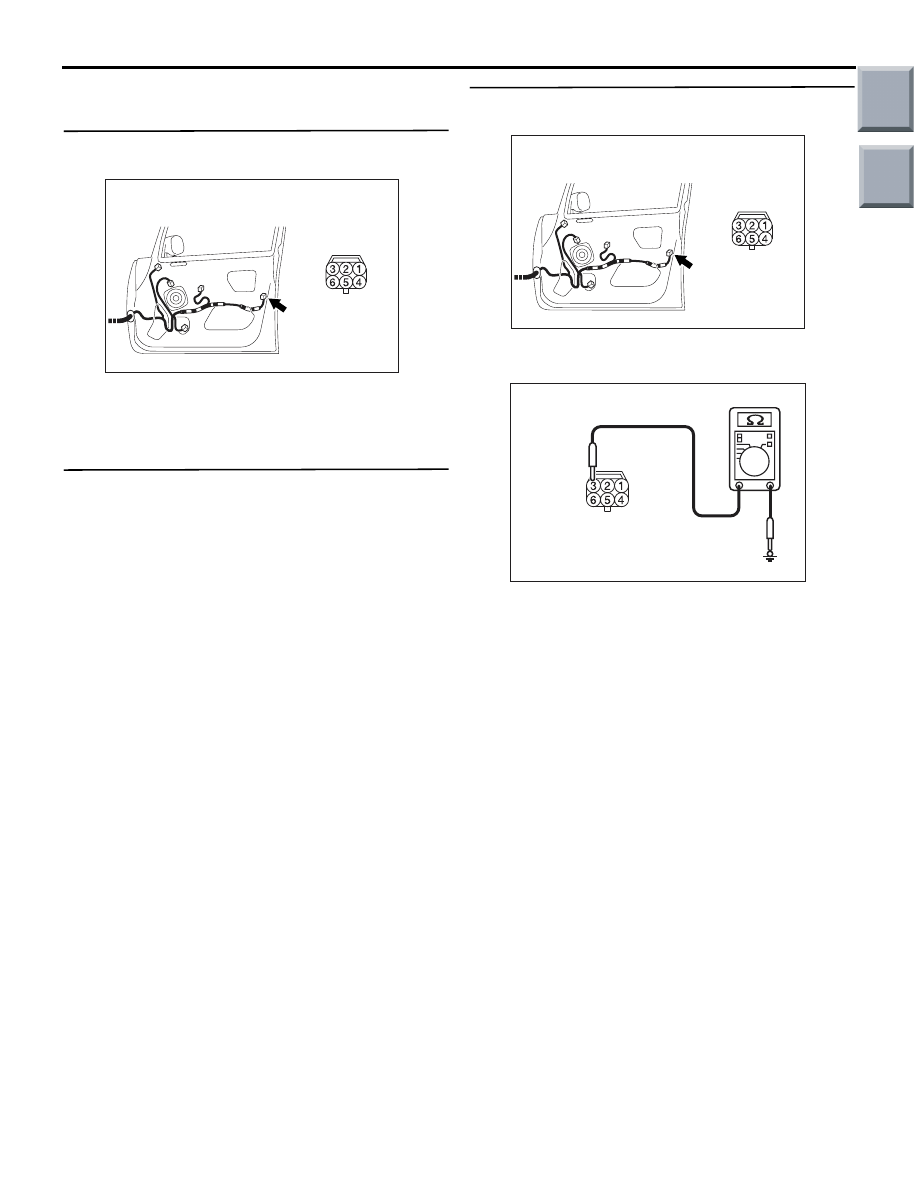

Step 3. Resistance measurement at the D-08 front
