SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-76

Step 13. Check the power window motor (rear:
RH).
Refer to GROUP 42

− Door

P.42-36

.

Q: Is the check result normal?

YES :

Go to Step 14

NO :

Replace the power window motor (rear:
RH).

Step 14. Check the wiring harness from D-04
power window motor (rear: RH) connector
terminal Nos.1 and 2 to D-05 power window sub
switch (rear: RH) connector terminal Nos.4 and 7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the wiring harness.

Step 15. Connector check: D-03 power window
main switch connector and D-05 power window
sub switch (rear: RH) connector

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Repair the connector.

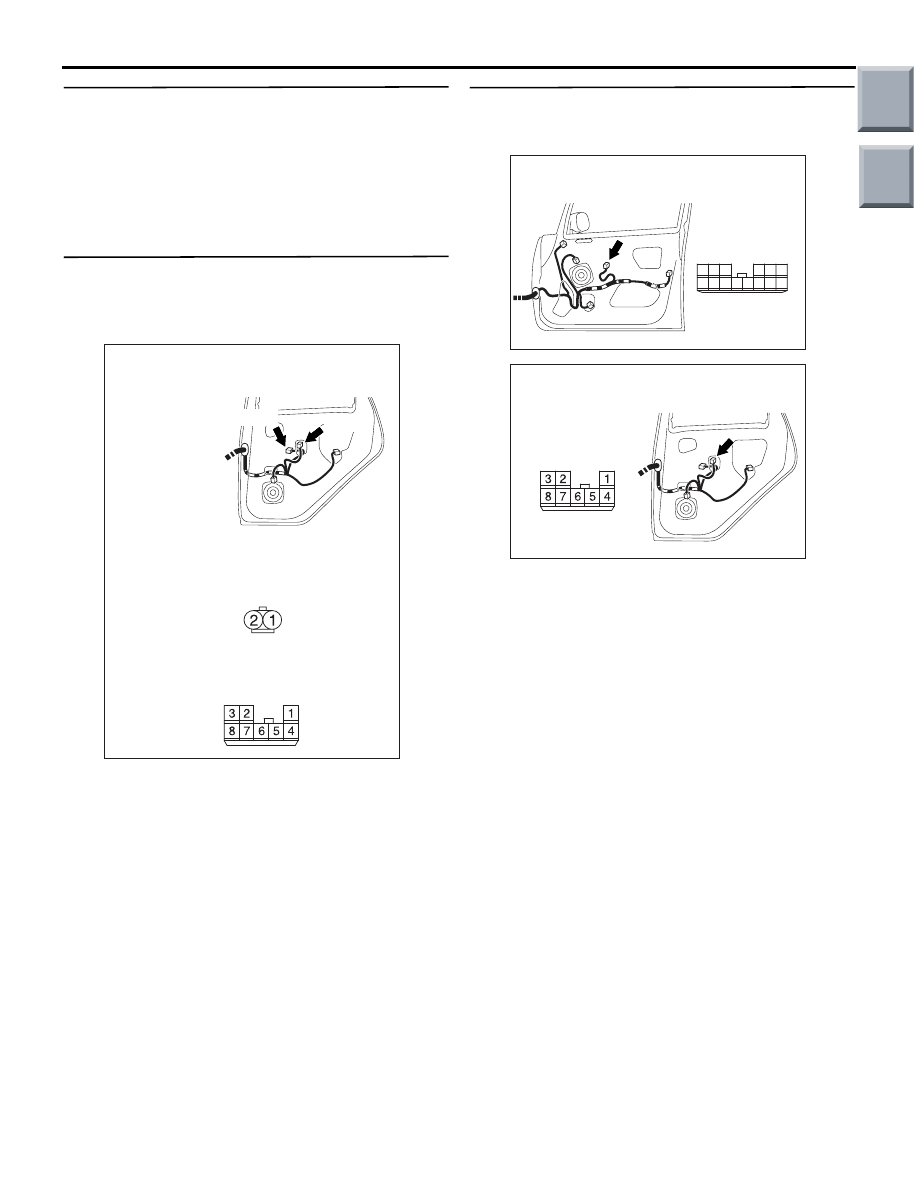

AC313883

Connectors: D-04,D-05

D-04(B)

AH

Harness side

D-04

D-05

Harness side

D-05

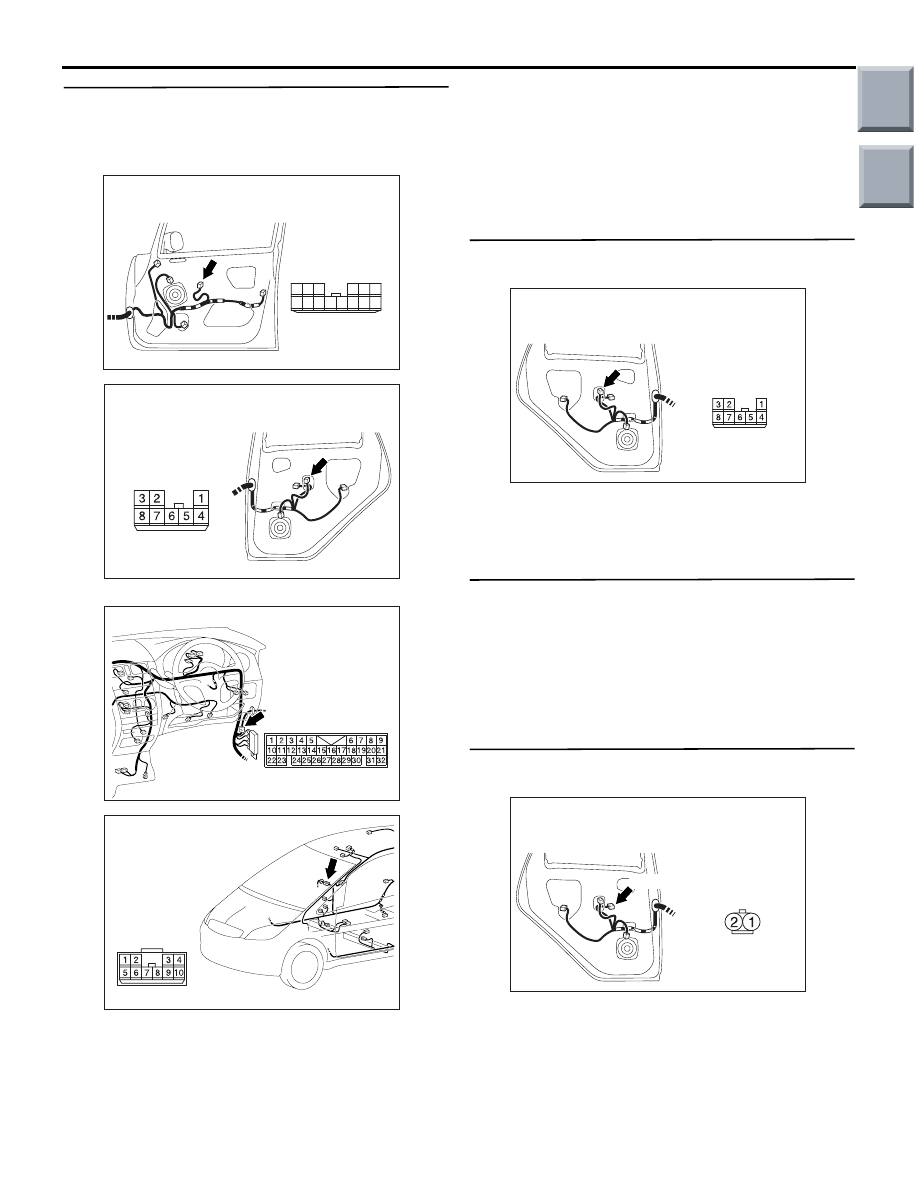

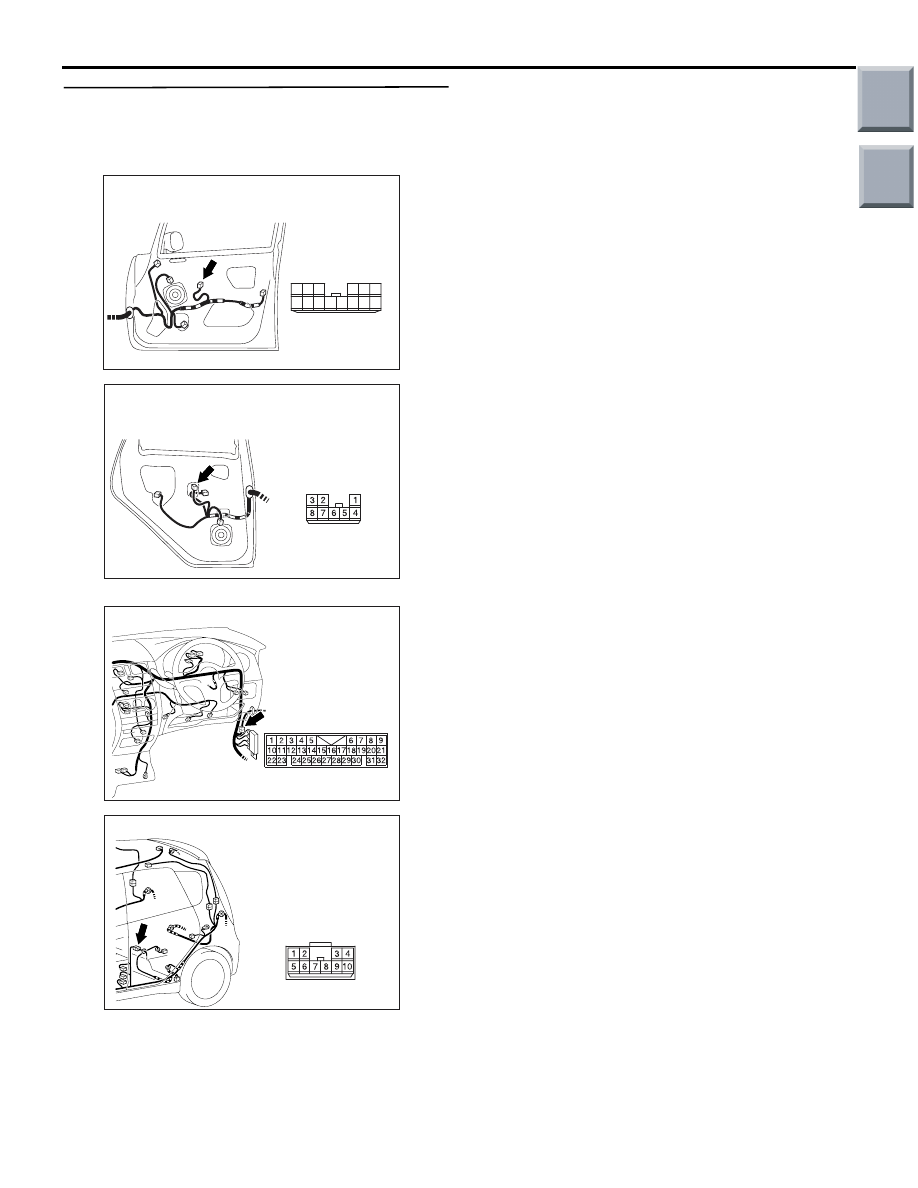

AC313880

Connector: D-03

Harness side

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC313882

Connector: D-05

AB

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-77

Step 16. Check the wiring harness from D-03
power window main switch connector terminal
Nos.6 and 4 to D-05 power window sub switch
(rear: RH) connector terminal Nos.5 and 8.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors B-21, C-01, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 17. Connector check: D-11 power window
sub switch (rear: LH) connector.

Q: Is the check result normal?

YES :

Go to Step 18.

NO :

Repair the connector.

Step 18. Check the power window sub switch
(rear: LH).
Refer to GROUP 42

− Door

P.42-36

.

Q: Is the check result normal?

YES :

Go to Step 19

NO :

Replace the power window sub switch (rear:
LH).

Step 19. Connector check: D-12 power window
motor (rear: LH) connector.

Q: Is the check result normal?

YES :

Go to Step 20.

NO :

Repair the connector.

AC313880

Connector: D-03

Harness side

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC313882

Connector: D-05

AB

Harness side

AC401055

Connector: B-21

AB

AC401057

Connector: C-01

AB

AC313884

Connector: D-11

AB

Harness side

AC313884

Connector: D-12

D-12(B)

AI

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-78

Step 20. Check the power window motor (rear:
LH).
Refer to GROUP 42

− Door

P.42-36

.

Q: Is the check result normal?

YES :

Go to Step 21

NO :

Replace the power window motor (rear: LH).

Step 21. Check the wiring harness from D-12
power window motor (rear: LH) connector
terminal Nos.1 and 2 to D-11 power window sub
switch (rear: LH) connector terminal Nos.4 and 7.

• Check the input and output lines for open or short

circuit.

Q: Is the check result normal?

YES :

Go to Step 22.

NO :

Repair the wiring harness.

Step 22. Connector check: D-03 power window
main switch connector and D-11 power window
sub switch (rear: LH) connector

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Repair the connector.

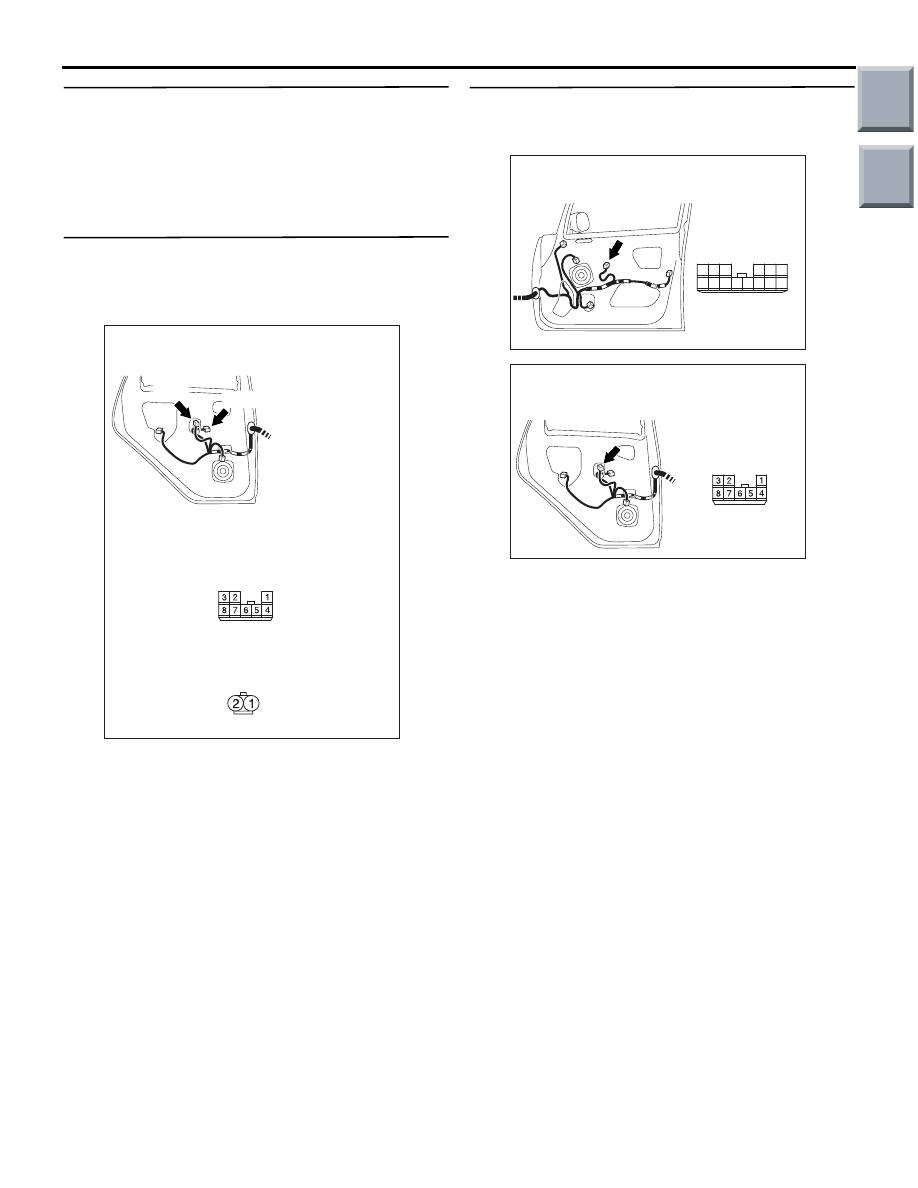

AC313885

Connectors: D-11, D-12

D-12(B)

AH

Harness side

D-11

D-11

Harness side

D-12

AC313880

Connector: D-03

Harness side

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC313884

Connector: D-11

AB

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) USING SWS MONITOR

54C-79

Step 23. Check the wiring harness from D-03
power window main switch connector terminal
Nos.3 and 1 to D-11 power window sub switch
(rear: LH) connector terminal Nos.5 and 8.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors B-21, C-18, and repair if necessary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

AC313880

Connector: D-03

Harness side

AB

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC313884

Connector: D-11

AB

Harness side

AC401055

Connector: B-21

AB

AC401059

Connector: C-18

AB
