SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-164

INSPECTION PROCEDURE K-3: The fog lamp indicator does not illuminate normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the fog lamp indicator does not illuminate normally,
connector(s), wiring harness in the CAN bus lines,
the ETACS-ECU or the combination meter may be
defective.

POSSIBLE CAUSES

• Malfunction of the ETACS-ECU

• Malfunction of the combination meter

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the fog lamps.
When the fog lamp switch is operated, check that the
fog lamps illuminate/go off normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to Inspection Procedure K-2 "Any of
the fog lamps does not illuminate

P.54B-160

."

Step 2. Check the power supply circuit.
When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to Inspection Procedure A-2 "When
the ignition switch is at the LOCK (OFF)
position, the functions do not work normally.
Check the battery power supply circuit to
the ETACS-ECU

P.54B-43

."

Step 3. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the CAN bus line (Refer to GROUP
54D, Diagnosis

P.54D-13

).

Step 4. M.U.T.-III other system diagnosis code
Check whether the combination meter-related diag-
nosis code is set.

Q: Is the diagnosis code set?

YES :

Diagnose the combination meter (Refer to

GROUP 54A

− Troubleshooting

P.54A-31

).

NO :

Go to Step 5.

INPUT SIGNAL

ETACS-ECU

COMBINATION
METER

CAN COMMUNICATION LINE
(CAN_L LINE)

CAN COMMUNICATION LINE
(CAN_H LINE)

FOG LAMP SWITCH

Fog Lamp Indicator Lamp Circuit

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-165

Step 5. M.U.T.-III actuator test
Perform the actuator test for the combination meter,
and check that the fog lamp indicator illuminates
(Refer to GROUP 54A

− Combination Meter

P.54A-62

).

Q:  Is the check result normal?

YES :

Replace the ETACS-ECU.

NO :

Replace the combination meter.

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-166

FLASHER TIMER

INSPECTION PROCEDURE L-1: The turn-signal lamps do not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If all the turn-signal lamps do not illuminate, the igni-
tion switch (IG1), the turn-signal lamp switch input
circuit or the ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check that the hazard warning lamps
operate.
Check that the hazard warning lamps illuminate nor-
mally.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 2.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

ETACS-ECU

TURN-SIGNAL
LAMP RELAY: LH

TURN-SIGNAL
LAMP RELAY: RH

· FRONT COMBINATION
  LAMP (TURN: LH)
· SIDE TURN-SIGNAL
  LAMP (LH)

REAR COMBINATION
LAMP (TURN: LH)

REAR COMBINATION
LAMP (TURN: RH)

· FRONT COMBINATION
  LAMP (TURN: RH)
· SIDE TURN-SIGNAL
  LAMP (RH)

FUSIBLE
LINK

1

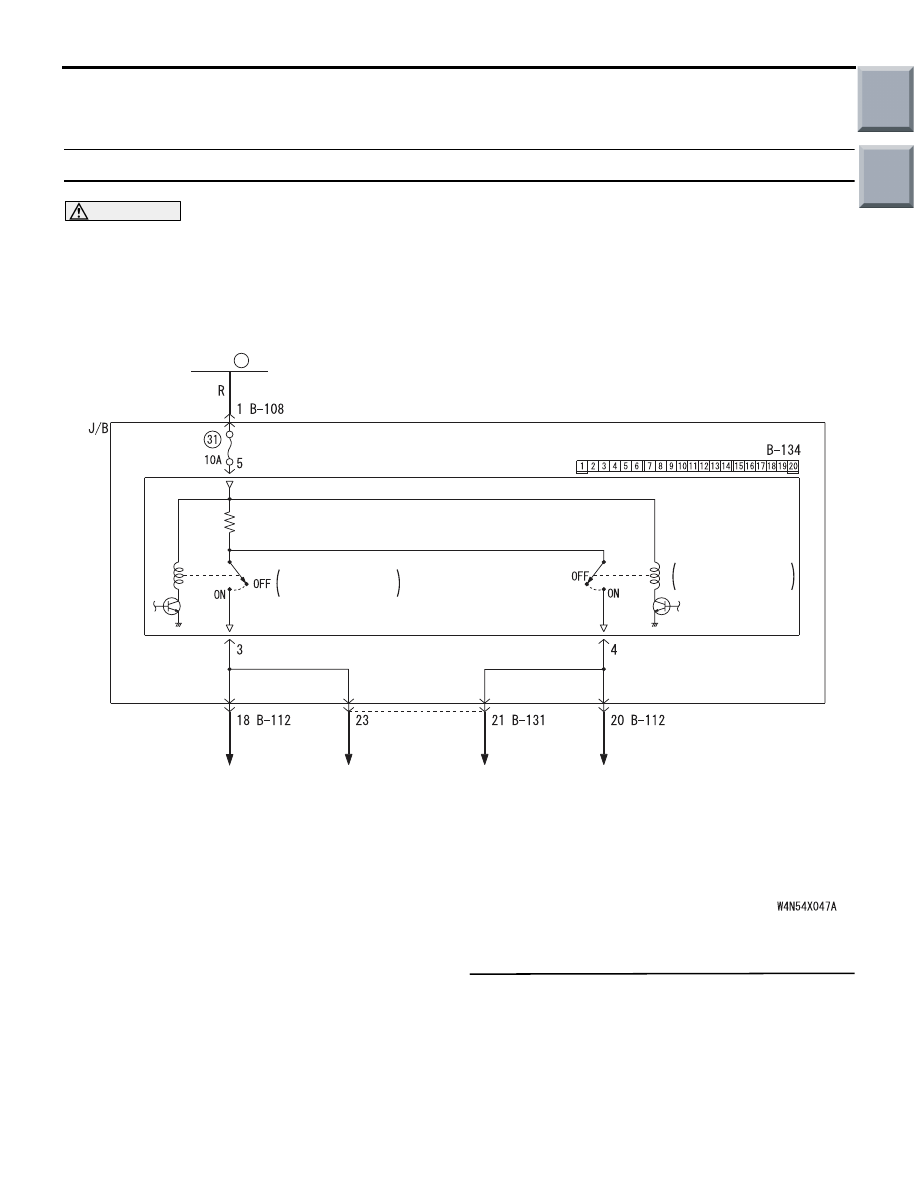

Turn-Signal Lamp Power Supply Circuit

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-167

Step 2. Connector check: B-134 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

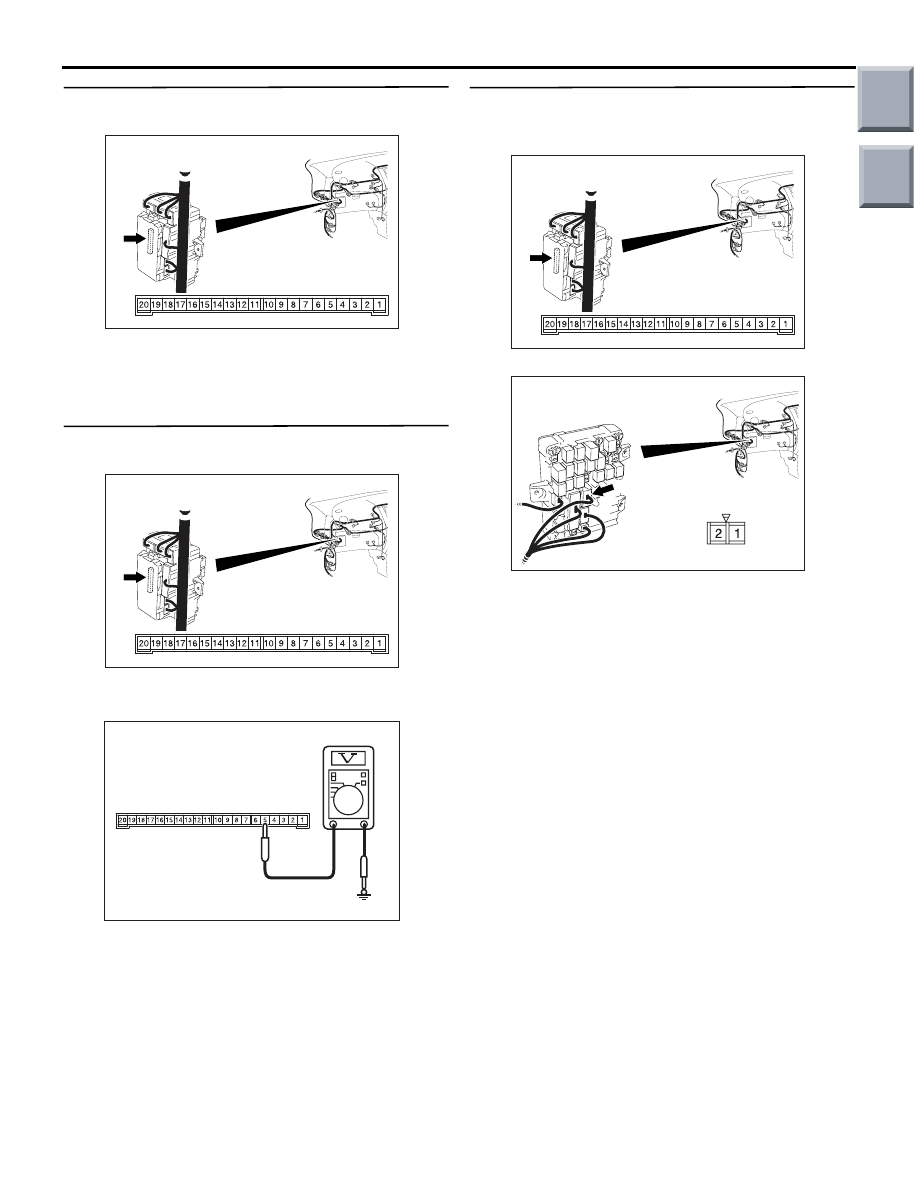

Step 3. Voltage measurement at the B-134
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between B-134 ETACS-ECU connector

terminal No.5 and body earth

OK:System voltage

Q: Is the check result normal?

YES : .

Go to Step 5.

NO : .

Go to Step 4.

Step 4. Check the wiring harness between B-134
ETACS-ECU connector terminal No.5 to the
fusible link (1).

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-108, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC310507 FG

Connector B-134
(Junction block side)

AC313826

Connector: B-134

AG

Junction block side

Junction block (Rear view)

AC313824 AG

Connector: B-108

Harness side

Junction block (Front view)

B-108 (B)
