SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-160

INSPECTION PROCEDURE K-2: Any of the fog lamps does not illuminate.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If any of the fog lamps do not illuminate, the wiring
harness connector(s), the bulb or the fuse may be
defective or burned out.

POSSIBLE CAUSES

• Burned-out fog lamp bulb

• Damaged harness wires and connectors

FOG LAMP
RELAY

FOG LAMP
(RH)

FOG LAMP
(LH)

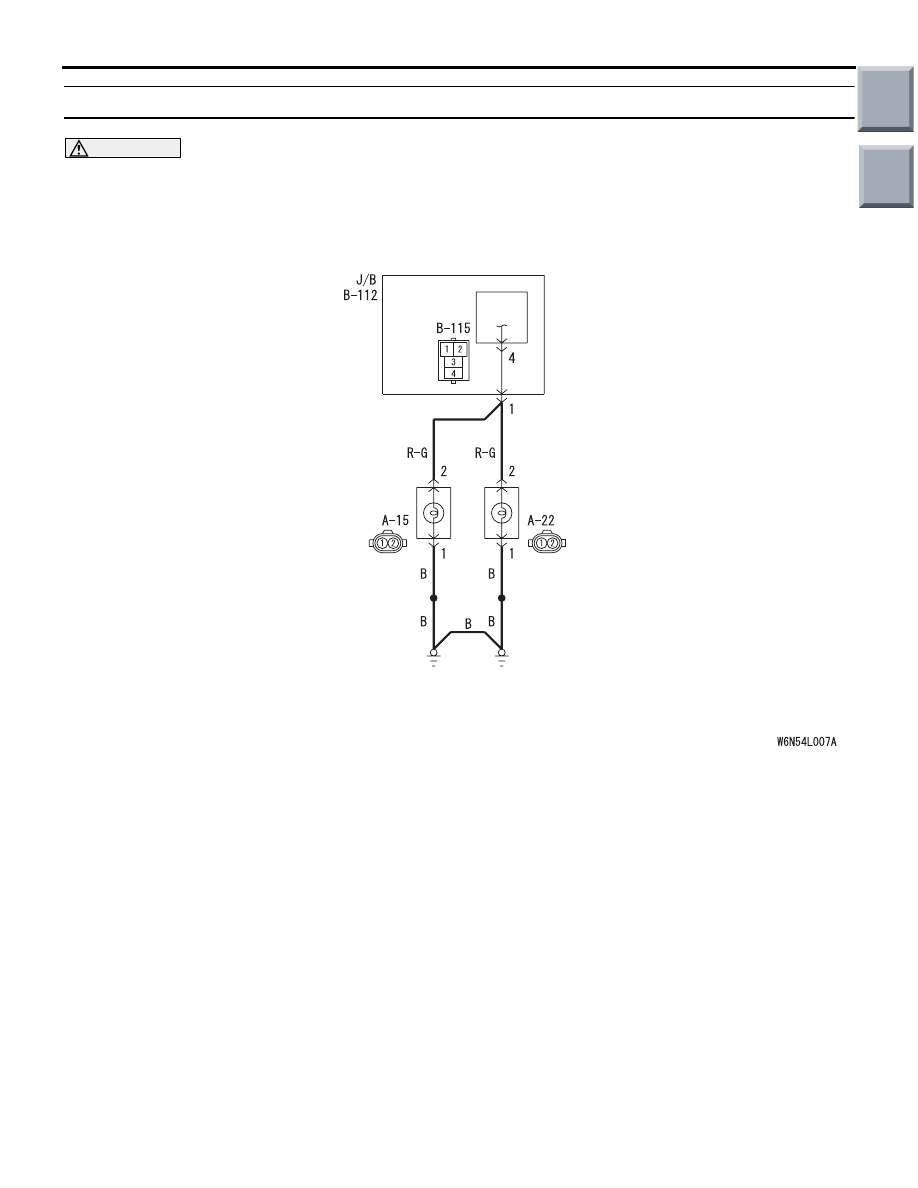

Fog Lamps Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-161

DIAGNOSIS PROCEDURE

Step 1. Connector check: A-22 fog lamp (RH)
connector or A-15 fog lamp (LH) connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

Step 2. Check the bulbs of the fog lamps lamp.
Check the bulb(s) of the defective lamp.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the bulb(s) of the defective lamp.

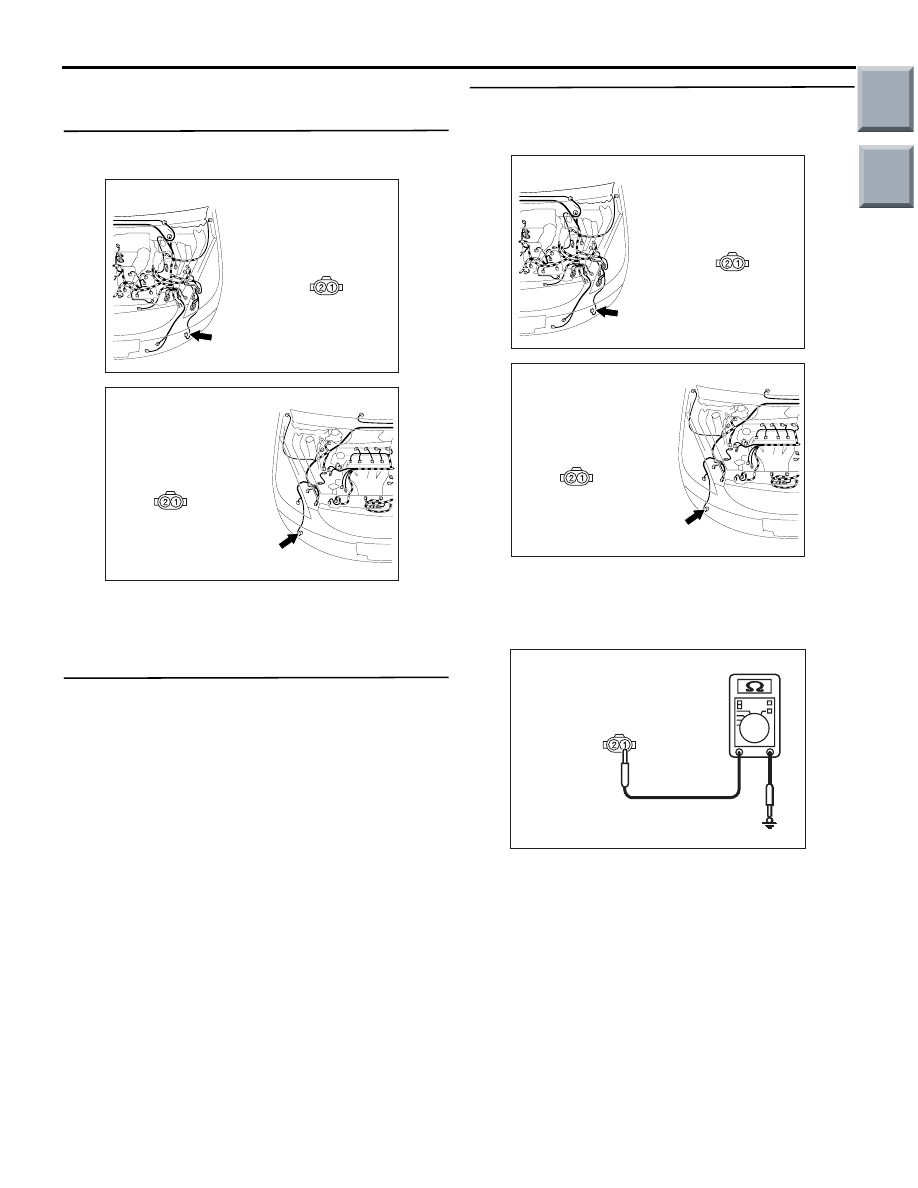

Step 3. Resistance measurement at the A-22 fog
lamp (RH) connector or A-15 fog lamp (LH)
connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Check the resistance between the lamp

connector and body earth.

•

Resistance between A-22 fog lamp (RH) connec-

tor terminal No.1 and body earth

• Resistance between A-15 fog lamp (LH) con-

nector terminal No.1 and body earth

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC509191

Connector: A-15

AC

A-15 (B)

Harness side

AC509176

Connector: A-22

AD

A-22 (GR)

Harness side

AC509191

Connector: A-15

AC

A-15 (B)

Harness side

AC509176

Connector: A-22

AD

A-22 (GR)

Harness side

AC310506EB

Connector: A-15, A-22
(Harness side)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-162

Step 4. Check the wiring harness from A-22 fog
lamp (RH) connector or A-15 fog lamp (LH)
connector terminal No.1 to body earth.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

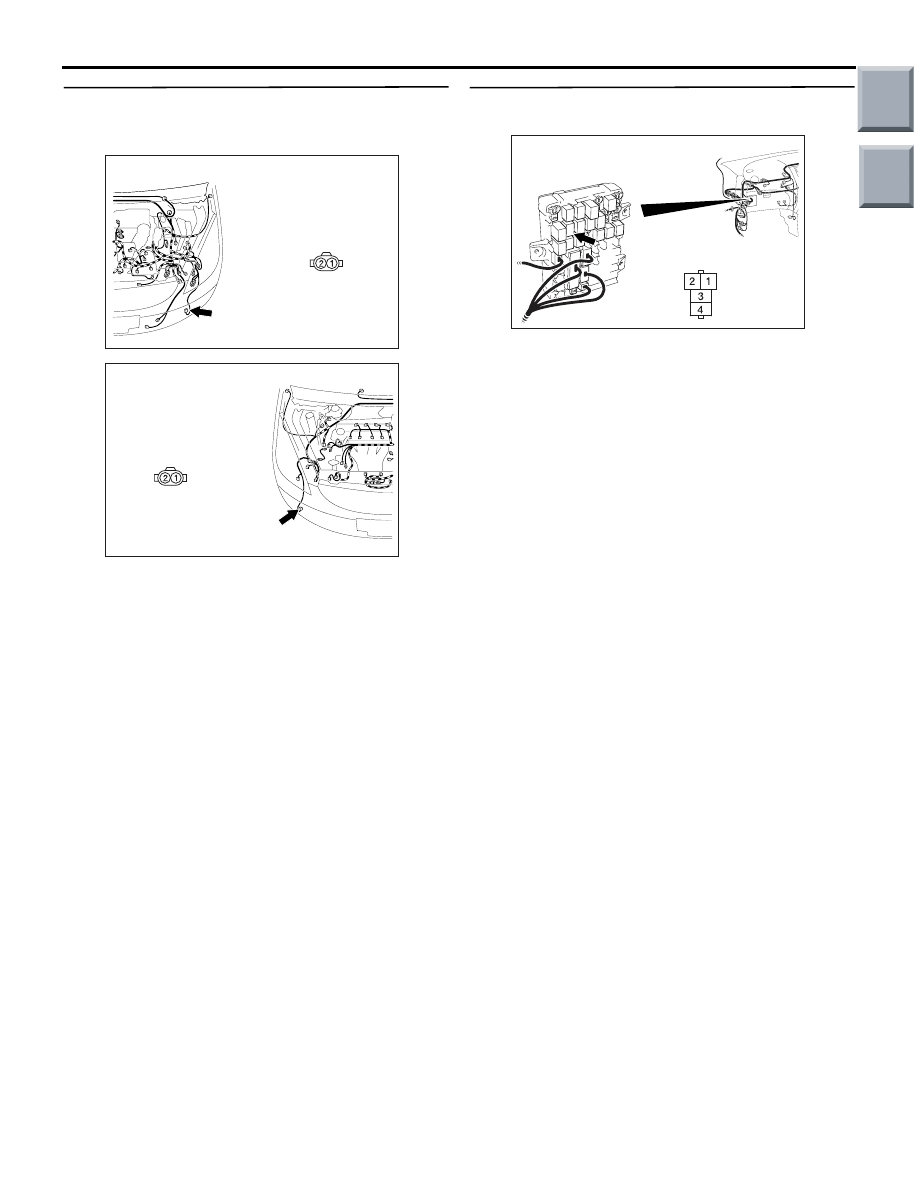

Step 5. Connector check: Connector check:
B-115 fog lamp relay connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

AC509191

Connector: A-15

AC

A-15 (B)

Harness side

AC509176

Connector: A-22

AD

A-22 (GR)

Harness side

AC313824 AH

Connector: B-115

Junction block side

Junction block (Front view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-163

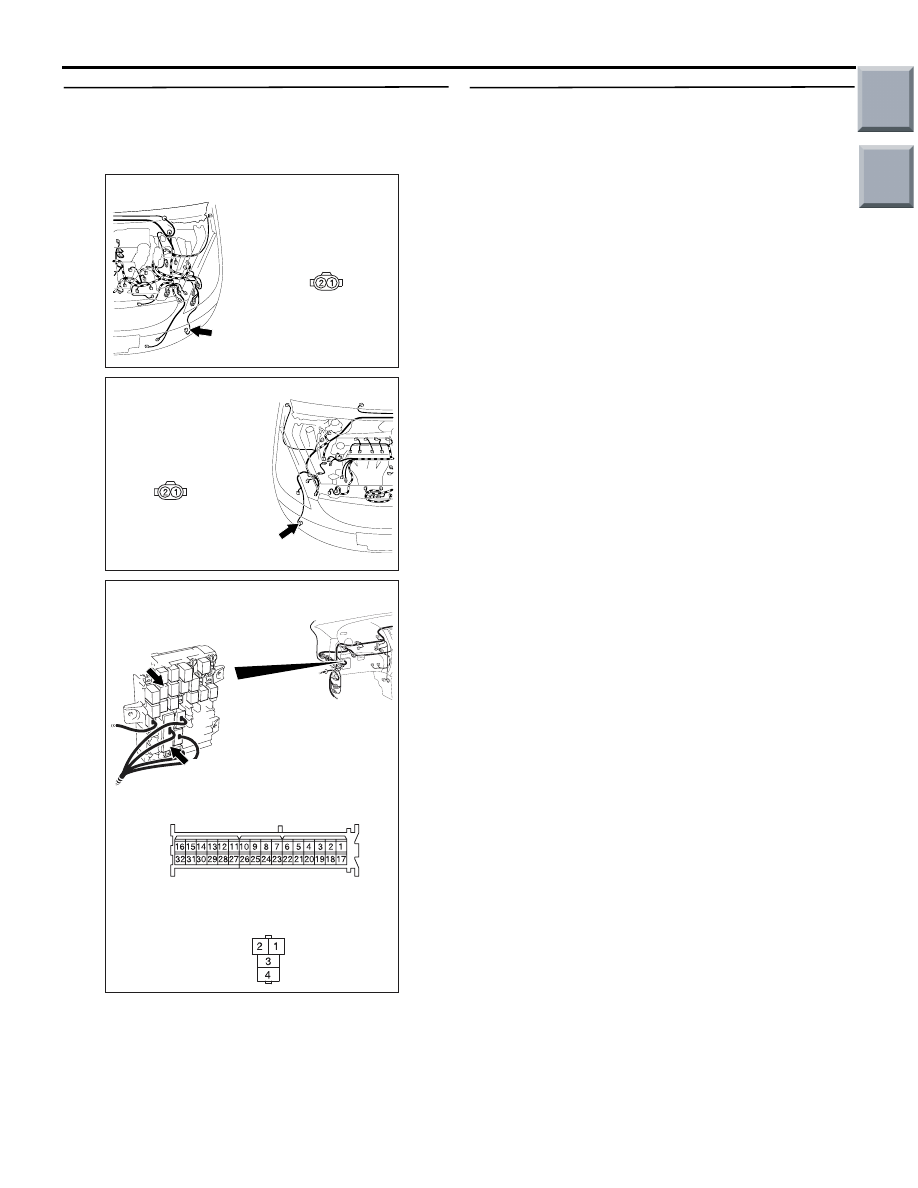

Step 6. Check the wiring harness from A-22 fog
lamp (RH) connector or A-15 fog lamp (LH)
connector terminal No.2 to B-115 fog lamp relay
connector terminal No.4.

NOTE: Prior to the wiring harness inspection, check
junction block connector B-112, and repair if neces-
sary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.
Check that the fog lamp illuminate normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the fog lamp(s).

AC509191

Connector: A-15

AC

A-15 (B)

Harness side

AC509176

Connector: A-22

AD

A-22 (GR)

Harness side

AC313825

Connectors: B-112, B-115

AH

B-115

B-112

B-112

B-115

Junction block (Front view)

Harness side

Junction block side
