SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-112

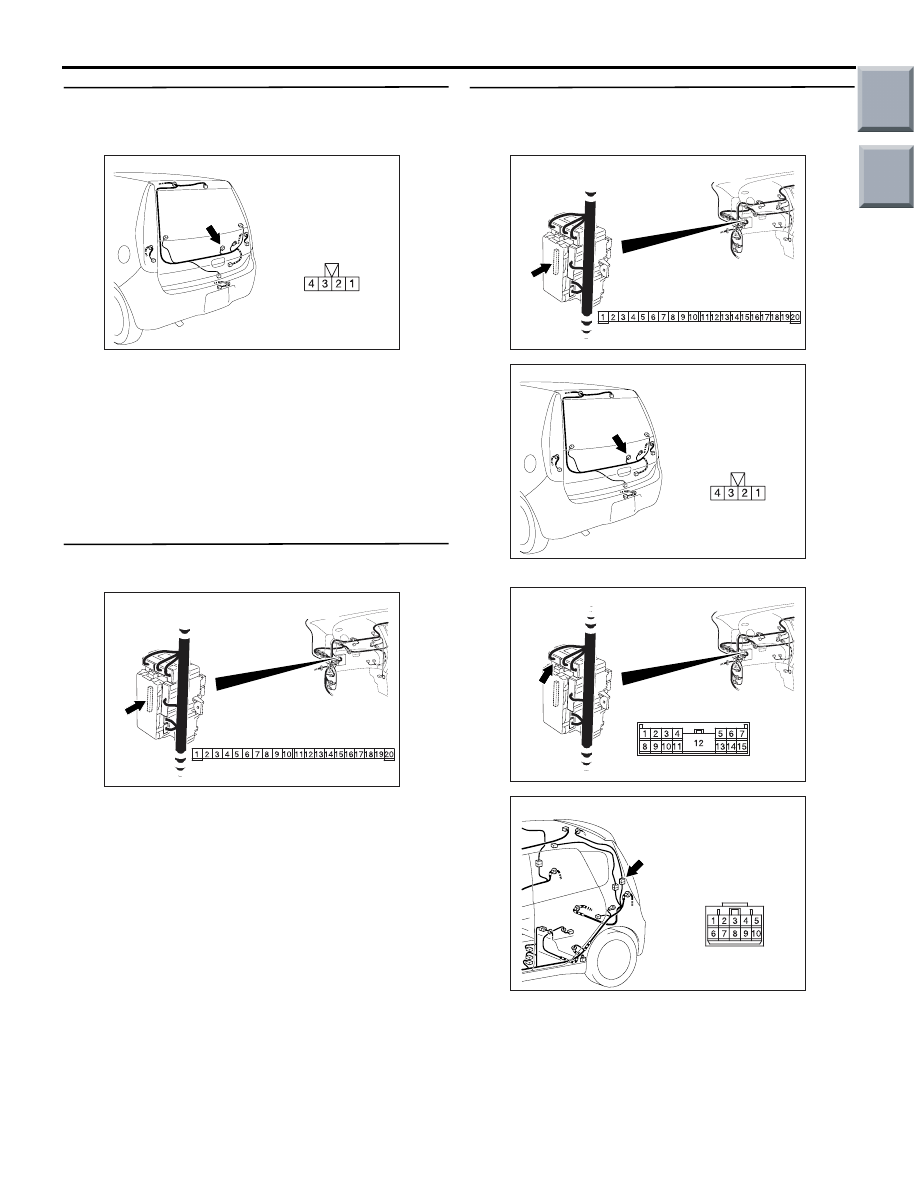

Step 6. Check the wiring harness between E-04
rear wiper motor connector terminal No.1 to body
earth.

• Check the earth line for open or short circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 7. Connector check: B-134 ETACS-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

Step 8. Check the wiring harness between B-134
ETACS-ECU connector terminal No.13 to E-04
rear wiper motor connector terminal No.2.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-12 and junction block connectors
B-128, and repair if necessary.

• Check the output line.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Repair the wiring harness.

AC401046

Connector: E-04

AC

Harness side

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

AC313872 AH

Connector: B-134

Harness side

Junction block (Rear view)

AC401046

Connector: E-04

AC

Harness side

AC313872

Connector: B-128

AD

Junction block side

AC401059

Connector: C-12

AC

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-113

Step 9. Retest the system.
Check that the rear wiper works normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-114

INSPECTION PROCEDURE G-2: The rear wiper does not stop at the specified park position.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM

If the rear wiper does not stop normally within the
predetermined range, the rear wiper motor or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

• Malfunction of the rear wiper motor

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

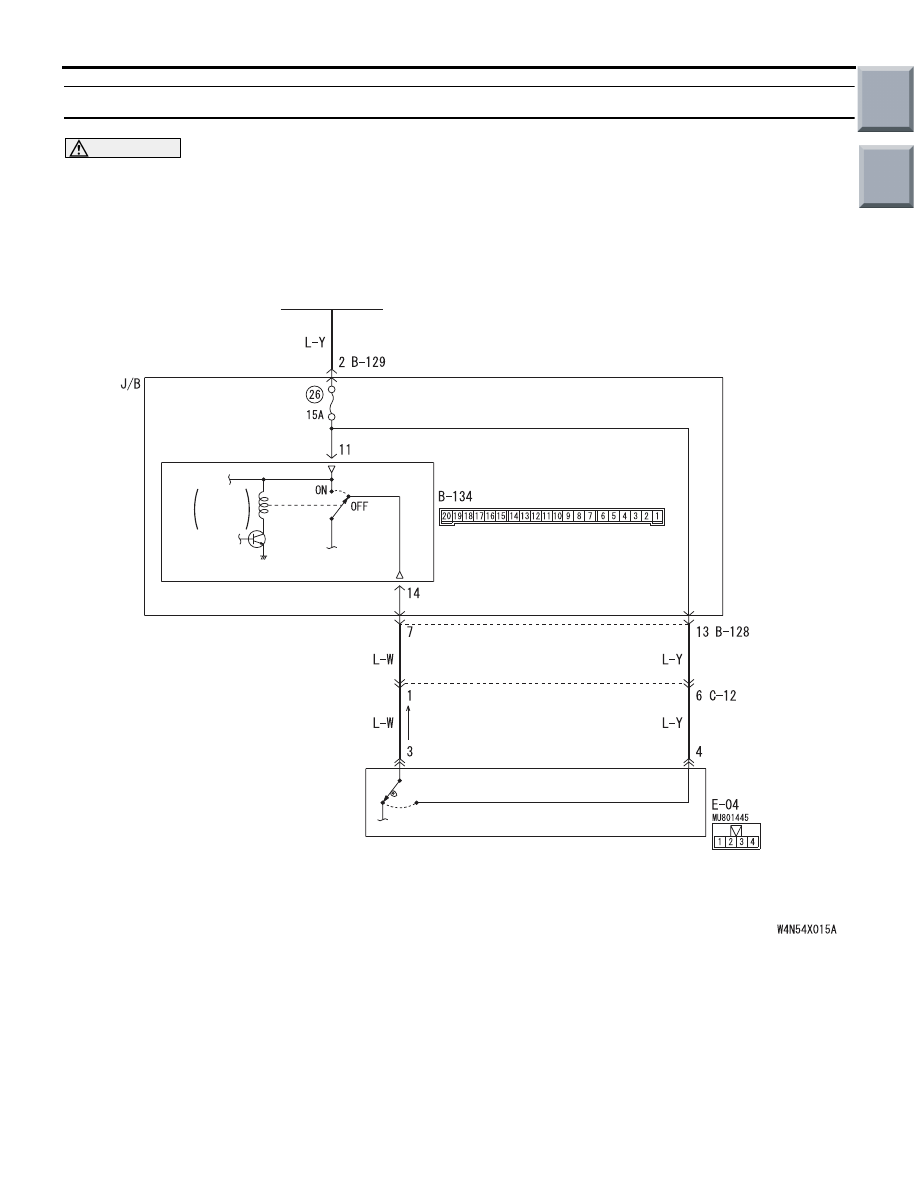

Rear Wiper Auto-Stop Signal Input

IGNITION
SWITCH (ACC)

ETACS-
ECU

J/B SIDE

REAR WIPER
MOTOR

REAR
WIPER
RELAY

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-115

DIAGNOSIS PROCEDURE

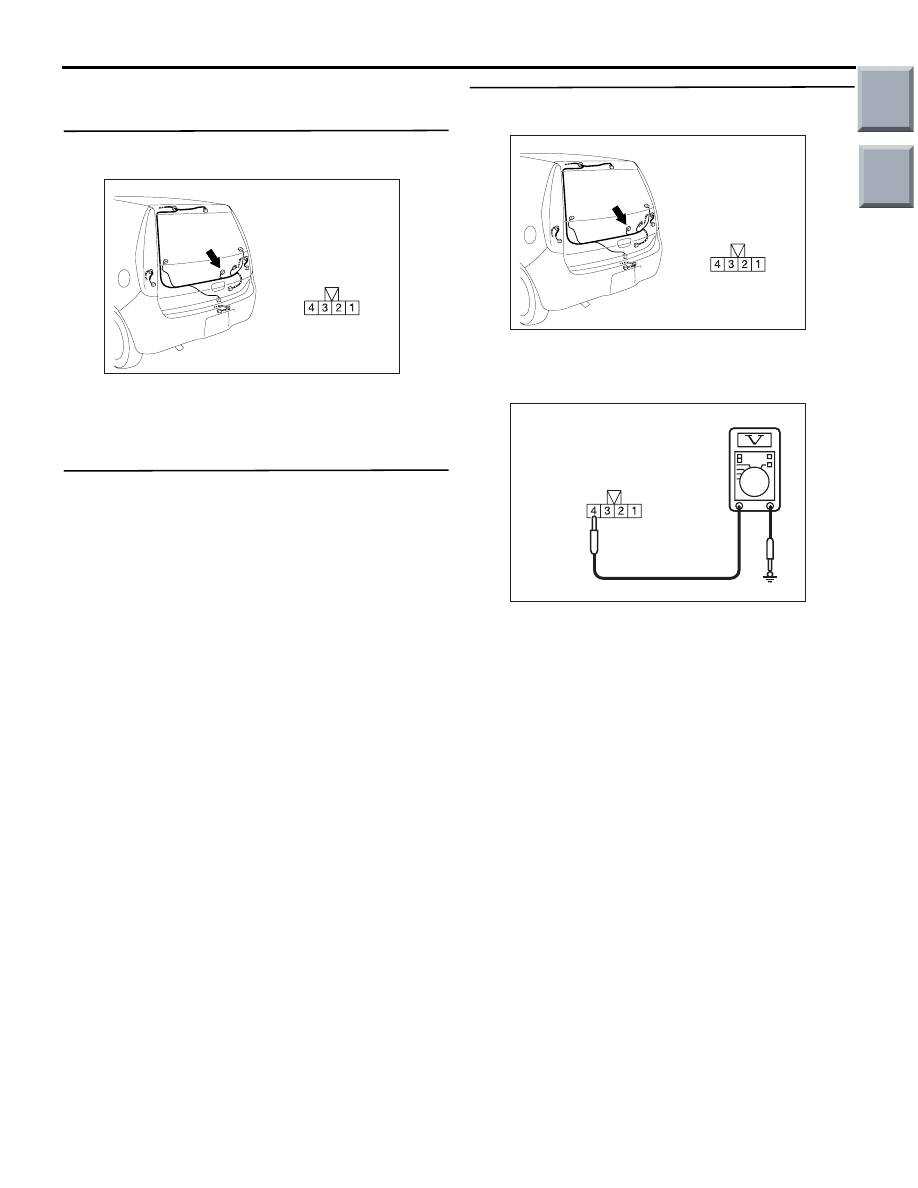

Step 1. Connector check: E-04 rear wiper motor
connector.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the connector.

Step 2. Check the rear wiper motor.
Refer to GROUP 51

− Rear wiper and washer

P.51-38

.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Replace the rear wiper motor.

Step 3. Voltage measurement at the E-04 rear
wiper motor connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Ignition switch: ACC

(3) Check the voltage between E-04 rear wiper motor

connector terminal No.4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 4.

AC401046

Connector: E-04

AC

Harness side

AC401046

Connector: E-04

AC

Harness side

AC313972 AP

Connector E-04
(Harness side)
