SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-64

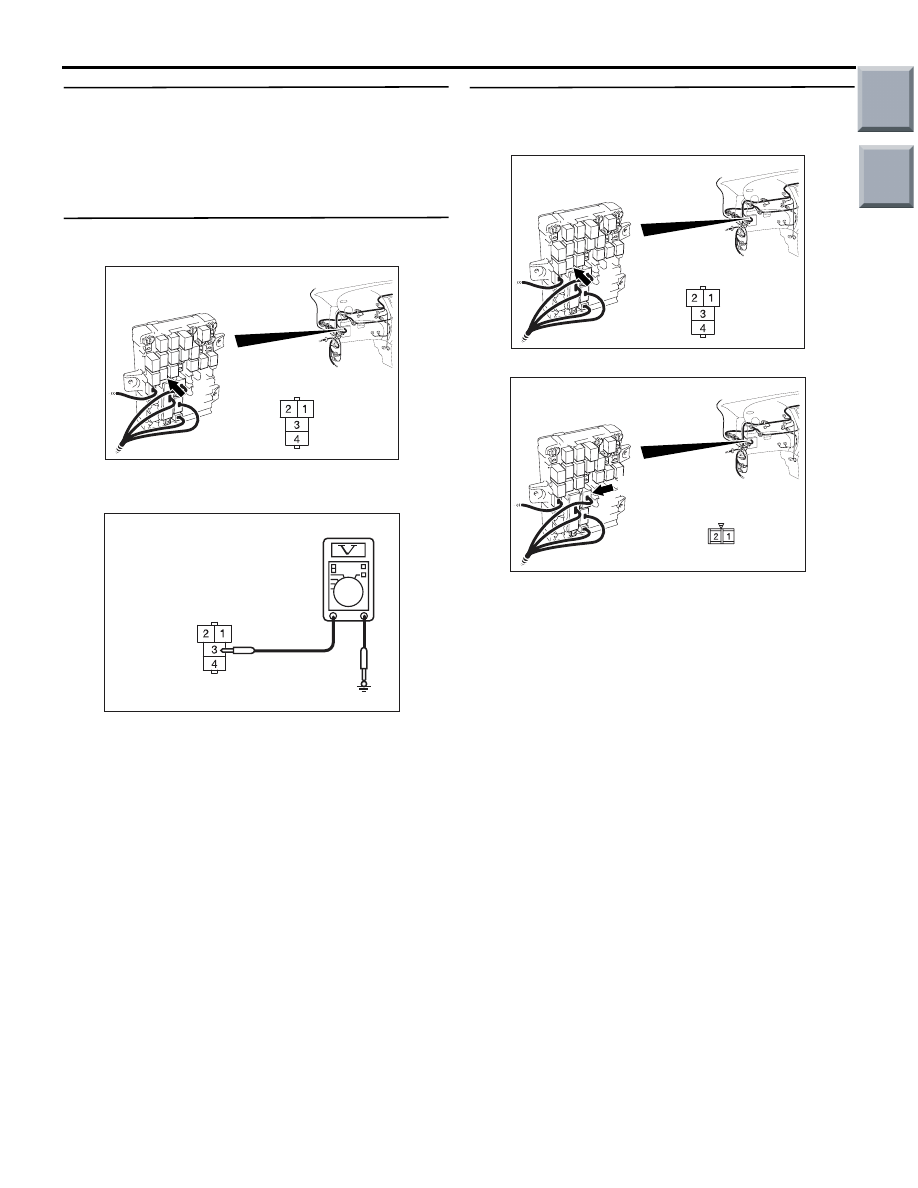

Step 6. Check the power window relay.
Refer to GROUP 42

− Door

P.42-36

.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Replace the power window relay.

Step 7. Voltage measurement at the B-126 power
window relay connector.

(1) Remove the power window relay, and measure at

the junction block side.

(2) Voltage between B-126 power window relay

connector terminal No.3 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 8.

Step 8. Check the wiring harness between B-126
power window relay connector terminal No.3 to
fusible link (1).

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-108, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

AC313824

Connector: B-126

AE

Junction block side

Junction block (Front view)

AC310507FE

Connector B-126
(Junction block side)

AC313824

Connector: B-126

AE

Junction block side

Junction block (Front view)

AC313870

Connector: B-108

BD

Junction block (Front view)

B-108(B)

Harness side

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-65

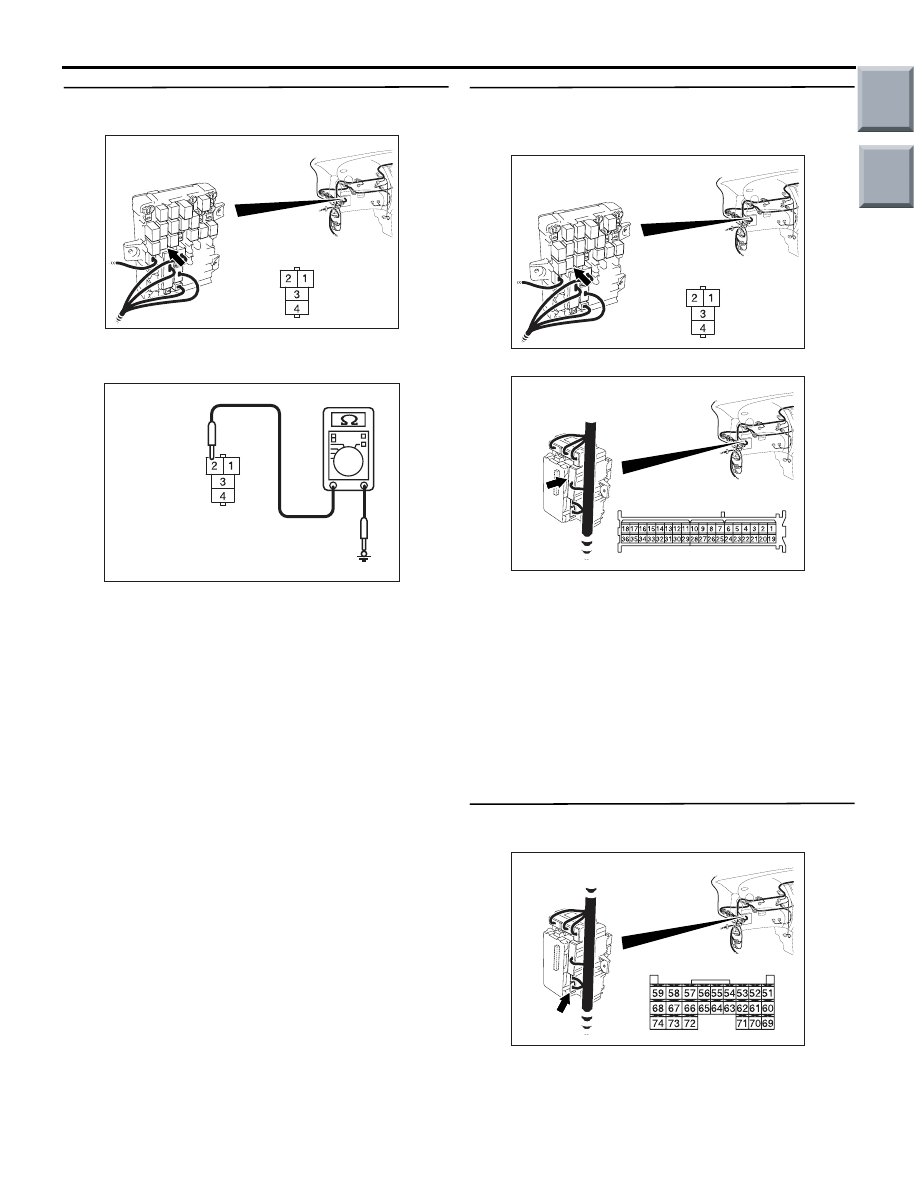

Step 9. Resistance measurement at the B-126
power window relay connector.

(1) Remove the power window relay, and measure at

the junction block side.

(2) Resistance between B-126 power window relay

connector terminal No.2 and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Go to Step 10.

Step 10. Check the wiring harness between B-126
power window relay connector terminal No.2 to
body earth.

NOTE:

Prior to the wiring harness inspection, check junction
block connector B-131, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 11. Connector check: B-133 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Repair the defective connector.

AC313824

Connector: B-126

AE

Junction block side

Junction block (Front view)

AC310506 DZ

Connector B-126
(Junction block side)

AC313824

Connector: B-126

AE

Junction block side

Junction block (Front view)

AC313826 AF

Connector: B-131

Junction Block (Rear view)

Harness side

AC313826AC

B-133 (GR)

Connector: B-133

Harness side

Junction block (Rear view)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-66

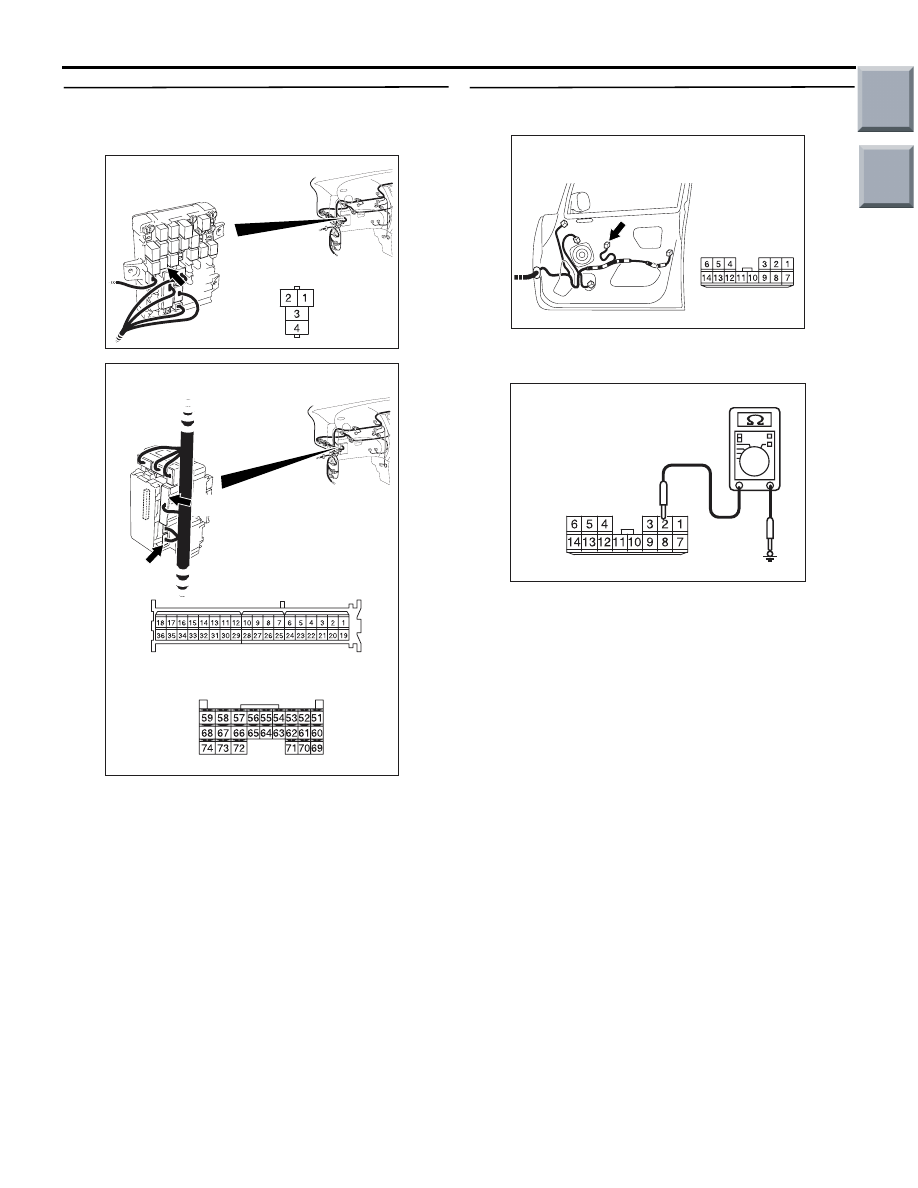

Step 12. Check the wiring harness between B-126
power window relay connector terminal No.1 to
B-133 ETACS-ECU connector terminal No.59.

NOTE: Prior to the wiring harness inspection, check
junction block connector B-131, and repair if neces-
sary.

• Check the communication lines for open circuit.

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the wiring harness.

Step 13. Resistance measurement at the D-03
power window main switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between D-03 power window main

switch connector terminal No.2 and body earth.

OK: Continuity exists (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Go to Step 14.

AC313824

Connector: B-126

AE

Junction block side

Junction block (Front view)

AC313827AF

B-131

B-131

B-133 (GR)

B-133

Connectors: B-131, B-133

Junction block (Rear view)

Harness side

Harness side

AC313837

Connector: D-03

Harness side

AC

AC310506EA

Connector D-03
(Harness side)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-67

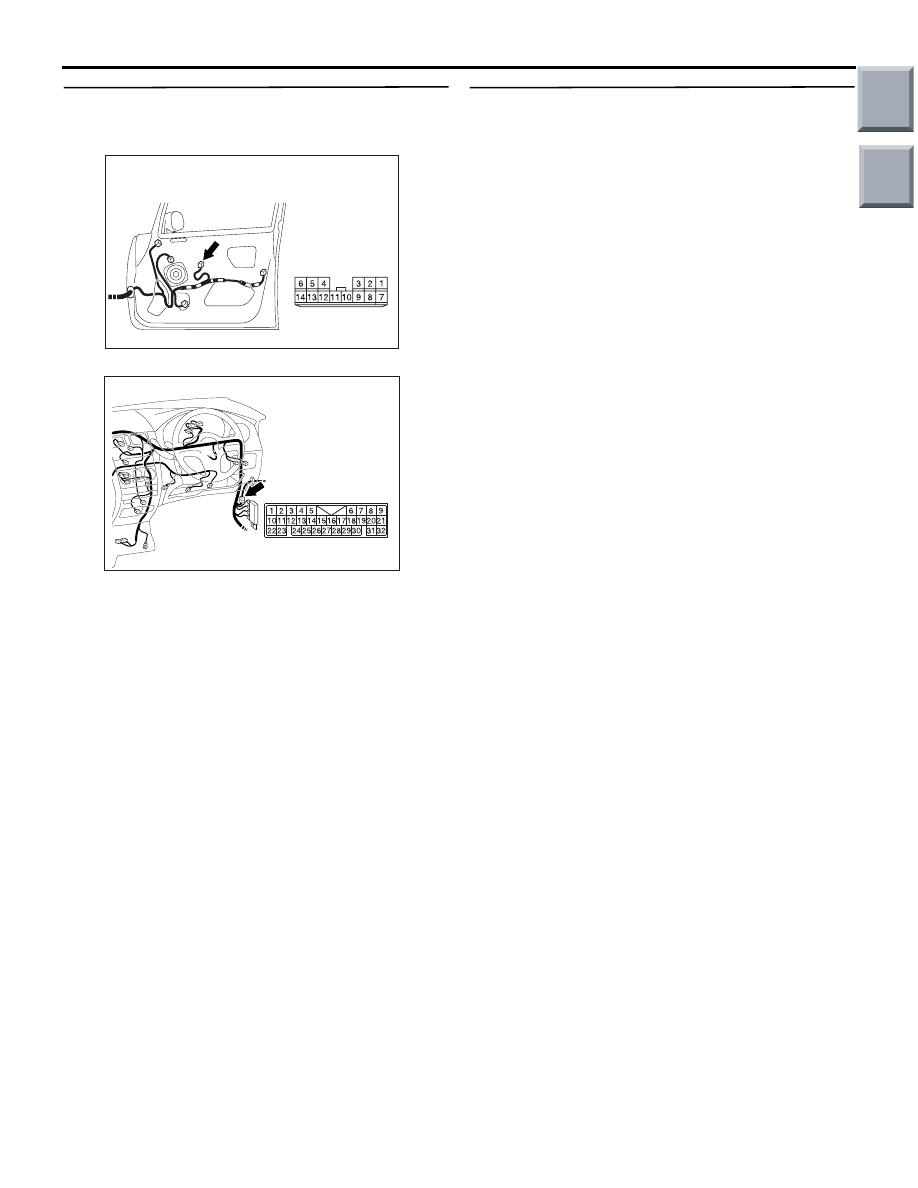

Step 14. Check the wiring harness between D-03
power window main switch connector terminal
No.2 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors B-21, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 15. Retest the system.
Check that all the power windows work.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the ETACS-ECU.

AC313837

Connector: D-03

Harness side

AC

AC401055

Connector: B-21

AB
