SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-56

Step 4. Check the wiring harness from B-132
ETACS-ECU connector terminal Nos.22 and 23 to
D-08 front door lock actuator (RH) connector
terminal Nos. 6 and 4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-21, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 5. Check the front door lock actuator (LH)
Check that the front door lock actuator (LH) works
normally. Refer to GROUP 42

− Door

P.42-46

.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Replace the front door lock actuator (LH).

Step 6. Connector check: B-132 ETACS-ECU
connector, D-17 front door lock actuator (LH)
connector

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the defective connector.

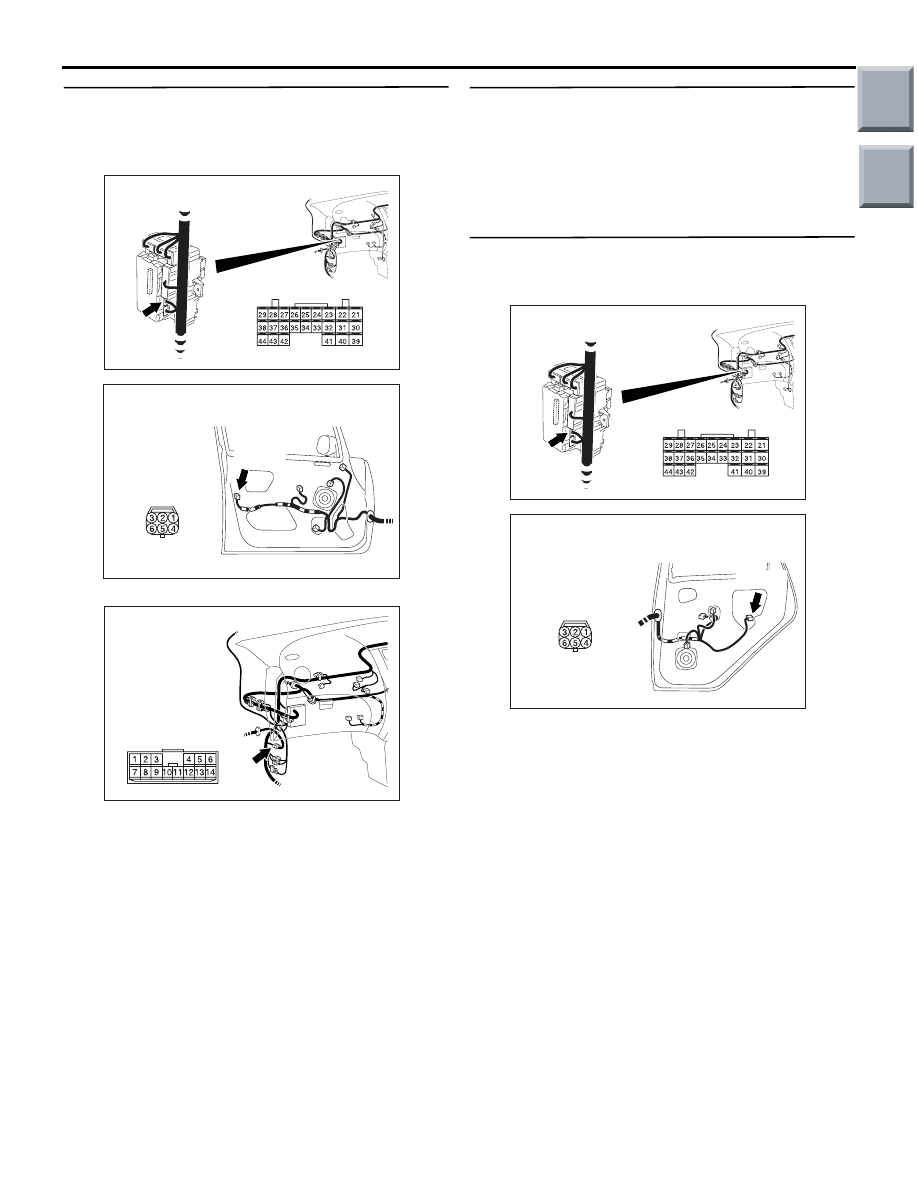

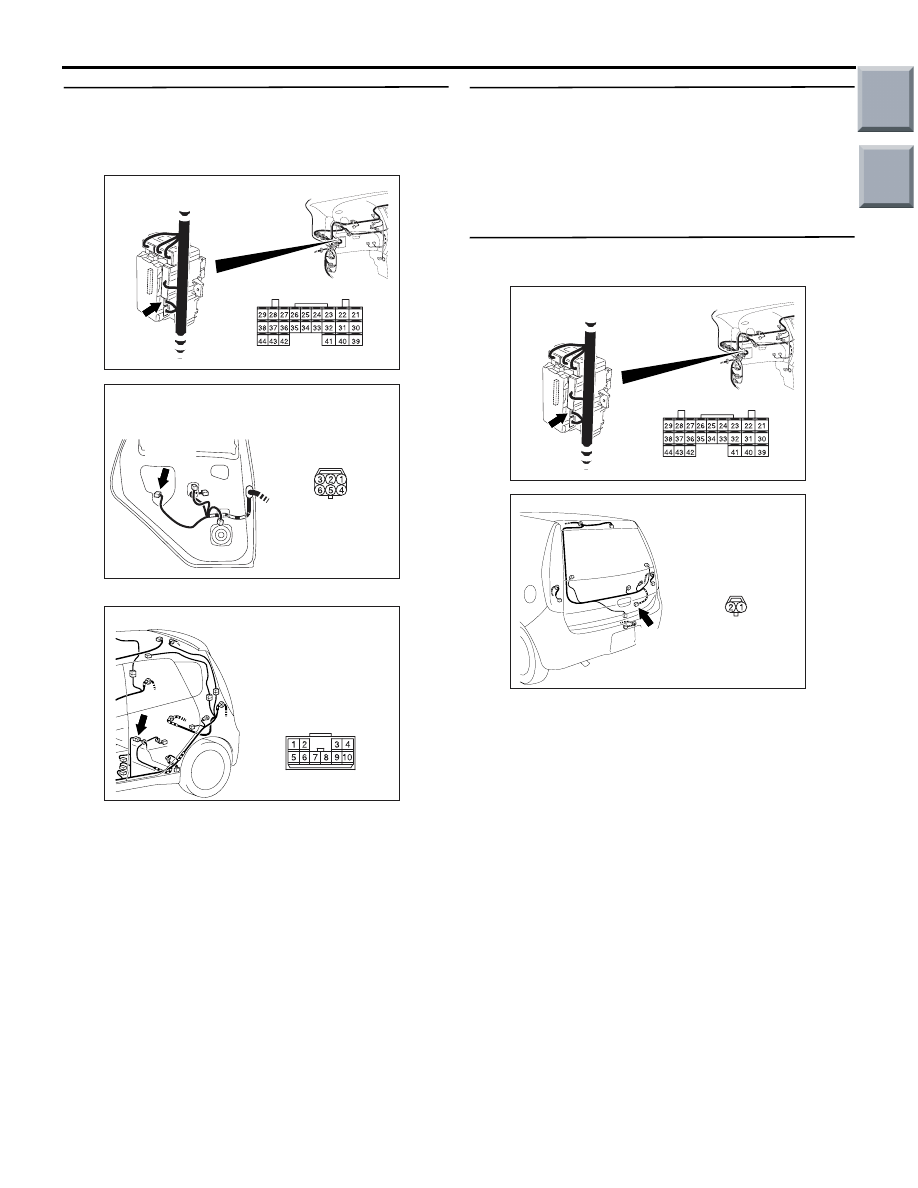

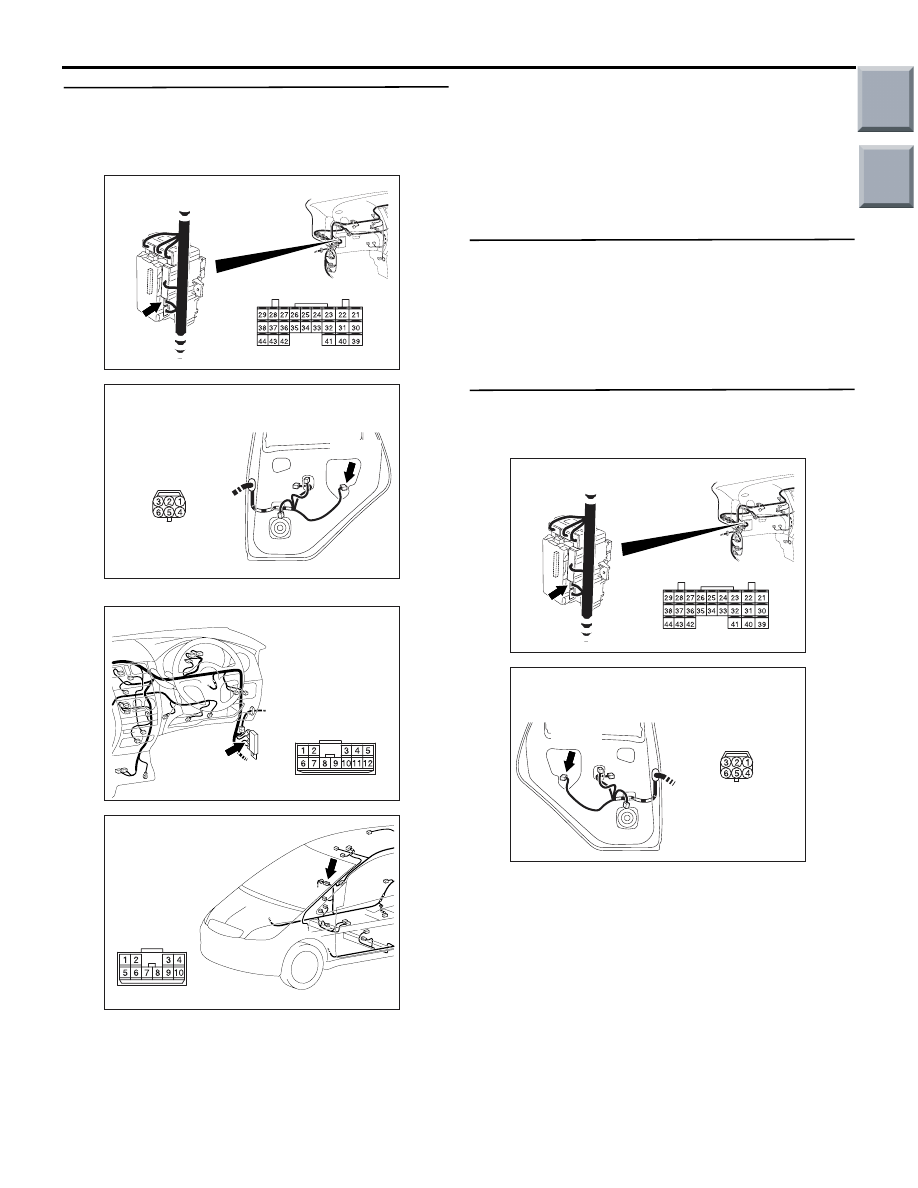

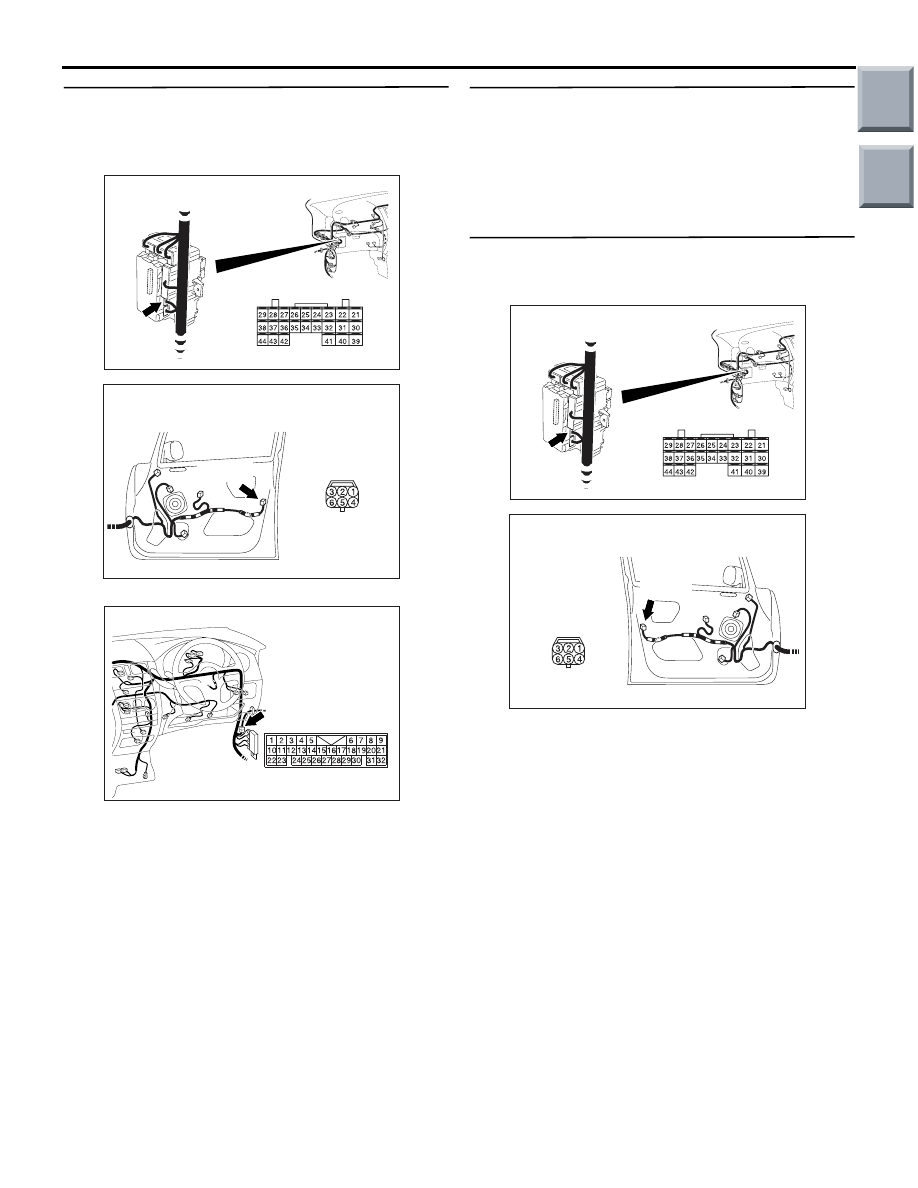

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313880

Connector: D-08

AH

Harness side

D-08(B)

AC401055

Connector: B-21

AB

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313886

Connector: D-17

AH

Harness side

D-17(B)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-57

Step 7. Check the wiring harness from B-132
ETACS-ECU connector terminal Nos.22 and 23 to
D-17 front door lock actuator (LH) connector
terminal Nos. 6 and 4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector B-42, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 8. Check the rear door lock actuator (RH)
Check that the rear door lock actuator (RH) works
normally. Refer to GROUP 42

− Door

P.42-46

.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Replace the rear door lock actuator (RH).

Step 9. Connector check: B-132 ETACS-ECU
connector, D-06 rear door lock actuator (RH)
connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313886

Connector: D-17

AH

Harness side

D-17(B)

AC401053

Connector: B-42

AB

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313882

Connector: D-06

AH

Harness side

D-06(B)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-58

Step 10. Check the wiring harness from B-132
ETACS-ECU connector terminal Nos.22 and 23 to
D-06 rear door lock actuator (RH) connector
terminal Nos. 6 and 4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-01 and joint connector B-24, and
repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 11. Check the rear door lock actuator (LH)
Check that the rear door lock actuator (LH) works
normally. Refer to GROUP 42

− Door

P.42-46

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the rear door lock actuator (LH).

Step 12. Connector check: B-132 ETACS-ECU
connector, D-10 rear door lock actuator (LH)
connector

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313882

Connector: D-06

AH

Harness side

D-06(B)

AC401055

Connector: B-24

AC

AC401057

Connector: C-01

AB

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313884

Connector: D-10

AH

Harness side

D-10(B)

Main

Index

Group

TOC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-59

Step 13. Check the wiring harness from B-132
ETACS-ECU connector terminal Nos.22 and 23 to
D-10 rear door lock actuator (LH) connector
terminal Nos. 6 and 4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-18, and repair if necessary.

• Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Repair the wiring harness.

Step 14. Check the tailgate lock actuator
Check that the tailgate lock actuator works normally.
Refer to GROUP 42

− tailgate

P.42-59

.

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Replace the tailgate lock actuator.

Step 15. Connector check: B-132 ETACS-ECU
connector, E-05 tailgate lock actuator connector

Q: Is the check result normal?

YES :

Go to Step16.

NO :

Repair the defective connector.

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC313884

Connector: D-10

AH

Harness side

D-10(B)

AC401059

Connector: C-18

AB

AC313872

Connector: B-132

AI

Harness side

Junction block (Rear view)

AC401046

Connector: E-05

AB

Harness side

E-05(B)
