DIAGNOSIS TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-20

Diagnosis code No.U1701: Communication error with column switch

CAUTION

If diagnosis code No.U1701 is set in the
ETACS-ECU, diagnose the CAN bus lines.

FUSIBLE
LINK

1

IGNITION
SWITCH (IG1)

COLUMN
SWITCH

COLUMN-ECU

ETACS-ECU

DIAGNOSIS
CONNECTOR

FRONT SIDE

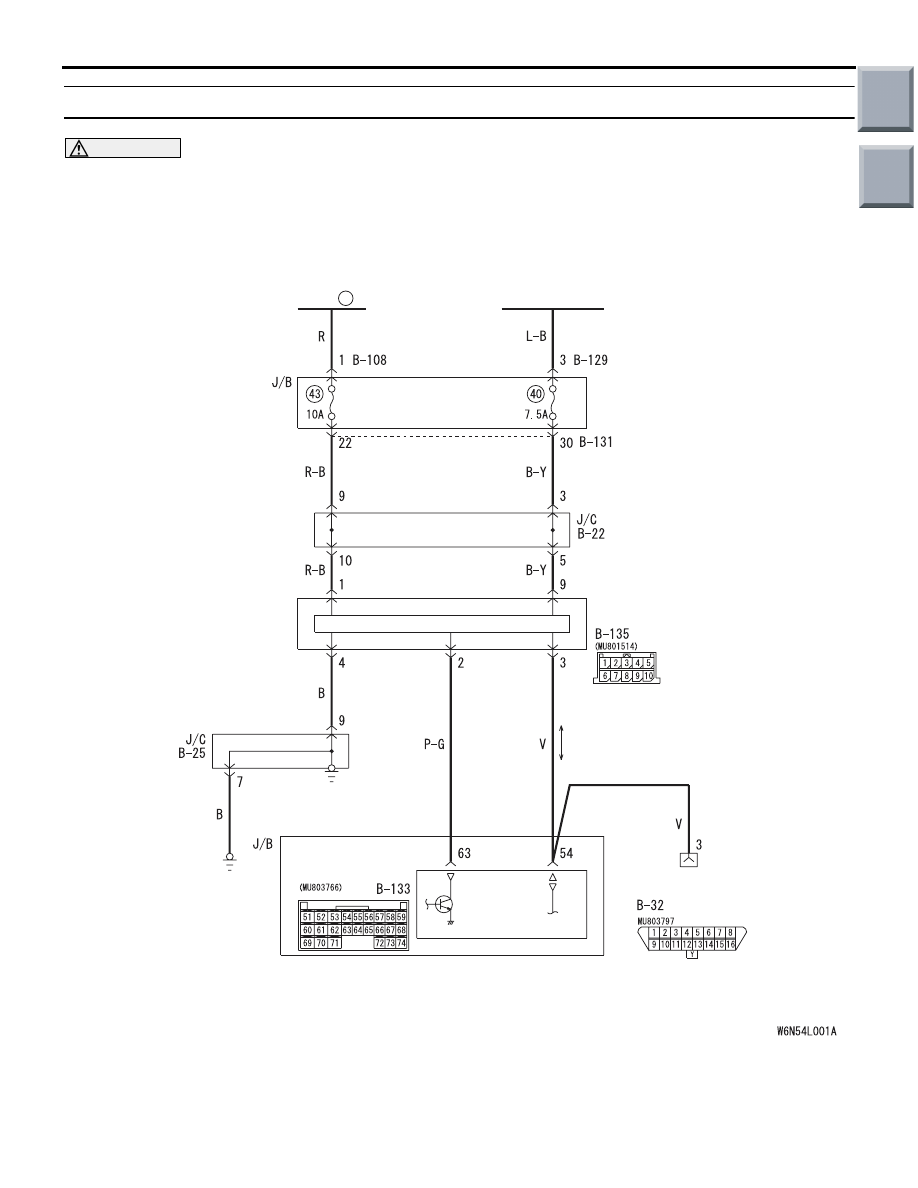

Column Switch Power Supply and SWS Communication Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

Main

Index

Group

TOC

DIAGNOSIS TROUBLE CODE PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-21

TROUBLE JUDGMENT

The ETACS-ECU communicates with the column
switch through the SWS communication lines. If
there is any trouble in that communication, diagnosis
code No.U1702 will be set.

COMMENT ON TROUBLE SYMPTOM

The column switch, the ETACS-ECU, connector(s),
or wiring harness between the two may be defective.

POSSIBLE CAUSES

• Malfunction of the column switch

• Malfunction of the ETACS-ECU

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. M.U.T.-III CAN bus diagnostics
Use the M.U.T.-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54D

− Diagnosis

P.54D-13

).

Step 2. Use the M.U.T.-III to confirm a diagnosis
code. (M.U.T.-III diagnosis code)
(1) Ignition switch: ON
(2) On completion, check that diagnosis code

No.U1701 is not reset.

Q: Is diagnosis code No.U1701 set?

YES :

Go to Step 3.

NO :

The trouble can be an intermittent
malfunction (Refer to GROUP 00

− How to

use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-13

).

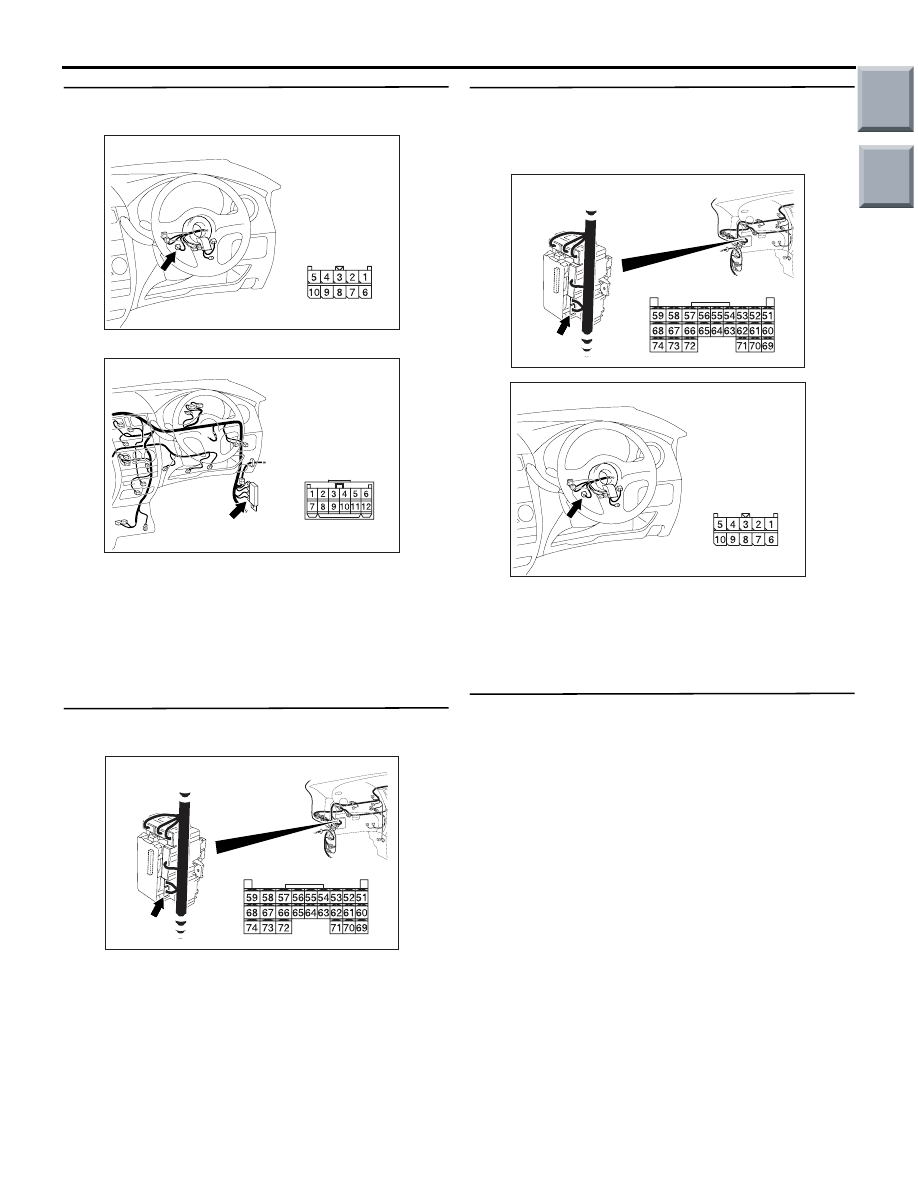

Step 3. Connector check: B-135 column switch
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

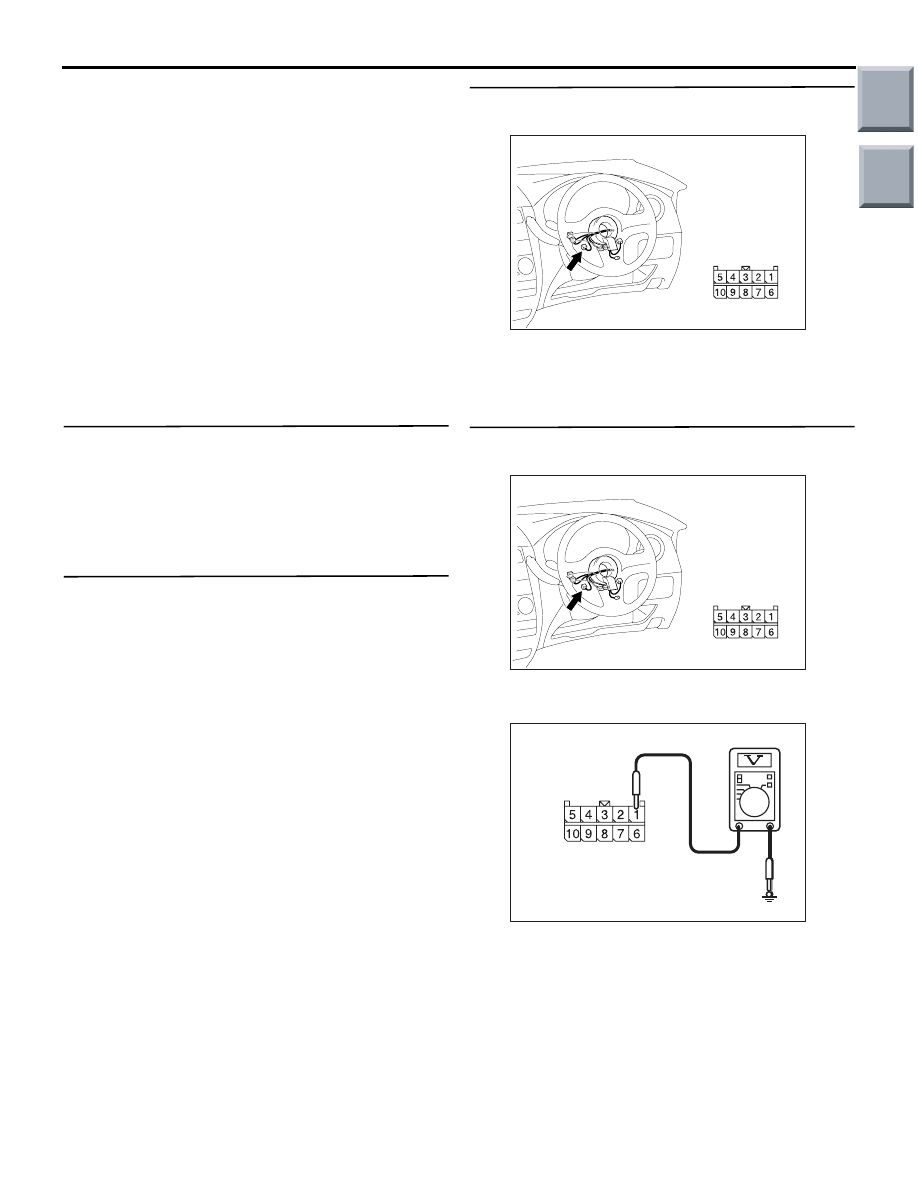

Step 4. Voltage measurement at the B-135
column switch connector.

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Voltage between B-135 column switch connector

No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC401044AC

Connector: B-135

Harness side

AC401044AC

Connector: B-135

Harness side

AC310507FB

Connector B-135
(Harness side)
