GENERAL INFORMATION

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-12

IGNITION KEY CYLINDER ILLUMINATION LAMP CONTROL FUNCTION

The ETACS-ECU controls the ignition key cylinder
illumination lamp and foot lamp as described below.

1. The ignition key cylinder illumination lamp and for

30 seconds when the driver's door is
opened/closed with the ignition switch OFF.

2. Also when the ignition key is removed from the

ignition key cylinder, the lamp illuminates for 30
seconds.

3. When the ignition key cylinder illumination lamp

is operating with the doors closed, it goes out if
the ignition switch is turned ON.

DOOR-AJAR INDICATOR

The ETACS-ECU sends the open/close status of
each door to the combination meter through CAN
communication. The combination meter receives the
transmitted signal and turns ON and OFF the
door-ajar indicator. The door-ajar indicator flashes
when the door-ajar warning function is activated
while the door-ajar indicator is ON (For more infor-
mation about the door-ajar warning function).

AC314095

t: 30 seconds

(Closed) OFF

(Opened) ON

ON

OFF

(Key removed) ON

(Key inserted) OFF

 (Illuminated) ON

(Extinguished) OFF

Driver's seat door switch

Key reminder switch

Ignition key cylinder
illumination lamp

Ignition switch (IG)

t

t

t

t

t

t

t

AB

Main

Index

Group

TOC

SPECIAL TOOLS

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-13

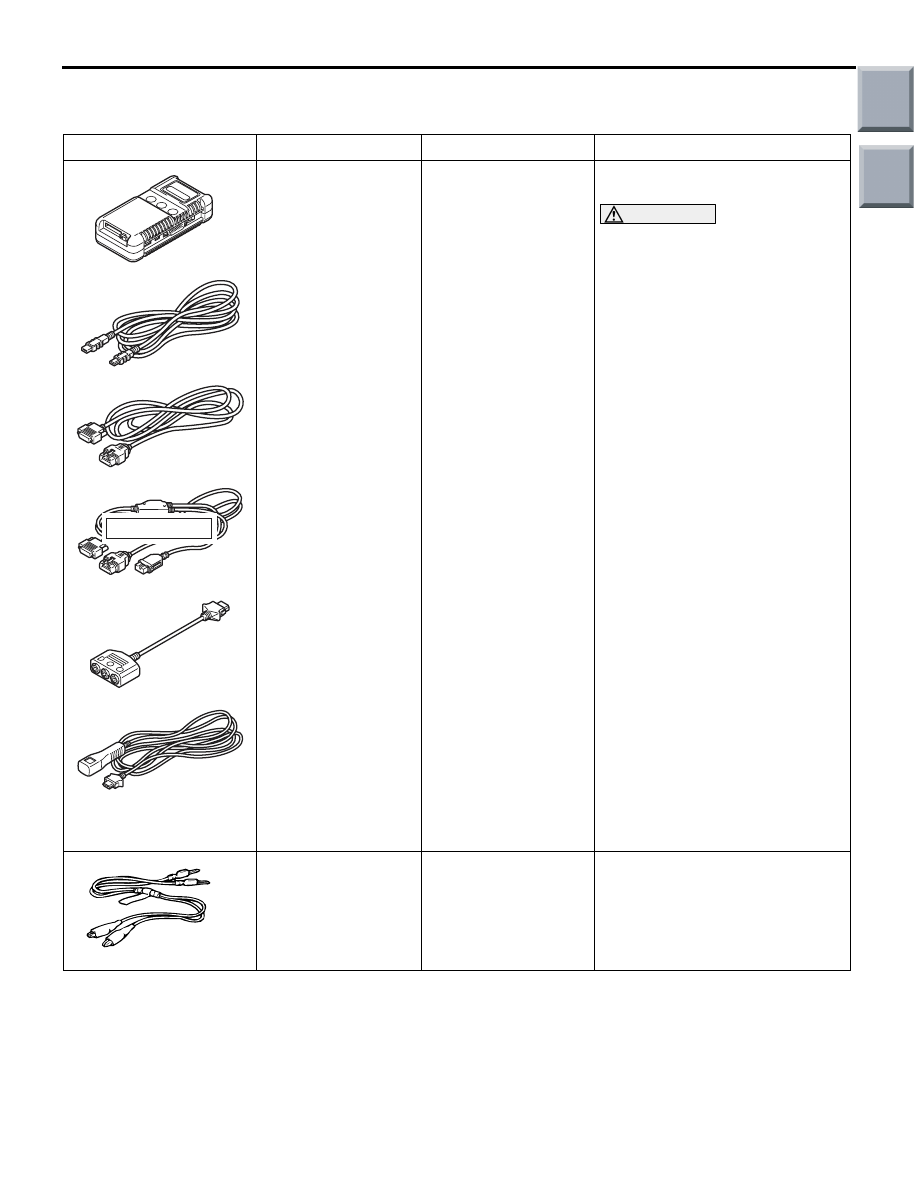

SPECIAL TOOLS

M1549000301080

Tool

Number

Name

Use

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

communication
interface (V. C. I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

SWS communication line check
(ECU check and service data)

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B
should not be used for this
vehicle.

MB991529

Diagnosis code check
harness

Input signal check by using a
voltmeter

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991529

Main

Index

Group

TOC

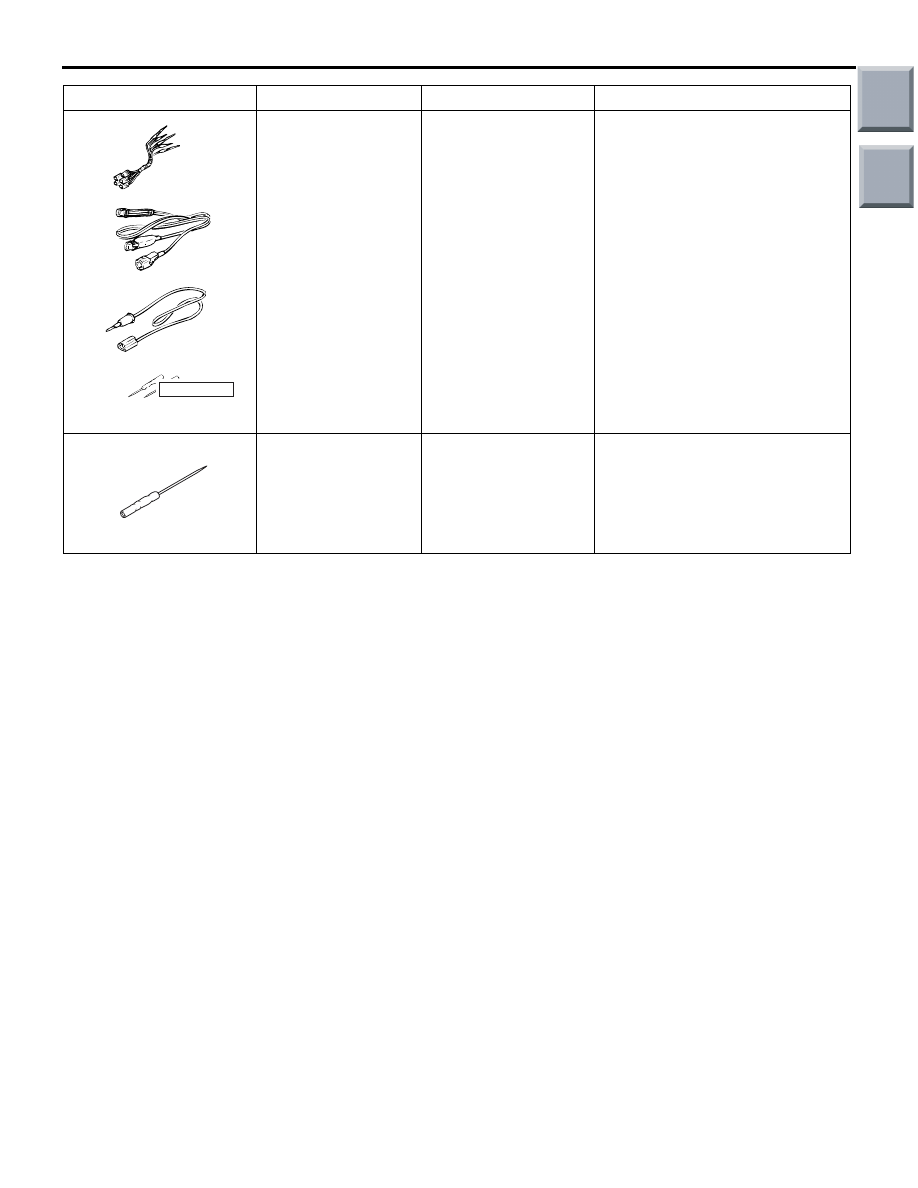

SPECIAL TOOLS

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-14

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

Continuity check and voltage
measurement at harness wire or
connector

A: For checking connector pin

contact pressure

B: For checking power supply

circuit

C: For checking power supply

circuit

D: For connecting a locally

sourced tester

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

MB991223

A

D

C

B

AZ

DO NOT USE

MB992006

Main

Index

Group

TOC

TROUBLESHOOTING

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-15

TROUBLESHOOTING

PRIOR TO TROUBLESHOOTING

M1549014700787

Before carrying out troubleshooting, check the fol-
lowing two items.

• Make sure that the ETACS-ECU and the junction

block (J/B) are connected securely.

• Check that the system fuses and fusible links are

not burned out.

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1549000500973

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

− Contents of Trouble-

shooting

P.00-5

.

ACTUATOR TEST REFERENCE TABLE

M1549001000090

DIAGNOSTIC FUNCTION

M1549028900502

HOW TO READ DIAGNOSIS CODE

Use the M.U.T.-III to read diagnosis code (Refer to
GROUP 00

− How to Use Troubleshooting/Inspec-

tion Service Points

− Diagnosis Function

P.00-7

).

NOTE: Connect the M.U.T.-III to the 16-pin diagnosis
connector (black).
NOTE: A diagnosis code can not be read when the
ETACS-ECU is defective or the power supply voltage
has risen. In this case, refer to inspection procedure
A-1 "Communication with the M.U.T.-III is not possi-
ble

P.54B-40

."

Item No.

Item name

Driven component

01

Rear wiper switch

Rear wiper

02

Front wiper switch

Front wiper (LO)

03

High-speed wiper switch

Front wiper (HI)

04

Rear washer switch

Rear washer

05

Front washer switch

Front washer

06

Electric folding door mirror SW

Electric folding door mirrors (fold/unfold)

07

Centre door locking "LOCK" SW

Central door locking

08

Centre door locking "UNLOCK" SW Central door unlocking

09

Turn-signal lamp (LH) switch

Turn-signal lamp (blinks)

10

Turn-signal lamp (RH) switch

12

Tail lamp

Tail lamp (illuminates)

13

Headlamp

Headlamp (LO: illuminates)

14

Headlamp HI

Headlamp (HI: illuminates)

15

Fog lamp

Fog lamp (illuminates)

17

Turn-signal lamp (LH)

Turn-signal lamp (Illuminates)

18

Turn-signal lamp (RH)

19

Buzzer

Buzzer (integrated into ETACS-ECU)

20

Room lamp 0%

Room lamp (turns off)

21

Room lamp 60%

Room lamp (60% illumination)

22

Room lamp 100%

Room lamp (100% illumination)

24

P/W multi-close

Multi-mode keyless (power windows closing)

25

P/W multi-open

Multi-mode keyless (power windows opening)

26

P/W multi-stop

Multi-mode keyless (power windows stop)
