FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-38

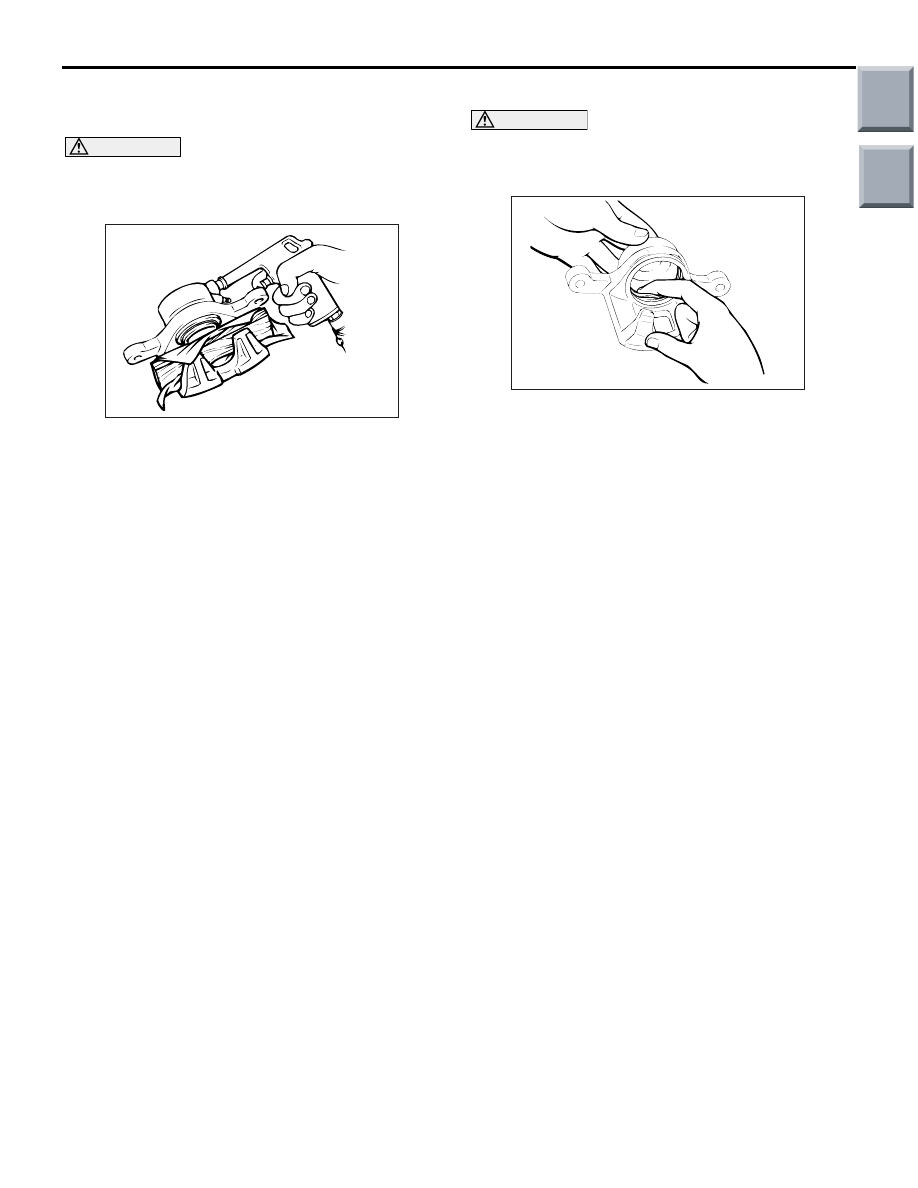

DISASSEMBLY SERVICE POINT
<<A>> PISTON BOOT/PISTON REMOVAL

CAUTION

Blow air little by little to remove the pistons. The
pistons will rush out if a force of air is applied
suddenly.

ACX00697

Cover the caliper body outer side with a cloth or
other material. Blow compressed air through the
brake hose installation area to remove the piston and
piston boot.

<<B>> PISTON SEAL REMOVAL

CAUTION

Do not use a flat-tipped screwdriver to remove
the piston seal. This may damage the inner side
of the cylinder.

ACX00689

1. Remove the piston seal with your finger tip.
2. Clean the piston surface and inner cylinder with

alcohol or brake fluid DOT 3 or DOT 4.

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-39

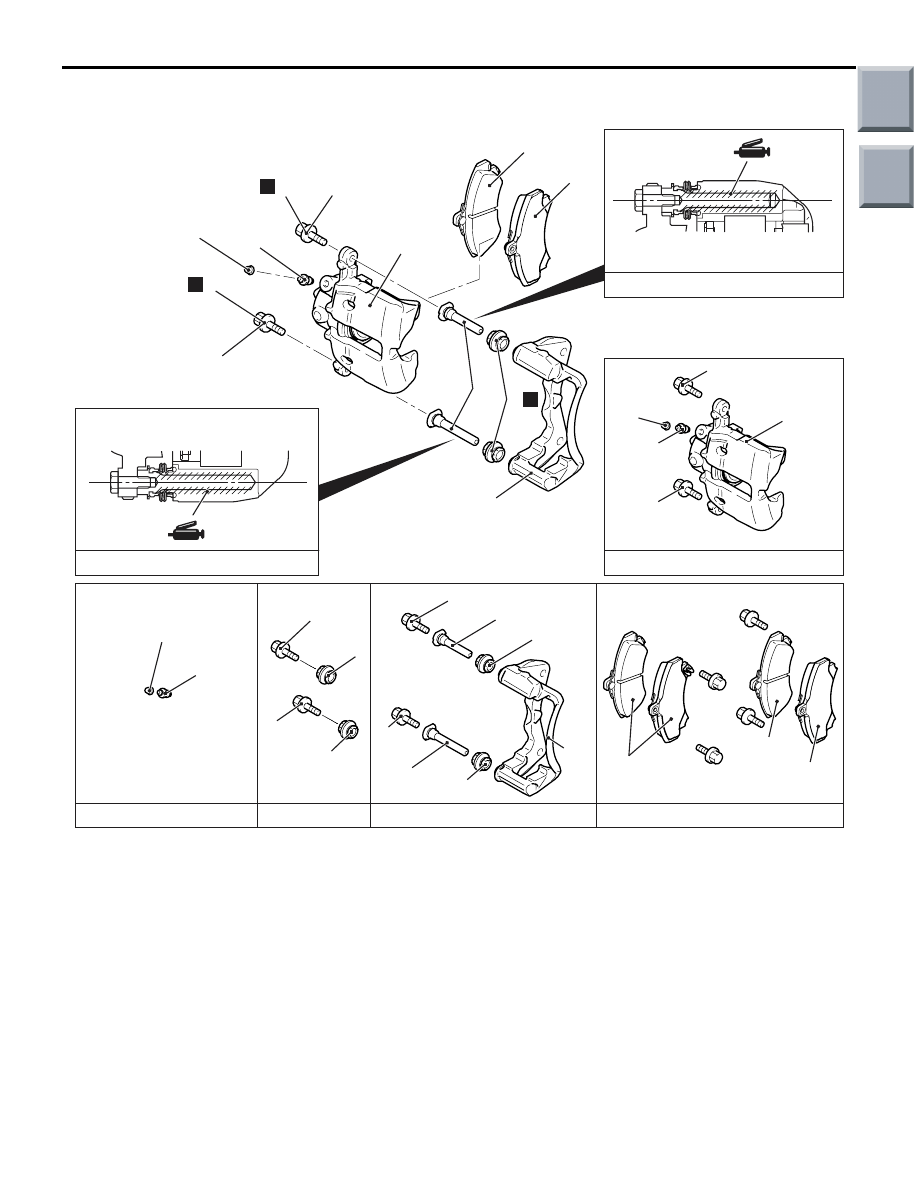

DISASSEMBLY AND REASSEMBLY <15-INCH (RALLIART Version-R)>

M1351006200995

AC601128AC

1

28 ± 2 N·m

1

7

28 ± 2 N·m

9

8

3

4

2

6

5

4

3

4

6

5

1

7

1

1

9

8

6

5

1

2

6

1

6

1

9

8

N

N

N

Grease: Niglube RM

Grease: Niglube RM

Caliper support kit

Caliper body kit

Pad set

Boot kit

Bleeder & cap kit

Disassembly steps

1. Bolt
2. Caliper support
3. Pad and wear indicator assembly
4. Pad assembly
5. Guide pin

6. Boot
7. Caliper body
8. Bleeder cap
9. Bleed screw

Disassembly steps (Continued)

Main

Index

Group

TOC

FRONT DISC BRAKE ASSEMBLY

BASIC BRAKE SYSTEM

35A-40

INSPECTION

M1351006300624

• Check the cylinder for wear, damage or rust.

• Check the piston surface for wear, damage or

rust.

• Check the caliper body or sleeve for wear.

• Check the pad for damage or adhesion of grease,

check the backing metal for damage.

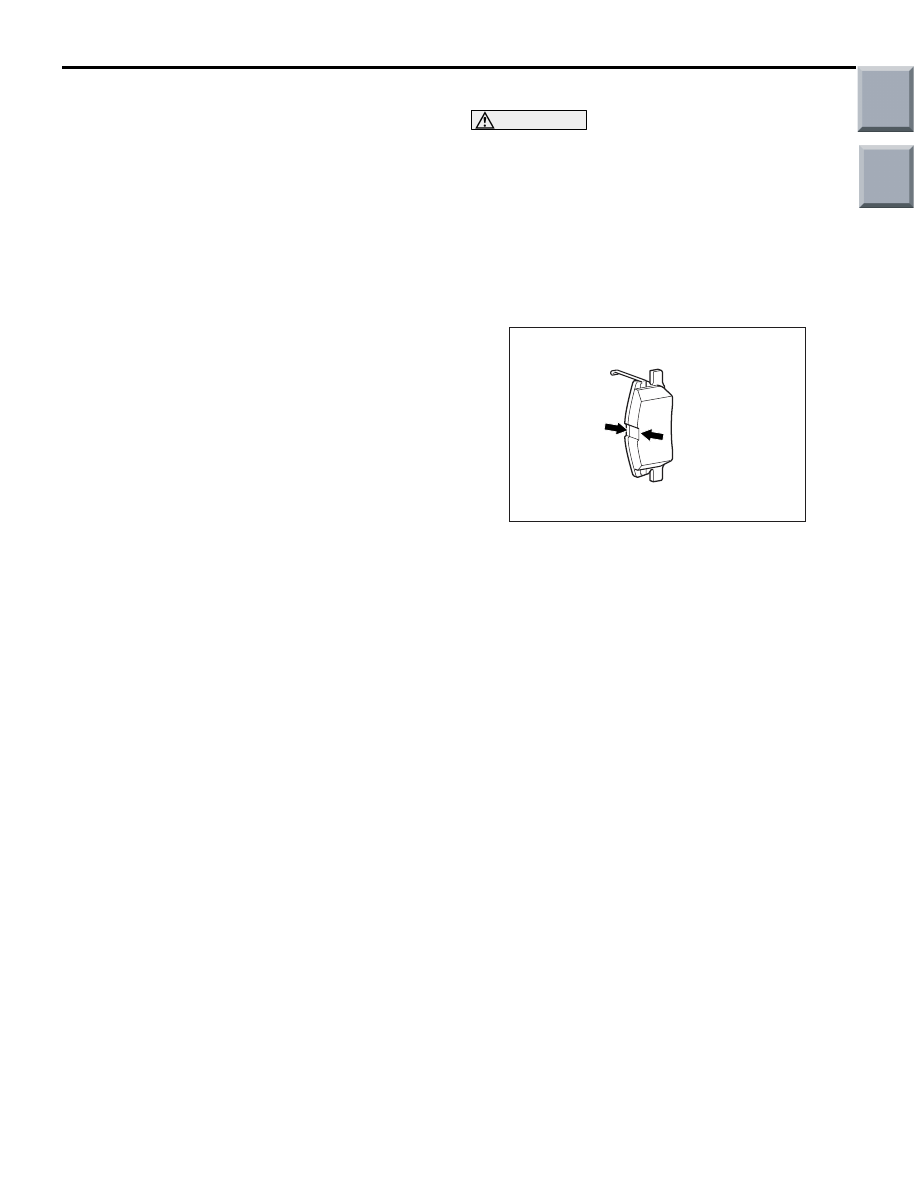

PAD WEAR CHECK

WARNING

•

Always replace both brake pads on each
wheel as a set (both front wheels or both
rear wheels). Failure to do so will result in
uneven braking, which may cause unrelia-
ble brake operation.

•

AC209106

If there is significant difference in the
thickness of the pads on the left and right
sides, check the sliding condition of the
piston and slide pins.

1. Measure thickness at the thinnest and most worn

area of the pad.

Standard value:

<LS, VR, VR-X>: 10.0 mm
<RALLIART Version-R>: 10.5 mm

Minimum limit:

<LS, VR, VR-X>: 2.0 mm
<RALLIART Version-R>: 1.5 mm

2. Replace the pad assembly if pad thickness is less

than the limit value.

Main

Index

Group

TOC

REAR DISC BRAKE ASSEMBLY <VR-X, RALLIART Version-R>

BASIC BRAKE SYSTEM

35A-41

REAR DISC BRAKE ASSEMBLY <VR-X, RALLIART

Version-R>

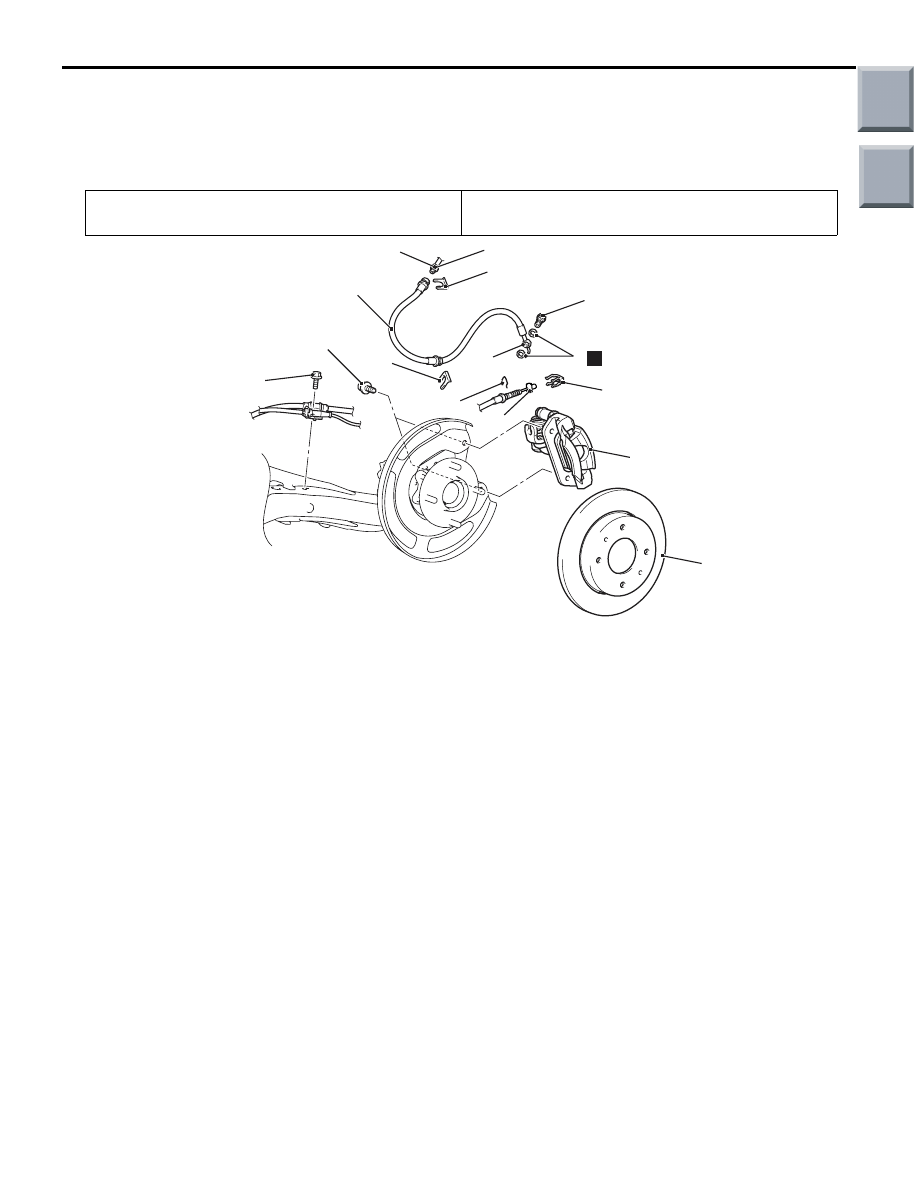

REMOVAL AND INSTALLATION <VR-X>

M1351007000637

Pre-removal Operation
Brake fluid draining

Post-installation Operation
Brake fluid refilling and air bleeding (Refer to

P.35A-10

).

AC403305AB

5

15 ± 2 N·m

6

8

5

9

1

2

4

3

10

7

30 ± 5 N·m

60 ± 5 N·m

N

11

Removal steps

1.

Clip

2.

Cable retainer

3.

Bolt

4.

Connection between parking brake
rear cable and rear brake caliper
assembly

5.

Clip

6.

Connection between brake pipe
and brake hose

7.

Connection between brake hose
and rear brake caliper assembly

8.

Brake hose

9.

Gasket

>>

A

<<

10. Rear brake caliper assembly

<<

A

>>

11. Rear brake disc

Removal steps (Continued)
