Mitsubishi Colt Ralliart. Manual - part 213





TROUBLESHOOTING

WHEEL AND TYRE

31-7

WHEEL BALANCER CALIBRATION
CHECKING FLOW CHART

AC502720AB

Balance wheel.

Rotate wheel 1/2 turn.

Imbalance = 5 g or less

Imbalance = more than 5 g

Rebalance wheel.

Rotate wheel 1/4 turn.

Imbalance = 5 g or less

Imbalance = more than 5 g

Verify wheel is properly centred.
Verify cones, cup, and wing nut are clean,
undamaged, and appropriate for wheel.
Make necessary corrections, then recheck
wheel balance.

Attach a 5 g weight to the outer rim.
Is the imbalance 5 ± 2 g at 170 – 190˚ away from the
5 g weight?

YES

NO

Attach a 5 g weight to the inner rim at 180˚ opposite
the weight on the outer rim.
Is the imbalance 5 ± 2 g at 170 – 190˚ away from
both 5 g weights?

YES

NO

Balancer does not require
calibration.

Balancer requires calibration.
Contact balancer manufacturer.

ZERO CALIBRATION
CHECK

STATIC BALANCE
CHECK

DYNAMIC BALANCE
CHECK

Main

Index

Group

TOC

ON-VEHICLE SERVICE

WHEEL AND TYRE

31-8

ON-VEHICLE SERVICE

TYRE INFLATION PRESSURE CHECK

M1311000900475

NOTE: For information on tyre inflation pressure,
refer to the label attached to the centre pillar on the
driver's side.

TYRE WEAR CHECK

M1311001000538

Measure the tread depth of the tyres.

Minimum limit: 1.6 mm

If the remaining tread depth is less than the minimum
limit, replace the tyre.
NOTE: When the tread depth of the tyres is reduced
to 1.6 mm  or less, wear indicators will appear.

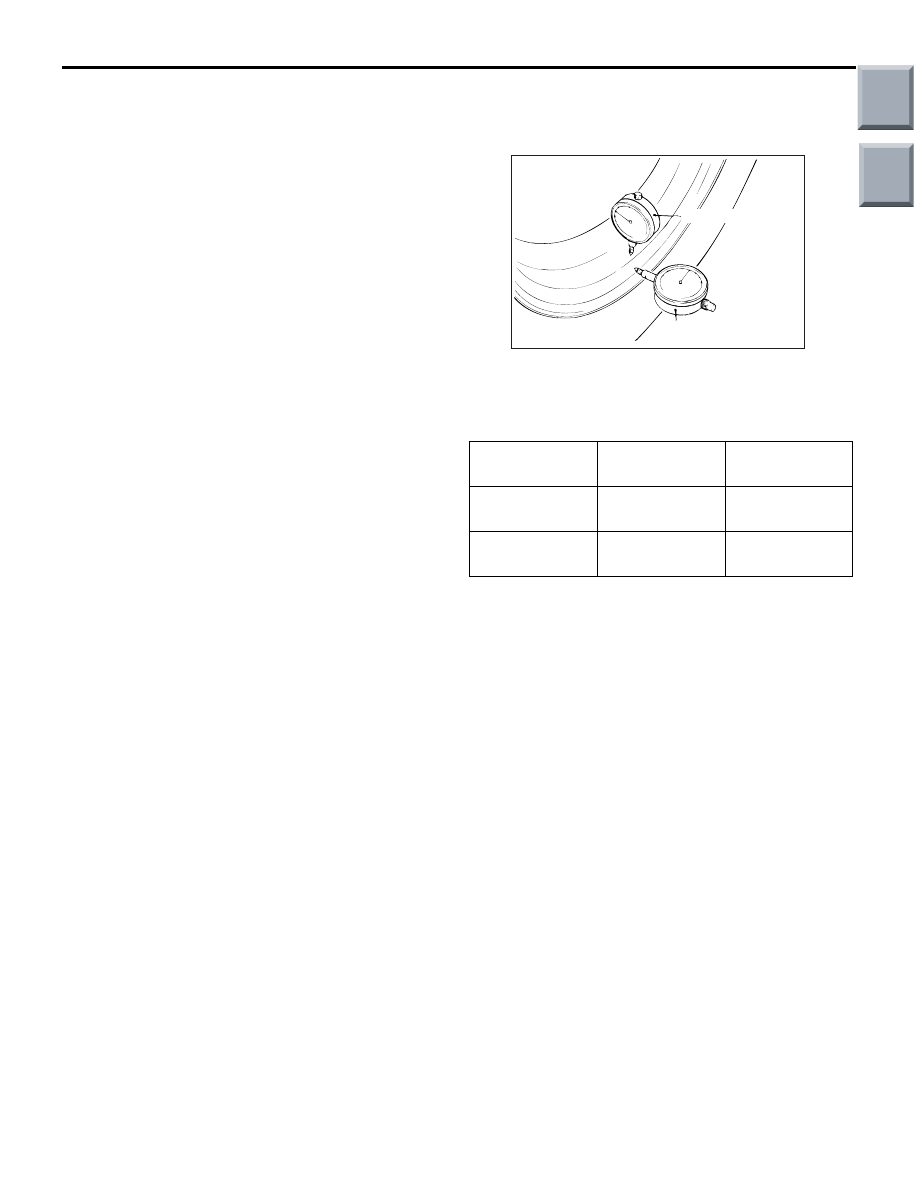

WHEEL RUNOUT CHECK

M1311001100524

ACX00651AB

Lateral

Radial

Jack up the vehicle so that the wheels are clear of
the floor. While slowly turning the wheel, measure
wheel runout with a dial indicator.
LIMIT:

Item

Steel wheel

Aluminium
wheel

Radial runout
mm

1.2

1.0

Lateral runout
mm

1.2

1.0

If wheel runout exceeds the limit, replace the wheel.

WHEEL AND TYRE

INSTALLATION SERVICE POINT

M1311001300432

Tighten the wheel nuts to the specified torque.

Tightening torque: 98

± 10 Nm

Main

Index

Group

TOC

GROUP 35

SERVICE BRAKES

CONTENTS

ANTI-SKID BRAKING SYSTEM (ABS)  . . . . . . . . . . . . . . . . . . .

35A

BASIC BRAKE SYSTEM  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35B

ACTIVE STABILITY CONTROL SYSTEM (ASC). . . . . . . . . . . .

35C

Main

Index

GROUP 35A

BASIC BRAKE

SYSTEM

CONTENTS

GENERAL INFORMATION . . . . . . . .

35A-2

SERVICE SPECIFICATIONS. . . . . . .

35A-4

LUBRICANTS  . . . . . . . . . . . . . . . . . .

35A-5

SPECIAL TOOLS. . . . . . . . . . . . . . . .

35A-6

ON-VEHICLE SERVICE. . . . . . . . . . .

35A-7

BRAKE PEDAL CHECK AND



ADJUSTMENT  . . . . . . . . . . . . . . . . . . . . . .

35A-7

BRAKE BOOSTER OPERATING TEST . . .

35A-9

CHECK VALVE OPERATION CHECK . . . .

35A-10

BLEEDING  . . . . . . . . . . . . . . . . . . . . . . . . .

35A-10

BRAKE FLUID LEVEL SENSOR CHECK. .

35A-11

DISC BRAKE PAD CHECK AND



REPLACEMENT <EXCEPT FOR



RALLIART VERSION-R> . . . . . . . . . . . . . .

35A-11

DISC BRAKE PAD CHECK AND



REPLACEMENT <RALLIART



VERSION-R>  . . . . . . . . . . . . . . . . . . . . . . .

35A-14

DISC BRAKE ROTOR CHECK. . . . . . . . . .

35A-16

BRAKE LINING THICKNESS CHECK . . . .

35A-18

BRAKE DRUM INSIDE DIAMETER



CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35A-19

BRAKE LINING AND BRAKE DRUM



CONTACT CHECK . . . . . . . . . . . . . . . . . . .

35A-19

BRAKE PEDAL . . . . . . . . . . . . . . . . .

35A-20

REMOVAL AND INSTALLATION <EXCEPT



FOR RALLIART VERSION-R> . . . . . . . . . .

35A-20

REMOVAL AND INSTALLATION



<RALLIART VERSION-R> . . . . . . . . . . . . .

35A-21

INSPECTION <EXCEPT FOR RALLIART
VERSION-R>  . . . . . . . . . . . . . . . . . . . . . . .

35A-22

INSPECTION <RALLIART VERSION-R>. .

35A-22

MASTER CYLINDER ASSEMBLY



AND BRAKE BOOSTER  . . . . . . . . . .

35A-23

REMOVAL AND INSTALLATION  . . . . . . . .

35A-23

FRONT DISC BRAKE ASSEMBLY . .

35A-26

REMOVAL AND INSTALLATION



<14-INCH>  . . . . . . . . . . . . . . . . . . . . . . . . .

35A-26

REMOVAL AND INSTALLATION



<15-INCH (VR-X)>  . . . . . . . . . . . . . . . . . . .

35A-29

REMOVAL AND INSTALLATION



<15-INCH (RALLIART Version-R)> . . . . . . .

35A-31

DISASSEMBLY AND REASSEMBLY



<14-INCH>  . . . . . . . . . . . . . . . . . . . . . . . . .

35A-33

DISASSEMBLY AND REASSEMBLY



<15-INCH (VR-X)>  . . . . . . . . . . . . . . . . . . .

35A-36

DISASSEMBLY AND REASSEMBLY



<15-INCH (RALLIART Version-R)> . . . . . . .

35A-39

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-40

REAR DISC BRAKE ASSEMBLY



<VR-X, RALLIART Version-R> . . . . .

35A-41

REMOVAL AND INSTALLATION



<VR-X> . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35A-41

REMOVAL AND INSTALLATION



<RALLIART VERSION-R>  . . . . . . . . . . . . .

35A-43

DISASSEMBLY AND REASSEMBLY



<VR-X> . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35A-45

DISASSEMBLY AND REASSEMBLY



<RALLIART VERSION-R>  . . . . . . . . . . . . .

35A-48

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35A-49

REAR DRUM BRAKE <LS, VR>  . . . .

35A-50

REAR DRUM BRAKE REMOVAL AND
INSTALLATION . . . . . . . . . . . . . . . . . . . . . .

35A-50

WHEEL CYLINDER. . . . . . . . . . . . . . . . . . .

35A-53
