STABILIZER BAR

FRONT SUSPENSION

33-21

<<C>> FRONT AXLE NO.1
CROSSMEMBER REMOVAL

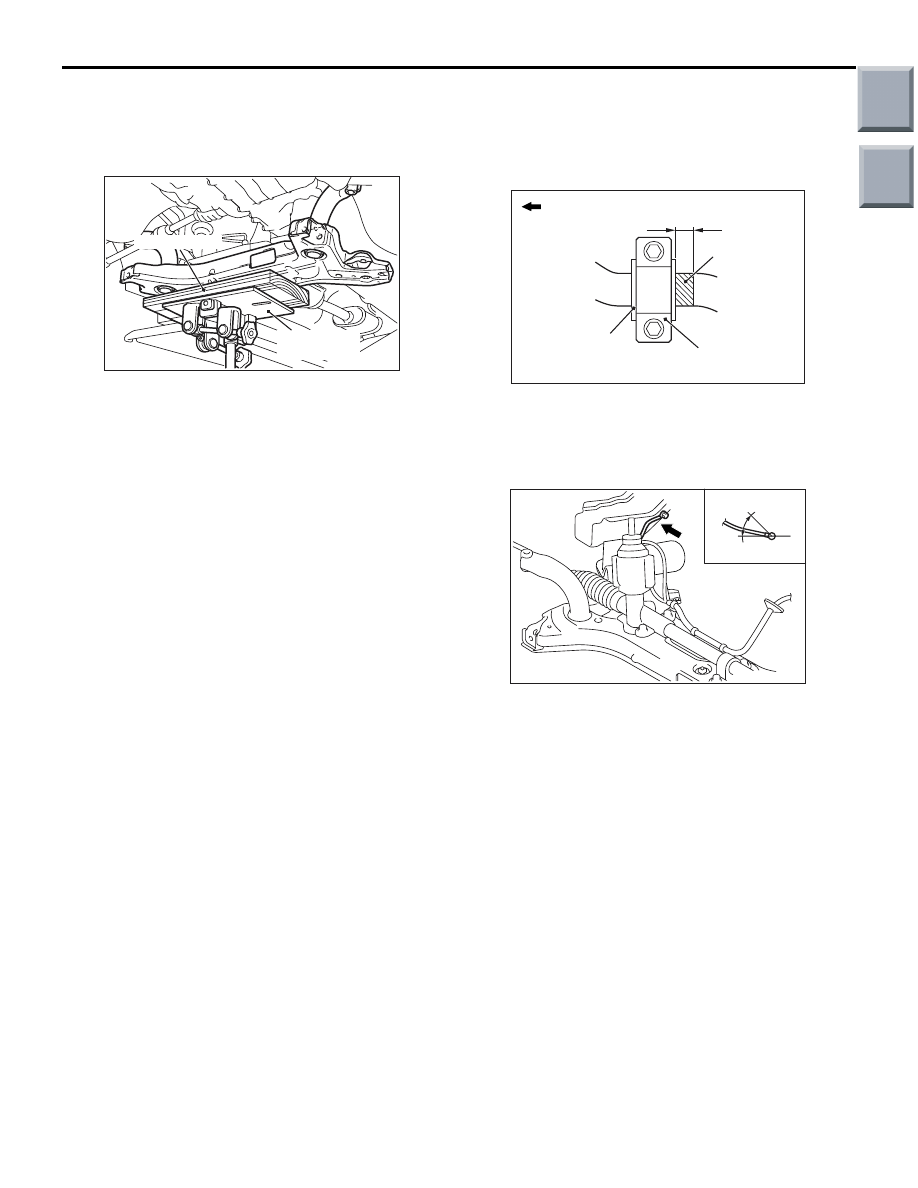

Carry out the works below to gain the clearance
required to remove the stabilizer bar.

AC402971AC

Piece of wood

Transmission
jack

1. Jack up and support the front axle No.1

crossmember assembly with a transmission jack,
and remove the mounting bolts.

2. Lower the front axle No.1 crossmember until the

stabilizer bar can be removed.

INSTALLATION SERVICE POINTS
>>A<< STABILIZER BAR/STABILIZER
BUSHING/STABILIZER BAR BRACKET
INSTALLATION

AC405476 AB

Stabilizer bar
bracket (LH)

Outside of
vehicle

Stabilizer
bushing (LH)

Approximately
10 mm

Identification
mark

Align the stabilizer bar identification mark with the
right end of the stabilizer bushing (LH).

>>B<< STEERING GEAR BOLT (EARTH
BOLT) INSTALLATION

AC403448AB

View A

A

0 to 45˚

Main

Index

Group

TOC

STABILIZER BAR

FRONT SUSPENSION

33-22

>>C<< STEERING GEAR CONNECTOR
(IN-VEHICLE EPS-ECU) INSTALLATION

AC405880 AB

Electric power steering-ECU

Connector

Grommet

Firmly secure the grommet to the body panel and
connect the connector to the Electric power steer-
ing-ECU.

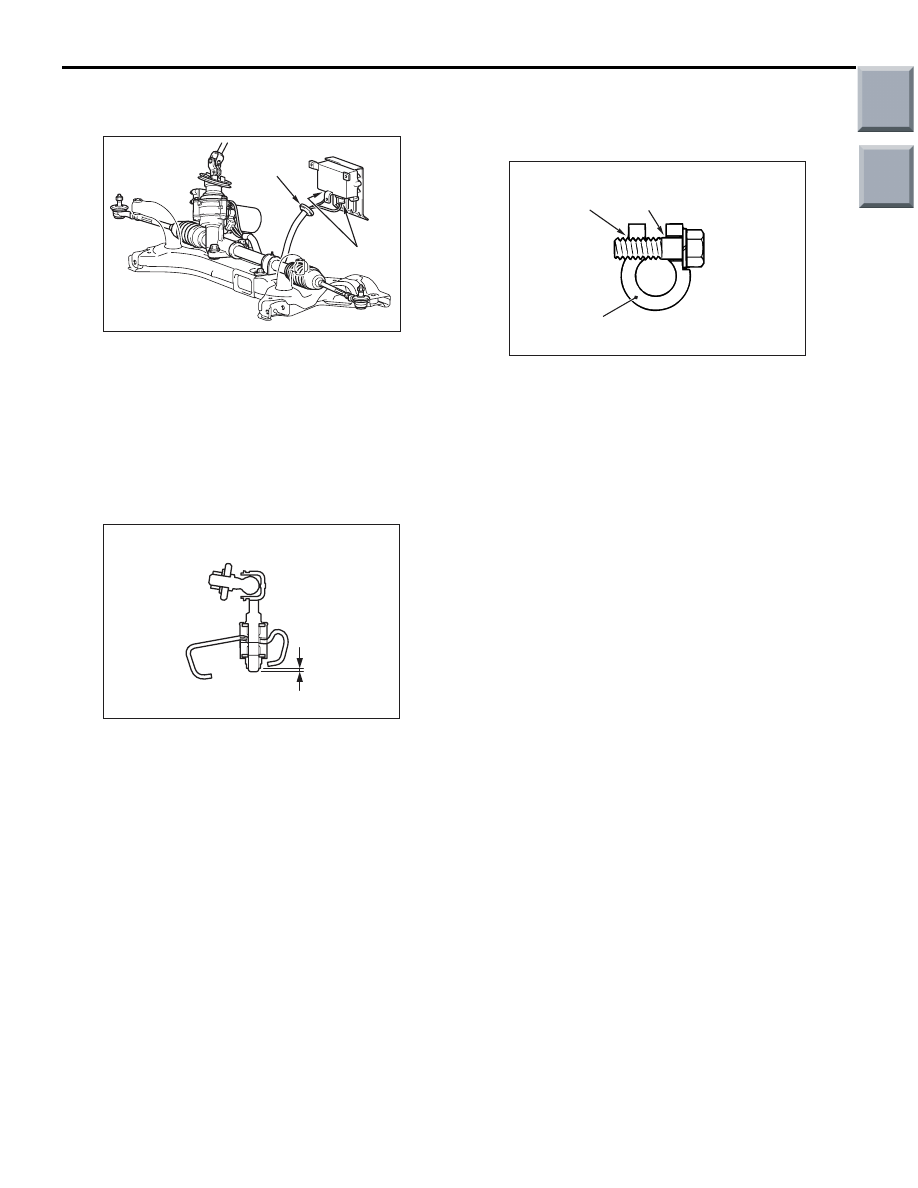

>>D<< STABILIZER LINK
ASSY/STABILIZER
RUBBER/SELF-LOCKING NUT
INSTALLATION

AC402824AB

A

Install the stabilizer rubber as shown in the figure,
and tighten the self-locking nut so that the protrusion
of the stabilizer link assembly is within the standard
value (A).

Standard value (A): 5.5

± 1.5 mm

>>E<< BOLT (STEERING GEAR AND
STEERING COLUMN ASSEMBLY
CONNECTION) INSTALLATION

AC208330 AB

Steering column assembly yoke

Bolt hole
(threaded)

Bolt hole
(non-threaded)

Insert the bolt connecting the steering column
assembly with the steering gear into the
non-threaded bolt hole.

INSPECTION

M1332002000279

• Check the stabilizer rubbers and stabilizer bush-

ings for wear and deterioration.

• Check the stabilizer bar for deterioration or dam-

age.

• Check all bolts for condition and straightness.
