Mitsubishi Colt Ralliart. Manual - part 175

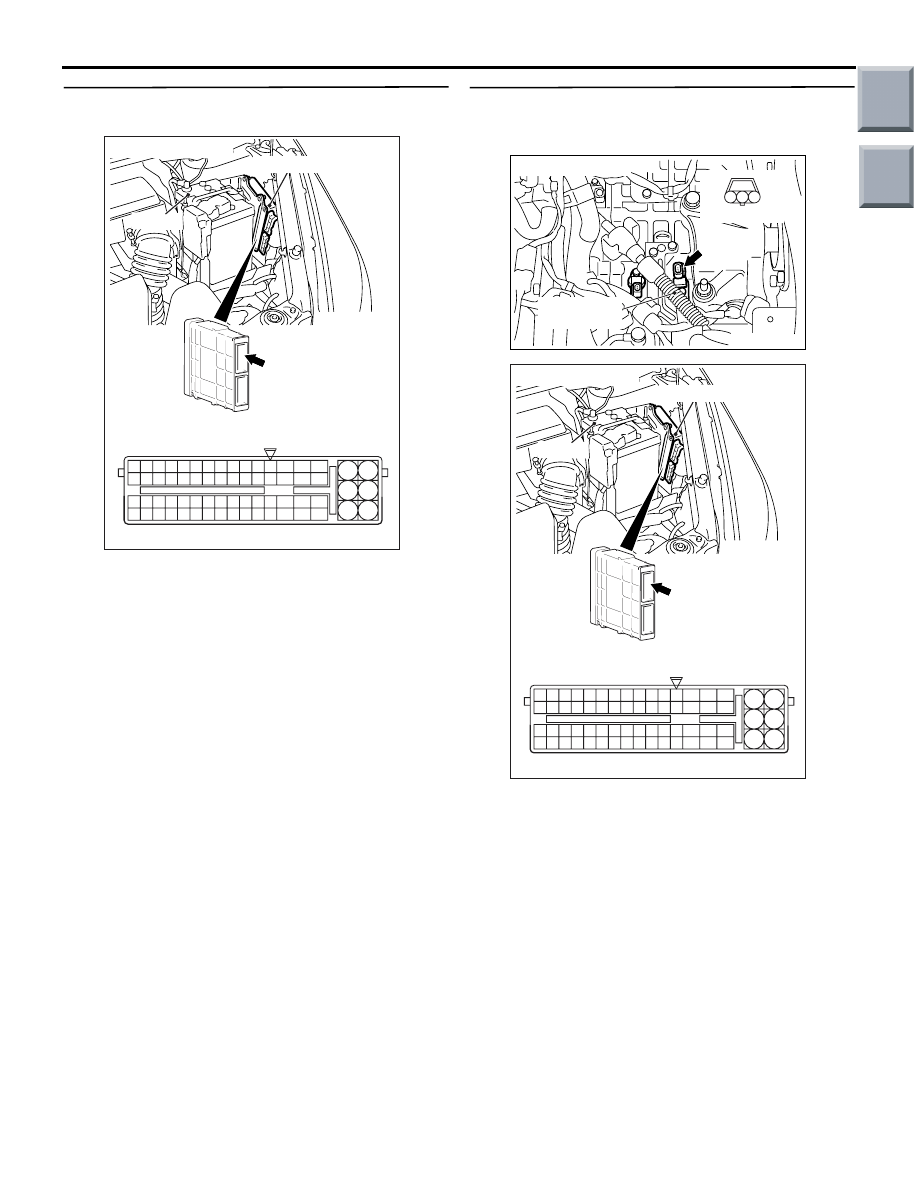

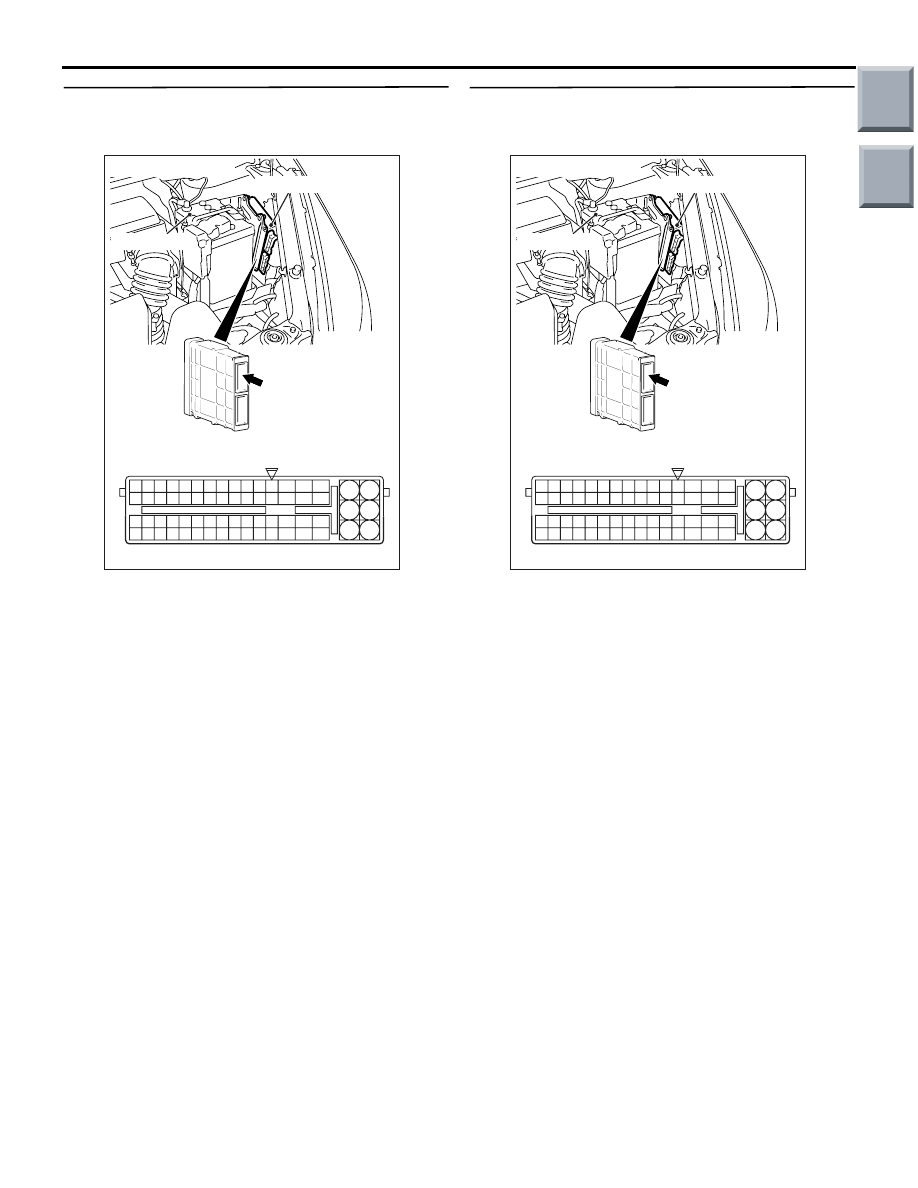

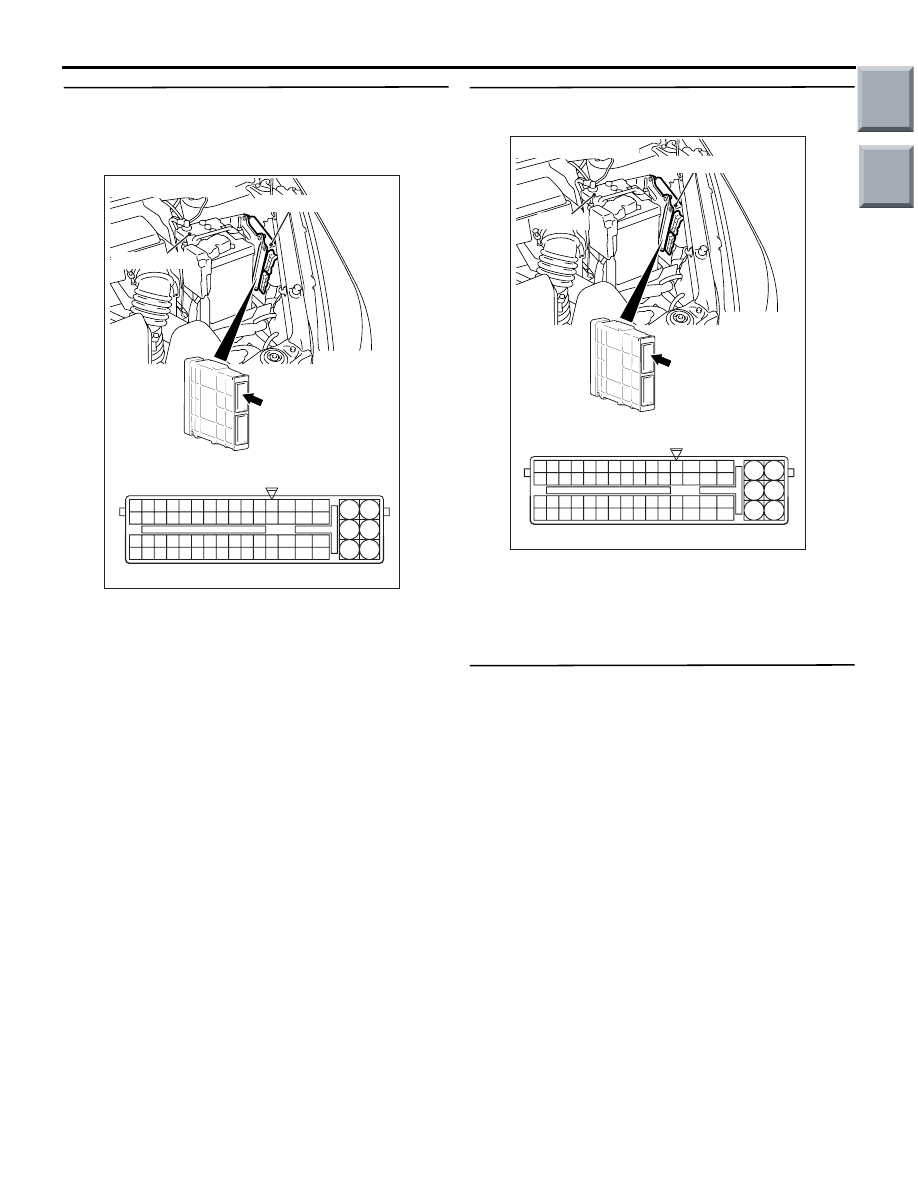

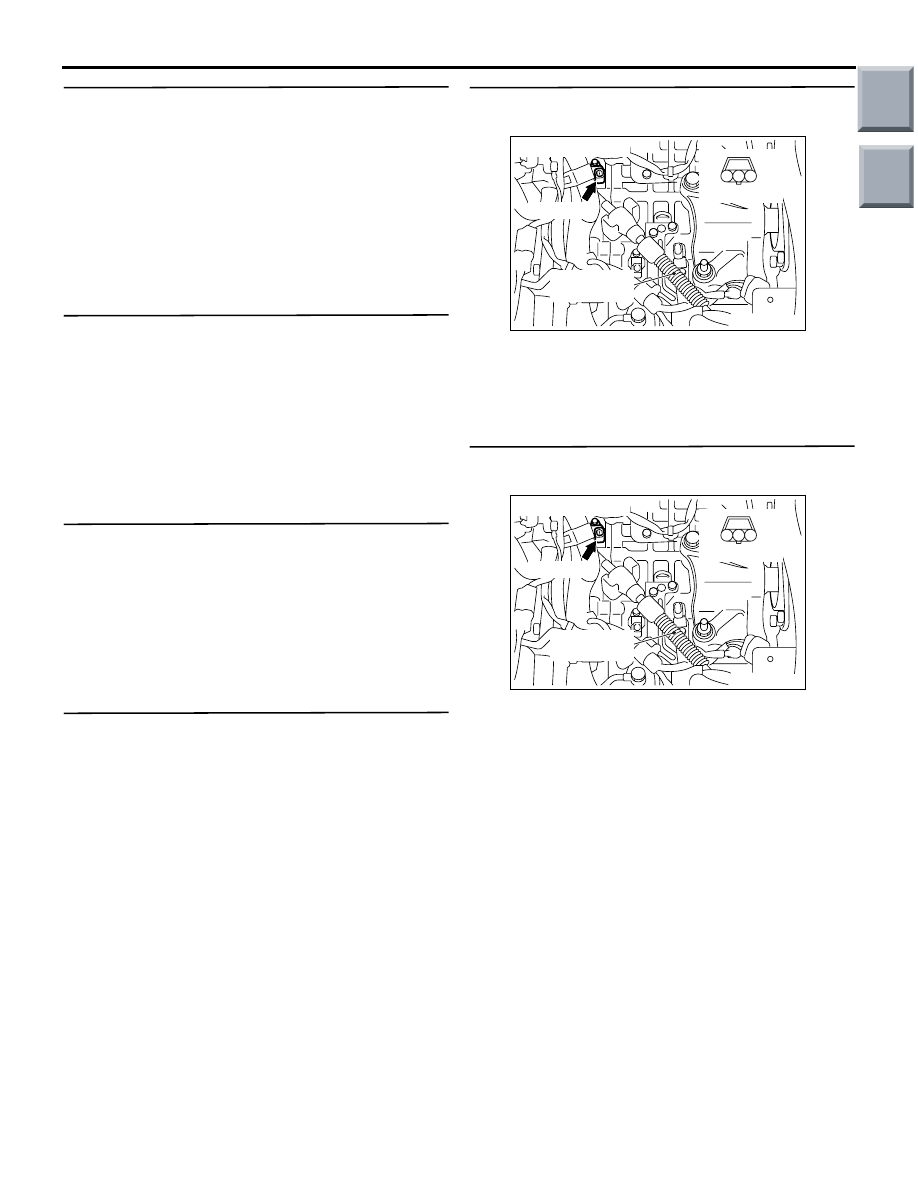

TROUBLESHOOTING <CVT>

CVT

23A-43

STEP 16. Connector check: A-114
engine-CVT-ECU connector.

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

STEP 17. Check the harness between primary
speed sensor connector A-116 terminal No.2 and
engine-CVT-ECU connector A-114 terminal No.43.

AC314200

Connector: A-116

AC

A-116 (B)

Transmission
control cable

Harness side

1

2

3

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check the output line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-44

STEP 18. Measure the output wave pattern of the
primary speed sensor at engine-CVT-ECU
connector A-114 (using an oscilloscope).

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(1) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(2) Shift the selector lever to the D range.
(3) Accelerate the vehicle to approximately 50 km/h.
(4) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.43 and earth.

OK: A wave pattern such as the one
shown on

P.23A-128

 (Check Procedure

Using an Oscilloscope) should be output,
and the maximum value should be 4.8 V
or more and the minimum value should
be 0.6 V or less. There should be no noise
in the output wave pattern.

Q: Is the check result normal?

YES :

Go to Step 19.

NO :

Go to Step 20.

STEP 19. Measure the output wave pattern of the
secondary speed sensor at engine-CVT-ECU
connector A-114 (using an oscilloscope).

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(1) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(2) Shift the selector lever to the D range.
(3) Accelerate the vehicle to approximately 50 km/h.
(4) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.45 and earth.

OK: A wave pattern such as the one
shown on

P.23A-128

 (Check Procedure

Using an Oscilloscope) should be output,
and the maximum value should be 4.8 V
or more and the minimum value should
be 0.6 V or less. There should be no noise
in the output wave pattern.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Eliminate the cause of the noise.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-45

STEP 20. Check the primary speed sensor and
then recheck the diagnosis code.
(1) Remove the primary speed sensor. Wipe any

metallic particles or dirt off the sensor tip.

(2) Install the primary speed sensor and road test the

vehicle.

(3) Check if the diagnosis code is set.

Q: Is diagnosis code set?

YES :

Go to Step 21.

NO :

The inspection is complete.

STEP 21. Replace the primary speed sensor and
then recheck the diagnosis code.
(1) Replace the primary speed sensor. (Refer to

P.23A-155

).

(2) Test drive the vehicle.
(3) Check if the diagnosis code is set.

Q: Is diagnosis code set?

YES :

Go to Step 22.

NO :

The inspection is complete.

STEP 22. Replace the CVT assembly and then
recheck the diagnosis code.
(1) Replace the CVT assembly.
(2) Test drive the vehicle.
(3) Check if the diagnosis code is set.

Q: Is diagnosis code set?

YES :

Eliminate the cause of the noise.

NO :

The inspection is complete.

STEP 23. M.U.T.-III data list
Item 04: Secondary speed sensor (Refer to Data List
Table

P.23A-123

).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Go to Step 24.

STEP 24. Connector check: A-112 secondary
speed sensor connector.

AC314193

Connector: A-112

AC

A-112 (B)

Transmission
control cable

Harness side

1

2

3

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 25.

NO :

Repair the defective connector.

STEP 25. Measure the resistance at secondary
speed sensor connector A-112.

AC314193

Connector: A-112

AC

A-112 (B)

Transmission
control cable

Harness side

1

2

3

Disconnect the connector, and measure the resist-
ance between terminal 1 and earth at the wiring har-
ness side.

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 31.

NO :

Go to Step 26.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-46

STEP 26. Measure the voltage at
engine-CVT-ECU connector A-114.
(1) Connect secondary speed sensor connector

A-112.

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(2) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(3) Turn the ignition switch to the ON position.
(4) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.60 and earth.

OK: 0.5 V or less

Q: Is the check result normal?

YES :

Go to Step 29.

NO :

Go to Step 27.

STEP 27. Connector check: A-114
engine-CVT-ECU connector.

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 28.

NO :

Repair the defective connector.

STEP 28. M.U.T.-III data list
Item 04: Secondary speed sensor (Refer to Data List
Table

P.23A-123

).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-13

).

NO :

Replace the engine-CVT-ECU.
