TROUBLESHOOTING <CVT>

CVT

23A-35

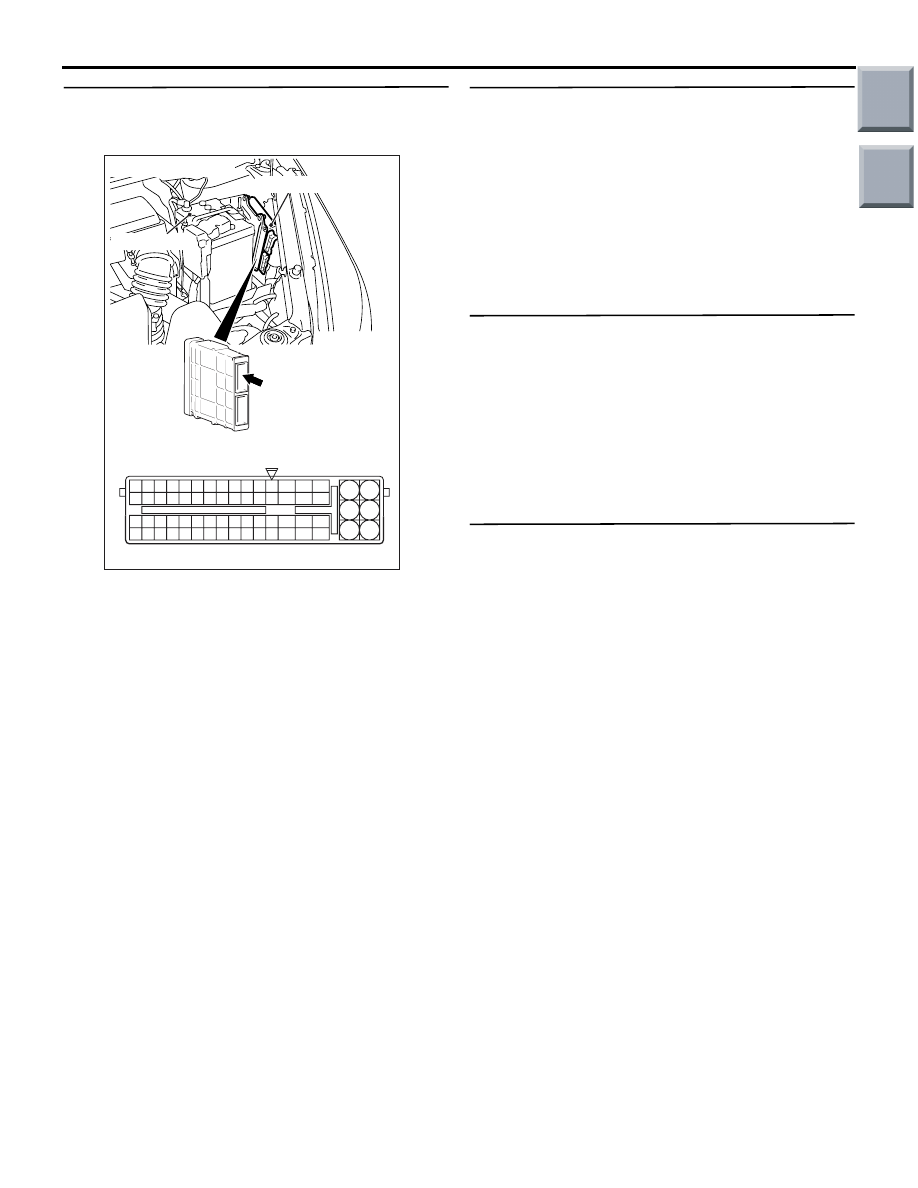

STEP 16. Connector check: A-114
engine-CVT-ECU connector.

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

STEP 17. Check the harness between turbine
speed sensor connector A-120 terminal No.2 and
engine-CVT-ECU connector A-114 terminal No.44.

AC314200

Connector: A-120

AB

A-120 (GR)

Transmission
control cable

Harness side

1

2

3

AC403088AG

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Harness side connector

Engine-CVT-ECU

Battery

(GR)

Check the output line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the wiring harness.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-36

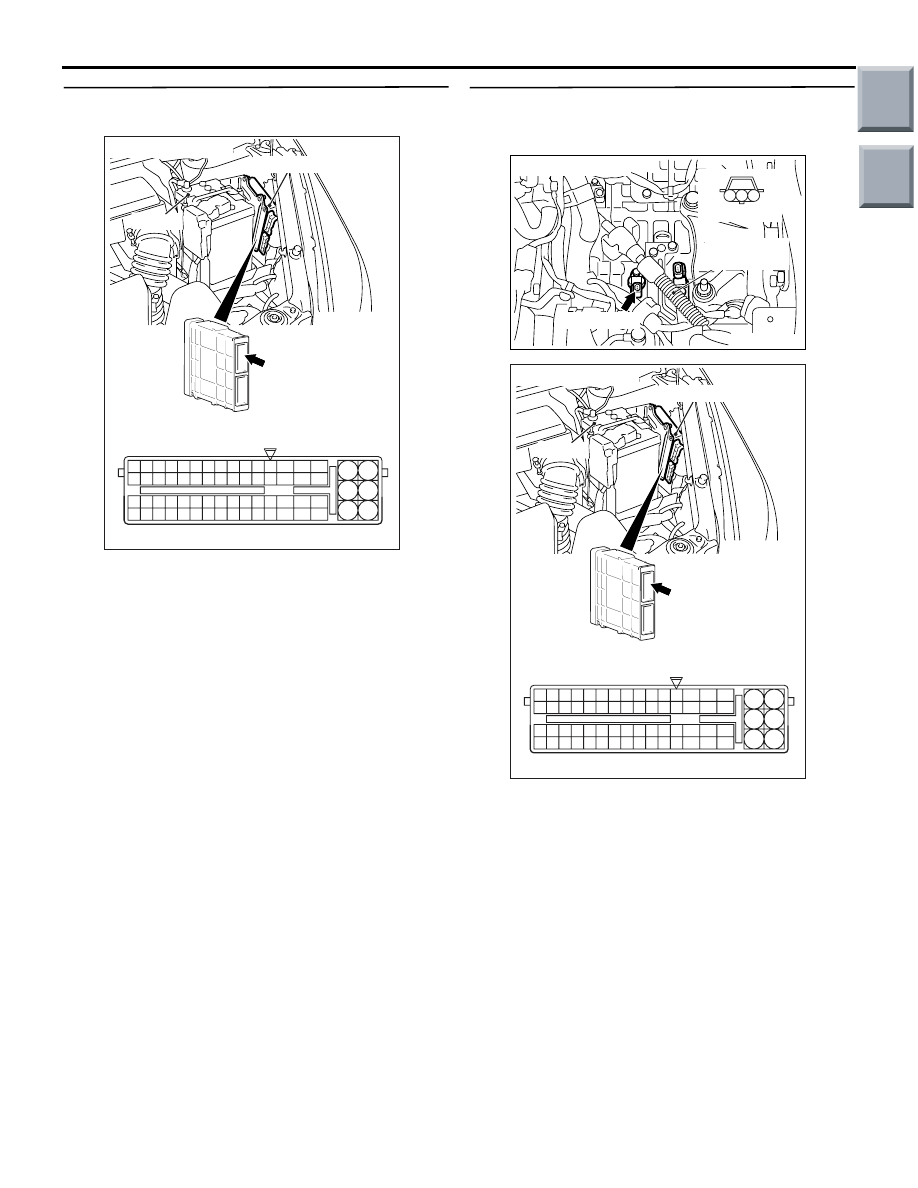

STEP 18. Measure the output wave pattern of the
turbine speed sensor at engine-CVT-ECU
connector A-114 (using an oscilloscope).

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(1) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(2) Shift the selector lever to the D range.
(3) Accelerate the vehicle to approximately 50 km/h.
(4) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.44 and earth.

OK: A wave pattern such as the one
shown on

P.23A-128

 (Check Procedure

Using an Oscilloscope) should be output,
and the maximum value should be 4.8 V
or more and the minimum value should
be 0.6 V or less. There should be no noise
in the output wave pattern.

Q: Is the check result normal?

YES : .

Go to Step 6.

NO : .

Go to Step 19.

STEP 19. Check the turbine speed sensor and
then recheck the diagnosis code.
(1) Remove the turbine speed sensor. Wipe any

metallic particles or dirt off the sensor tip.

(2) Install the turbine speed sensor and road test the

vehicle.

(3) Check if the diagnosis code is set.

Q: Is diagnosis code set?

YES :

Go to Step 20.

NO :

The inspection is complete.

STEP 20. Replace the turbine speed sensor and
then recheck the diagnosis code.
(1) Replace the turbine speed sensor. (Refer to

P.23A-155

).

(2) Test drive the vehicle.
(3) Check if the diagnosis code is set.

Q: Is diagnosis code set?

YES :

Go to Step 21.

NO :

The inspection is complete.

STEP 21. Check the forward clutch retainer.
Visually check the forward clutch retainer for dam-
age.

Q: Is the check result normal?

YES :

Eliminate the cause of the noise.

NO :

Replace the forward clutch retainer (Refer
to GROUP 23B, Forward Clutch

P.23B-31

).

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-37

Code No.23, 26 Primary Speed Sensor System

ENGINE-
CVT-ECU

PRIMARY
SPEED SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

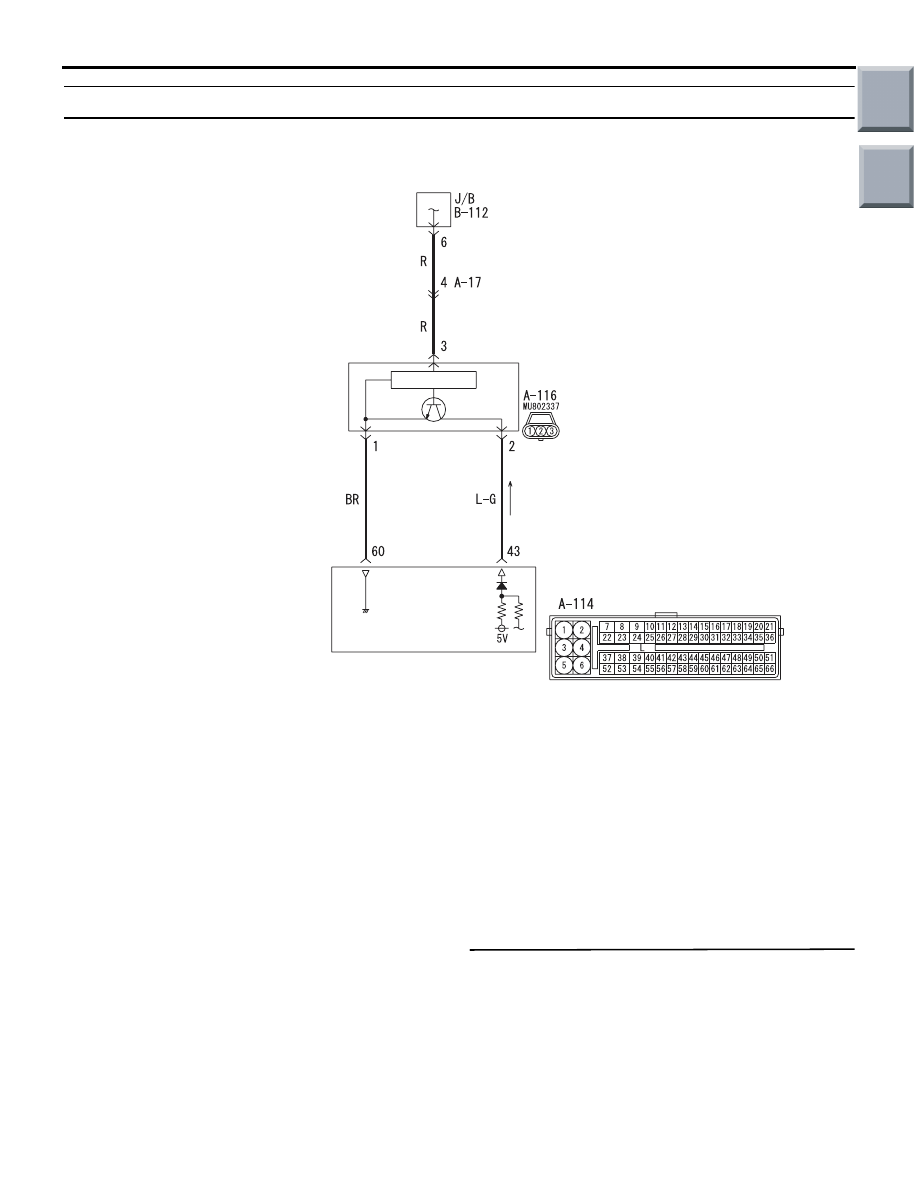

Primary Speed Sensor System Circuit

AC405429

AB

OPERATION

The primary speed sensor detects the primary pulley
speed, and sends the information to the
engine-CVT-ECU.

DIAGNOSIS CODE SET CONDITIONS

• If the primary speed sensor signal is not detected

while the vehicle is being driven (secondary
speed is 600 r/min), code No.23 will be set.

• If the ECU calculates the transmission ratio as

0.4 or less while the vehicle is being driven (nei-
ther primary nor secondary speeds are 0 r/min),
code No.26 will be set.

PROBABLE CAUSES

• Malfunction of primary speed sensor

• Malfunction of secondary speed sensor

• Damaged harness wires and connectors

• Malfunction of the engine-CVT-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list
Item 03: Primary speed sensor (Refer to Data List
Table

P.23A-123

).

Q: Is the check result normal?

YES :

Go to Step 23.

NO :

Go to Step 2.

Main

Index

Group

TOC

TROUBLESHOOTING <CVT>

CVT

23A-38

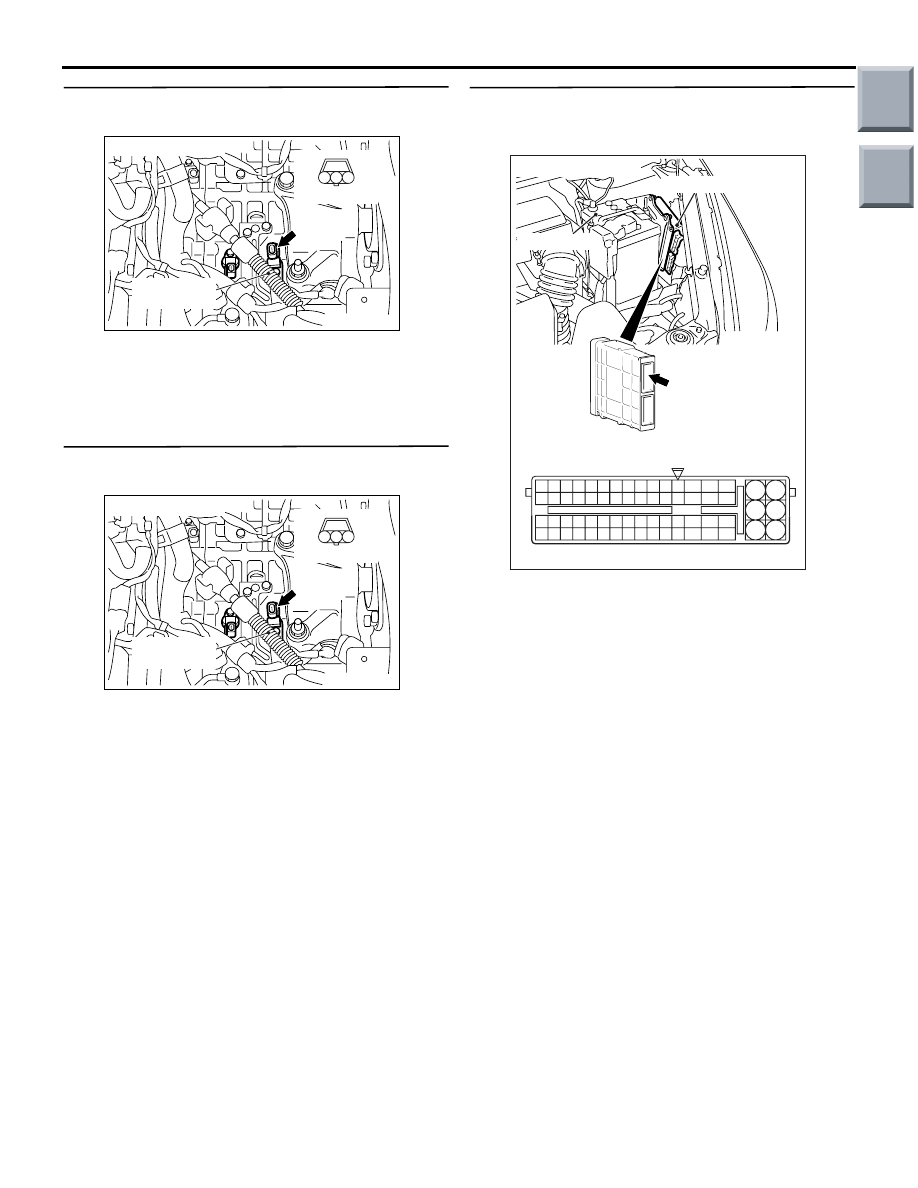

STEP 2. Connector check: A-116 primary speed
sensor connector.

AC314200

Connector: A-116

AC

A-116 (B)

Transmission
control cable

Harness side

1

2

3

Check for the contact with terminals.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Measure the resistance at primary speed
sensor connector A-116.

AC314200

Connector: A-116

AC

A-116 (B)

Transmission
control cable

Harness side

1

2

3

Disconnect the connector, and measure the resist-
ance between terminal 1 and earth at the wiring har-
ness side.

OK: 2

 or less

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 4.

STEP 4. Measure the voltage at engine-CVT-ECU
connector A-114.
(1) Connect primary speed sensor connector A-116.

AC403088AF

A-114

Connector: A-114

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

A-114 Check connector (special tool)

Engine-CVT-ECU

Battery

(GR)

(2) Disconnect the engine-CVT-ECU connector, and

connect the special tool Power plant ECU check
harness (MB991987).

(3) Turn the ignition switch to the ON position.
(4) Use the special tool Check connector to measure

the voltage between engine-CVT-ECU connector
A-114 terminal No.60 and earth.

OK: 0.5 V or less

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 5.
