TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-354

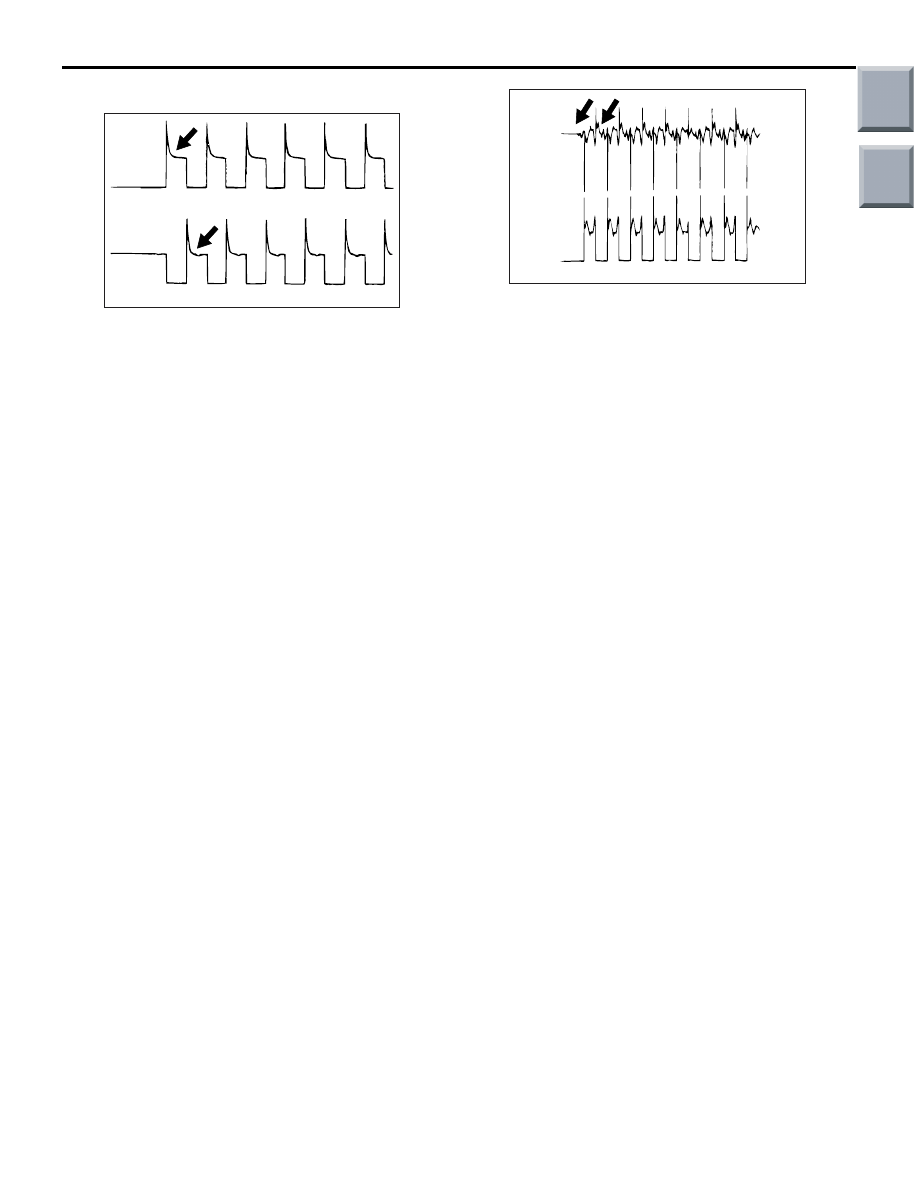

Examples of Abnormal Wave Patterns

Example 1

Cause of problem
Sensor interface malfunction. (Motor is not oper-

ating)

Wave pattern characteristics
Induced electromotive force from the motor turn-

ing dose not appear.

Example 2

Cause of problem
Open circuit in the line between the EGR valve

and the engine-CVT-ECU.

Wave pattern characteristics
Current is not supplied to the motor coil on the

open circuit side. (Voltage dose not drop to 0
V.)

Furthermore, the induced electromotive force

waveform at the normal side is slightly differ-
ent from the normal waveform.

AKX01608AE

AKX01609AF

Open
circuit
side

Normal
side

Main

Index

Group

TOC

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-355

ON-VEHICLE SERVICE

THROTTLE BODY (THROTTLE VALVE
AREA) CLEANING

M1131001001078

CAUTION

When throttle body is cleaned, use the M.U.T.-III
to initialize the learning value  (Refer to GROUP
00, Precautions Before Service

 Initialization

Procedure for Learning Value in MPI Engine

P.00-20

).

1. Remove the air intake hose from the throttle body

assembly.

2. Remove the throttle body assembly.

CAUTION

• Do not spray the cleaning fluid directly to the

throttle valve.

• Make sure the cleaning fluid does not enter

the motor from the bypass line. Also make
sure it does not enter the sensor through the
shaft.

3. Spray cleaning fluid on a clean cloth.
4. Wipe off the dirt around the throttle valve with the

cloth sprayed with cleaning fluid.

5. Install the throttle body assembly.
6. Attach the air intake hose.

FUEL PRESSURE TEST

M1131001901509

1. Release residual pressure from the fuel pipe line

to prevent fuel gush out (Refer to

P.13A-357

).

CAUTION

Cover the hose connection with rags to prevent
splash of fuel that could be caused by some
residual pressure in the fuel pipe line.

2. Disconnect the high-pressure fuel hose at the

delivery pipe side.

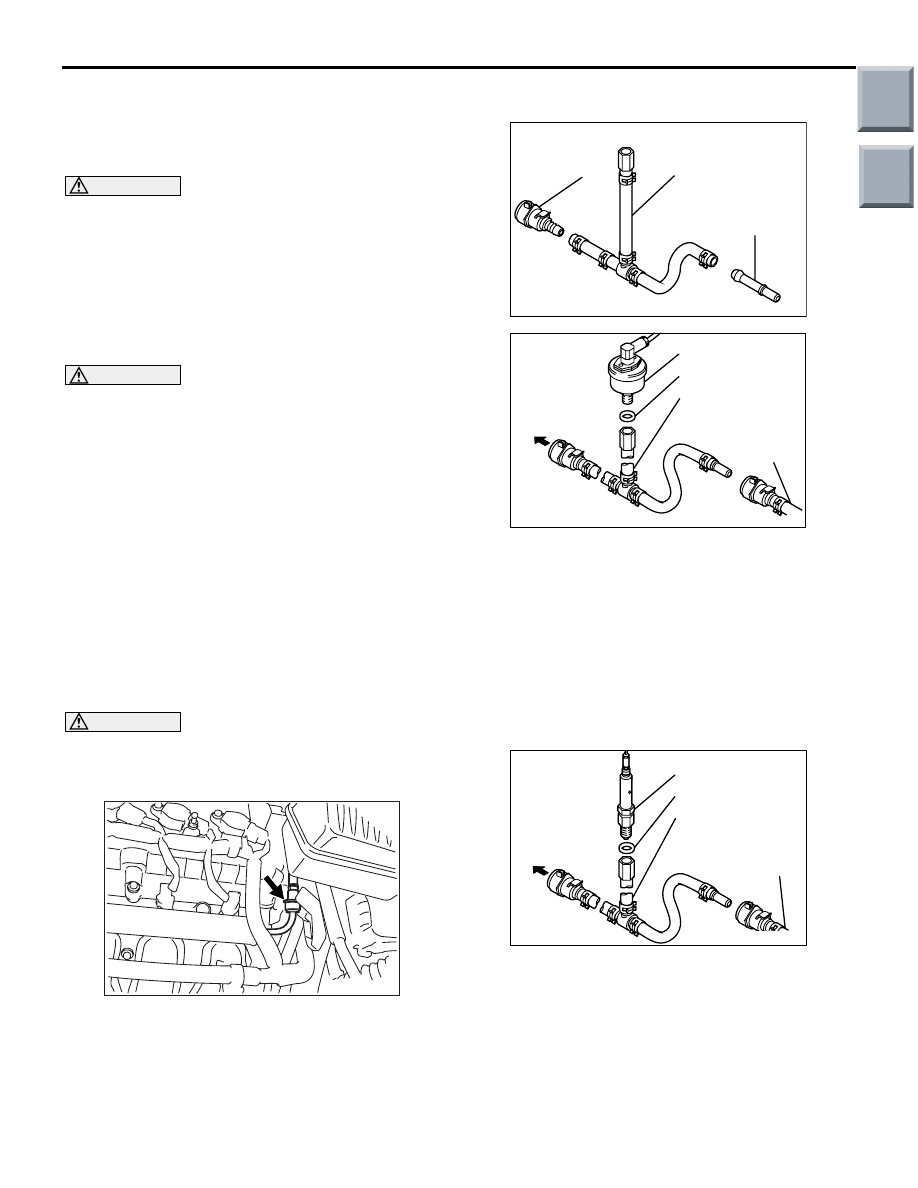

3. Assemble the special tool Injector test set

(MB992076 or MD998706) of special tool as
shown in figure.

a. Remove either the instillation adopter for the

injector or another adopter.

b. Install the special tool quick connector

(MB991990) and the special tool hose adapter
(MB992001) to the hose without the adopter.

4. Assemble the fuel pressure measurement tools

as follows.

<When using the fuel pressure gauge set (special

tool) >

a. Via a gasket, install the special tool fuel pressure

gauge set (MB991637 or MB991981) into the
special tool that has already assembled as
described.

AK402183AC

AK305751AF

MB992076
or
MD998706

MB992001

MB991990

AK305752AF

MB991637

Gasket

MB992076
or
MD998706

Delivery pipe

High-pressure
fuel hose

AK305604

Delivery pipe

High-pressure
fuel hose

MB991981

AG

Gasket

MB992076
or
MD998706

Main

Index

Group

TOC

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-356

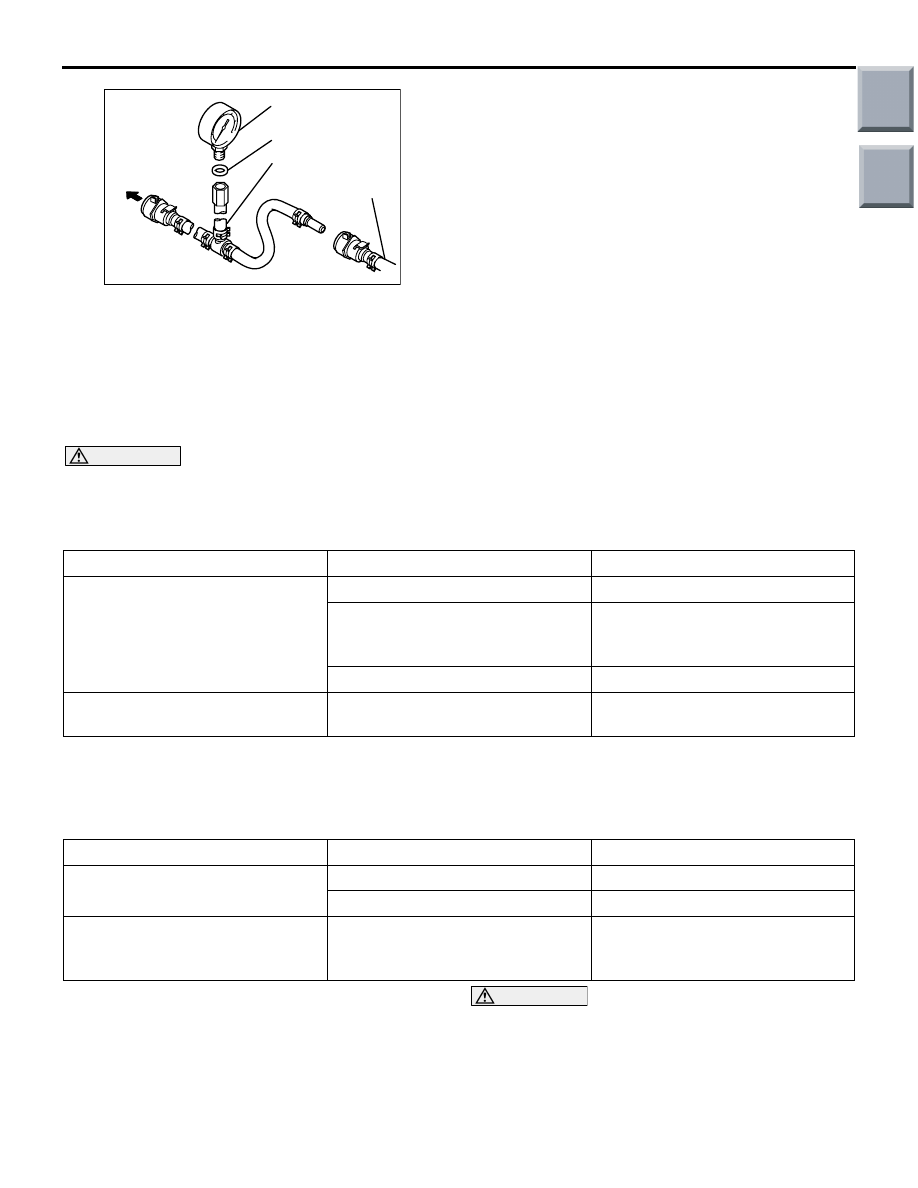

<When using the fuel pressure gauge>

a. Via a suitable O-ring or gasket, install the fuel

pressure gauge to the special tool that has
already assembled as described.

5. Install the assembled fuel pressure measurement

tools between the fuel rail and fuel high-pressure
hose.

CAUTION

To prevent damage to the M.U.T.-III, always turn
the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting the M.U.T.-III.
6. Connect the M.U.T.-III to the diagnosis connector.

7. Turn the ignition switch to "ON" position (But do

not start the engine).

8. Select "Item No. 05" from the M.U.T.-III Actuator

test to drive the fuel pump. Check that there are
no fuel leaks from any parts.

9. Finish the actuator test or turn the ignition switch

to "LOCK" (OFF) position.

10.Start the engine and run at idle.
11.Measure fuel pressure while the engine is running

at idle.

Standard value: Approximately 324 kPa at
curb idle

12.Check to see that fuel pressure at idle does not

drop even after the engine has been raced
several times.

13.If any of fuel pressure measured in steps 10 to 11

is out of specification, troubleshoot and repair
according to the table below.

14.Stop the engine and check change of fuel

pressure gauge reading. Normal if the reading
does not drop within 2 minutes. If it does, observe
the rate of drop and troubleshoot and repair
according to the table below.

15.Release residual pressure from the fuel pipe line

(Refer to

P.13A-357

).

CAUTION

Cover the hose connection with rags to prevent
splash of fuel that could be caused by some
residual pressure in the fuel pipe line.
16.Remove the fuel pressure gauge and special tool

from the delivery pipe.

AK305753

O-ring or gasket

MB992076 or
MD998706

Delivery pipe

High-pressure
fuel hose

Fuel pressure
gauge set

AG

Symptom

Probable cause

Remedy

• Fuel pressure too low

• Fuel pressure drops after racing

Clogged fuel filter

Replace fuel filter

Fuel leaking to return side due to
poor fuel regulator valve seating or
settled spring

Replace fuel pressure regulator

Low fuel pump delivery pressure

Replace fuel pump

Fuel pressure too high

Binding valve in fuel pressure
regulator

Replace fuel pressure regulator

Symptom

Probable cause

Remedy

Fuel pressure drops gradually after
engine is stopped

Leaky injector

Replace injector

Leaky fuel regulator valve seat

Replace fuel pressure regulator

Fuel pressure drops sharply
immediately after engine is
stopped

Check valve in fuel pump is held
open

Replace fuel pump

Main

Index

Group

TOC

ON-VEHICLE SERVICE

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-357

17.Fit the fuel high pressure hose over the delivery

pipe and tighten.

18.Check for any fuel leaks by following the

procedure in step 7.

19.Disconnect the M.U.T.-III.

FUEL PUMP CONNECTOR
DISCONNECTION (HOW TO REDUCE
PRESSURIZED FUEL LINES)

M1131000900837

WARNING

When removing the fuel pipe, etc., release
fuel pressure to prevent fuel spray.

1. Lift up the rear seat assembly.

CAUTION

Moulding type of floor carpet is used. Be careful
not to change the shape of carpet when turning it
over for operation.
2. Remove the rear scuff plate, and turn over the

floor carpet. (Refer to GROUP 52A, Interior Trims

P.52A-11

).

3. Remove the service hole cover.

4. Disconnect the fuel tank pump and gauge

assembly connector.

5. Crank the engine for at least two seconds.

6. If the engine is not started, turn the ignition switch

to the "LOCK" (OFF) position.

7. If the engine is started, turn the ignition switch to

the "LOCK" (OFF) position after the engine
stopped.

8. Connect the fuel tank pump and gauge assembly

connector.

9. Install the service hole cover.
10.Return the floor carpet to the original state, and

install the rear scuff plate. (Refer to GROUP 52A,
Interior Trims

P.52A-11

).

11.Return the rear seat assembly to the original

state.

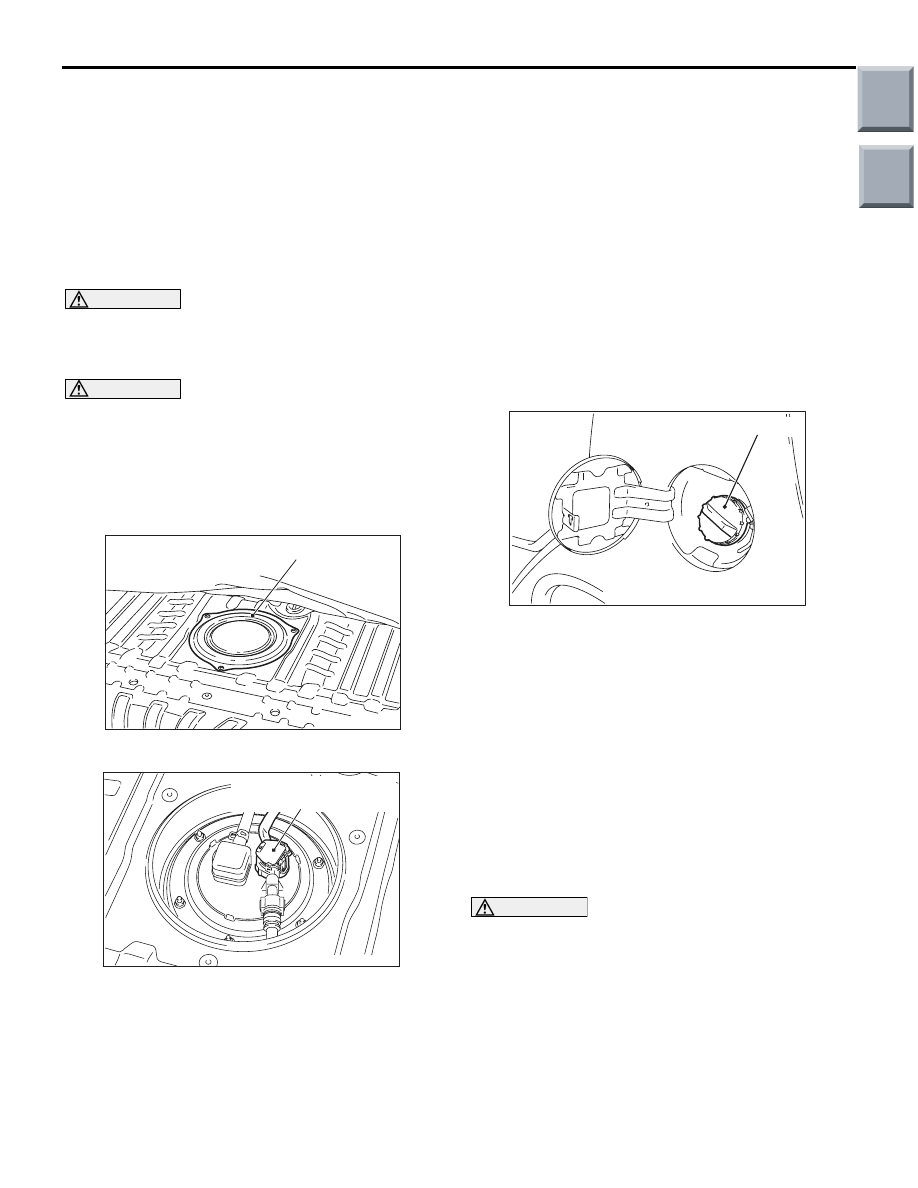

FUEL TANK PUMP OPERATION CHECK

M1131002001491

1. Remove the fuel tank cap.

NOTE: As the fuel tank pump is an in-tank type,
the fuel tank pump sound is hard to hear. Then
check the sound from the tank inlet.

2. Check the operating of the fuel tank pump by

M.U.T.-III to force-drive the fuel tank pump.

3. Install the fuel tank cap.
4. If the fuel tank pump will not operate, check by

using the following procedure. If normal, check
the fuel tank pump drive circuit.
(1) Turn the ignition switch to the "LOCK" (OFF)

position.

(2) Lift up the rear seat assembly.

CAUTION

Moulding type of floor carpet is used. Be careful
not to change the shape of carpet when turning it
over for operation.

(3) Remove the rear scuff plate, and turn over the

floor carpet. (Refer to GROUP 52A, Interior
Trims

P.52A-11

).

AC207365AD

Service hole cover

AC400103AB

Fuel tank pump and
gauge assembly connector

AC207379AD

Fuel tank cap
