TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-90

OPERATION

• Power is supplied to the injector (terminal No. 1)

from the engine control relay (terminal No. 4).

• The engine-ECU <M/T> or engine-CVT-ECU

<CVT> (terminal No. 8) makes the power transis-
tor in the unit be in ON position, and that makes
currents go on the injector (terminal No. 2).

FUNCTION

• The engine-ECU <M/T> or engine-CVT-ECU

<CVT> controls the power supply interval of the
injector.

• The fuel injection amount of the injector depends

on the power supply interval.

TROUBLE JUDGMENT

Check Conditions

• Engine speed is between 50 and 1000 r/min.

• Throttle position sensor (main) output is 1.0 V or

less.

• Injector operation (by carrying out actuator test)

is not in progress.

Judgment Criterion

• Injector coil surge voltage (battery positive volt-

age +2 V) has not been detected for 4 seconds.

PROBABLE CAUSES

• Failed No. 1 injector

• Open/short circuit in No. 1 injector circuit or loose

connector contact

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III actuator test

• Item 01: No. 1 injector

OK: Idling state varies.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Go to Step 2 .

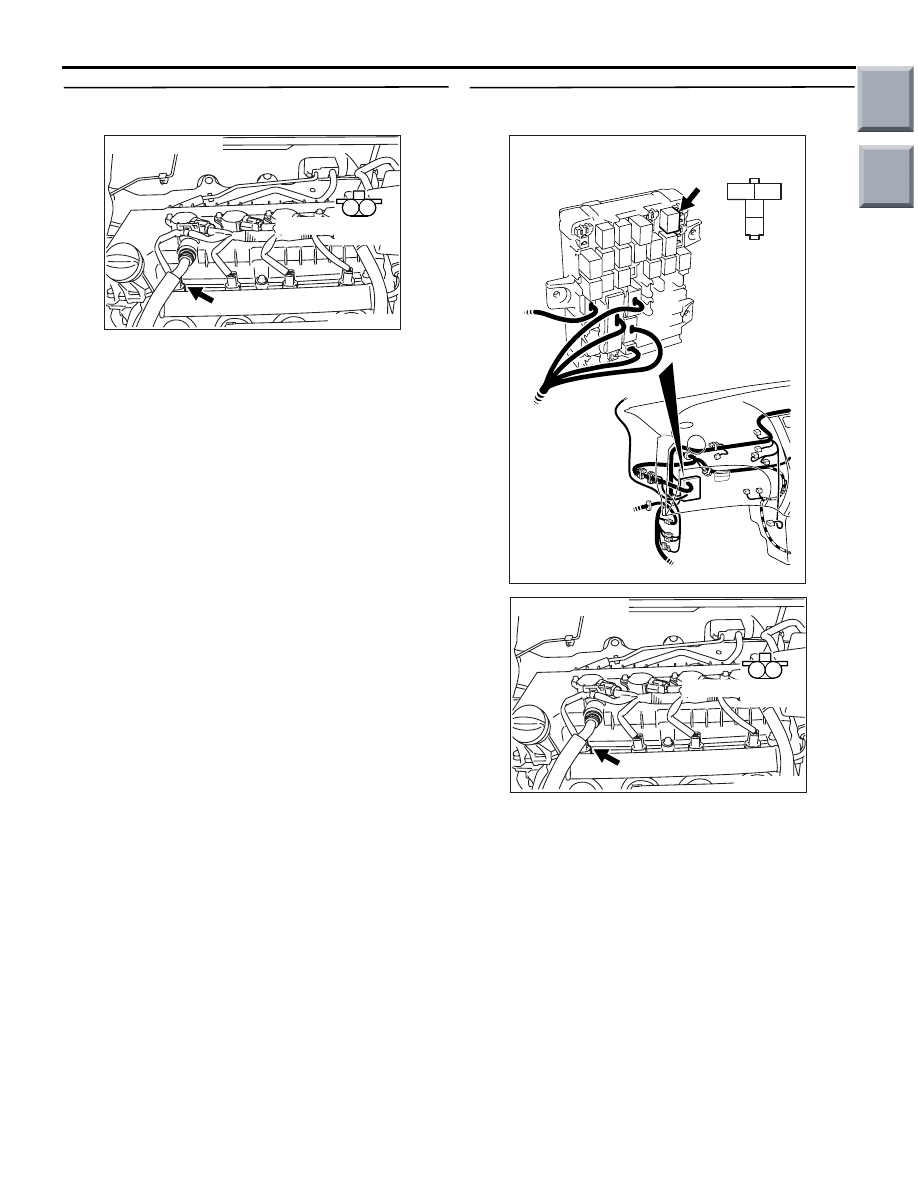

STEP 2. Connector check: A-102 No. 1 injector
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at
A-102 No. 1 injector connector.

• Disconnect connector, and measure at injector

side.

• Resistance between terminal No. 1 and No. 2.

OK: 14

− 15 Ω (at 20°C)

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace No. 1 injector.

AK402147

M

1

2

A-102 (G)

Connector: A-102

AC

A-102 Harness side

connector

AK402164

1 2

A-102 (G)

Connector: A-102

AC

A-102 Equipment side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-91

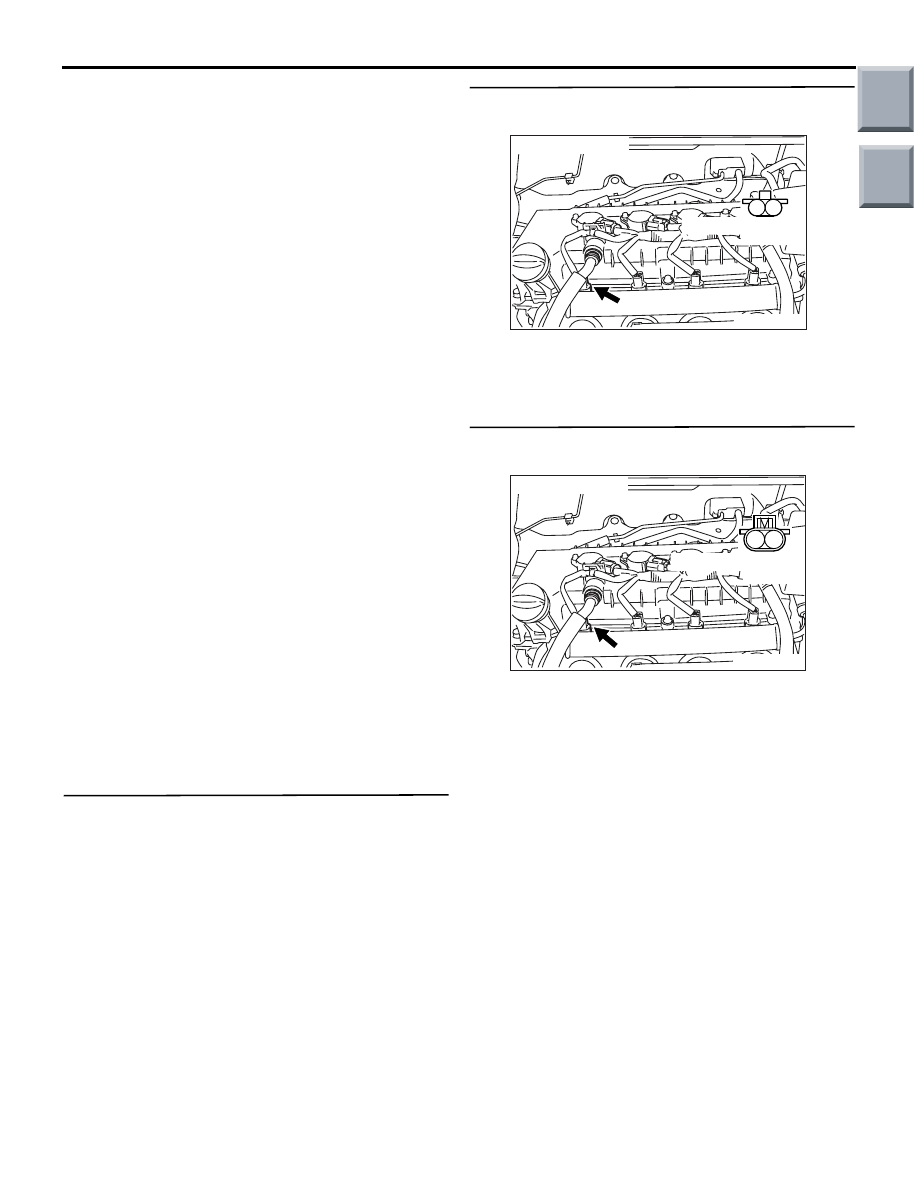

STEP 4. Perform voltage measurement at A-102
No. 1 injector connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Go to Step 5 .

STEP 5. Connector check: B-106 engine control
relay connector

Q: Is the check result normal?

YES :

Check intermediate connector A-17 and

B-112, and repair if necessary. If
intermediate connectors are normal, check
and repair harness between B-106 (terminal
No. 4) engine control relay connector and
A-102 (terminal No. 1) No. 1 injector
connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace the connector.

AK402147

M

1

2

A-102 (G)

Connector: A-102

AC

A-102 Harness side

connector

3

2

1

4

AK402060

B-106
J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402147

M

1

2

A-102 (G)

Connector: A-102

AC

A-102 Harness side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-92

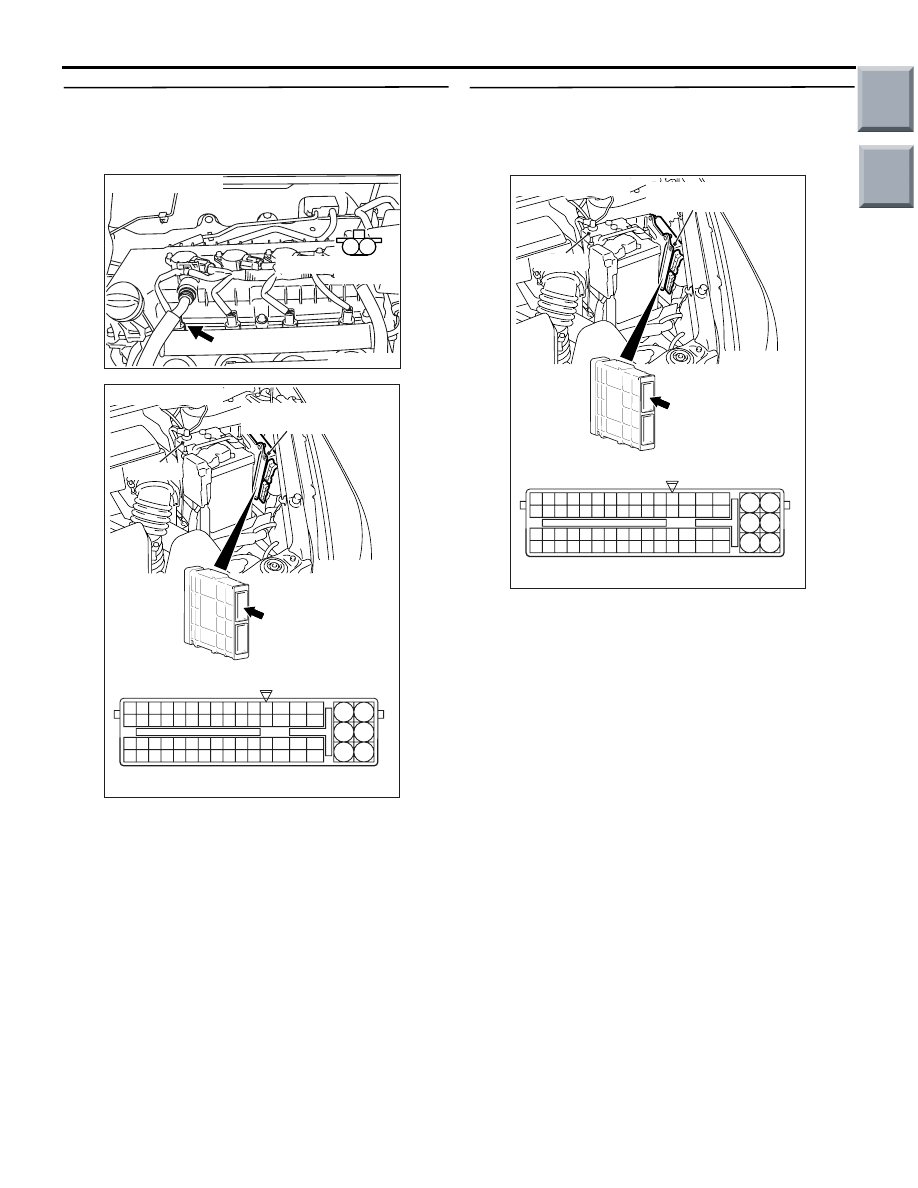

STEP 6. Connector check: A-114 engine-ECU
connector or engine-CVT-ECU connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace the connector.

STEP 7. Check harness between B-106 (terminal
No. 4) engine control relay connector and A-102
(terminal No. 1) No. 1 injector connector.

NOTE: Before checking harness, check intermediate
connectors A-17 and B-112, and repair if necessary.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the damaged harness wire.

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

3

2

1

4

AK402060

B-106
J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402147

M

1

2

A-102 (G)

Connector: A-102

AC

A-102 Harness side

connector

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-93

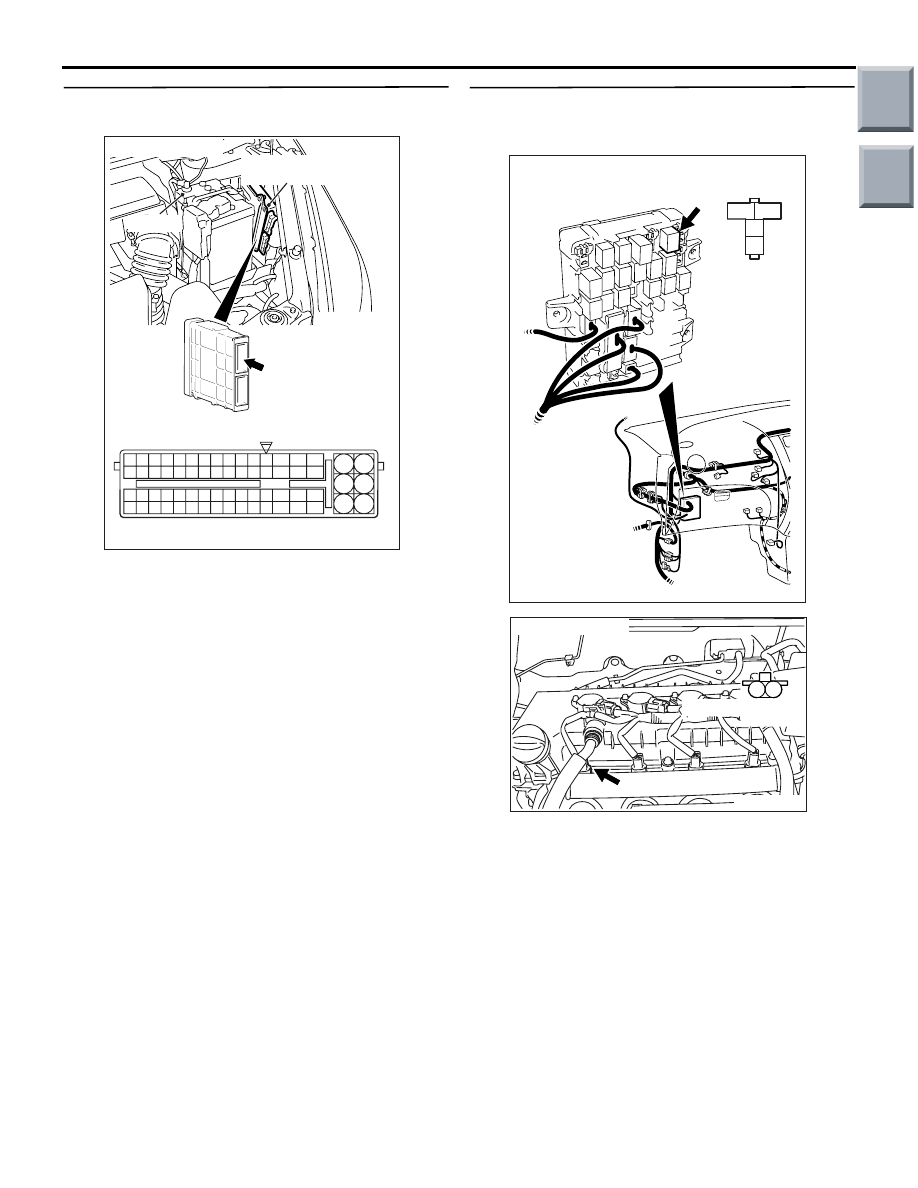

STEP 8. Check harness between A-102 (terminal
No. 2) No. 1 injector connector and A-114
(terminal No. 8) engine-ECU connector or
engine-CVT-ECU connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Repair the damaged harness wire.

STEP 9. Perform signal wave pattern
measurement at A-114 engine-ECU connector or
engine-CVT-ECU connector (Using an
oscilloscope).

• Disconnect engine-ECU connector or

engine-CVT-ECU connector, and connect special
tool power plant ECU check harness
(MB991987), and then measure the voltage on
the check connector.

• Engine: Idling

• Transmission: P range

• Voltage between terminal No. 8 and earth.

OK: Waveforms should be display on
Inspection procedure using an oscilloscope
(Refer to

P.13A-348

).

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use

Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-13

).

NO :

Replace engine-ECU <M/T> or
engine-CVT-ECU <CVT>.

AK402147

M

1

2

A-102 (G)

Connector: A-102

AC

A-102 Harness side

connector

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AD

A-114

Connector:

A-114

Harness side connector

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

AK402745

6

4

2

5

3

1

9

7

8

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

L

AE

A-114

Connector:

A-114

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

Battery

A-114 Special tool power plant ECU check
harness
