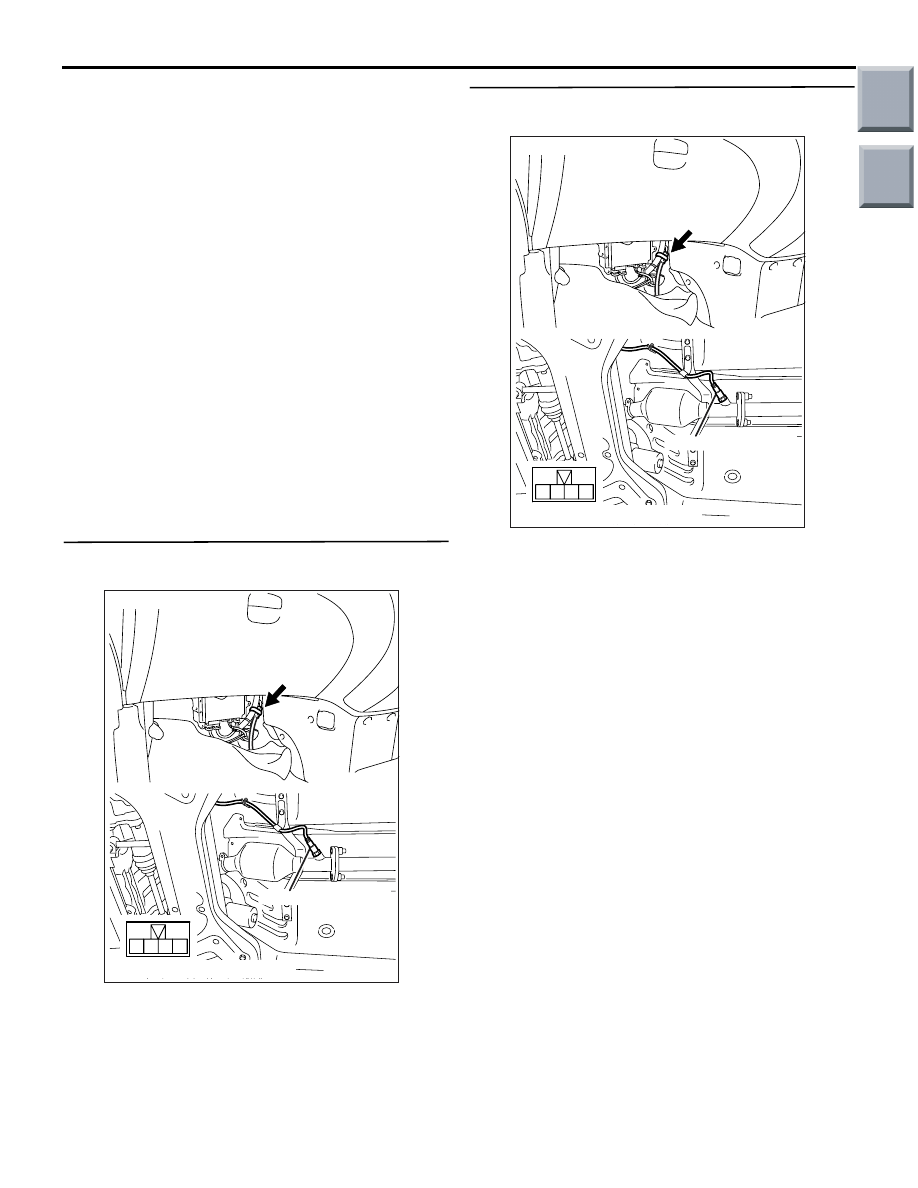

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-82

TROUBLE JUDGMENT

Check Conditions

• After engine starts <M/T>

• Engine coolant temperature is 20°C or higher.

• While oxygen sensor (rear) heater is on <CVT>.

• Battery positive voltage is 11 − 16 V.

• Engine speed is approximately 50 r/min or more

<CVT>.

Judgment Criterion

• Oxygen sensor (rear) heater currents have con-

tinued to be 0.16 A or lower, or 5.0 A or higher for
4 seconds.

PROBABLE CAUSES

• Failed oxygen sensor (rear) heater

• Open/short circuit in oxygen sensor (rear) circuit

or loose connector contact

• Failed engine-ECU <M/T> or engine-CVT-ECU

<CVT>

DIAGNOSIS PROCEDURE

STEP 1. Connector check: B-53 oxygen sensor
(rear) connector

Q: Is the check result normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Perform resistance measurement at B-53
oxygen sensor (rear) connector.

• Disconnect connector, and measure at sensor

side.

• Resistance between terminal No. 3 and No. 4.

OK: 5

− 30 Ω (at 20°C)

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the oxygen sensor (rear).

AK402019

3

2

1

4

Oxygen sensor (rear)

Connector: B-53

B-53 Harness side connector

AC

B-53

AK402019

3

2

1

4

Oxygen sensor (rear)

Connector: B-53

B-53 Harness side connector

AC

B-53

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-83

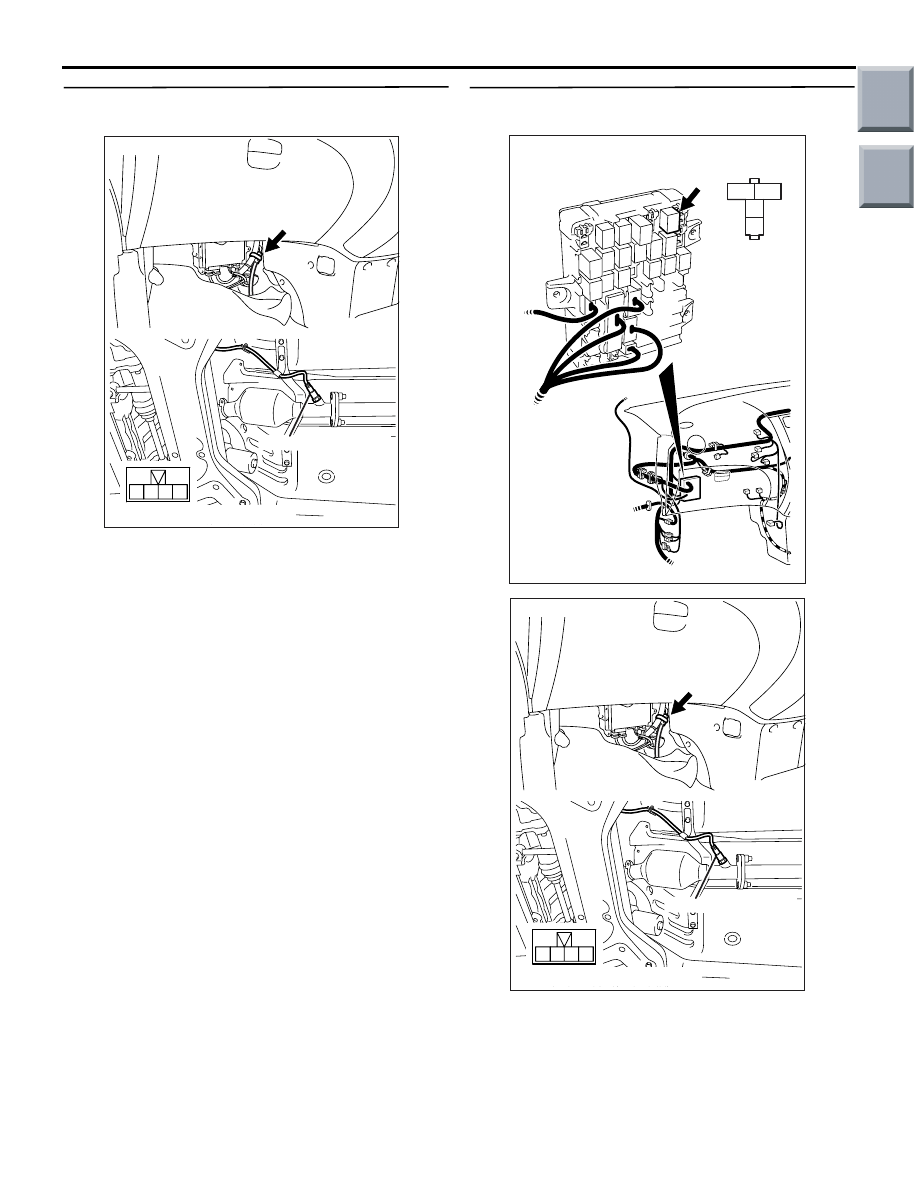

STEP 3. Perform voltage measurement at B-53
oxygen sensor (rear) connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 4 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Go to Step 4 .

STEP 4. Connector check: B-106 engine control
relay connector

AK402019

3

2

1

4

Oxygen sensor (rear)

Connector: B-53

B-53 Harness side connector

AC

B-53

3

2

1

4

AK402060

B-106
J/B side
connector

B-106

Connector: B-106
J/B (front side)

AC

AK402019

3

2

1

4

Oxygen sensor (rear)

Connector: B-53

B-53 Harness side connector

AC

B-53

Main

Index

Group

TOC

TROUBLESHOOTING

MULTIPORT FUEL INJECTION (MPI) <4A9>

13A-84

Q: Is the check result normal?

YES :

Check intermediate connector B-112, and

repair if necessary. If intermediate
connector is normal, check and repair
harness between B-53 (terminal No. 4)
oxygen sensor (rear) connector and B-106
(terminal No. 4) engine control relay
connector.

• Check power supply line for

open/short circuit.

NO :

Repair or replace the connector.

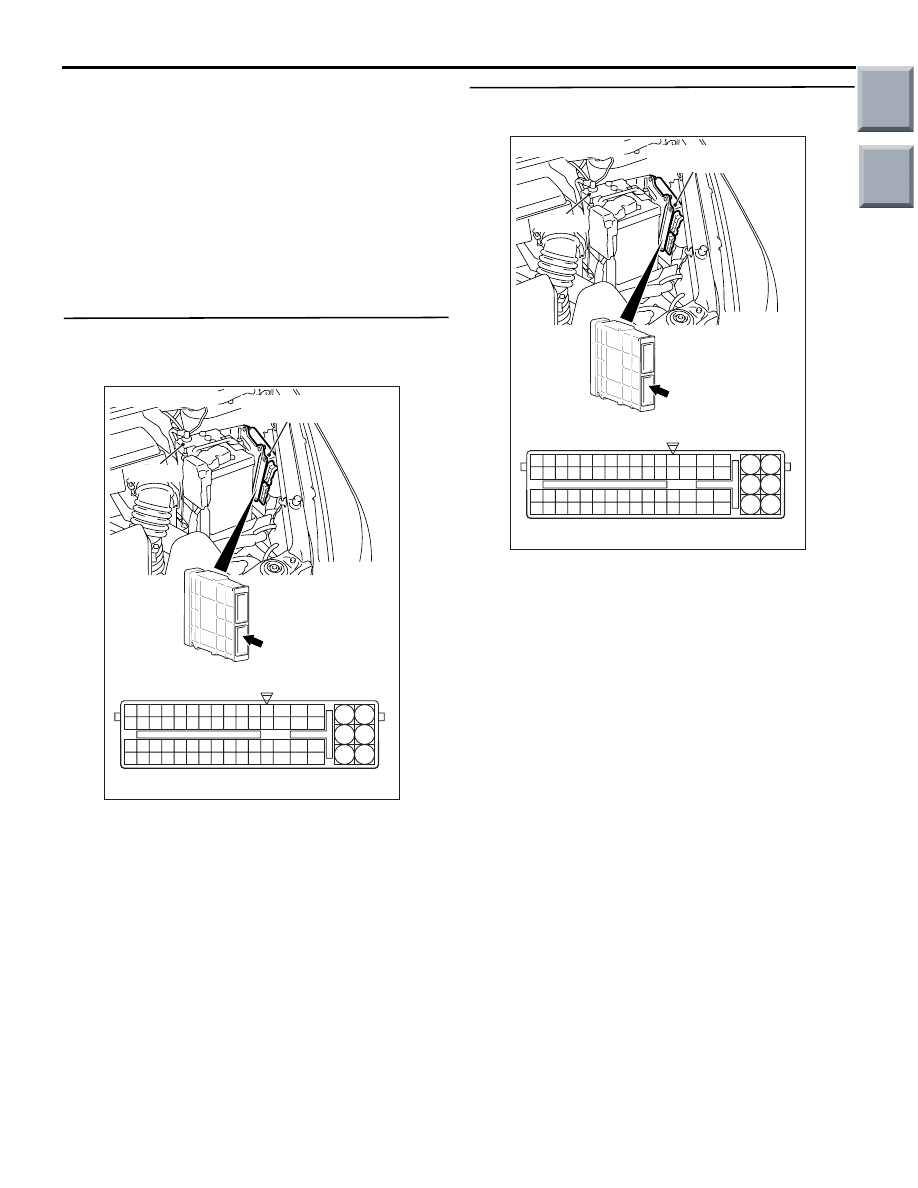

STEP 5. Perform voltage measurement at A-08
engine-ECU connector or engine-CVT-ECU
connector.

• Disconnect engine-ECU connector or

engine-CVT-ECU connector, and connect special
tool power plant ECU check harness
(MB991987), and then measure the voltage on
the check connector.

• Ignition switch: ON

• Voltage between terminal No. 79 and earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 6 .

STEP 6. Connector check: A-08 engine-ECU
connector or engine-CVT-ECU connector

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair or replace the connector.

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AH

A-08

Connector:

A-08

A-08 Special tool power plant ECU check
harness

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>

AK402725

77

78

79

80

81

82

83

84

92

93

94

95

96

97

98

99

85

86

87

88

89

90

91

100

101

102

103

104

105

106

115

116

117

118

119

120

121

107

108

109

110

111

112

113

114

130

131

132

133

134

135

136

122

123

124

125

126

127

128

129

72 71

74 73

76 75

R

AG

A-08

Connector:

A-08

Harness side connector

Battery

Engine-ECU <M/T> or
engine-CVT-ECU <CVT>
