Mitsubishi Colt Ralliart. Manual - part 2





B991992

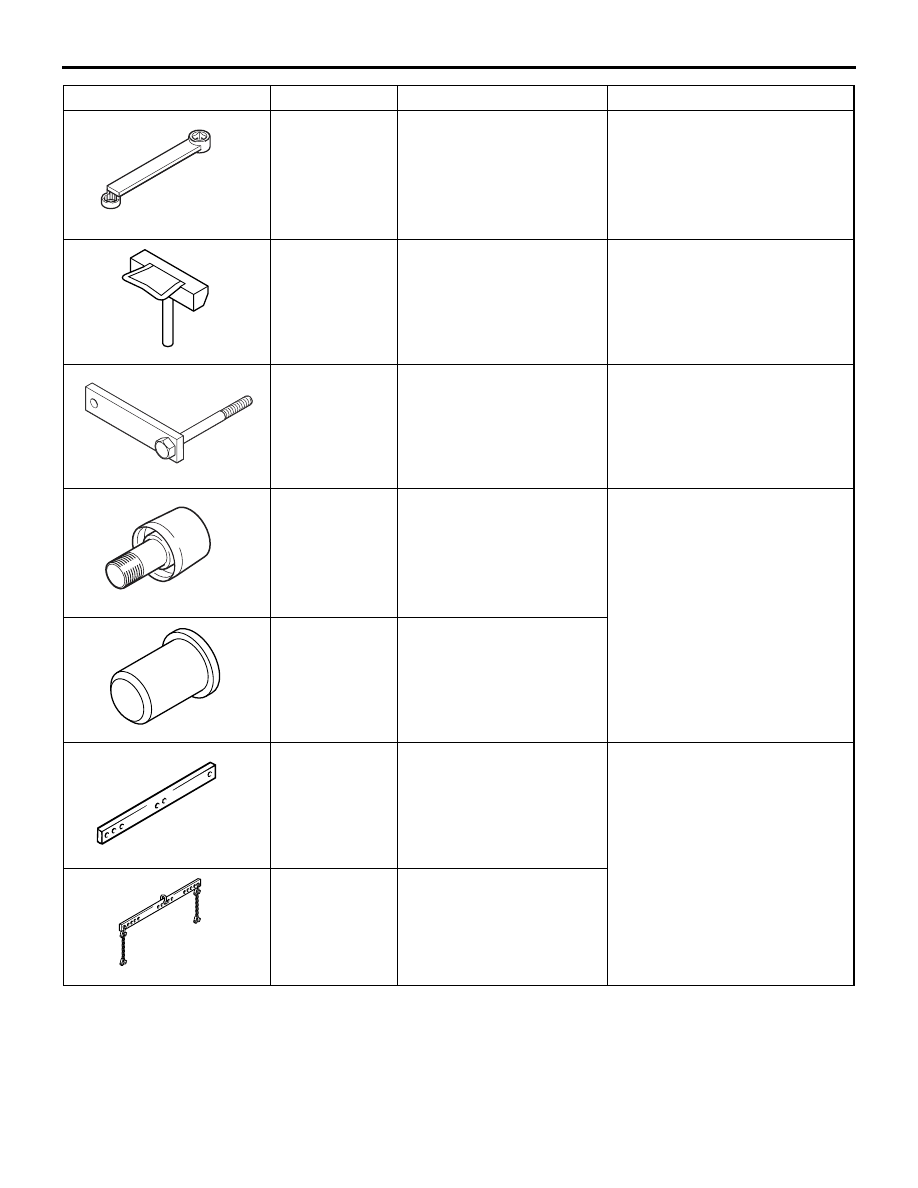

SPECIAL TOOLS

ENGINE MECHANICAL <4A9>

11A-5

MB991992

Torque wrench adapter

Removal and installation of
V.V.T. sprocket assembly
mounting bolt

D998727

MD998727

Oil pan FIPG cutter

Engine oil pan removal

D998781

MD998781

Flywheel stopper

• Supporting the flywheel

assembly <M/T>

• Supporting the drive plate

assembly <CVT>

B991993

MB991993

Crankshaft front oil seal
guide

Crankshaft front oil seal
installation

MB990699

Differential oil seal installer

B991527

MB991527

Engine hanger

Supporting the engine and
transmission assembly
For the engine hanger balancer
(MB991454), use a chain only.
NOTE: Special tool MB991454
is a part of engine hanger
attachment set MB991453.

B991454

MB991454

Engine hanger balancer

Tool

Number

Name

Use

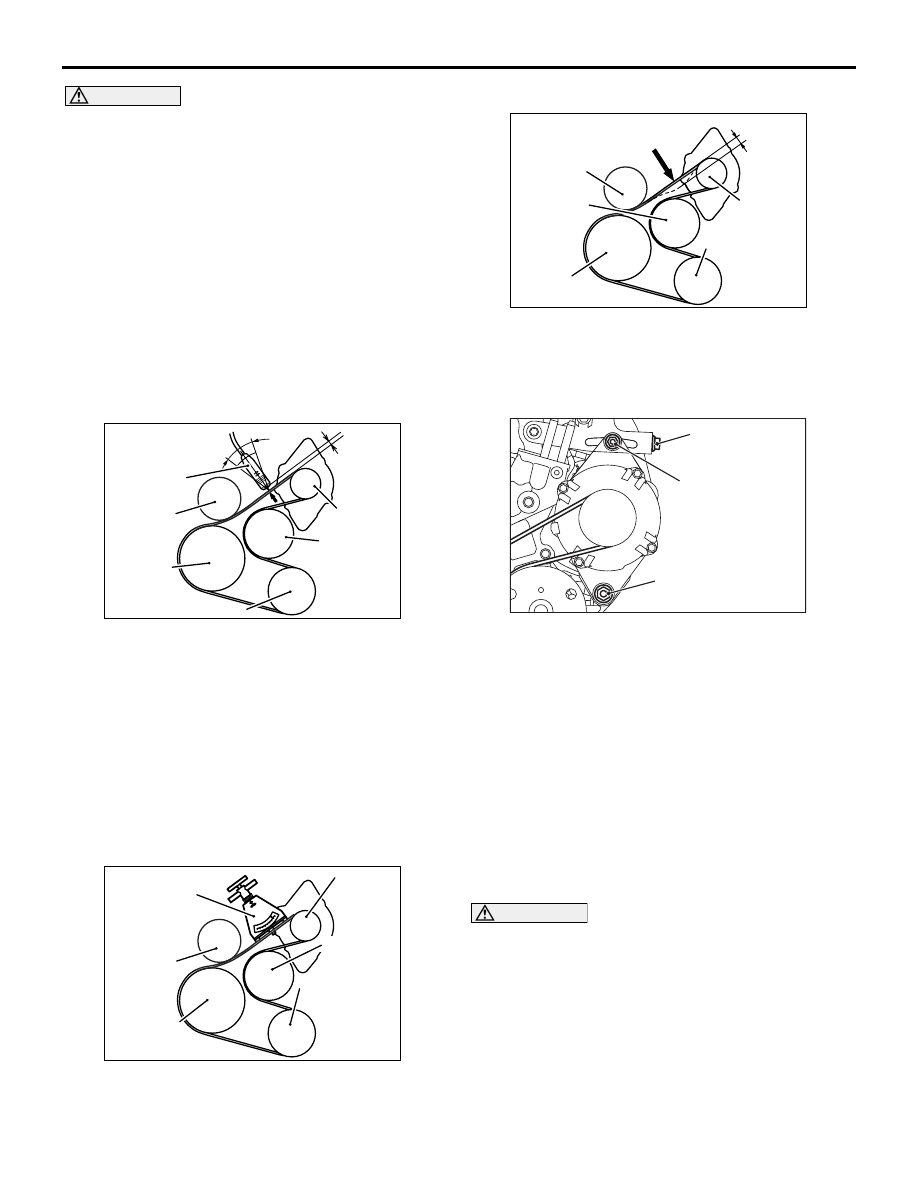

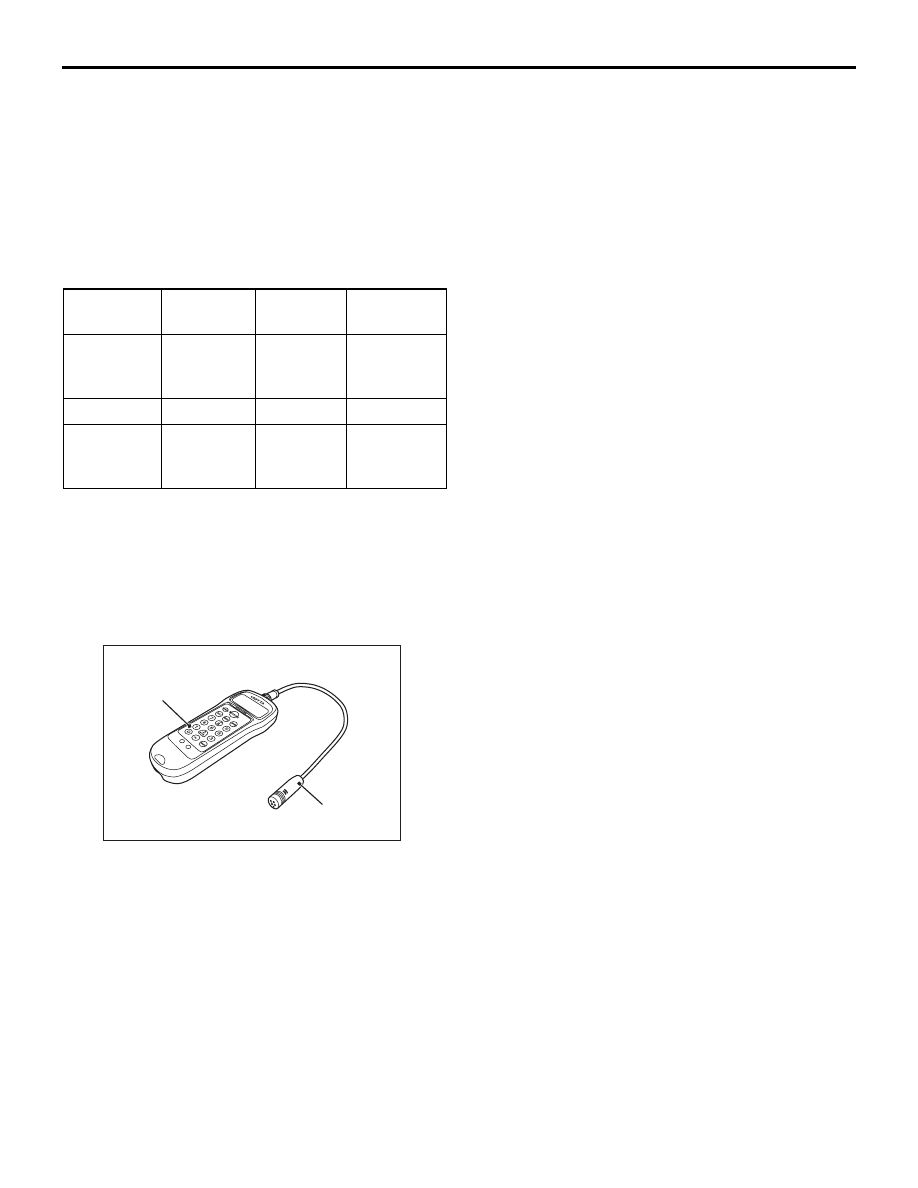

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4A9>

11A-6

ON-VEHICLE SERVICE

DRIVE BELT TENSION CHECK AND
ADJUSTMENT

M1111003101433

ALTERNATOR AND A/C DRIVE BELT
TENSION CHECK

Check the drive belt tension in the following proce-
dure.

Standard value:

Item

When
checked

When
adjusted

When
replaced

Vibration
frequency
Hz

202

− 247

214

− 237 286 − 319

Tension N

392

− 588

441

− 539 784 − 980

Deflection
mm
(Reference)

6.8

− 9.0

7.3

− 8.3

4.4

− 5.4

<When the vibration frequency is
measured {Special tool (MB992080) is
used}: Recommendation>

NOTE: The vibration frequency measuring method is
recommended for check and adjustment of the drive
belt tension.

AC507219AB

MB992082

MB992081

Belt tension meter set (MB992080)

1. Connect the Special tool microphone assembly

(MB992082) to the Special tool belt tension meter
(MB992081) of the Special tool belt tension meter
set (MB992080).

2. Press the "POWER" button to turn on the power

supply.

3. Press number key 1. Check to ensure that "No.

01" appears on the upper left of the display and
that the following numeric values are displayed for
individual items (M, W, and S):
M 000.9 g/m
W 010.0 mm/R
S 0100 mm
If numeric values have not been entered (new
tool), set them according to the belt specifications
as shown below. Once you set them, you do not
have to set them again. The settings remain
undeleted even after battery replacement.
NOTE: This operation is to temporarily set the
preset data such as the belt specifications,
because if the measurement is taken without input
of the belt specifications, conversion to tension
value (N) cannot be made, resulting in judgement
of error.
<Setting procedure>
(1) Press down the "MASS" button till the belt

mass select display appears.

(2) Press the "UP" or "DOWN" button to select "01

1.5GT 0.9" and press the "MEASURE" button
to decide it.
Check to ensure that "M 000.9 g/m" is
displayed.

(3) Press the "WIDTH" button to change to the

belt width input display.

(4) Press number keys 0, 1, 0, and 0 sequentially,

and press the "SELECT" button to apply them.
Check to ensure that "W 010.0 mm/R"
appears on the display.

(5) Press the "SPAN" button to change to the

span length input display.

(6) Press number keys 0, 1, 0, and 0 sequentially,

and press the "SELECT" button to apply them.
Check to ensure that "S 0100 mm" appears on
the display.

4. Press "Hz" button twice to change the display to

the frequency display (Hz).

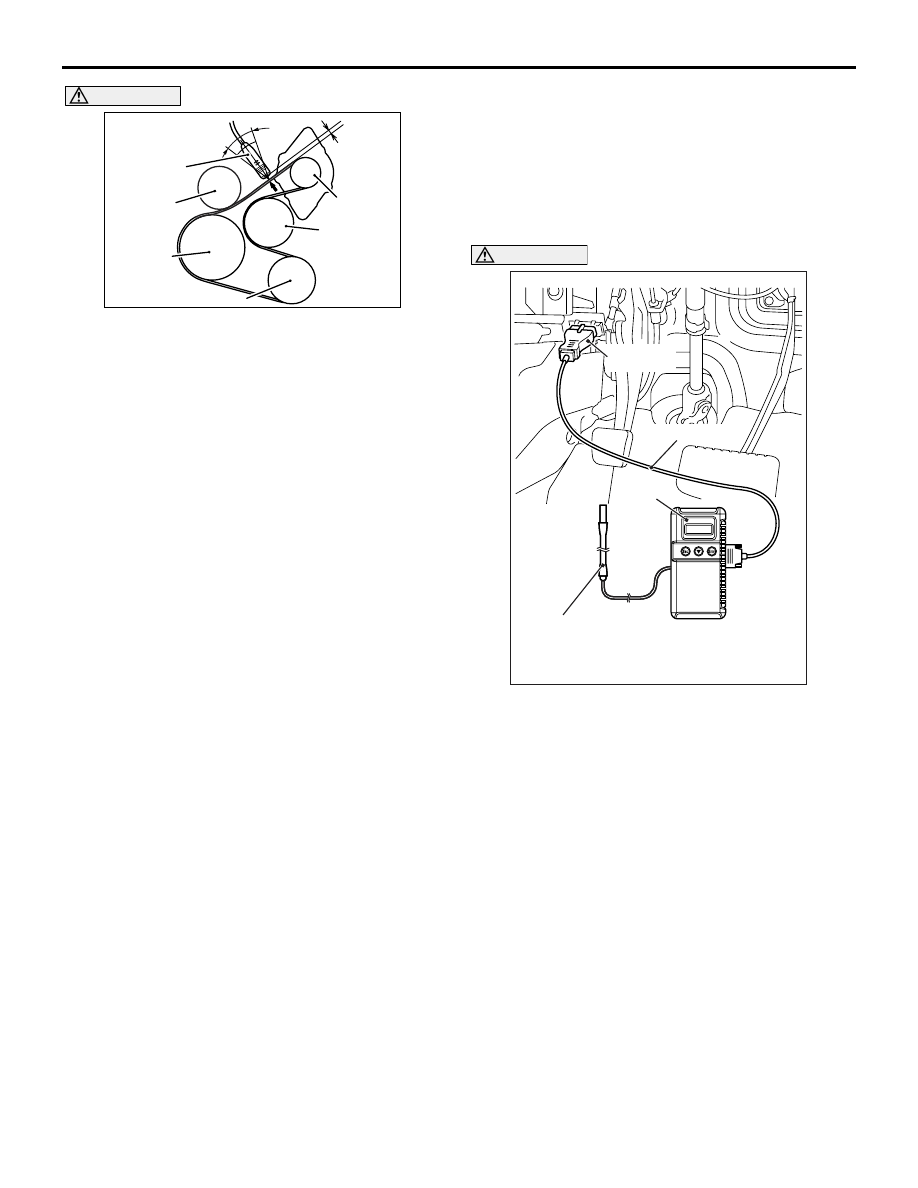

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4A9>

11A-7

CAUTION

AK600612

15˚

15˚

10 – 20 mm

Crankshaft
pulley

AB

Alternator
pulley

Water pump
pulley

A/C compressor pulley

Idler pulley

MB992080
(Microphone)

The temperature of the surface of the belt should

be as close as possible to normal tempera-
ture.

• Do not let any contaminants such as water or

oil get onto the microphone.

• If strong gusts of wind blow against the

microphone or if there is loud sources of
noise nearby, the values measured by the
microphone may not correspond to actual
values.

• If the microphone is touching the belt while

the measurement is being made, the values
measured by the microphone may not corre-
spond to actual values.

• Do not take the measurement while the vehi-

cle's engine is running.

5. Hold the microphone to the middle of the drive

belt between the pulleys (at the place indicated by
the arrow), about 10

− 15 mm away from the rear

surface of the belt and so that it is perpendicular
to the belt (within an angle of

± 15 °).

6. Press the "MEASURE" button.
7. Gently tap the middle of the belt between the

pulleys (the place indicated by the arrow) with
your finger as shown in the illustration, and check
that the vibration frequency of the belt is within the
standard value.
NOTE: To take the measurement repeatedly, fillip
the belt again.

8. After the completion of the measurement, press

and hold the "POWER" button to turn off the
power supply.

<When the vibration frequency is
measured vehicle communication
interface (V.C.I.) is used:
Recommendation>

NOTE: The vibration frequency measuring method is
recommended for check and adjustment of the drive
belt tension.

AK600561

AB

MB991668

MB991824

MB991910

Diagnosis

connector

CAUTION

To prevent damage to special tool V.C.I.
(MB991824), always turn the ignition switch to
the "LOCK" (OFF) position before connecting or
disconnecting special tool V.C.I. (MB991824).
1. Connect the special tool belt tension meter set

(MB991668) to the special tool V.C.I (MB991824).

2. Connect special tool M.U.T.-III main harness A

(MB991910) to special tool V.C.I. (MB991824).

3. Connect special tool M.U.T.-III main harness A

(MB991910) to the diagnosis connector.

4. Turn the ignition switch to the "ON" position and

select "Belt Tension Measurement" from the menu
screen.

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4A9>

11A-8

CAUTION

• The temperature of the surface of the belt

should be as close as possible to normal tem-
perature.

• Do not let any contaminants such as water or

oil get onto the microphone.

• If strong gusts of wind blow against the

microphone or if there is loud sources of
noise nearby, the values measured by the
microphone may not correspond to actual
values.

• If the microphone is touching the belt while

the measurement is being made, the values
measured by the microphone may not corre-
spond to actual values.

• Do not take the measurement while the vehi-

cle's engine is running.

AK600612

15˚

15˚

10 – 20 mm

Crankshaft
pulley

AB

Alternator
pulley

Water pump
pulley

A/C compressor pulley

Idler pulley

MB992080
(Microphone)

5. Hold the microphone to the middle of the drive

belt between the pulleys (at the place indicated by
the arrow), about 10

− 20 mm away from the rear

surface of the belt and so that it is perpendicular
to the belt (within an angle of

± 15 °).

6. Gently tap the middle of the belt between the

pulleys (the place indicated by the arrow) with
your finger as shown in the illustration, and check
that the vibration frequency of the belt is within the
standard value.

<When using the tension gauge>

AK402042

Alternator
pulley

Water pump
pulley

A/C compressor
 pulley

AC

Crankshaft
pulley

Tension
gauge

Idler pulley

Use a belt tension gauge to check that the belt ten-
sion is within the standard value.
NOTE: Before inspection, remove the oil level gauge
guide.

<Belt deflection check>

AK402043

Alternator
pulley

Water pump
pulley

A/C compressor
 pulley

AC

Approximately 100 N

Crankshaft
pulley

Deflection

Idler pulley

Apply approx. 100 N of force to the middle of the
drive belt between the pulleys (at the place indicated
by the arrow) and check that the amount of deflection
is within the standard value.

AK402420AC

Nut for alternator
pivot bolt

Adjusting bolt

Alternator fixing nut

If not within the standard value, adjust the belt ten-
sion by the following procedure.
1. Loosen the nut of the nut for alternator pivot bolt.
2. Loosen the alternator fixing nut.
3. Use the adjusting bolt to adjust the belt tension

and belt deflection to the standard values.

4. Tighten the nut of the nut for alternator pivot bolt.

Tightening torque: 47

± 5 Nm

5. Tighten the alternator fixing nut.

Tightening torque: 23

± 2 Nm

6. Tighten the adjusting bolt.

Tightening torque: 5.0

± 1.0 Nm

CAUTION

When checking the belt tension, turn the crank-
shaft clockwise one turn or more.
7. Check the belt tension, and readjust if necessary.
8. When the belt tension is adjusted by measuring

the deflection, adjust it with a tool for vibration
frequency measurement or tension measurement
afterward.
