Mitsubishi Canter (FE, FG). Manual - part 60

9 Technical  data

9.16 Electrical wiring diagram

240

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

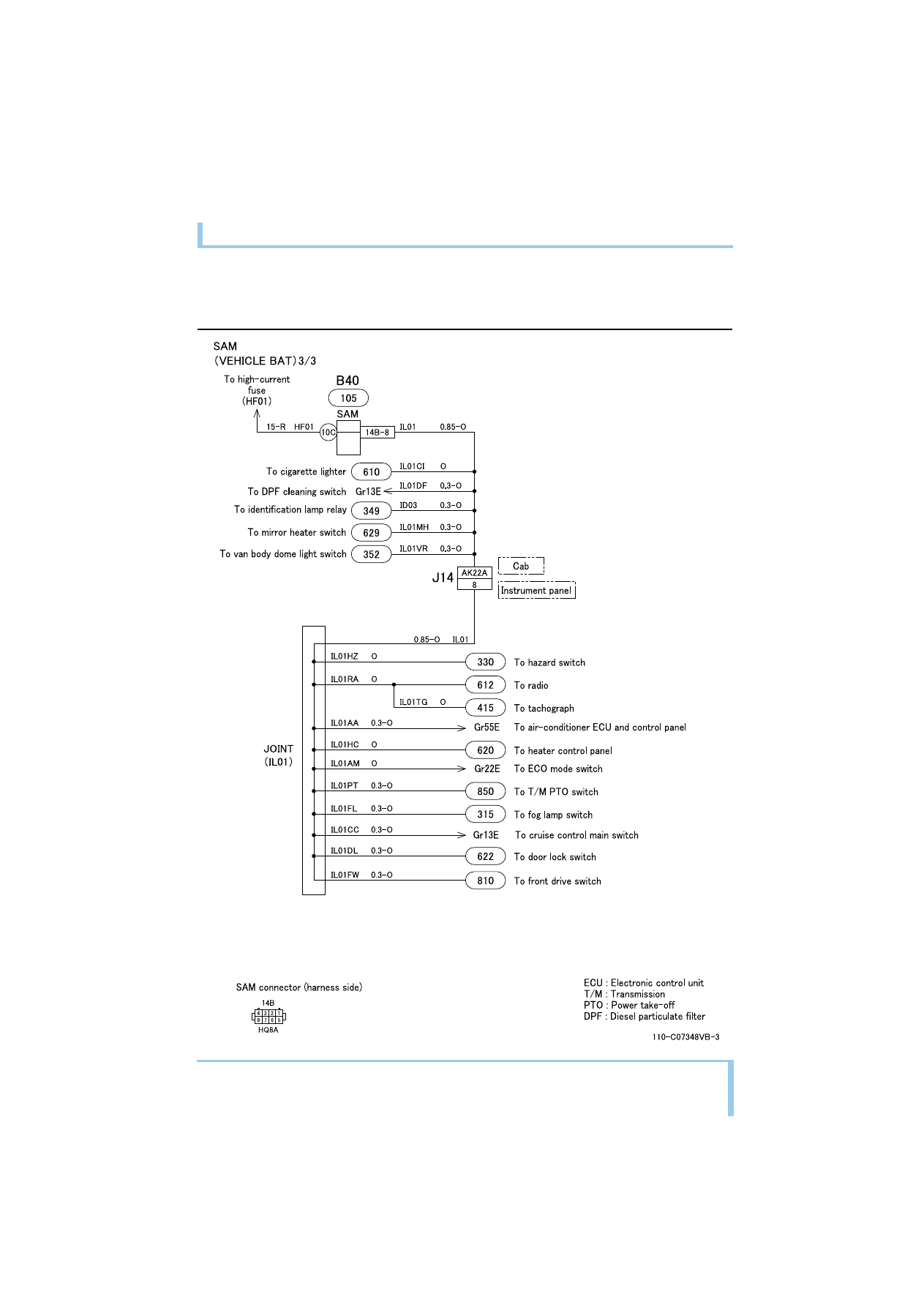

POWER CIRCUIT (14)

9 Technical  data

9.16 Electrical wiring diagram

241

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

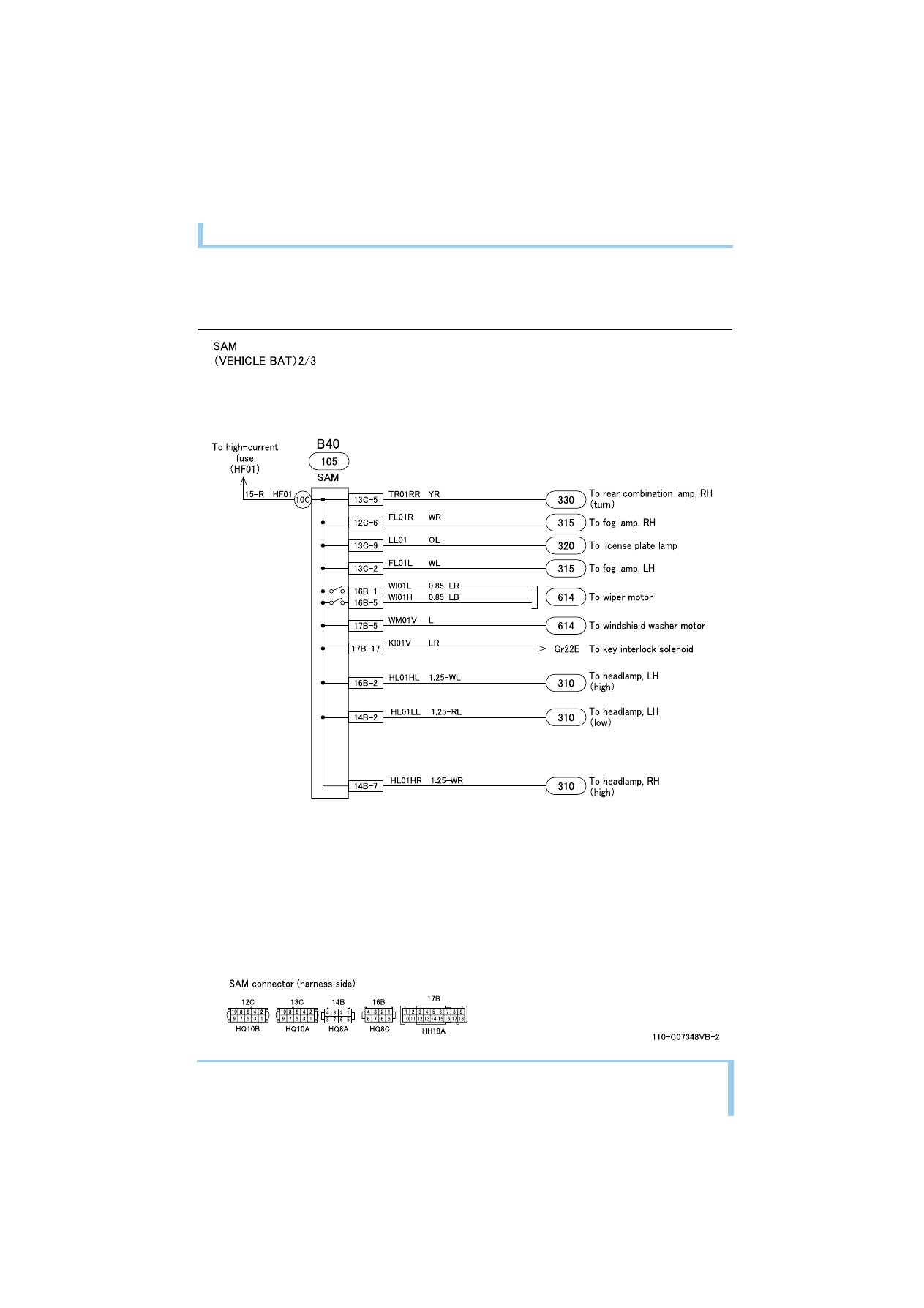

POWER CIRCUIT (15)

9 Technical  data

9.16 Electrical wiring diagram

242

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

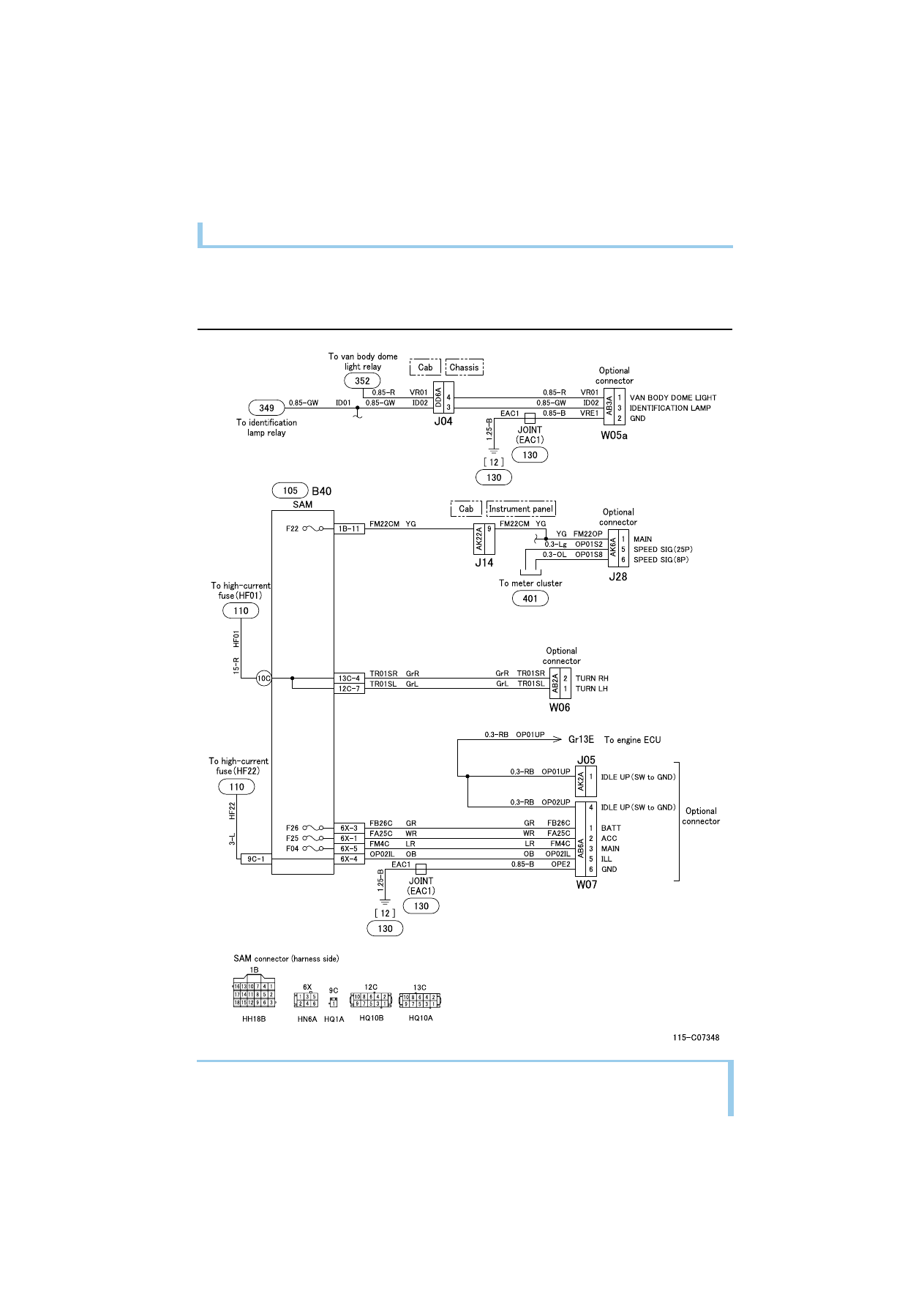

RESERVE POWER CIRCUIT

9 Technical  data

9.16 Electrical wiring diagram

243

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

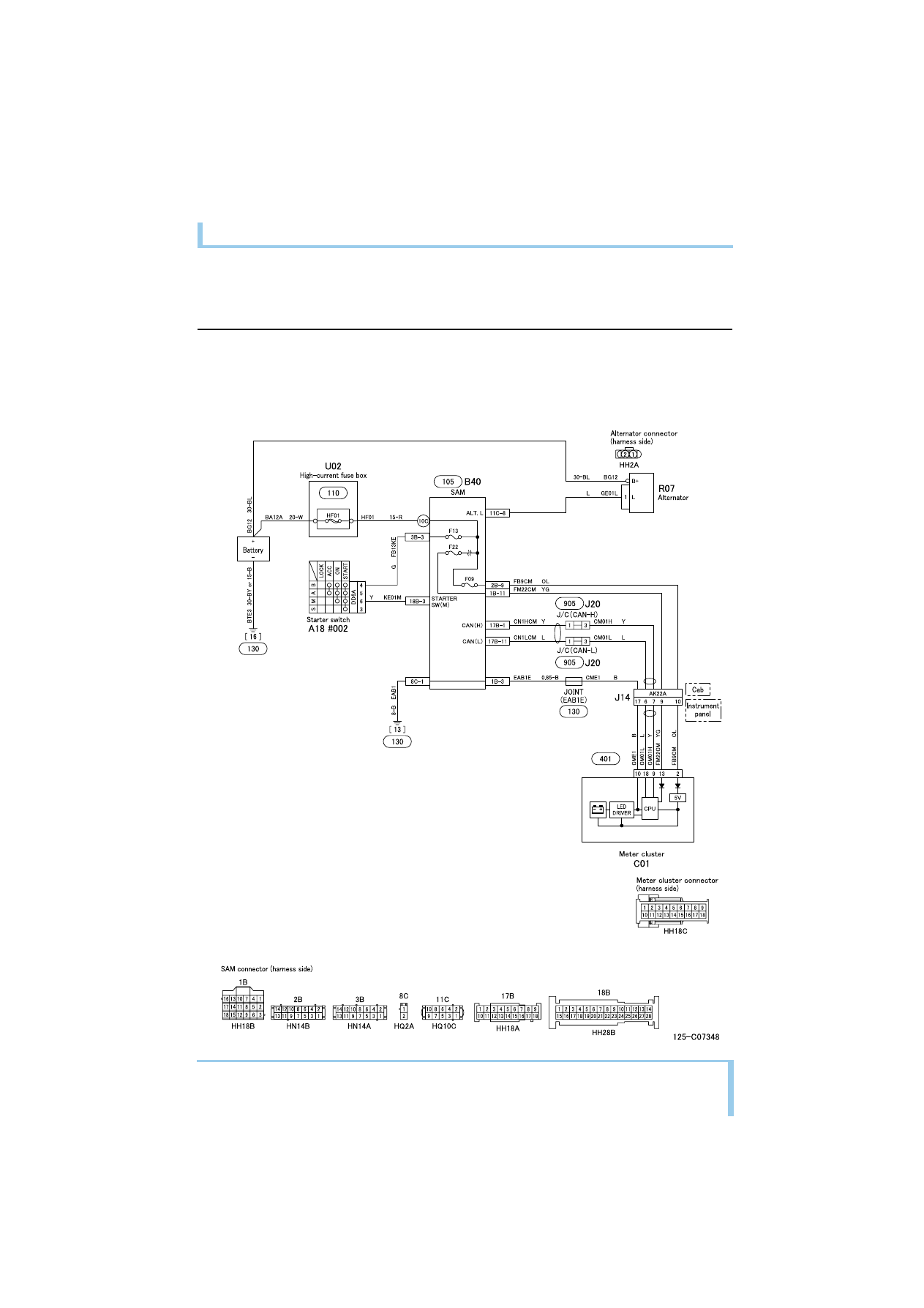

BATTERY CHARGING CIRCUIT
