9 Technical  data

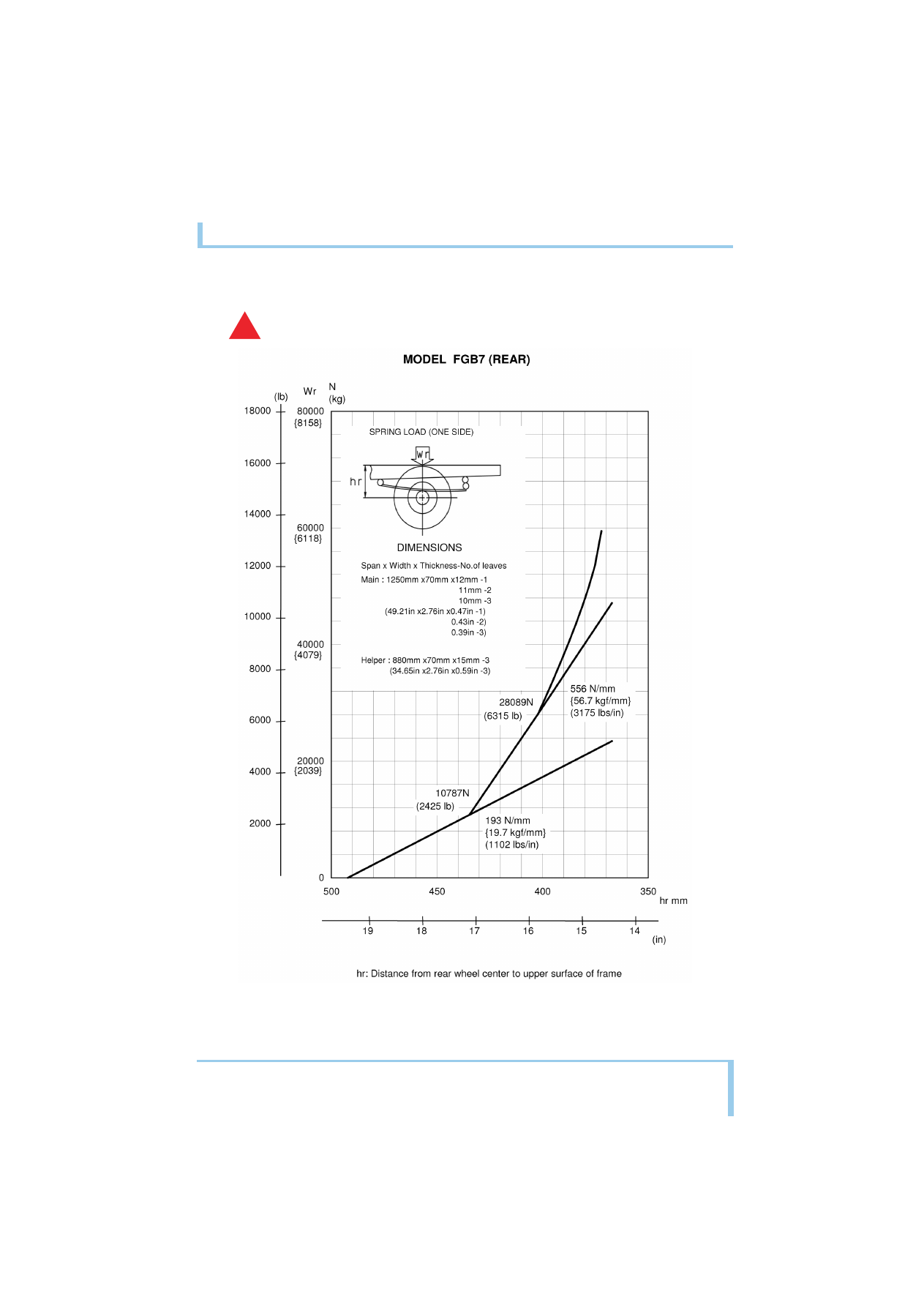

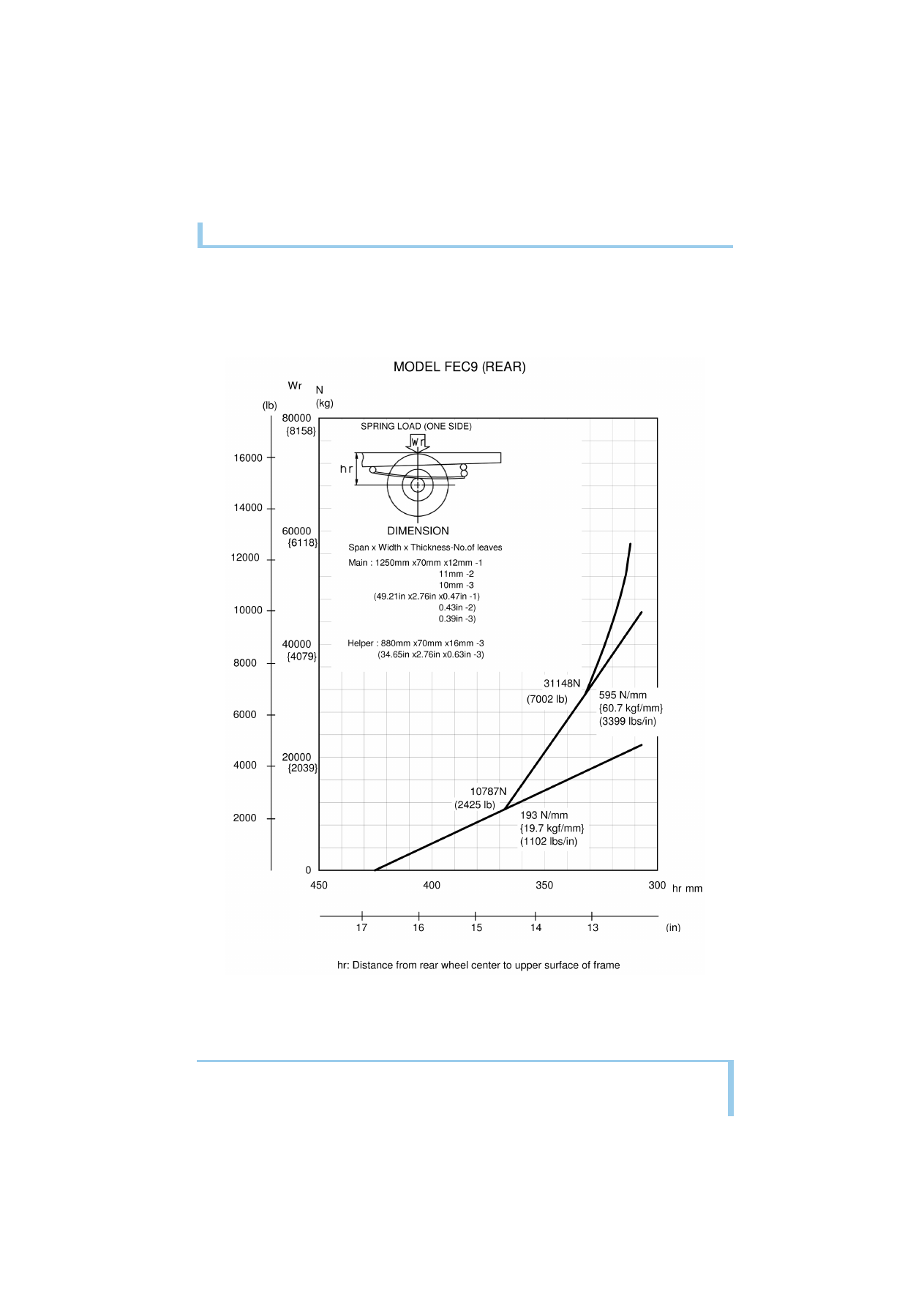

9.6 Spring diagram

196

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9 Technical  data

9.6 Spring diagram

197

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

A

9 Technical  data

9.6 Spring diagram

198

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.6.4

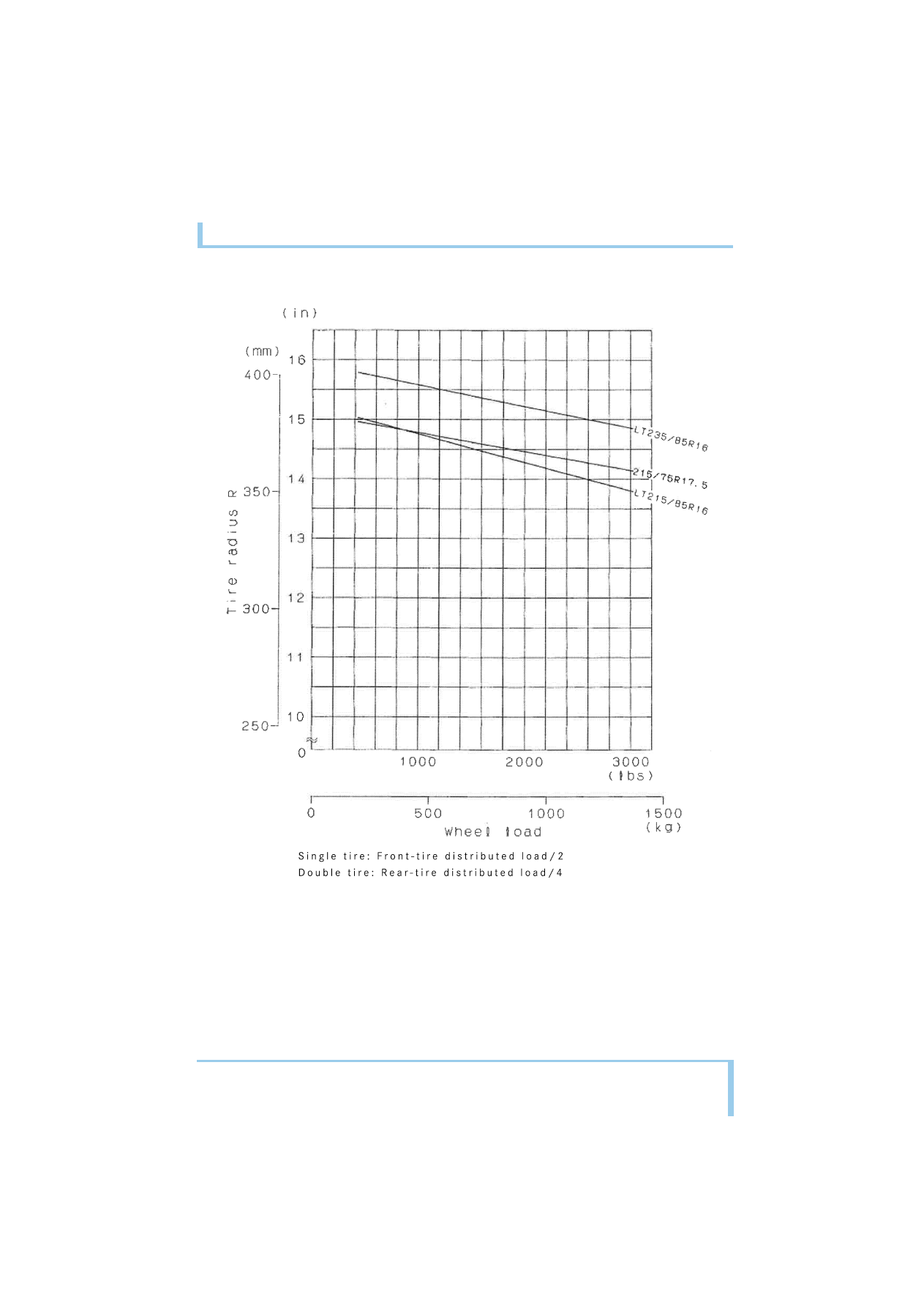

Tire radius calculating diagram

9 Technical  data

9.7 Lamp layout drawings

199

MITSUBISHI FUSO body/equipment mounting directives for FE, FG  Issue date: 06. 07. 2012

!

 Only print out complete sections from the current version

i

9.7 Lamp layout drawings

9.7.1

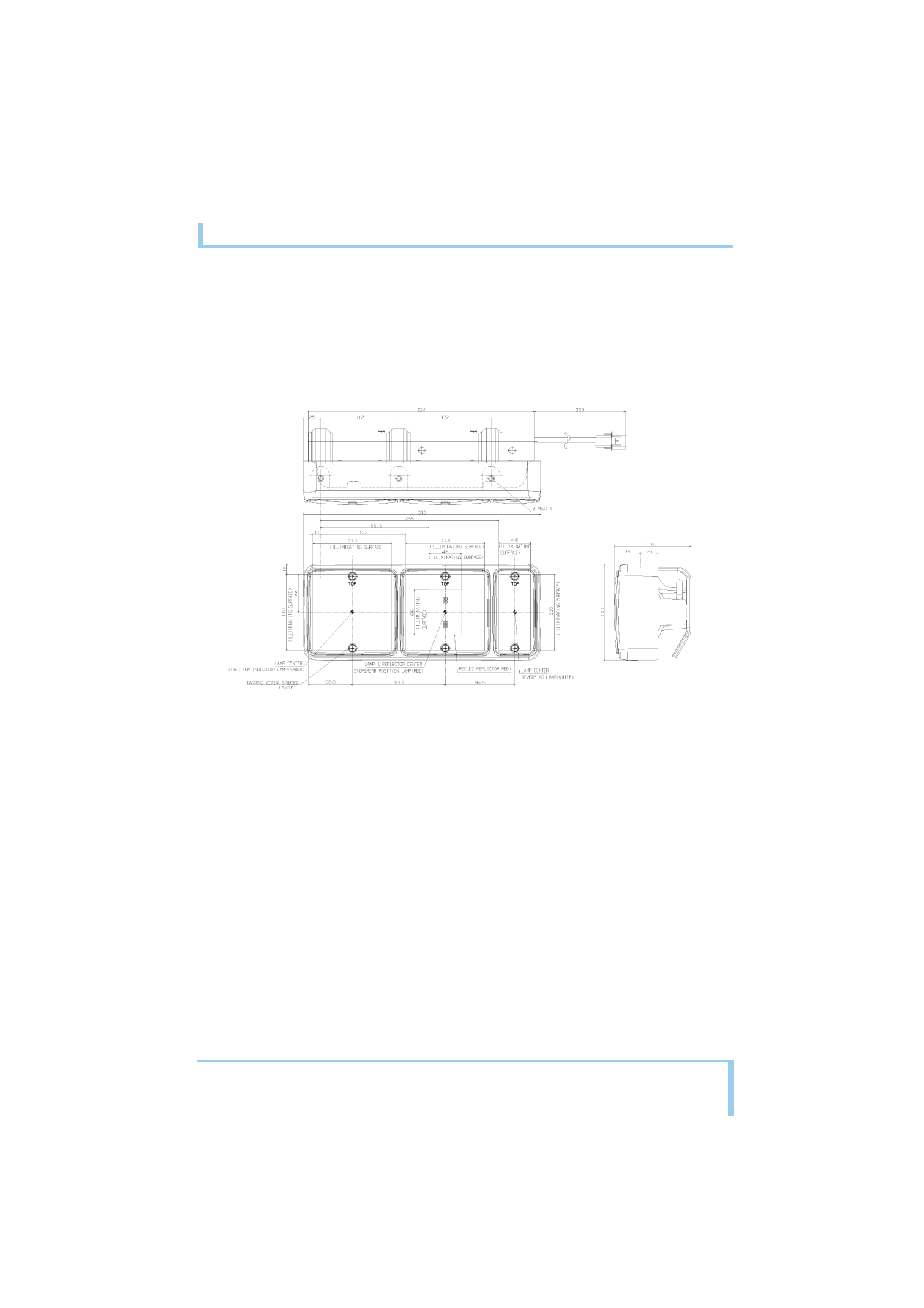

Rear combination lamp

Use the rear combination lamps and license plate lamps which have been installed as standard MFTBC equip-
ment, but don’t use the original bracket which holds the lamps.
