TRANSMISSION CONTROL

MANUAL TRANSMISSION

22A-5

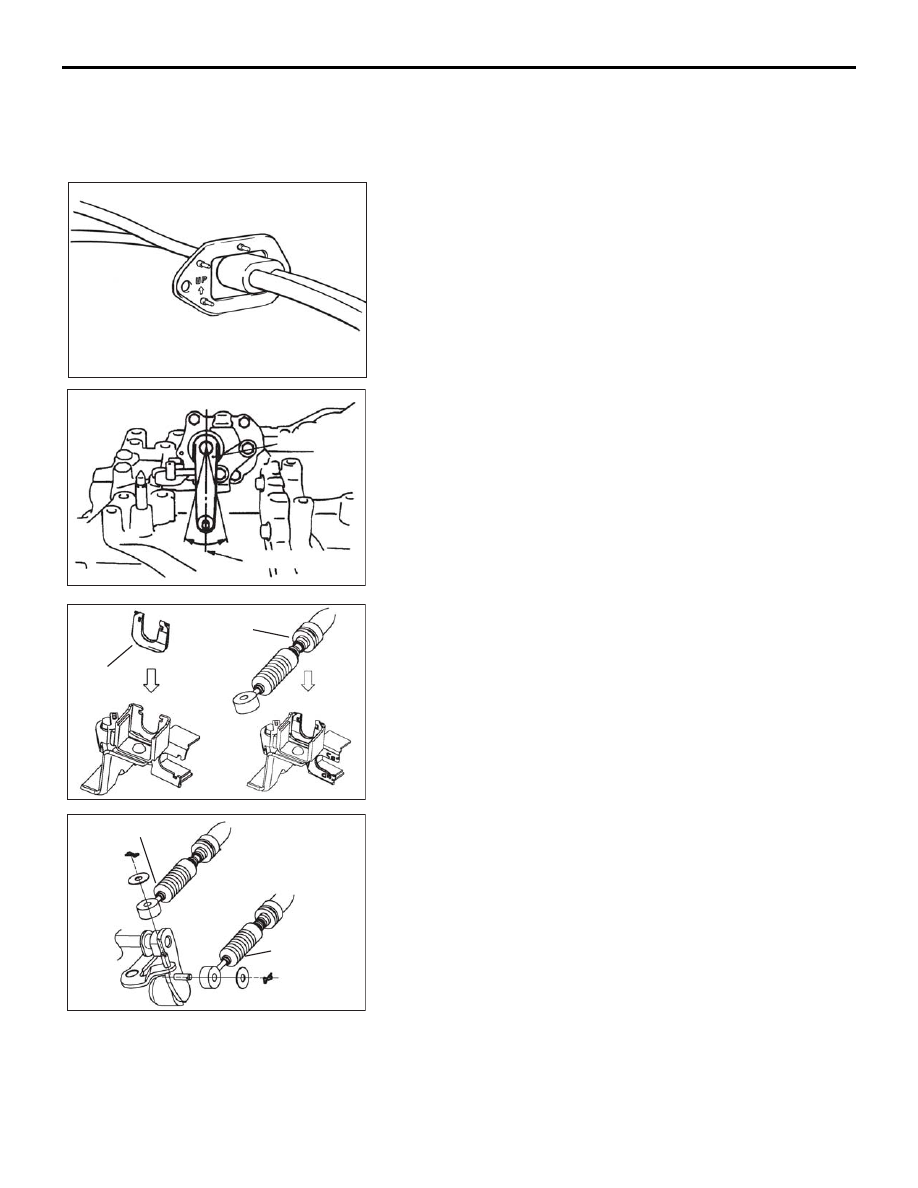

INSTALLATION SERVICE POINTS

.

>>A<< SHIFT CABLE AND SELECT CABLE ASSEMBLY/
SHIFT CABLE CONNECTION/SELECT CABLE CONNEC-
TION

09DB021A

1. Ensure the shift cable and select lever assembly is mounted

in the vehicle with the "UP" symbol and arrow on the
mounting plate pointing upward as shown in the illustration.

09DB022A

Neutral position

Shift lever

2. Set the transmission side shift lever and the passenger

compartment side shift lever to neutral position.

09DB034A

CABLE

“U” CLIP

3. Fit "U"clip to transmission shift cable bracket securely (feel

click). Then fit cable assembly into bracket securely (feel
click).

09DB033A

SHIFT CABLE

SELECT CABLE

4. Install the shift and select cable ends onto tranmission side

lever pins, fit washers and snap pins.

5. Move the shift lever to all positions and check that the

operation is smooth.

.

TRANSMISSION CONTROL

MANUAL TRANSMISSION

22A-6

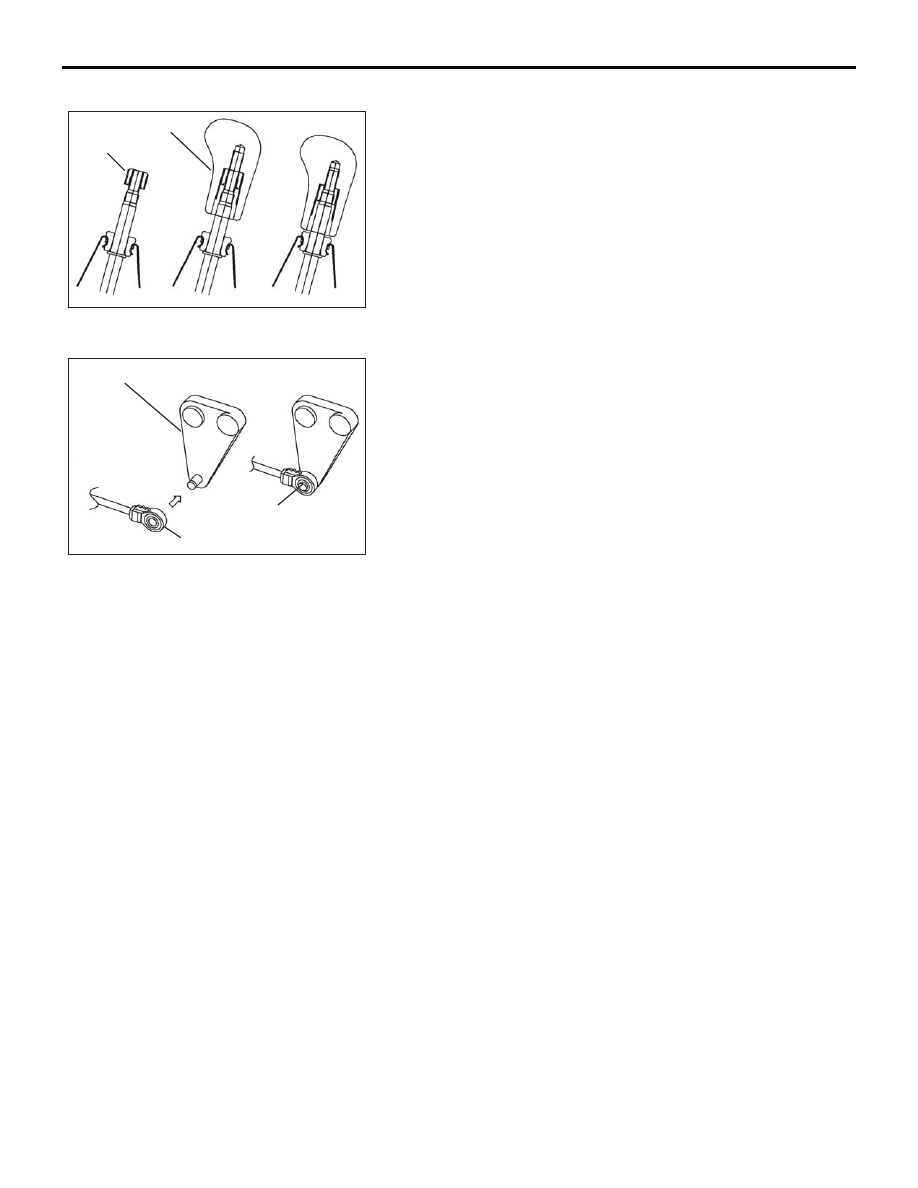

>>B<< SLEEVE SHIFT KNOB

09DB031A

SLEEVE

M/T KNOB

1

2

3

1. Instal the sleeve onto tip of lever assembly.

2. Fit M/T Knob onto lever assembly.

3. Screw M/T Knob onto lever , initially 7 turns and then add 4

turns with knob aligned in correct direction for shift pattern.

.

>>C<< SELECT CABLE FITMENT

09DB032A

SELECT CABLE

1

2

SELECT LEVER

Mark on pin

1. Select cable is a "snap" fit onto lever pin.

2. Align cable eye with lever pin and push on firmly, ensuring

cable is secured and lever pin marking is visible.

TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION

22A-7

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION

Pre-removal Operation
• Transmission Oil Draining (Refer to On-Vehicle Service)

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

15-4

).

• Battery and Battery Tray Removal
• Under Cover Removal

Post-installation Operation
• Battery and Battery Tray Installation

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

15-4

).

• Under Cover Installation
• Supplying Transmission Oil (Refer to On-Vehicle Service)

• Shift Lever Operation Check

• Speedometer Operation Check

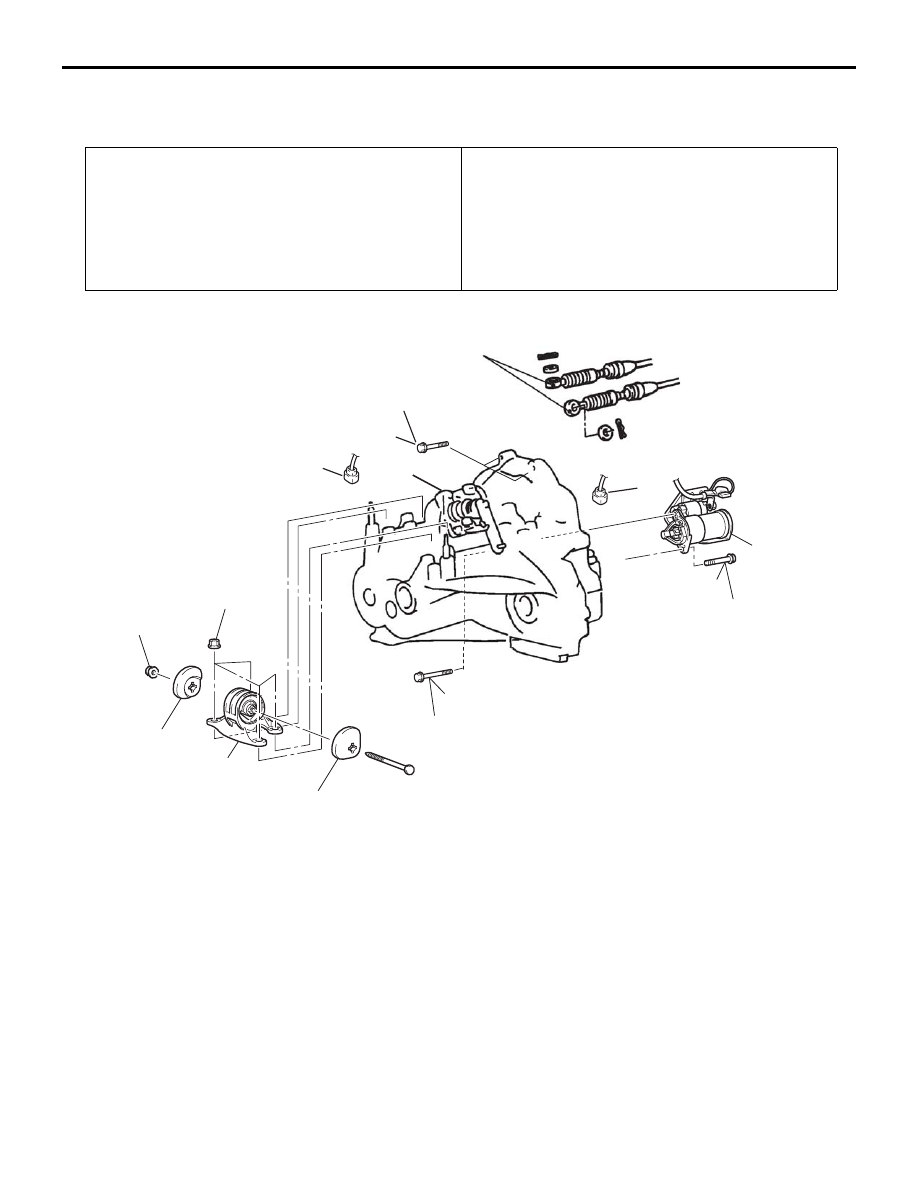

09DB023A

83 ± 12 N·m*

43 ± 5 ft-lb*

83 ± 12 N·m*

61 ± 9 ft-lb*

8

8

7

6

22

30 ± 3 N·m

23 ± 2 ft-lb

30 ± 3 N·m

22 ± 2 ft-lb

21

21

2

3

5

1

30 ± 3 N·m

22 ± 2 ft-lb

REMOVAL STEPS

1.

Shift cable and select cable
connection (Refer On-Vehicle
Service)

2.

Reverse lamp switch connector

3.

Vehicle speed sensor connector

<<A>>

4.

Starter motor

<<B>>

5.

Clutch release cylinder

<<C>>

Disengage clutch release bearing

6.

Transmission assembly upper part
coupling bolts

<<D>>

7.

Transmission mount bracket

>>A<<

8.

Transmission mount stopperPoppet
spring

<<E>>

Supporting engine assembly

REMOVAL STEPS

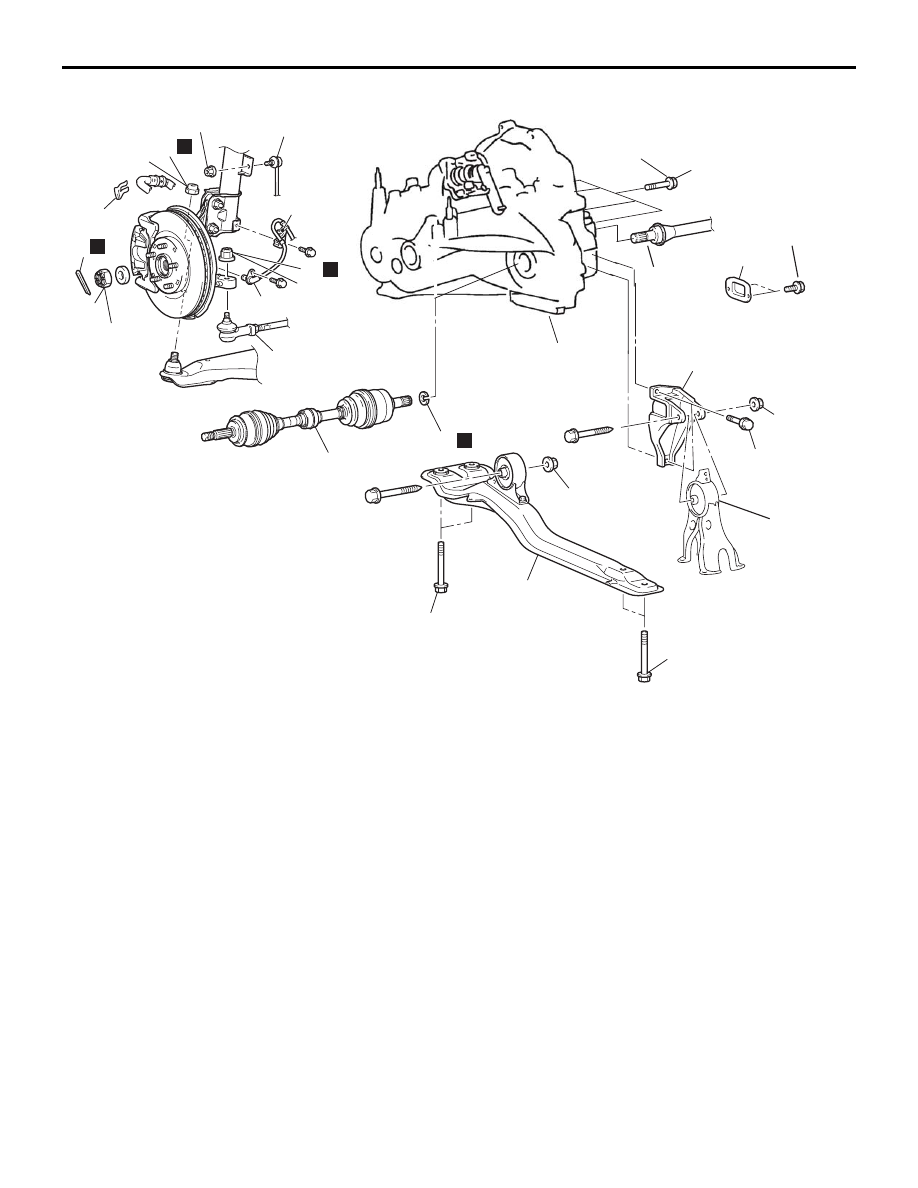

09DB024A

83 ± 12 N·m

61 ± 9 ft-lb

83 ± 12 N·m

61 ± 9 ft-lb

58 ± 7 N·m*

43 ± 5 ft-lb*

16

90 ± 10 N·m

67 ± 7 ft-lb

69 ± 10 N·m*

51 ± 7 ft-lb*

11 ± 0.5 N·m

93 ± 4 in-lb

19

20

18

21

7

N

8

226 ± 29 N·m

167 ± 21 ft-lb

65 ± 6 N·m

48 ± 4 ft-lb

N

10

9

29 ± 4 N·m

21 ± 3 ft-lb

N

12

N

14

13

13

18

11

15

17

48 ± 6 N·m*

36 ± 4 ft-lb*

REMOVAL STEPS (cont.)

9.

Stabiliser bar connection

10. Wheel speed sensor cable

connection

11. Brake hose clamp

<<F>>

12. Tie rod end connection

<<F>>

13. Lower arm ball joint nut

<<G>>

14. Drive shaft(LH)

<<G>>

15. Drive shaft(RH)

16. Centre member assembly
17. Rear roll stopper bracket
18. Rear transmission mount
19. Cover
20. Transmission assembly lower

attaching bolts

21. Transmission assembly

TRANSMISSION ASSEMBLY

MANUAL TRANSMISSION

22A-8

REMOVAL SERVICE POINTS

.

<<A>> STARTER MOTOR
1. Remove the starter motor  form transmission with the

harness still connected and secure it in position on top of
exhaust manifold.

.
