RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-230

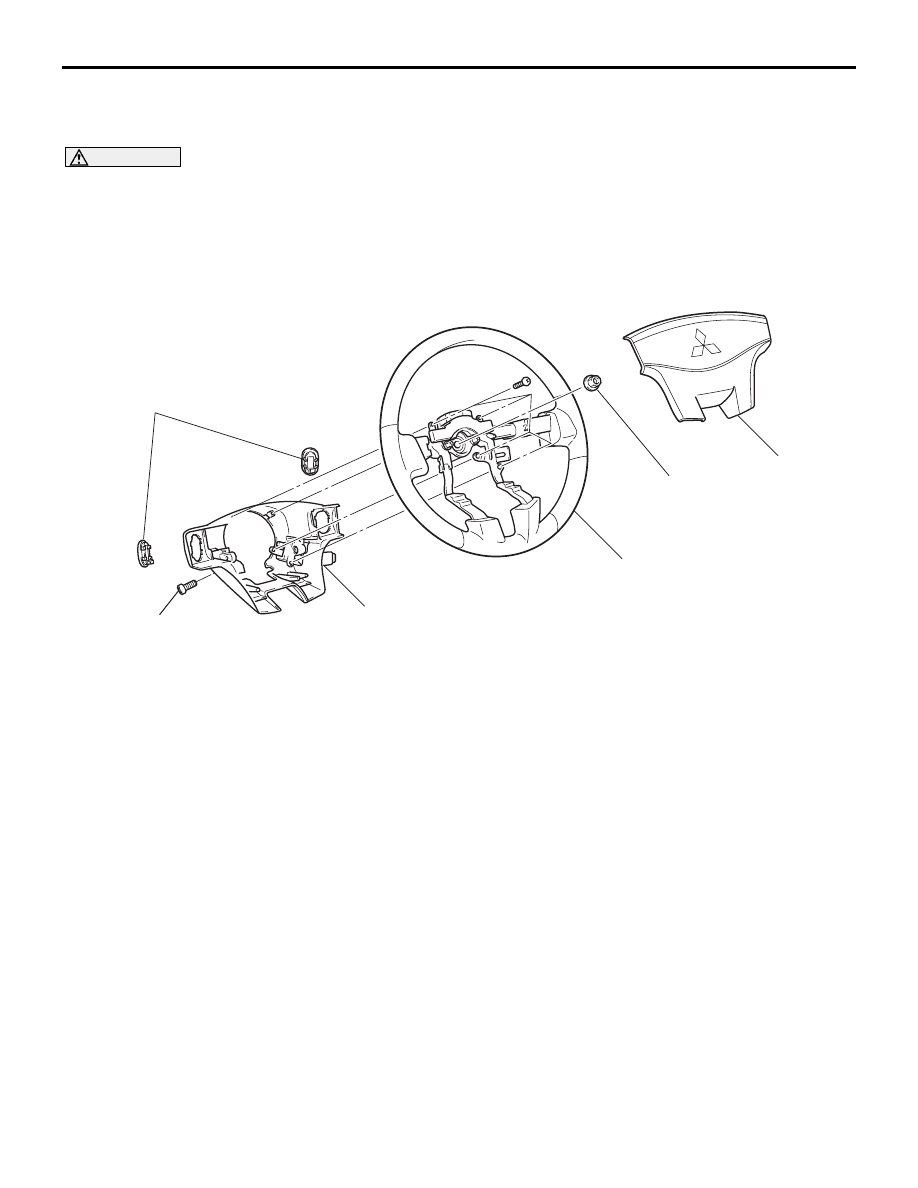

REMOTE CONTROLLED RADIO SWITCH

REMOVAL AND INSTALLATION

M1544010100153

WARNING

•

Before removing the air bag module, refer to GROUP 52B, Service Precautions

P.52B-16



and Air Bag Module and Clock Spring

P.52B-237

.

•

When removing and installing the steering wheel, do not let it bump against the air bag
module.

16DB546A

1

2

3

4

41 ± 8 N·m
30 ± 6 ft-lb

9.0 ± 2.0 N·m
80 ± 17 ft-lb

REMOVAL STEP

1.

AIR BAG MODULE ASSEMBLY
(REFER TO GROUP 52B, AIR
BAG MODULE(S) AND CLOCK
SPRING

P.52B-237

.)

2.

STEERING WHEEL ASSEMBLY
(REFER TO GROUP 37A,
STEERING WHEEL

P.37-23

.)

3.

LOWER COVER CAP

<<A>>

4.

REMOTE CONTROLLED RADIO
SWITCH

REMOVAL STEP (Continued)

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-231

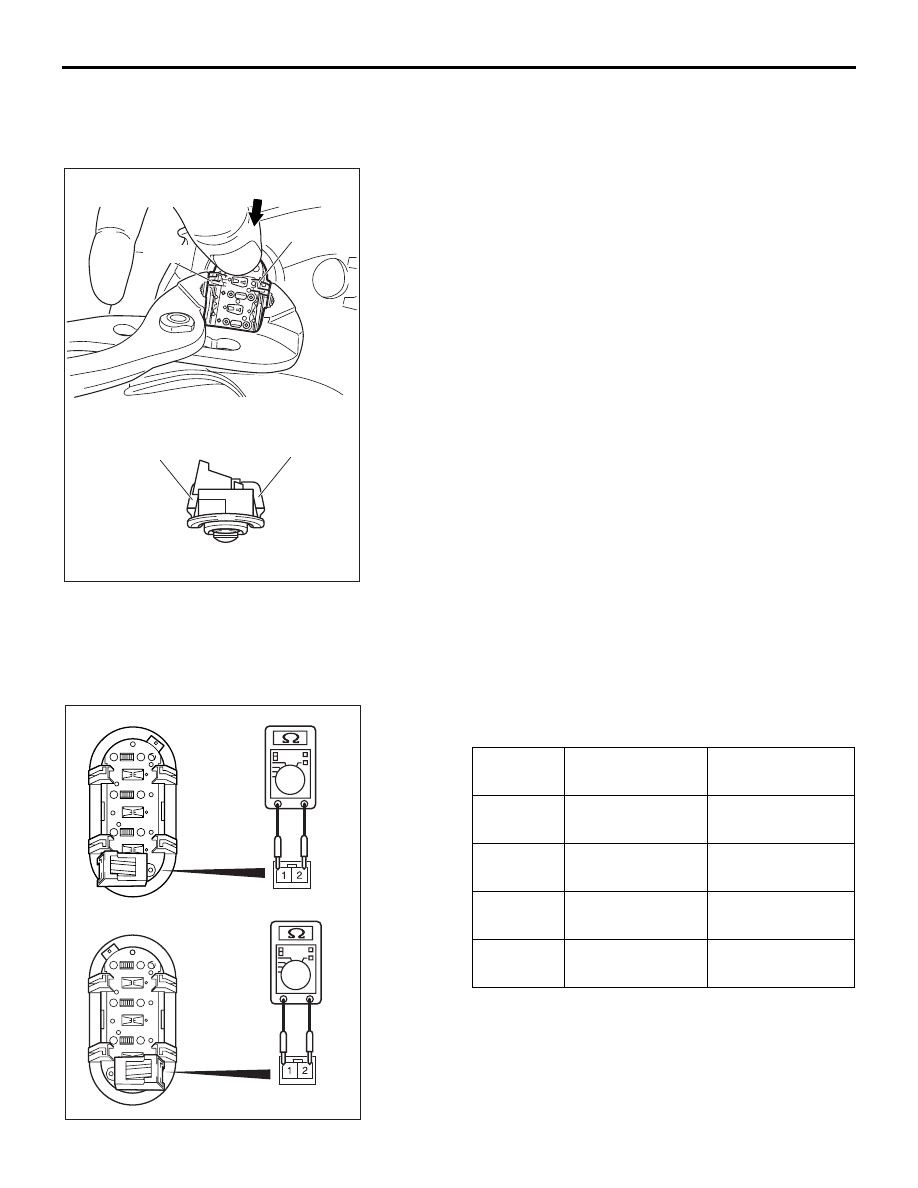

REMOVAL SERVICE POINT

.

<<A>> REMOTE CONTROLLED RADIO SWITCH
REMOVAL

Use a tool to hold the tabs on the remote controlled radio
switch, and push out the switch by your finger.

INSPECTION

M1544009700236

REMOTE CONTROLLED RADIO SWITCH
CONTINUITY CHECK

Use an ohmmeter to measure the resistance value between the
terminal.

AC106586

TAB

TAB

A

AB

VIEW A

TAB

TAB

SWITCH
POSITION

MEASUREMENT
VALUE (RH)

MEASUREMENT
VALUE (LH)

No push

Approximately
24.0 k

Ω

Open circuit

Upper

Approximately 6.8
k

Ω

Approximately 1.2
k

Ω

Center

Less than 2 ohms Approximately 470

k

Ω

Lower

Approximately
15.0 k

Ω

Approximately 3.3
k

Ω

AC207684AD

REMOTE CONTROLLED RADIO SWITCH (RH)

REMOTE CONTROLLED RADIO SWITCH (LH)

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-232

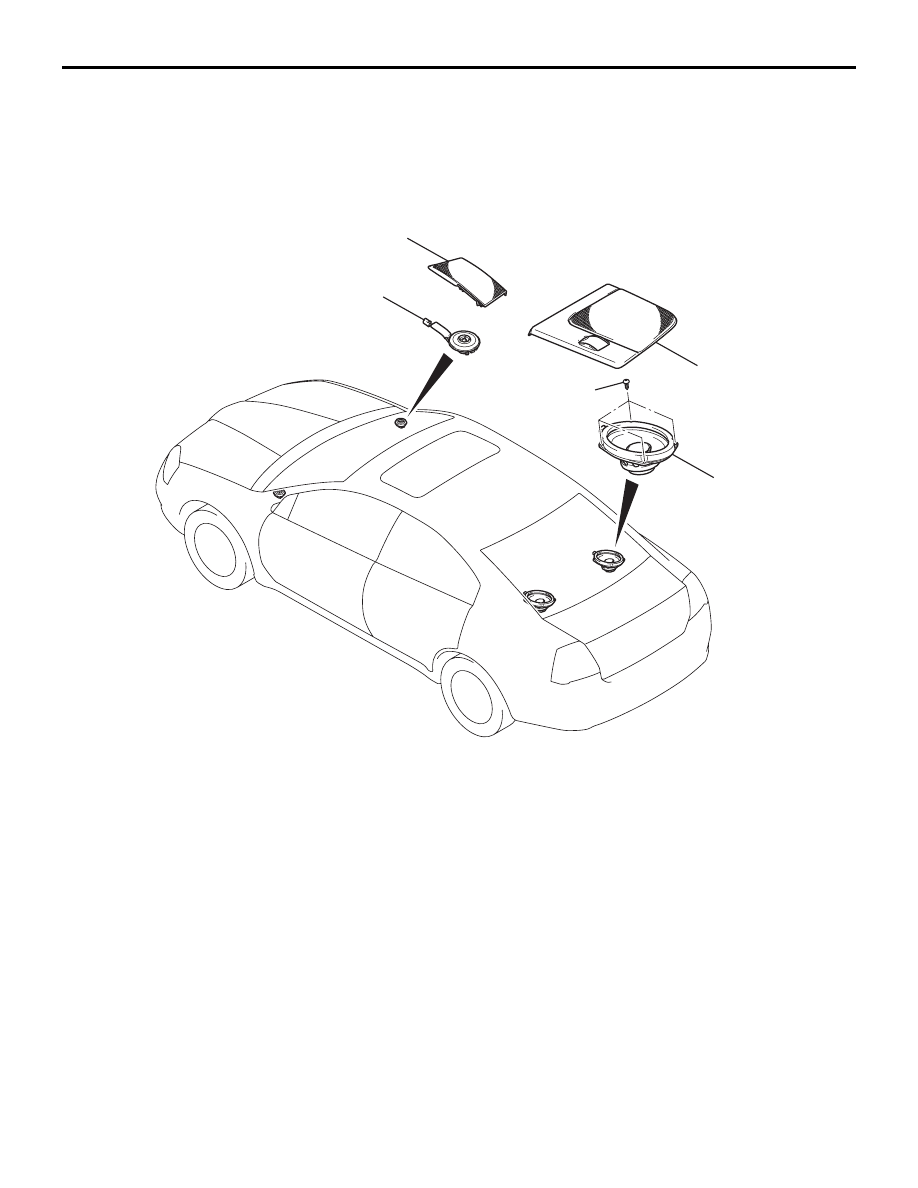

SPEAKER

REMOVAL AND INSTALLATION

M1544002600476

<TWEETER/REAR SPEAKER>

AC307015AC

1

2

4

3

1.5 ± 0.5 N·m
14 ± 4 in-Ib

TWEETER REMOVAL STEPS

•

FRONT DOOR OPENING TRIM,
FRONT PILLAR TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-11

.)

1.

FRONT SPEAKER GARNISH

2.

TWEETER

REAR SPEAKER REMOVAL STEPS

3.

REAR SHELF SPEAKER GARNISH
(REFER TO GROUP 52A, TRIMS

P.52A-11

.)

4.

REAR SPEAKER

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-233

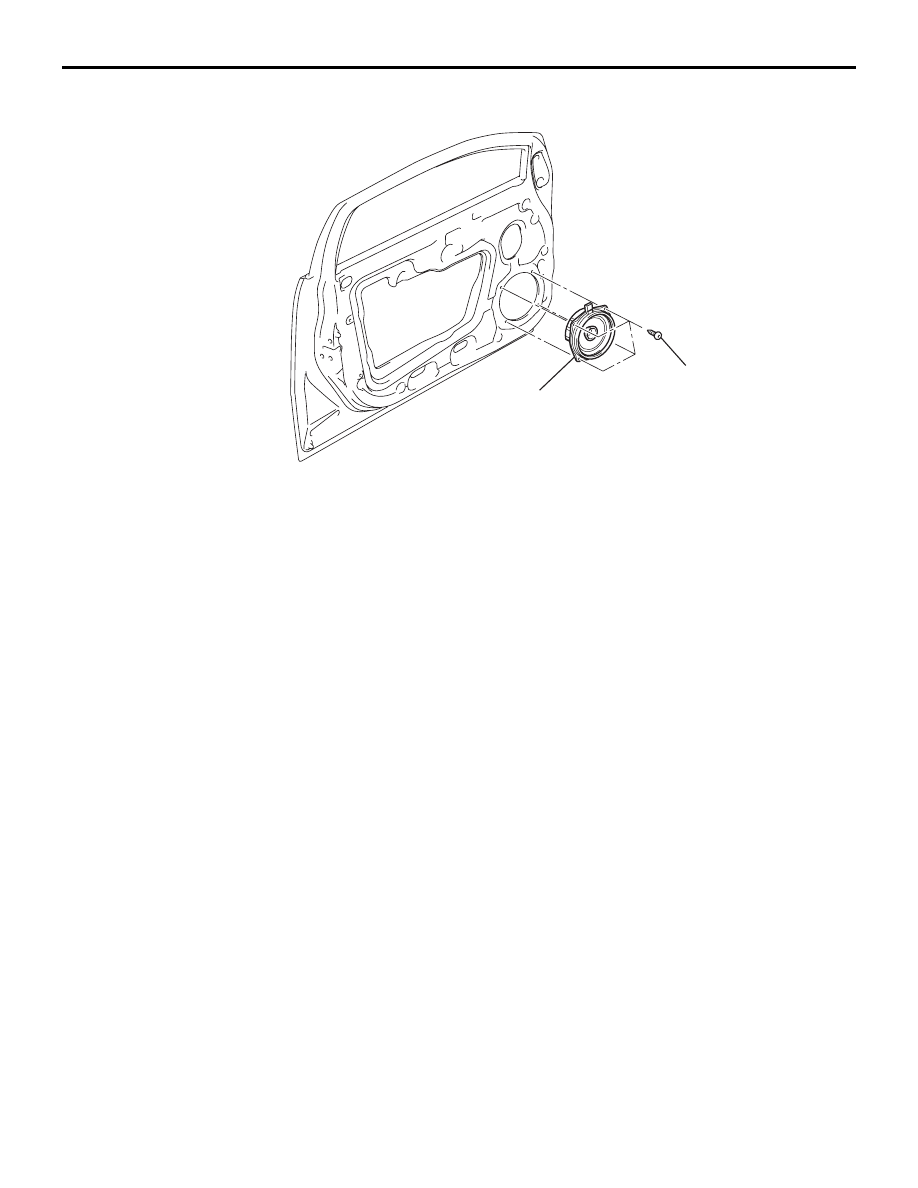

<FRONT DOOR SPEAKER>

AC307181AB

1

1.5 ± 0.5 N·m
14 ± 4 in-Ib

FRONT DOOR SPEAKER REMOVAL
STEPS

•

FRONT DOOR TRIM ASSEMBLY
(REFER TO GROUP 52A, DOOR TRIM

P.52A-14

.)

1.

FRONT DOOR SPEAKER
