Mitsubishi 380. Manual - part 923





RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-226

INSPECTION PROCEDURE 25: CD cannot be Ejected.

DIAGNOSIS

Check the power of ignition switch "ACC".

Q: Does the radio and CD player or radio, CD player and

CD changer power turn ON when the ignition switch is
in the "ACC" or "ON" position?
YES :
Either replace the radio and CD player or radio, CD

player and CD changer. Check that a CD can be
ejected normally.

NO :  Check the memory backup power supply circuit.

Refer to Inspection Procedure 1

P.54A-178

.

ON-VEHICLE SERVICE

SPEAKER TEST [Vehicles only with multi-centre
display- (type 2)]

M1544005400318

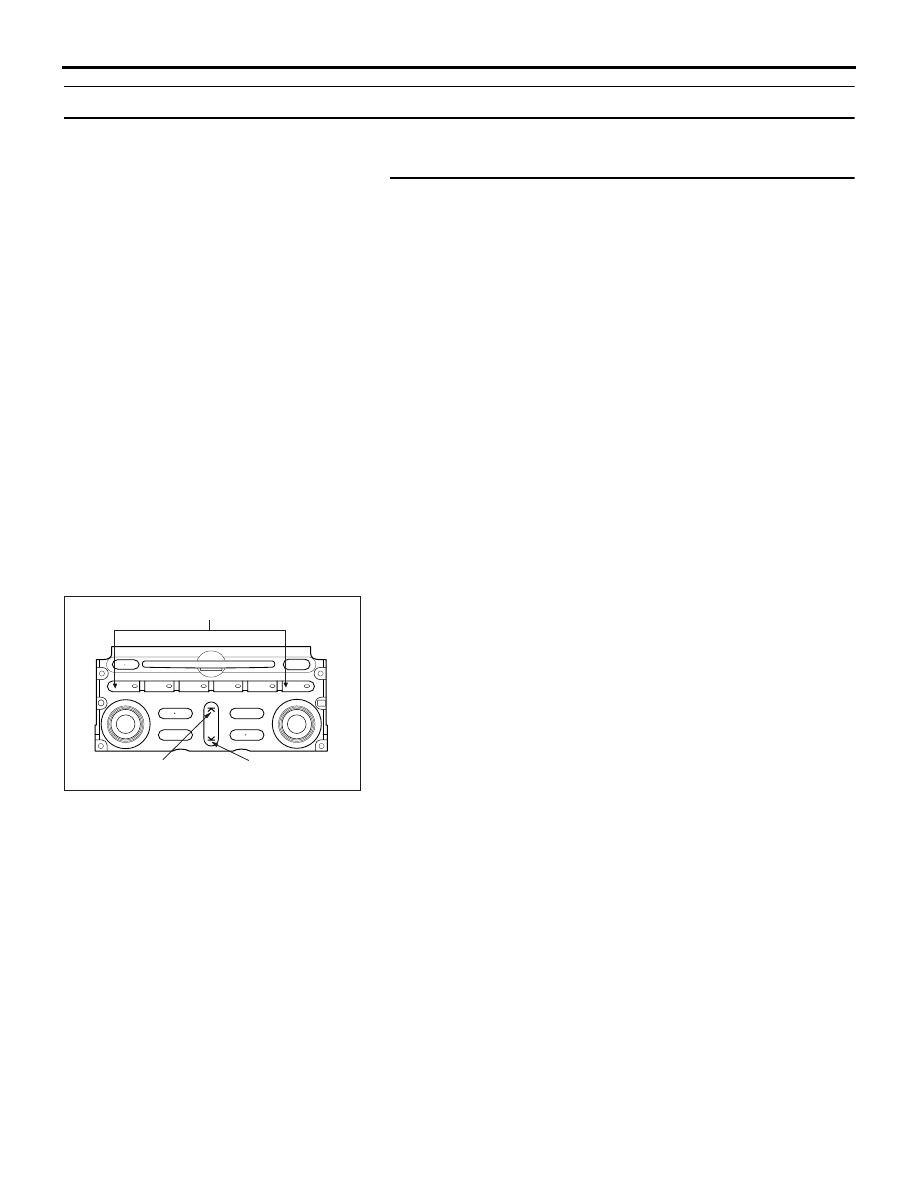

Operate the radio panel switches to test the speakers. The
multi-centre display shows which speaker is sounding. Enter
the speaker test mode according to the following steps:
1. Turn the ignition switch to "ACC" position and switch off the

audio.

2. Press the following buttons in that order within 60 seconds

from step (1).

(1) Memory select "1" button
(2) "SEEK" switch (down side)
(3) "SEEK" switch (up side)
(4) Memory select "6" button

3. Check that the speaker, which is displayed on the

multi-centre display, sounds (If the memory select "6" button
is pressed, the speaker will be changed).

4. If a button other than the memory select "6" button and

"EJECT" button (CD) is pressed, or the ignition switch is
turned to "LOCK" (OFF) position, you will exit from the
speaker test mode.

6

READY

SCAN

RPT  RDM

C D

SEEK

TRACK

LOAD  EJECT

5

4

3

2

1

FM  AM

VO

L /

PUSH

PWR

TU

NE

/

PUSH

AUD

IO

AC208556

MEMORY SELECT BUTTON (1. 6)

SEEK (DOWN)

SWITCH

AB

SEEK (UP)

SWITCH

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-227

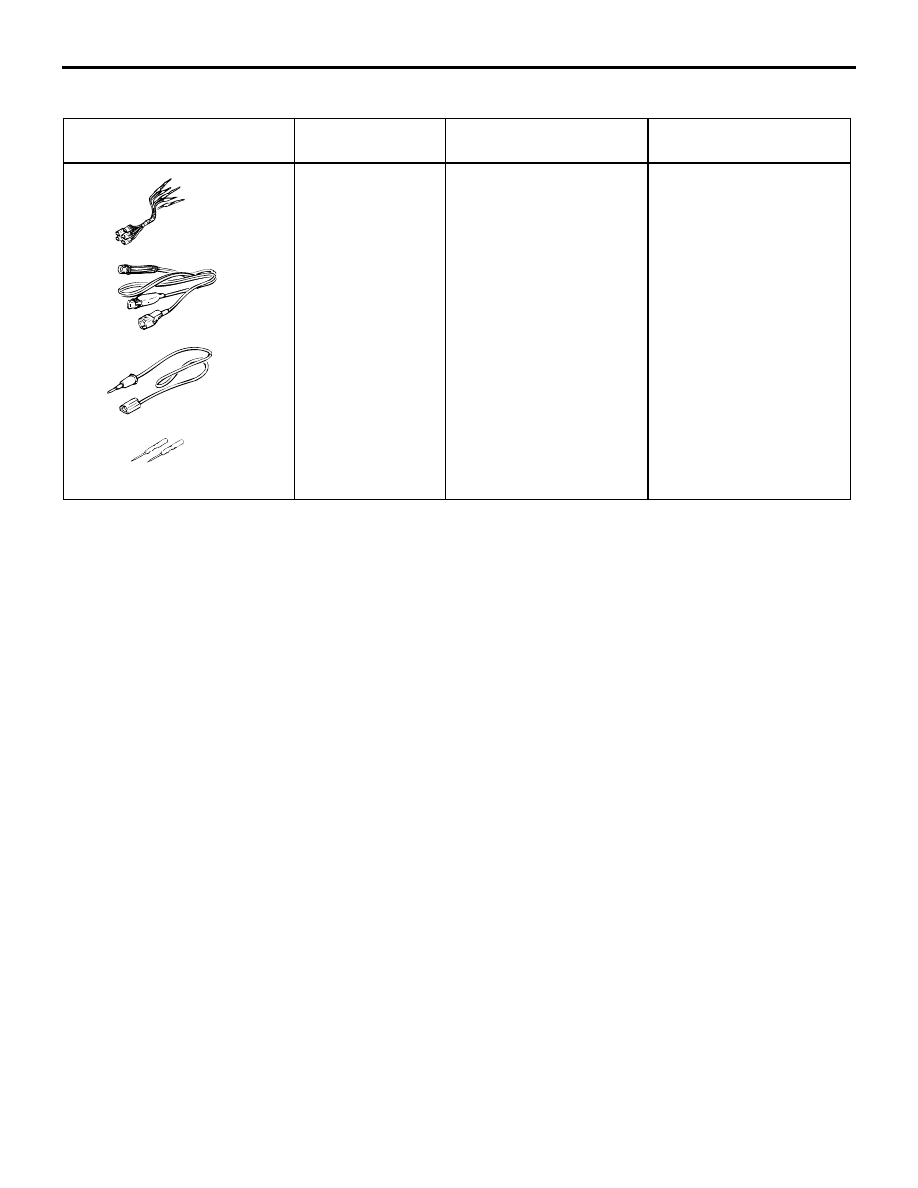

SPECIAL TOOL

M1544000600395

TOOL

TOOL NUMBER
AND NAME

REPLACED BY MILLER
TOOL NUMBER

APPLICATION

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

General service tool
(jumper)

Making voltage and
resistance measurements
during troubleshooting

A: Connect pin contact

pressure inspection

B: Power circuit

inspection

C: Power circuit

inspection

D: Commercial tester

connection

MB991223

A

B

C

D

AC

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-228

RADIO WITH CD PLAYER

REMOVAL AND INSTALLATION

M1544010900029

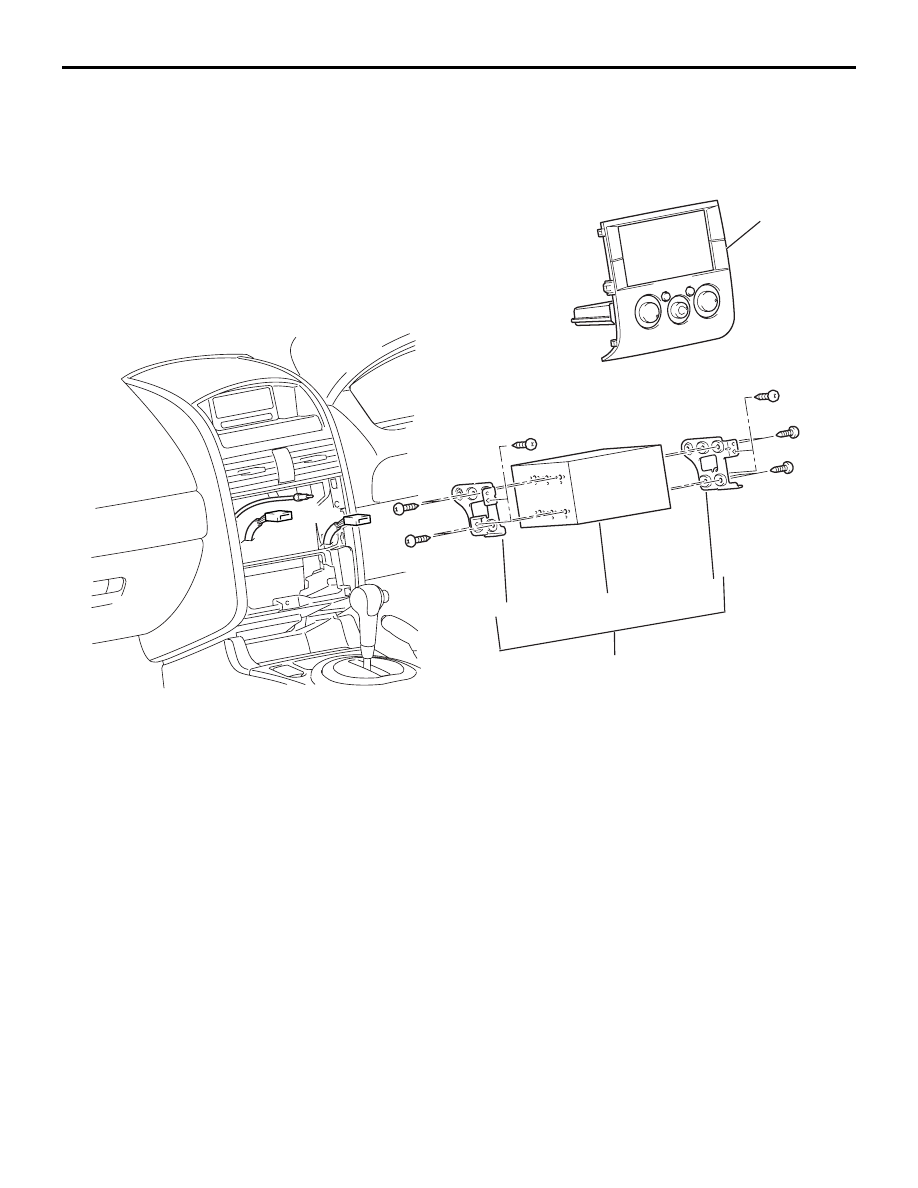

<RADIO AND CD PLAYER (Type 1)>

16DB544A

1

4

4

3

2

RADIO REMOVAL STEPS

1.

INSTURMENT CENTER PANEL
ASSEMBLY (REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

.)

2.

RADIO AND CD PLAYER ASSEMBLY

3.

RADIO AND CD PLAYER

4.

AUDIO EQUIP BRACKET

RADIO REMOVAL STEPS (Continued)

RADIO WITH CD PLAYER

CHASSIS ELECTRICAL

54A-229

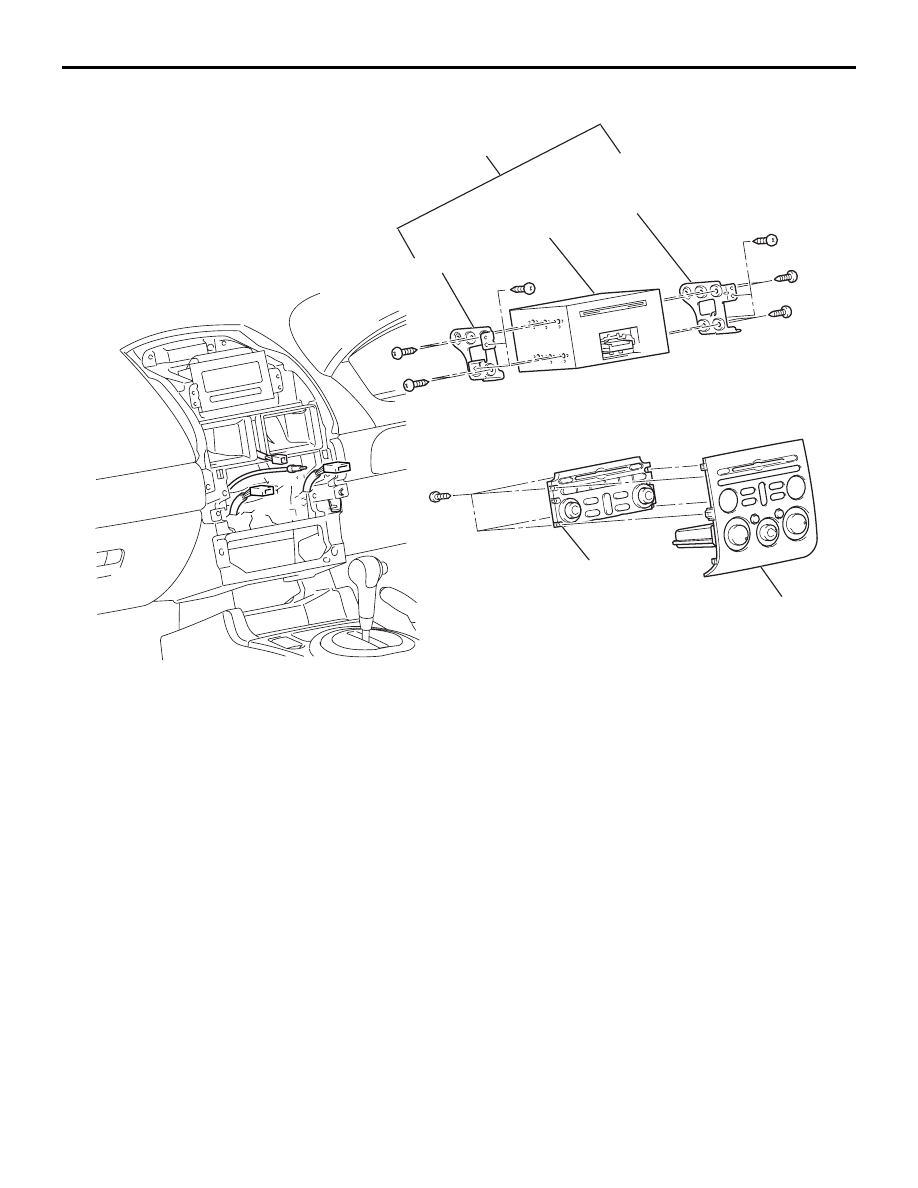

<RADIO, CD PLAYER AND CD CHANGER (Type 2)>

16DB545A

5

4

5

3

1

2

RADIO REMOVAL STEPS

1.

INSTURMENT CENTER PANEL
ASSEMBLY (REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

.)

2.

RADIO PANEL

3.

RADIO, CD PLAYER AND CD
CHANGER ASSEMBLY

4.

RADIO, CD PLAYER AND CD
CHANGER

5.

AUDIO EQUIP BRACKET

RADIO REMOVAL STEPS (Continued)
